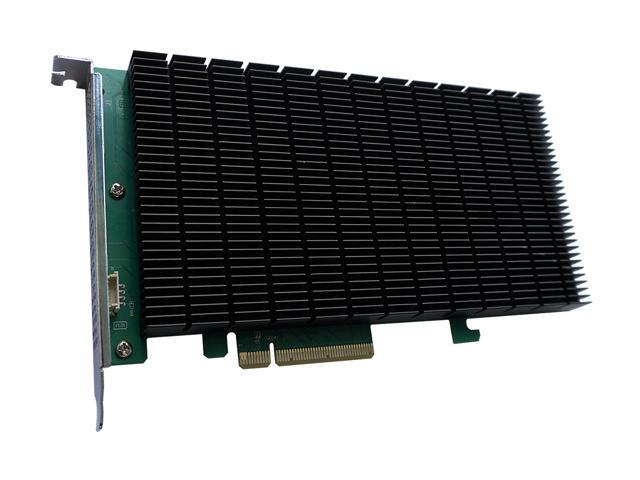

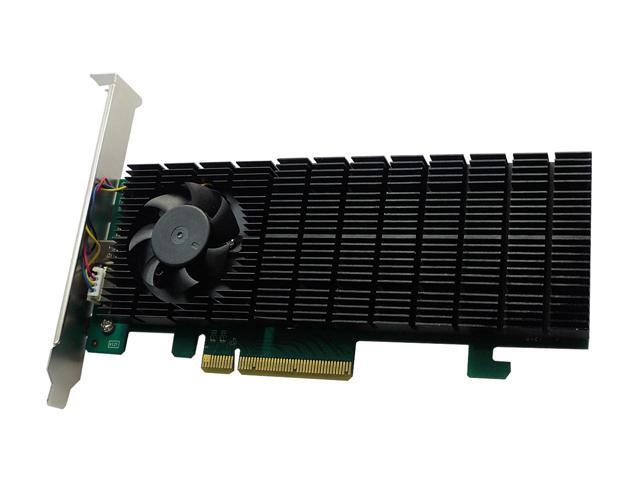

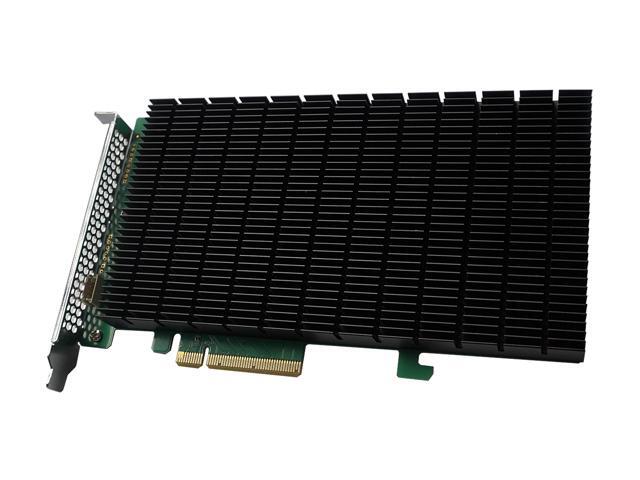

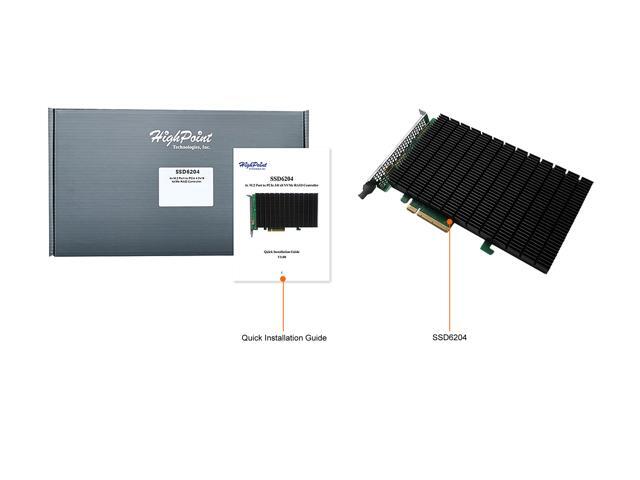

HighPoint SSD6204 PCI-Express 3.0 x8 PCI-Express Driverless, Bootable 4x M.2 PCIe Gen3 x8 NVMe RAID Controller

In stock.
Ships from United States.
  • 4 M.2 Ports
  • Driverless NVMe RAID Solution
  • UEFI, CLI & WebGUI RAID Configuration & Management
  • Wide Spectrum of Boot OS Support
  • Rebranding MP-Tool WebGUI (available for System Integrators)
Specs
Reviews

Learn more about the HighPoint Technologies, Inc. SSD6204

Best Seller Ranking #42 in Controllers / RAID Cards
Model
Brand HighPoint
Model SSD6204
Details
Type PCI-Express
Internal Connectors 4 x M.2
Interface PCI-Express 3.0 x8
Transfer Rate 8GT / 8Gbps per lane
RAID Single, RAID 0, 1
Dimensions 7.68" x 4.38" x 0.73"
Operating Systems Supported Windows 10/Server 2016/Server 2019, Linux (Kernel v3.10 and later), Microsoft Hyper-V, VMware, Proxmox
Features
Features NVMe Configuration:
RAID Support: Single, RAID 0, 1
TRIM RAID Support: Single, RAID 0, 1

Management Suites:
CLI (Command Line Interface)
WebGUI (Graphical, web-based management interface)
UEFI Package
MP-Tool RAID Management (only available by project request)

Operating Environment:
Work Temp: +5°C ~ + 55°C
Storage Temp: -20°C ~ +80°C
Operating Voltage: PCI-e: 12V, 3.3V
Power
Typical: 3.4W
MTBF (Mean Time Before Failure): 920,585 Hours
Certification / Approval: CE, FCC, RoHS, REACH, WEEE
Additional Information
Date First Available March 03, 2021
