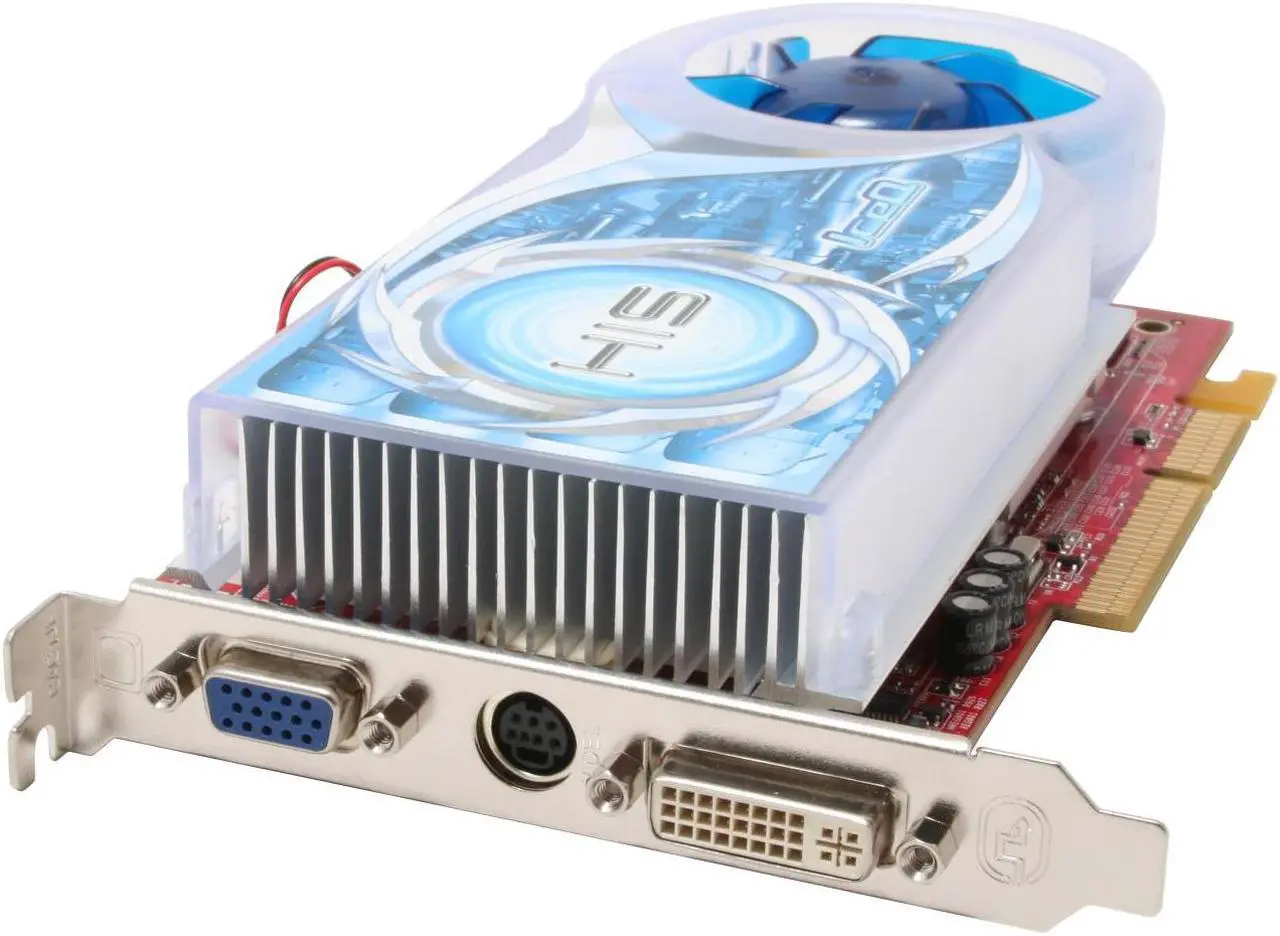

Breathe some life into your AGP system with this Radeon X1650PRO based card from HIS. The GPU speeds along at 600MHz for fast game play. The memory clock on the 512MB of GDDR2 runs at a fast 800MHz with a wide 128-bit data path for minimal bottlenecks.
The IceQ cooling technology pulls air from inside the case and blows it over the GPU and memory and then outside the case for an 11°C drop in temperature. The ice blue LEDs and UV sensitive housing add a custom look to your PC. Either way, your card will last longer.
Breathe some life into your AGP system with this Radeon X1650PRO based card from HIS. The GPU speeds along at 600MHz for fast game play. The memory clock on the 512MB of GDDR2 runs at a fast 800MHz with a wide 128-bit data path for minimal bottlenecks.
The IceQ cooling technology pulls air from inside the case and blows it over the GPU and memory and then outside the case for an 11°C drop in temperature. The ice blue LEDs and UV sensitive housing add a custom look to your PC. Either way, your card will last longer.
AGP 4X / 8X InterfaceThe HIS H165PRQ512AN-R features an AGP 4X / 8X interface so you can upgrade your existing platform with boosted graphics performance for mainstream gaming.

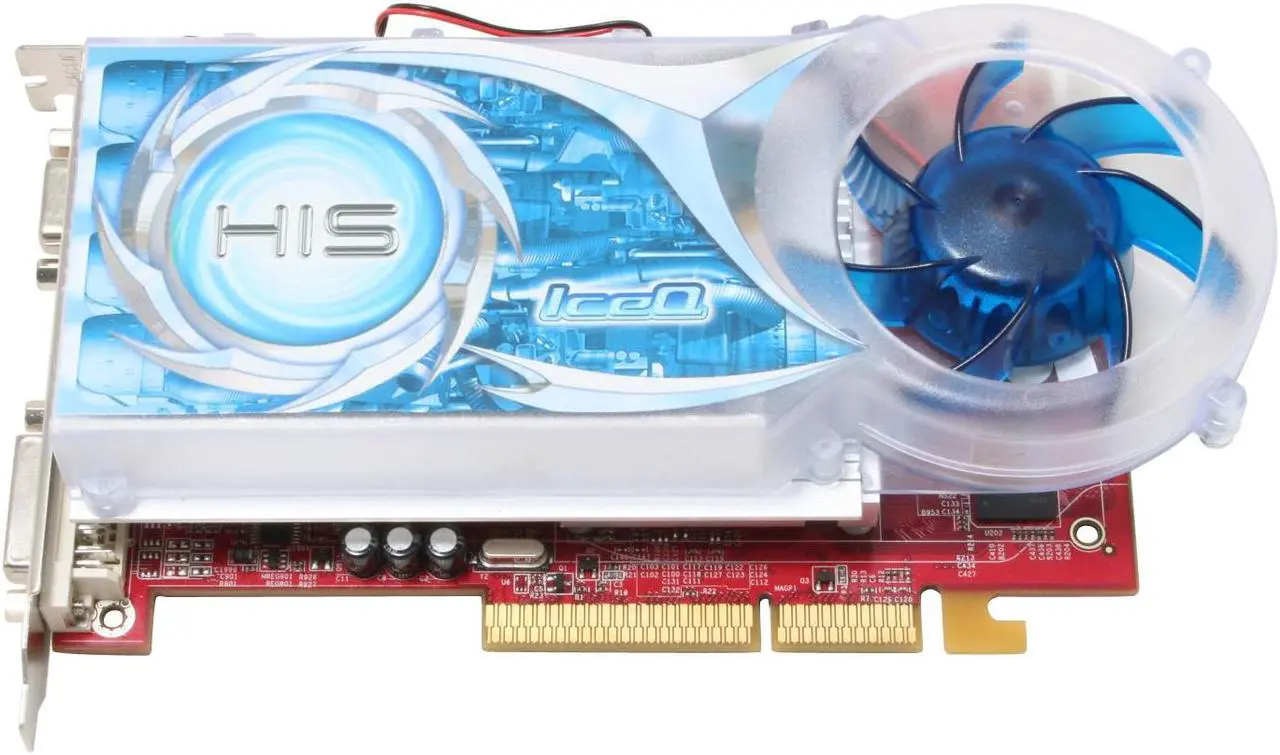

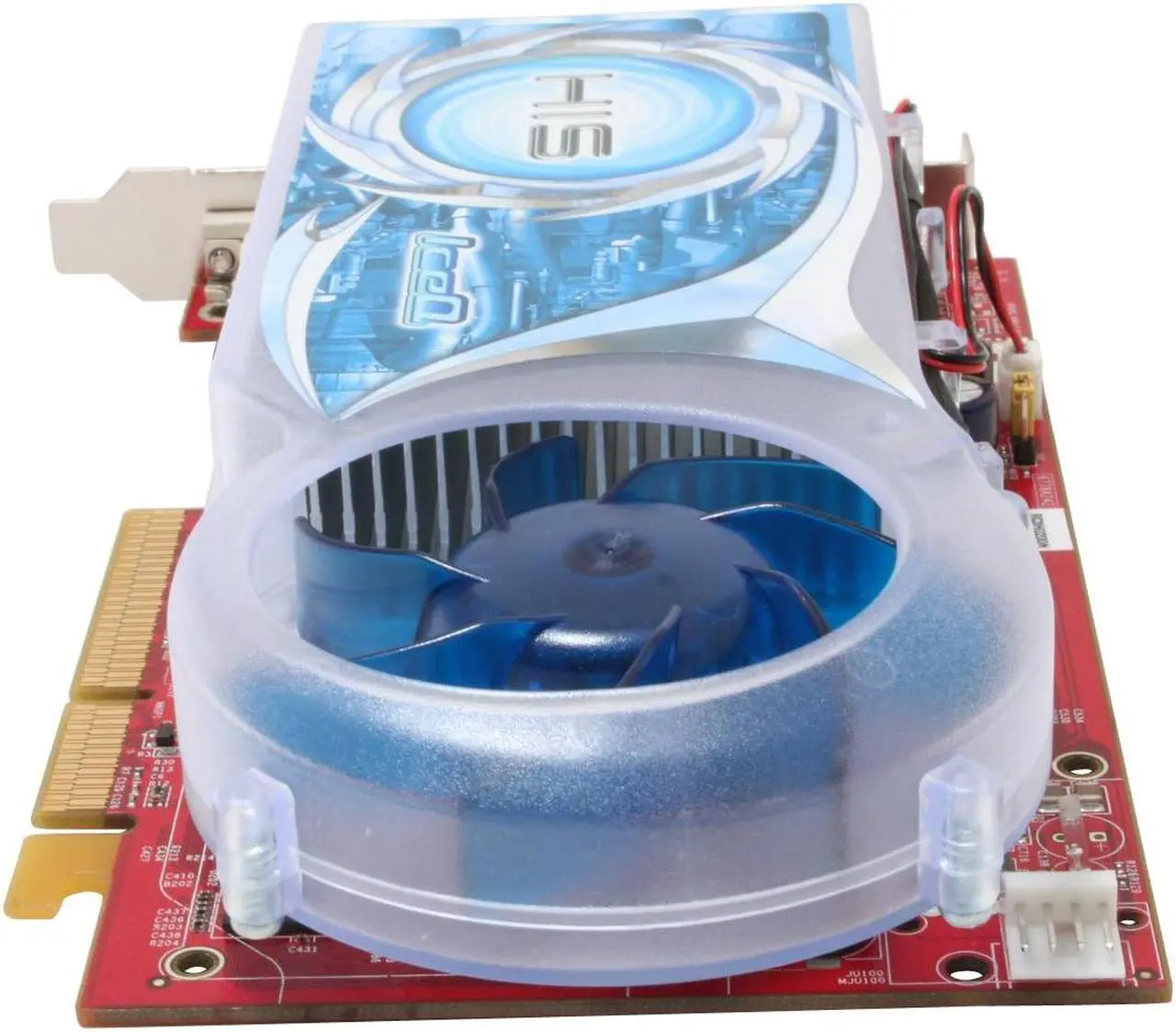

IceQ Cooling technologyThe IceQ cooling system provides maximum cooling power at a significantly-reduced noise level to keep your video card running cool even during intensive gaming sessions.
Ultra-threaded Shader EngineThe Radeon X1650PRO ultra-threaded engine features 12 individual pixel shader processors to support up to 128 simultaneous pixel threads. It is fully hardware compliant with Microsoft DirectX 9.0 Shader Model 3.0 programmable vertex and pixel shaders, so you can experience HDR and advanced anti-aliasing effects for incredible enhancements to lighting contour and color detail.
ATI AvivoATI Avivo sets the bar for advanced imaging and video quality. Integrated into ATI's latest generation of graphics products, ATI Avivo delivers HDTV and next-generation HD disc capabilities with vibrant, sharp images, and the smoothest video playback ever offered by ATI. ATI Avivo also enables universal, professional-quality connectivity for TVs and displays, ensuring the ultimate digital entertainment experience on your PC.
ATI CrossFireATI’s CrossFire multi-GPU gaming platform propels your PC to a new pinnacle of performance. Developed from the same technology used with ATI-based commercial flight simulators, ATI CrossFire soars into a new dimension of graphics capability with multiple graphics processing units (GPUs) working together in your PC.
Windows Vista ReadyATI is working in partnership with Microsoft to unlock the potential of the new Windows Aero 3D desktop using ATI’s high performance graphics processors, including the Radeon X1650PRO. Don't let graphics be a barrier to a premium experience - upgrade to ATI. Windows Vista, powered by ATI, is a new visual dimension for business and personal computing.
Learn more about the Hightech Information System Ltd. H165PRQ512AN-R
Model
Brand
HIS
Model
H165PRQ512AN-R
Interface
Interface
AGP 4X/8X
Chipset
Chipset Manufacturer
AMD
GPU
Radeon X1650PRO
Core Clock
600 MHz
PixelPipelines
12
Memory
Effective Memory Clock
800 MHz
Memory Size
512MB
Memory Interface
128-Bit
Memory Type
GDDR2
3D API
DirectX
DirectX 9
OpenGL
OpenGL 2.0
Ports
D-SUB
1 x D-SUB
DVI
1 x DVI
TV-Out
HDTV / S-Video / Composite Out
Details
RAMDAC
400MHz
Max Resolution
2560 x 1600
RoHS Compliant
Yes
CrossFireX Support
No
Cooler
With Fan
Dual-Link DVI Supported
Yes
Features
Features
IceQ cooling technology RV530 90nm process Dynamic Flow Control High Dynamic Range rendering Full (HQ) Anisotropic Filtering ATI Avivo
Packaging
Package Contents

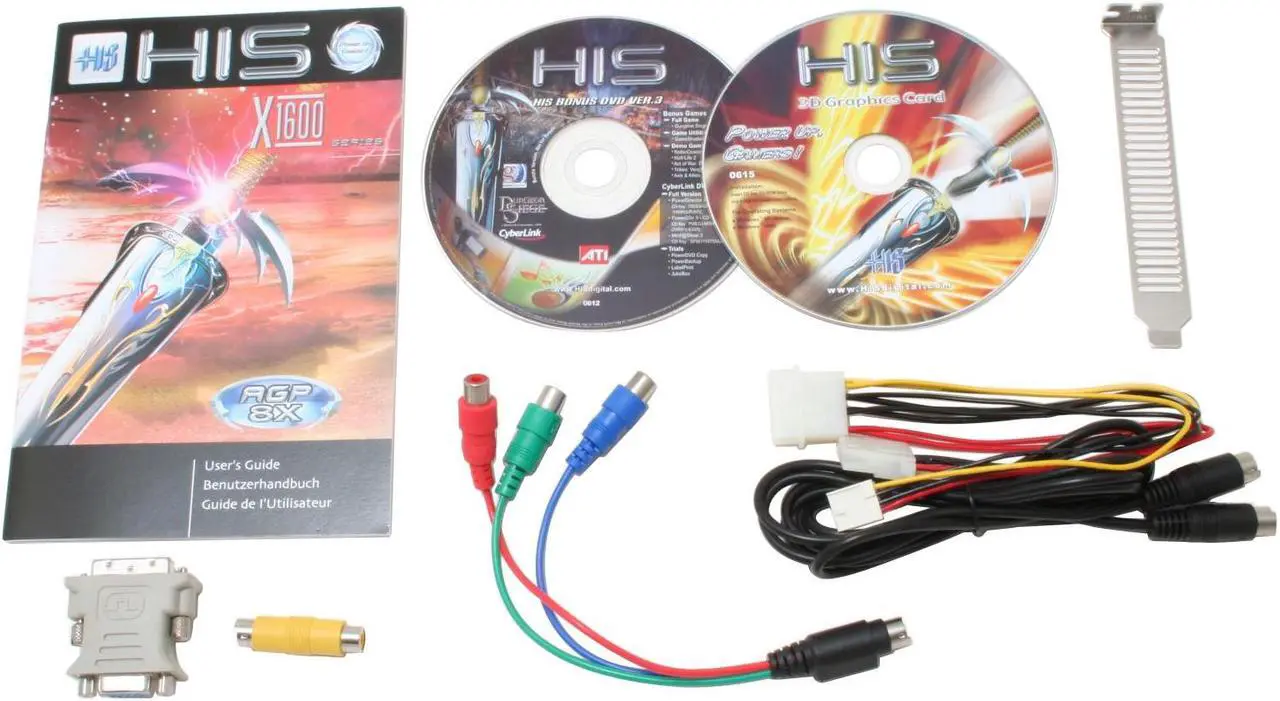

H165PRQ512AN-R Driver Disk User Manual S-Video Cable Power Cable HDTV Cable DVI to VGA/D-sub Adapter S-Video to Composite Adapter Ventilation Bracket
Additional Information
Date First Available
September 28, 2006
