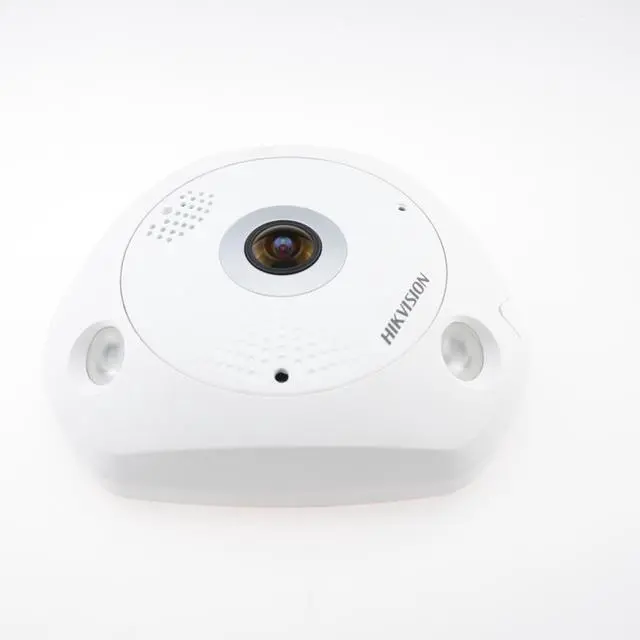

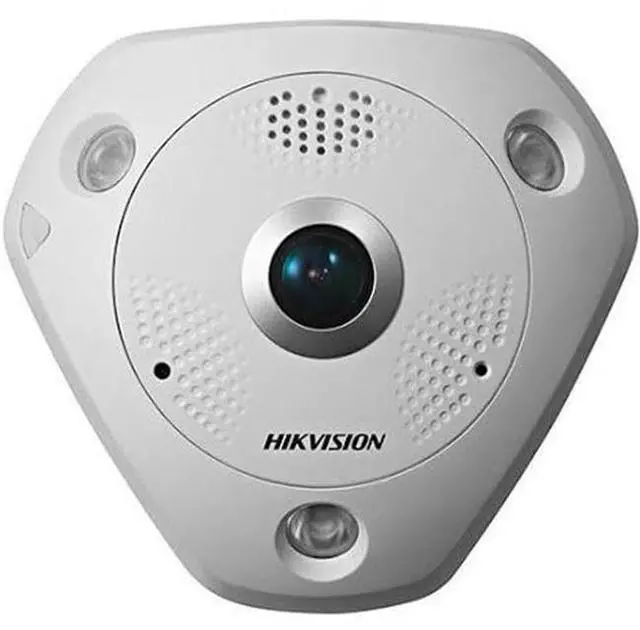

Hikvision 6MP Fish-Eye IP Camera DS-2CD6362F-IVS CCTV POE IR Outdoor Camera With Built in Mic&Speaker 360 PTZ View Vandal-proof

Please note that: 1 The Week in the camera is in Chinese. 2 It support free update in HIkvision Chinese official website. 3. Virtual PTZ (can't use PTZ function in NVR) HIK 6MP PTZ IP Camera DS-2CD6362F-IVS Fisheye Camera with I/O Interface Microphone and Speaker Vandal-proof PTZ Security Camera Features * 1/ 1.8" progressive scan CMOS * 6 mega-pixel image sensor * Up to 3072 x 2048 resolution, 30fps * 360° panoramic view * Multiple viewing modes * Virtual PTZ * Up to 15m IR range * Bulit-in microphone and speaker * Audio/Alarm I/O / RS485 * IP66 * IK10 vandal proof Update Freely!
Specification: Camera
Image Sensor: | 1/ 1.8"
Progressive Scan CMOS Signal System: | PAL/NTSC Min.
Illumination: | 0.05 Lux @(F 1.2, AGC ON), 0.3L ux @ (F 2.0, AGC ON ), 0 lux with
IR Shutter time: | 1/25(1/30) s to 1/100, 000 s
Lens: | 1.27 mm, F 2.8
Angle of view: 180° (wall mount), 360° (ceiling mount)
Day& Night: | IR cut filter with auto switch Wide
Dynamic Range: |
Digital WDR Digital noise reduction: | 3D DNR Compression
Standard Video Compression: | H.
264/MJPEG Video bit rate: | 32Kbps~16Mbps
Audio Compression: | G. 711/G. 722.1 /G.
726/MP2L2 Dual Stream: | Yes Image Max.
Image Resolution: | 3072 x 2048
Frame Rate: |
Mode1 50Hz: 1×fisheye (1280×1280, 12.5 fps), 1×panoramic (2048×1536, 12.5 fps), 3×PTZ (1024×768, 12.5
fps) 60Hz: 1×fisheye (1280×1280, 15fps), 1×panoramic (2048×1536, 15fps), 3×PTZ (1024×768, 15fps)
Mode2 50Hz: 1×fisheye (3072×2048/2048×2048, 25fps) or 4×PTZ (1024×768, 25fps)
60Hz: 1×fisheye (3072×2048, 25fps/2048×2048, 30fps) or 4×PTZ (1024×768, 30fps)
Mode3 50Hz: 1×Fisheye(2048×2048, 12.5 fps; 1024×1024, 25fps) + 1×Fisheye(720×720, 12.5 fps) + 3×PTZ(1024×768, 12.5
fps) 60Hz: 1×Fisheye(2048×2048, 15fps; 1024×1024, 25fps) + 1×Fisheye(720×720, 15fps) +3×PTZ(1024×768, 15fps)
Mode4 50Hz: 1×Panorama(2048×1536 (ceiling or table) /1920×1080 (ceiling or table) /2048×1536 (wall mount) /2048×768 (wall mount), 25fps) + 1×Panorama(704×576, 25fps)
60Hz: 1×Panorama(2048×1536 (ceiling or table) /1920×1080 (ceiling or table) / 2048×1536 (wall mount) /2048×768 (wall mount), 30fps) + 1×Panorama(704×576, 30fps)
Image Settings: | Saturation, brightness, contrast adjustable through client software or web browser
ROI: |
Support Network Network Storage: | NAS (Support NFS, SMB/CIFS)
Alarm Trigger: | Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict,
Storage exception Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Security: | User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask
System Compatibility: | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Interface Audio: | Internal Microphone and
Speaker Communication Interface: | 1 RJ45 10M / 100M Ethernet interface
On-board storage: | Built-in Micro SD/SDHC/SDXC card slot, up to 64
GB Reset Button: |
Yes General Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing)
Power Supply: | 12 VDC ± 10%, PoE ( 802.3 af)
Power Consumption: | Max.
12 W Impact Protection: | IEC60068-2-75Eh, 50J; EN50102, IK10
Weather Proof: | IP66
IR Range: | 15 meters
Dimensions: | 164x 152.8 x 43.8 mm( 6.46 ”x 6.02 ”x 1.72 ”)
Weight: | 1400g NOTE | * "-S" series support 1-ch audio I/O, 1-ch alarm I/O and 1-ch RS-485 interface
