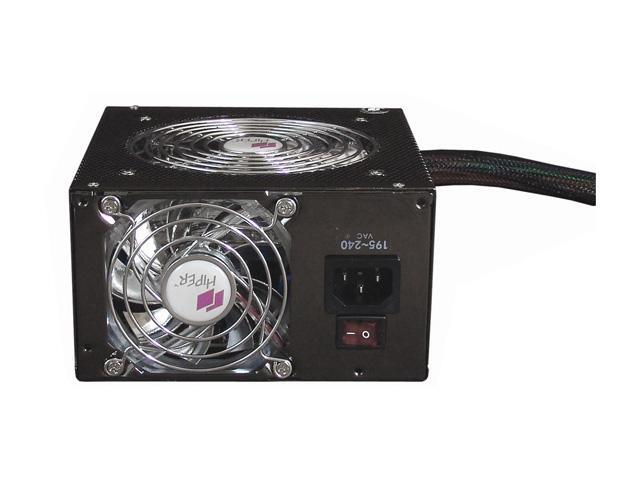

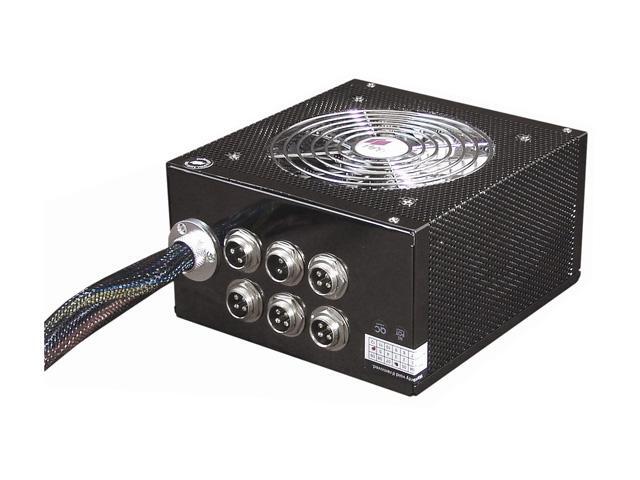

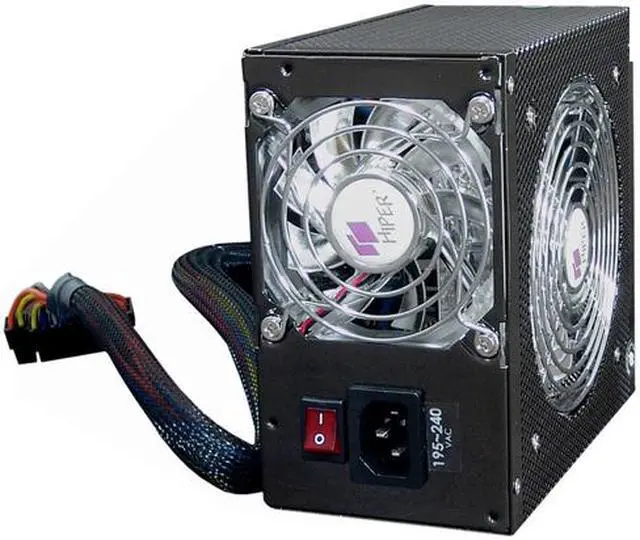

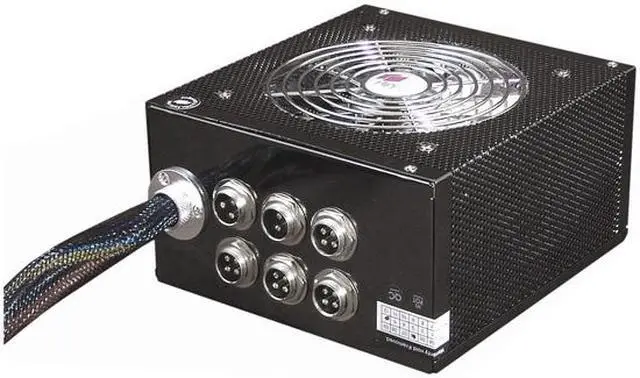

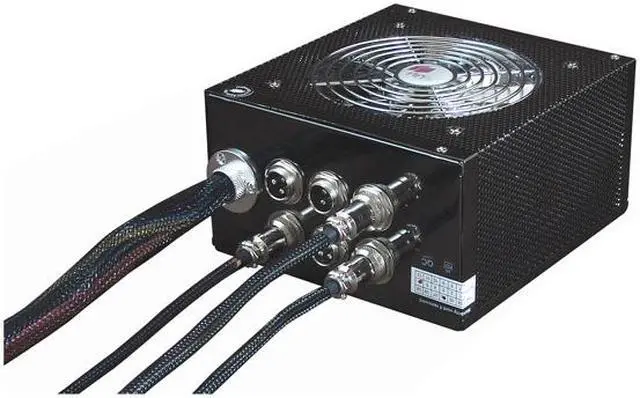

HIPER HPU-4K580-MS 580W ATX12V v2.2 SLI Certified CrossFire Ready Modular Power Supply
OUT OF STOCK.
- ATX12V v2.2
- Modular
- 100 - 120V 47 - 63 Hz
- +3.3V@30A,+5V@36A,+12V1@20A,+12V2@18A,-12V@0.8A,+5VSB@2.5A
Specs
Reviews
Learn more about the HIPER HPU-4K580-MS
Brand | HIPER |
---|---|
Model | HPU-4K580-MS |
Type | ATX12V v2.2 |
---|---|
Maximum Power | 580W |

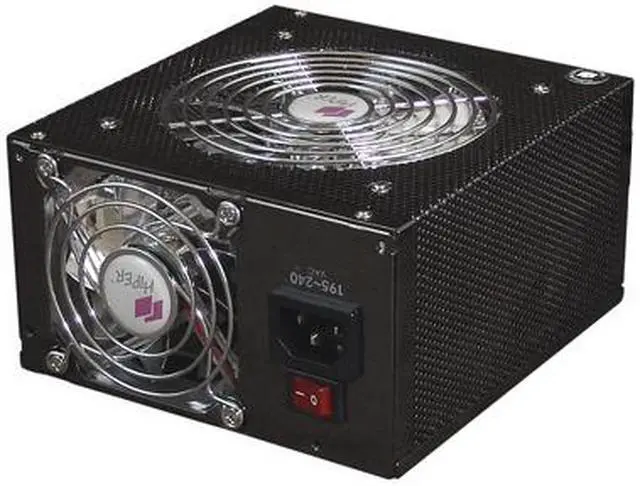

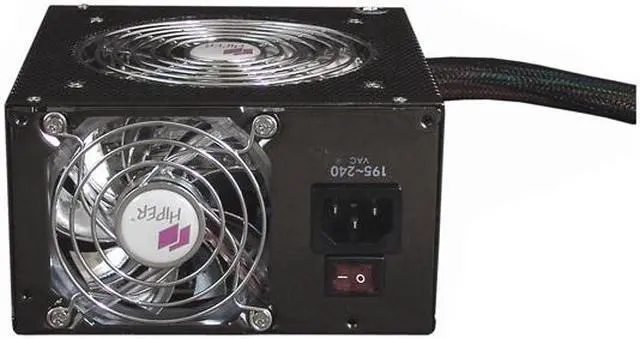

Fans | 1 x 120mm Fan ; 1 x 80mm Fan |
PFC | No |

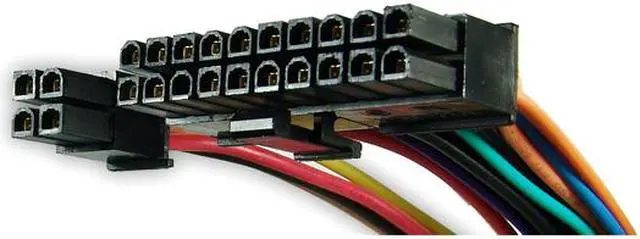

Main Connector | 20+4Pin |
+12V Rails | 2 |

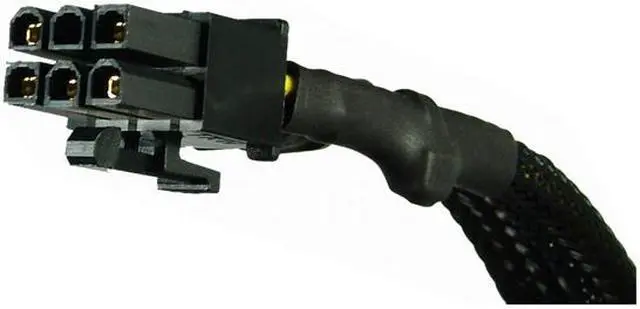

PCI-Express Connector | 2 x 6-Pin |
SLI | SLI Certified |
CrossFire | CrossFire Ready |

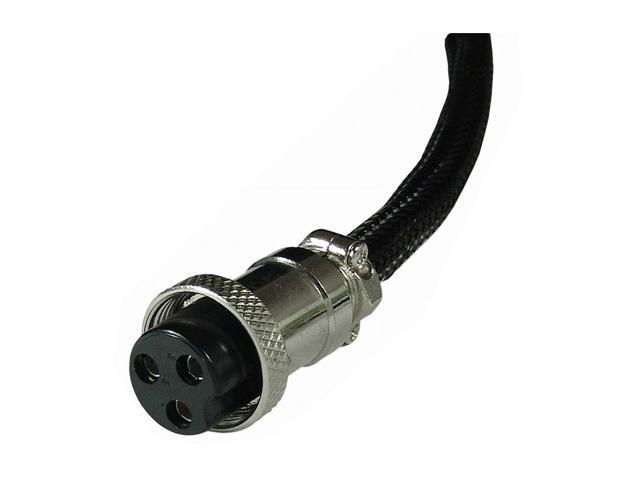

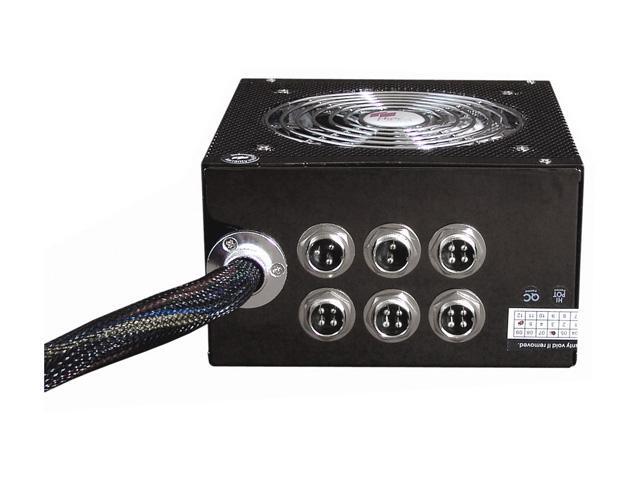

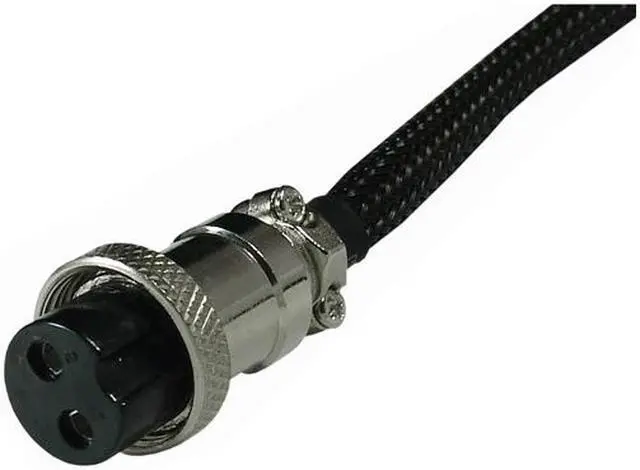

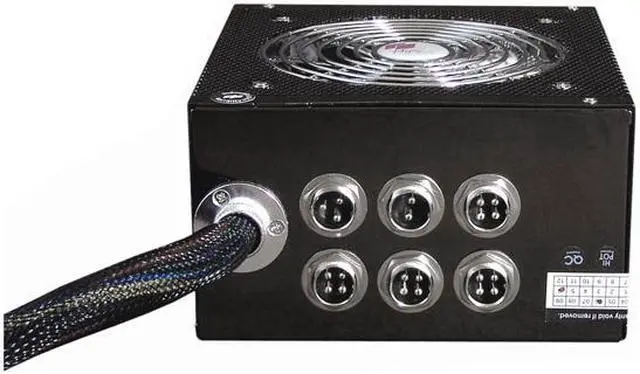

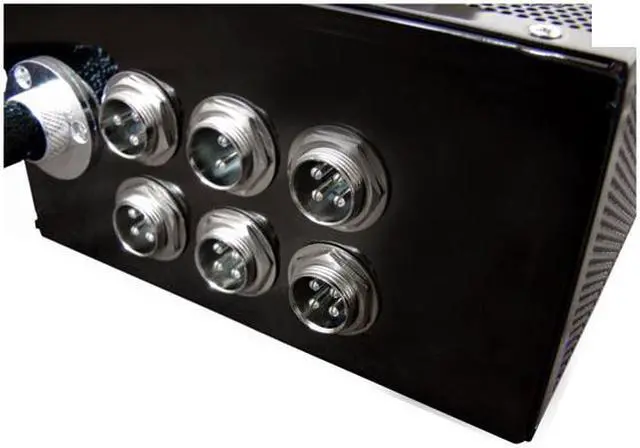

Modular | Modular |
Power Good Signal | 100-500ms |
Hold-up Time | 16ms min. |
Over Voltage Protection | +3.3V < 4.5V +5V < 6.8V +12V < 15.6V |
Input Voltage | 100 - 120V |
Input Frequency Range | 47 - 63 Hz |
Input Current | 10 A |
Output | +3.3V@30A,+5V@36A,+12V1@20A,+12V2@18A,-12V@0.8A,+5VSB@2.5A |

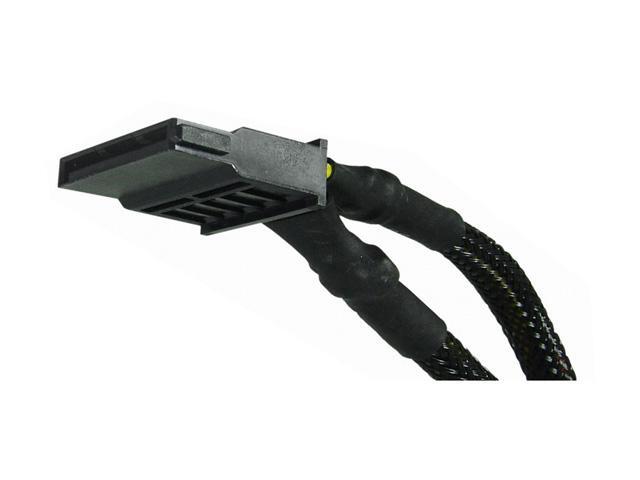

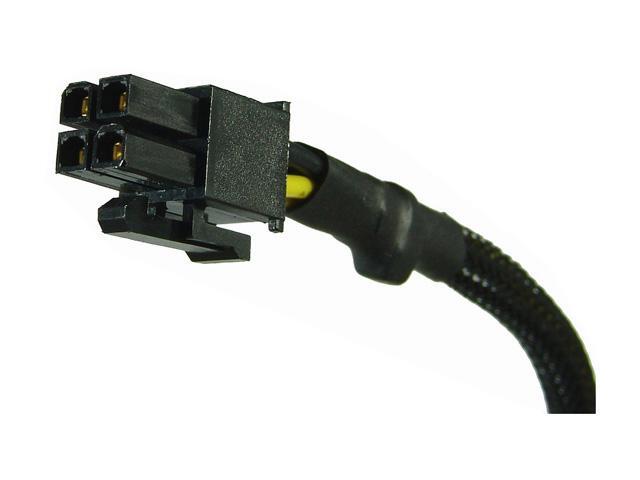

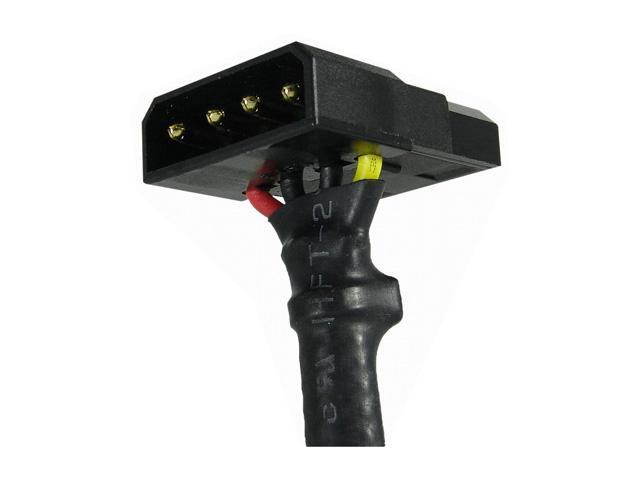

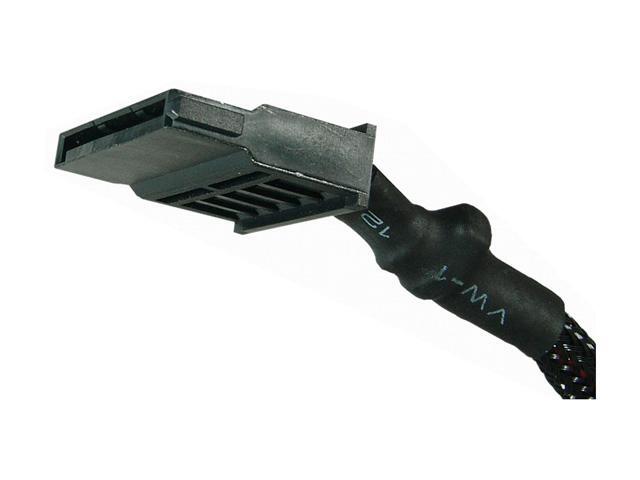

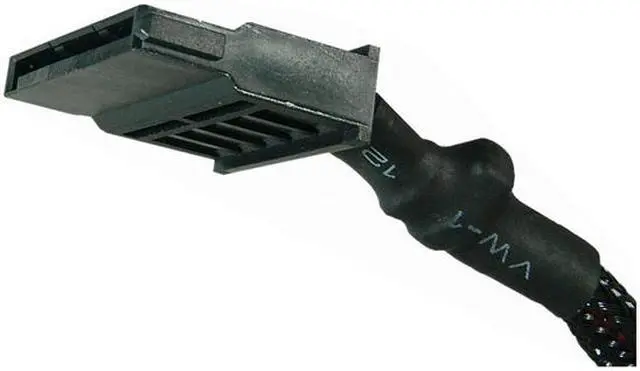

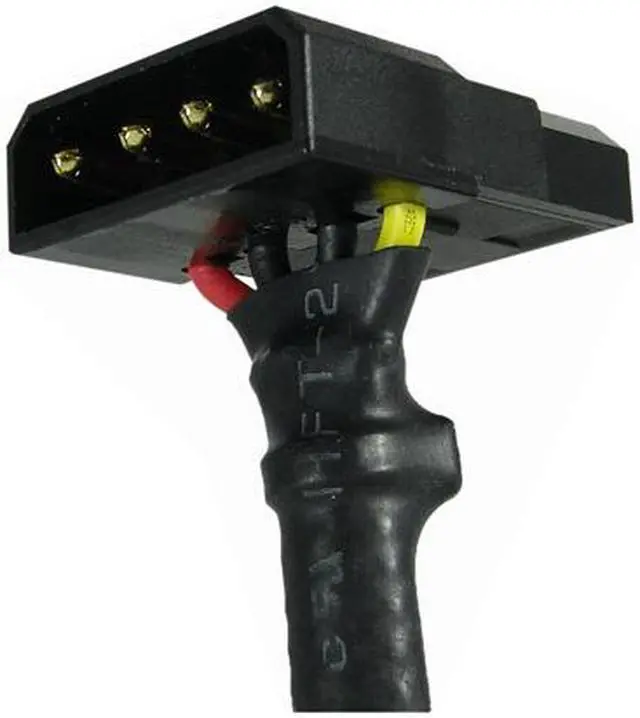

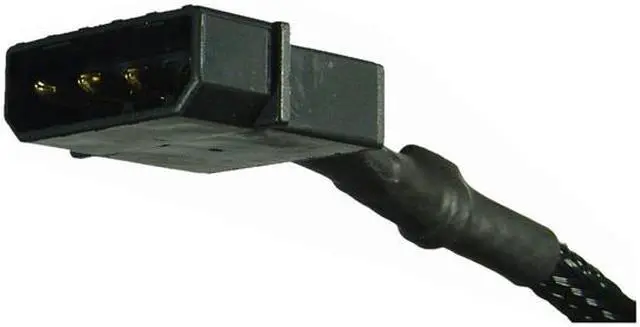

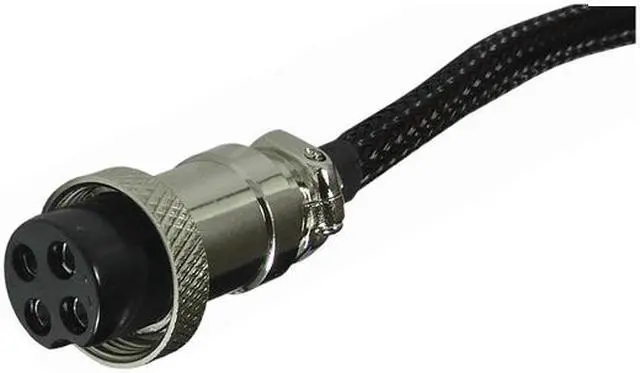

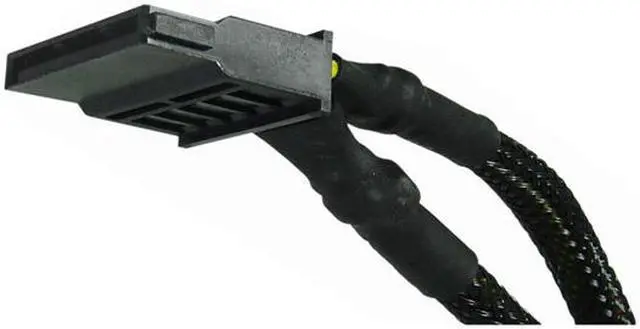

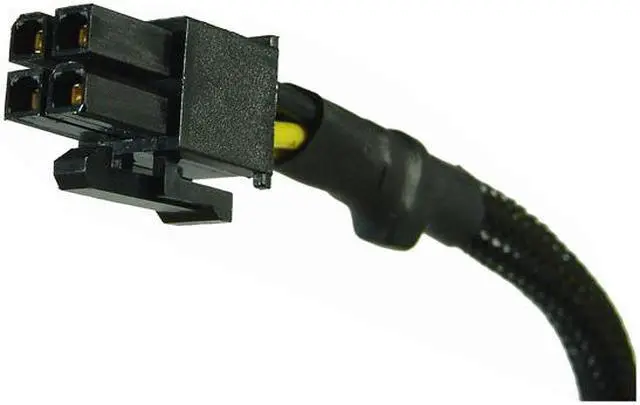

Connectors | 1 x Main connector (20+4 pin) 1 x 12V (P4) 8 x peripheral 4 x SATA 1 x Floppy 2 x PCI-E |
---|---|

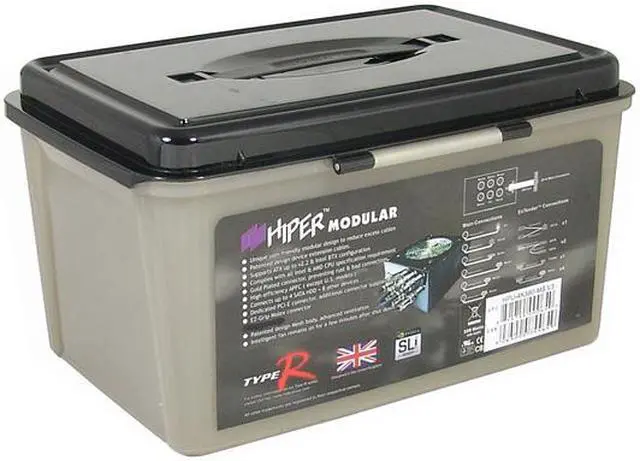

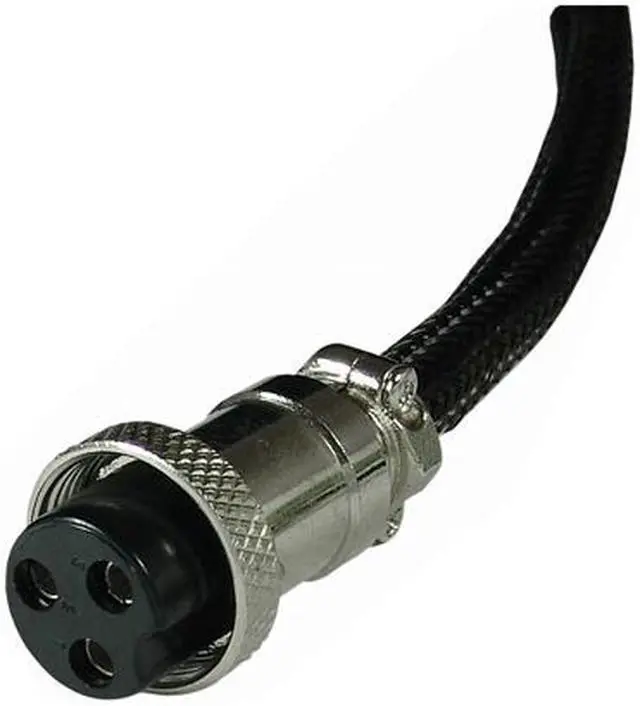

Features | SLI-Ready Crossfire-certified Omnigrid system & Extender Mesh body construction allows immediate heat dissipation and extends the life of the unit Unique user friendly modular design to reduce excess cables Complies with latest ATX12V v2.2. Gold plated connectors for minimum power loss and optimal conductivity PCI-E, SATA, Molex with EZ-Grip, floppy & P4 connector Free utility box Black Braiding & Black Connector |
Date First Available | May 17, 2006 |
---|
Warranty & Returns
Warranty, Returns, And Additional Information
Return Policies
- Return for refund within: Non-refundable
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Replacement Only Return Policy
Manufacturer Contact Info
- Manufacturer Product Page
- Support Phone: 852 26702981
- Support Email: info@hipergroup.com
- Support Website
- View other products from HIPER
LOADING...
LOADING...
Pros: Modular connectors are nice to have. It worked for a bit more than a year.
Cons: I bought two of these for two new computers in the summer of 2006. A month ago the first one failed. Then last week the second one failed. Looking on the internet I now see this is common with these units. I've since emailed and called the US branch but they're not responding.
