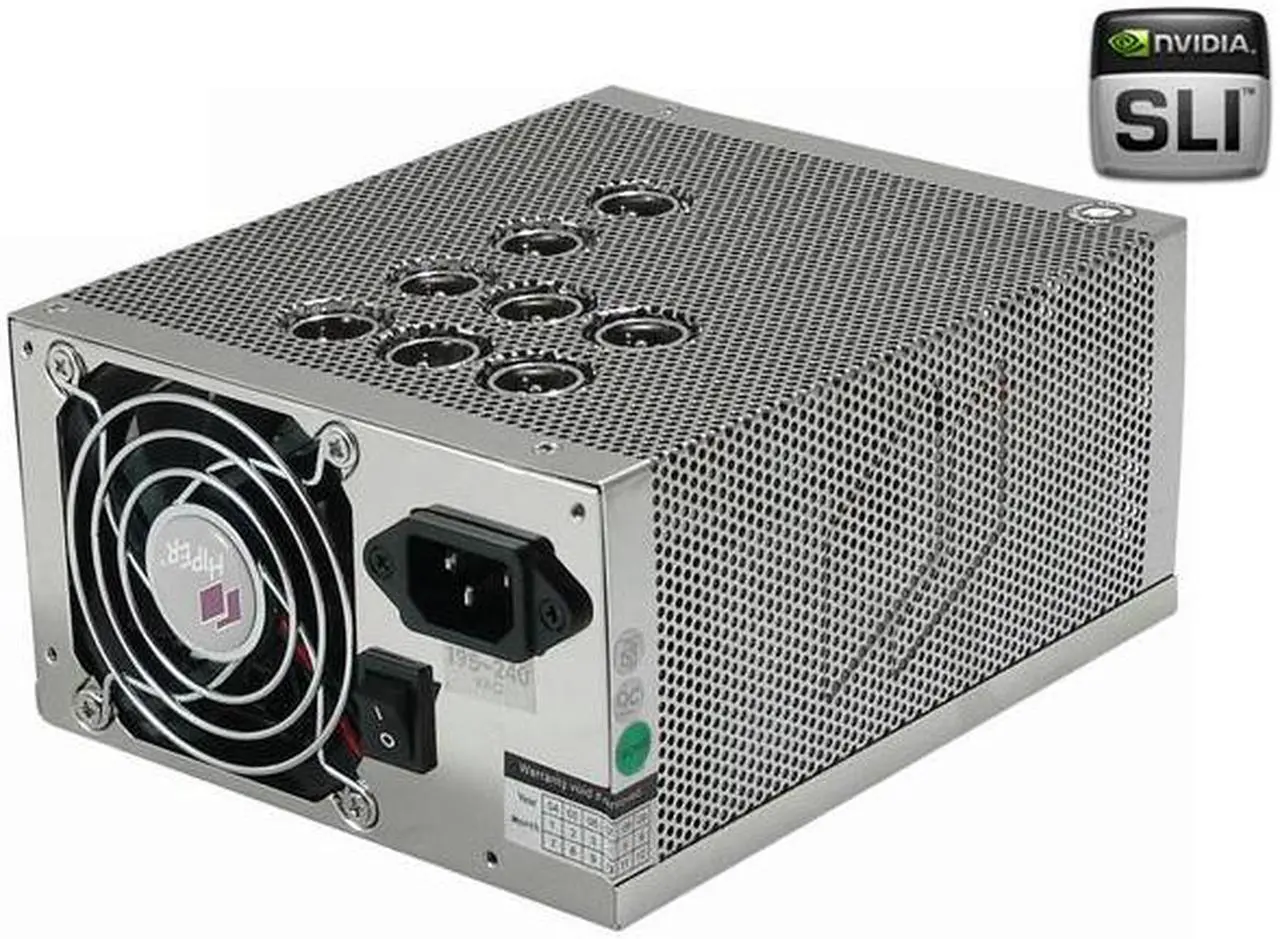

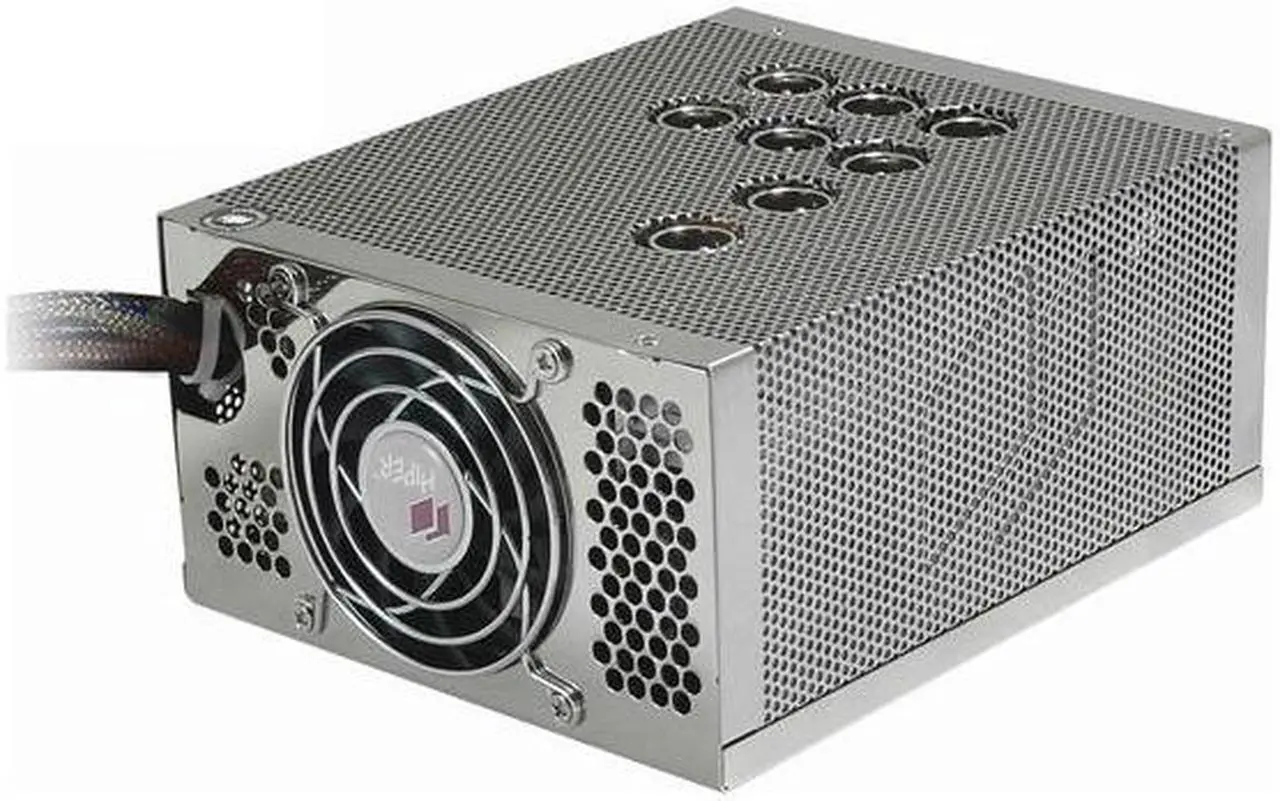

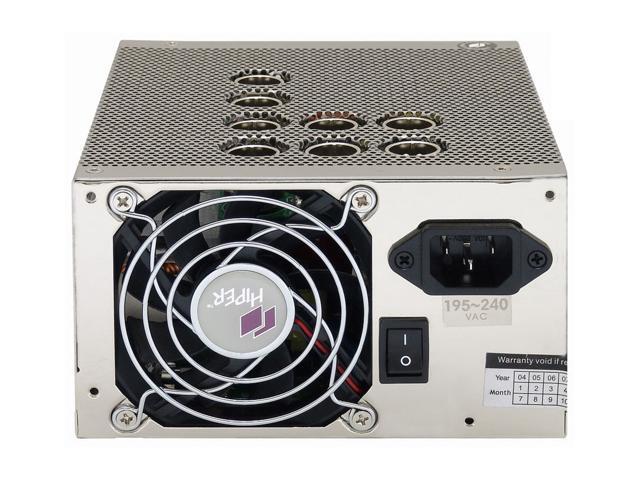

Brand | HIPER |
---|---|
Model | HPU-4S730-MS |
Type | ATX12V v2.2 |
---|---|
Maximum Power | 730 W |

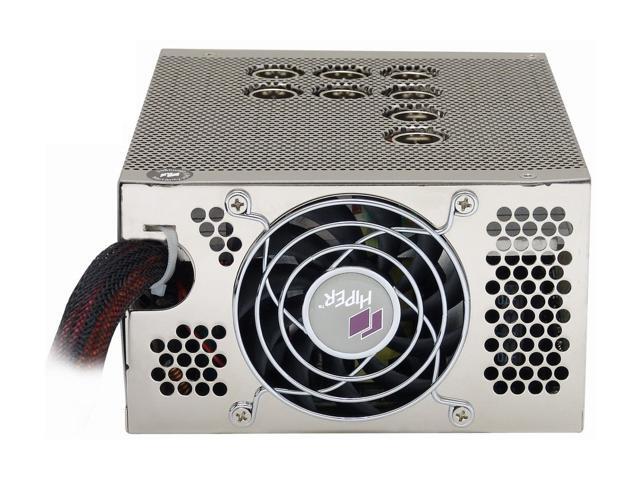

Fans | 2 x 80mm Fan (Front and Rear) |
PFC | Active |
Main Connector | 24Pin |
+12V Rails | 4 x 12V independent rails |
PCI-Express Connector | 2 x 6-Pin |
SLI | SLI Certified |
CrossFire | CrossFire Ready |

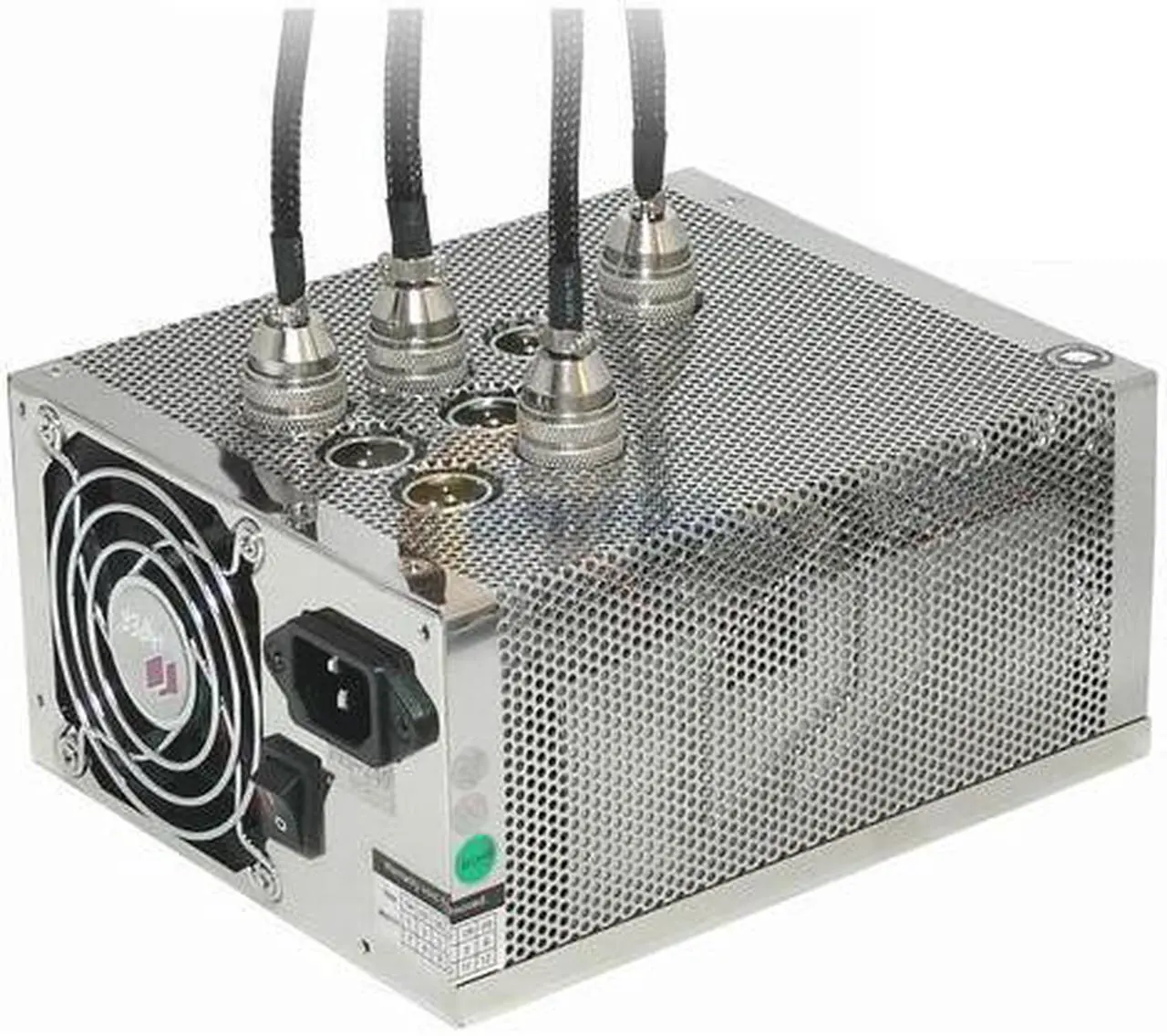

Modular | Modular |
Power Good Signal | 100-500ms |
Hold-up Time | 16ms min. |
Efficiency | > 80% |
Input Voltage | 100 - 240 V |
Input Frequency Range | 50/60 Hz |
Input Current | 12A |
Output | +3.3V@24A,+5V@28A,+12V1@16A,+12V2@16A,+12V3@16A,+12V4@16A,[email protected],[email protected] |

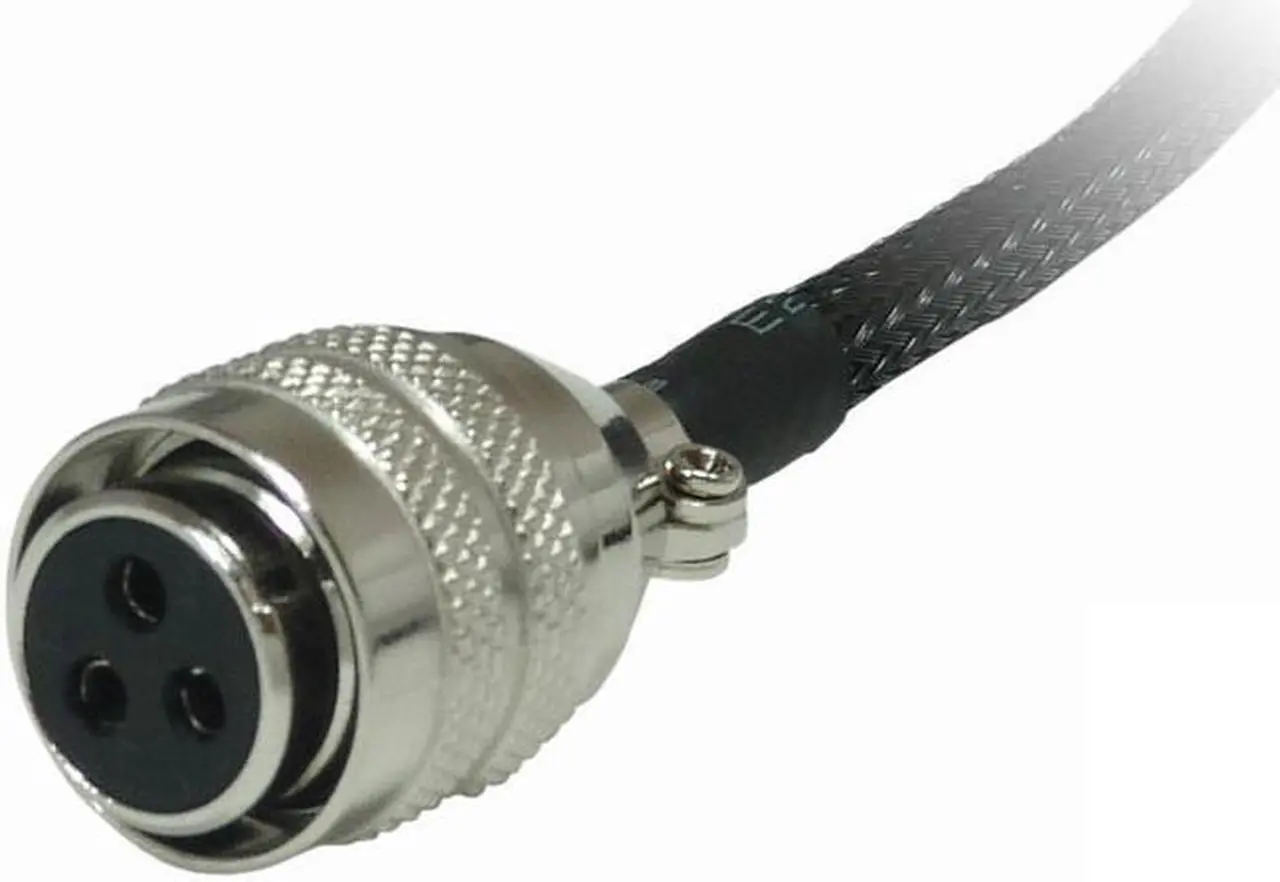

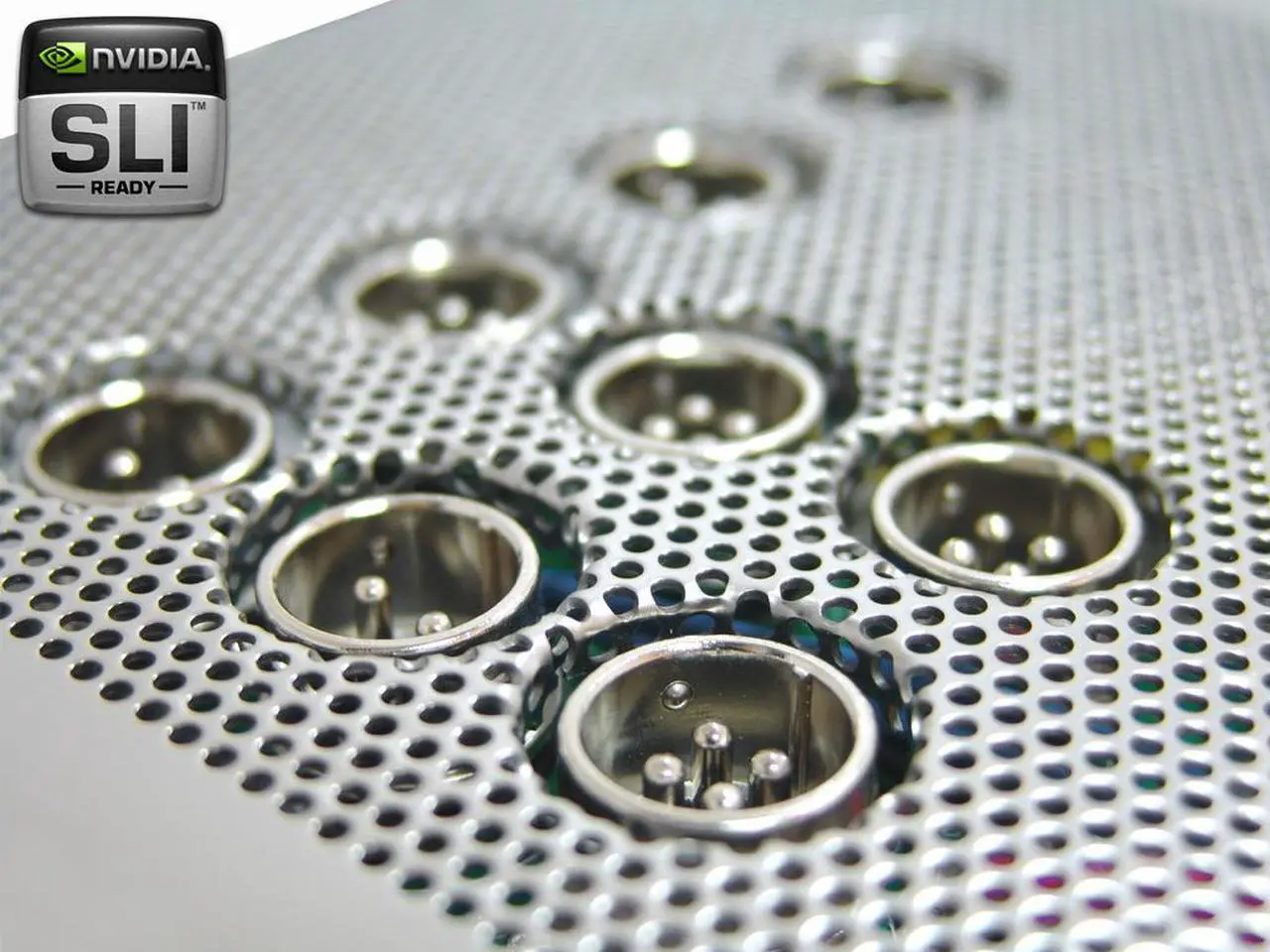

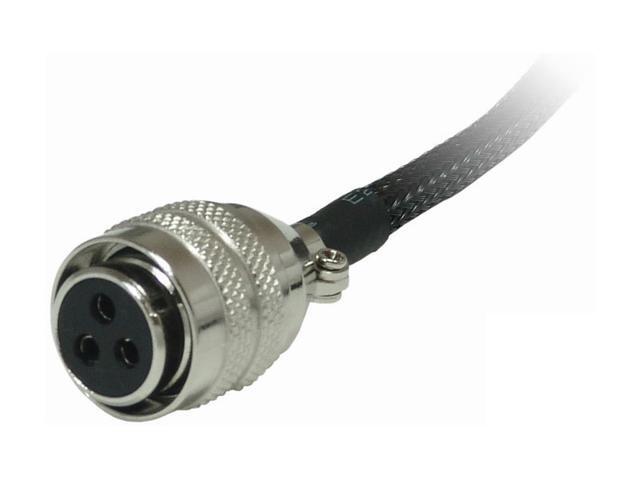

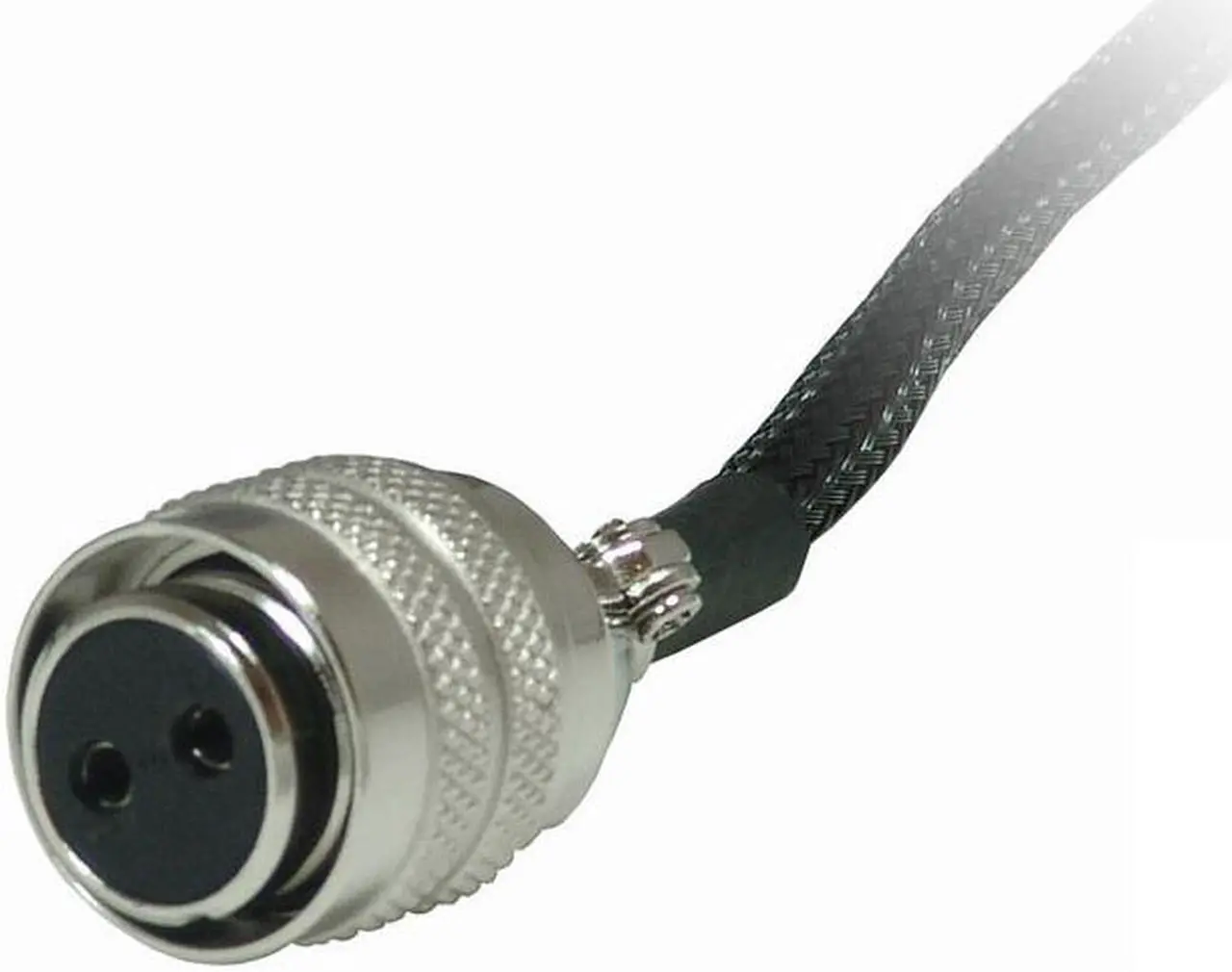

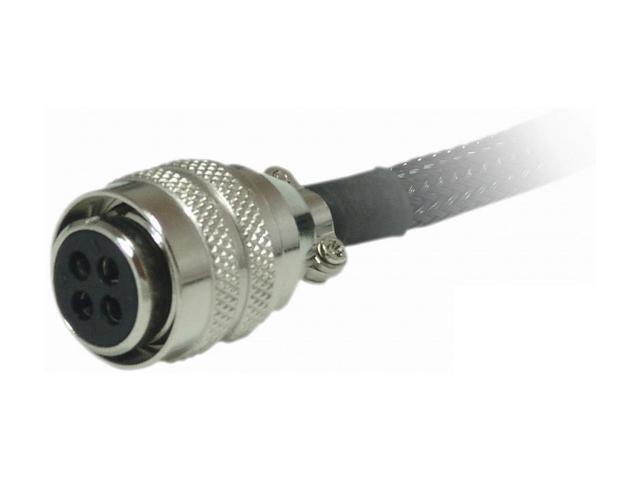

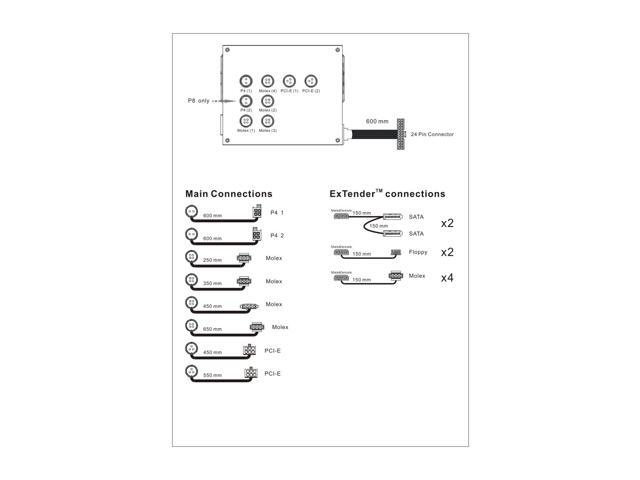

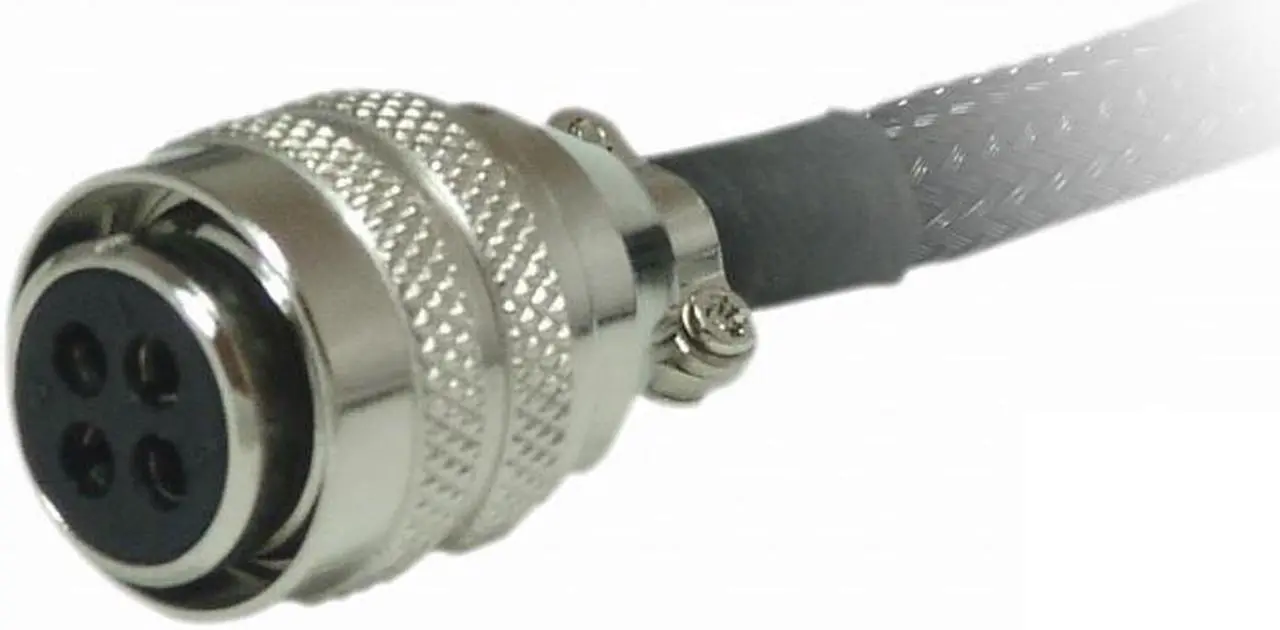

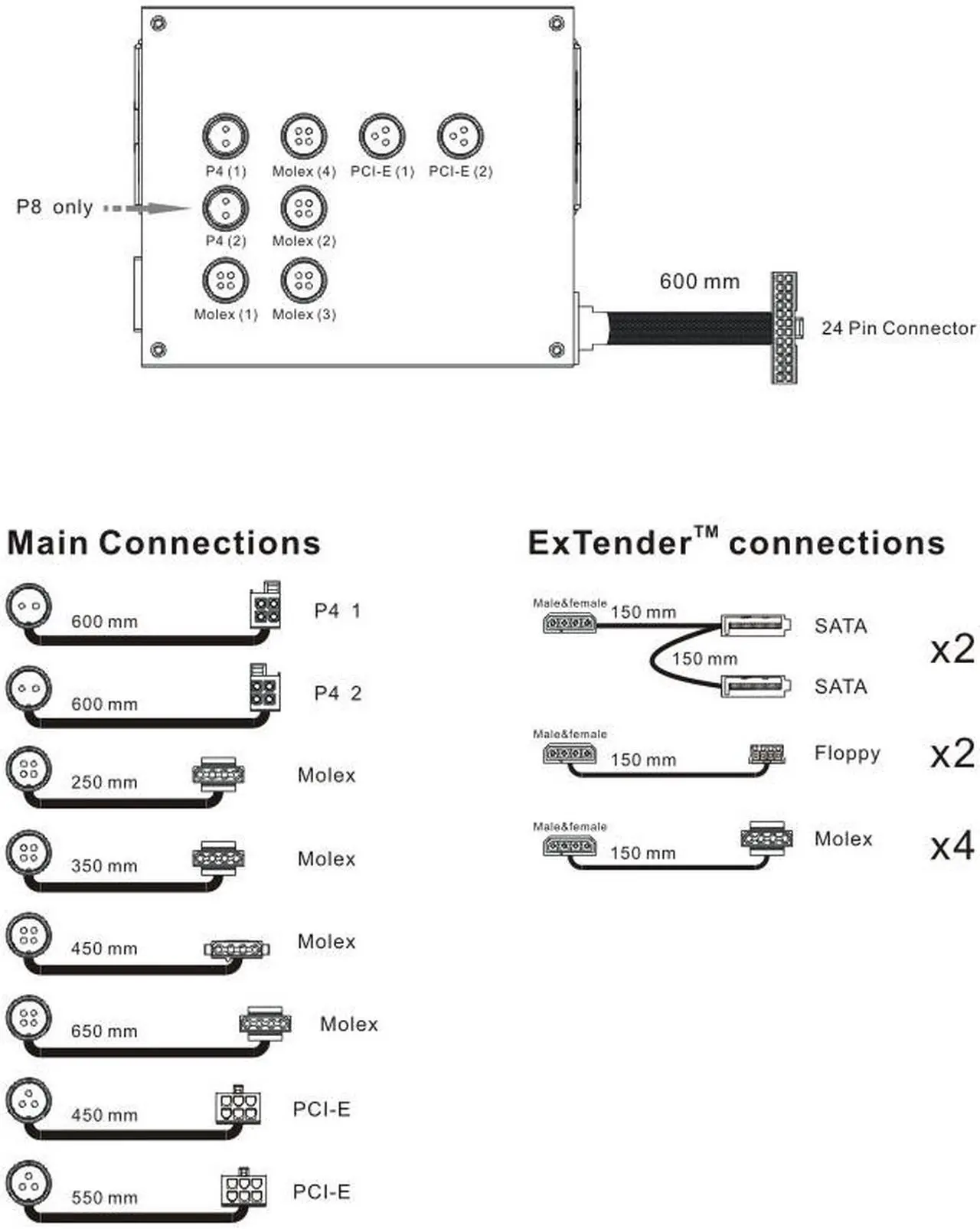

Connectors | 1 x Main connector (24-pin) 1 x 12V(4+4-pin) 8 x peripheral 4 x SATA 2 x Floppy 2 x PCI-E |

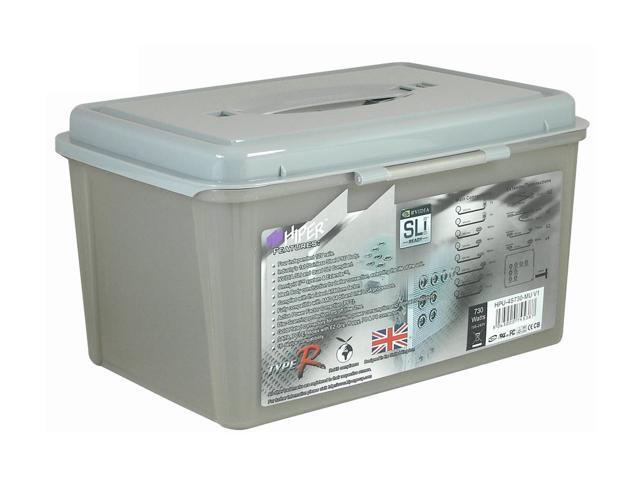

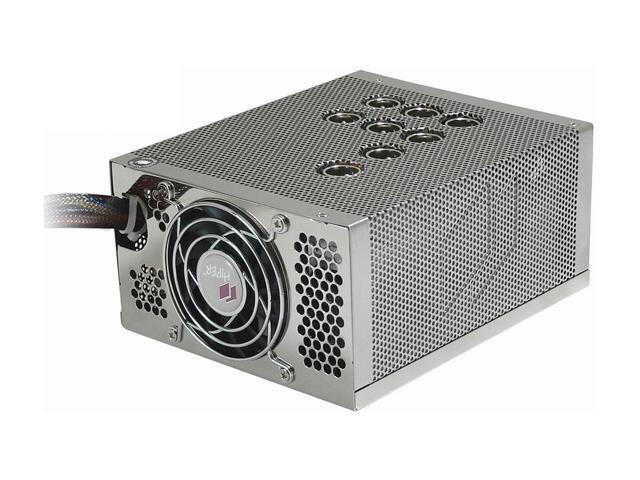

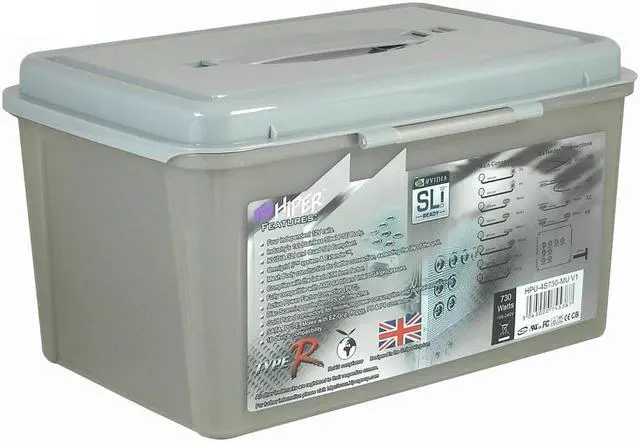

Features | Four independent 12V rails Omnigrid™ II system & Extender™. Industry's 1st Stainless steel PSU body. SLI-Ready. Mesh body construction allows immediate heat dissipation and extends the life of the unit. Unique user friendly modular design to reduce excess cables Complies with latest ATX12V v2.2. Active Power Factor Correction (PFC). Gold plated connectors for minimum power loss and optimal conductivity. PCI-E, SATA, Molex with EZ-Grip, floppy & P4 connector. Free utility box |
---|
Date First Available | November 14, 2006 |
---|
