Brand | HIS |
---|---|
Model | H483QS512P |
Interface | PCI Express 2.0 x16 |
---|
Chipset Manufacturer | ATI |
---|---|
GPU | Radeon HD 4830 |
Core Clock | 575 MHz |
Stream Processors | 640 Stream Processors |
Effective Memory Clock | 1800 MHz |
---|---|
Memory Size | 512MB |
Memory Interface | 256-Bit |
Memory Type | GDDR3 |
DirectX | DirectX 10.1 |
---|---|
OpenGL | OpenGL 2.1 |
HDMI | 1 x HDMI (via Adapter) |
---|---|
DVI | 2 x DVI |
TV-Out | HDTV / S-Video Out |
RAMDAC | 400MHz |
---|---|
Max Resolution | 2560 x 1600 |
RoHS Compliant | Yes |

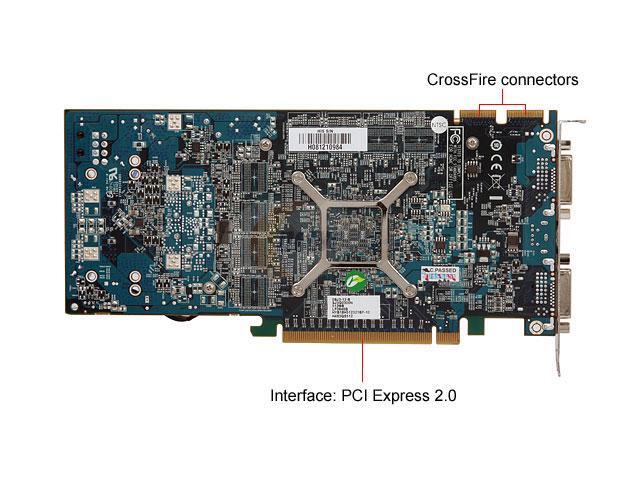

CrossFireX Support | Yes |
Cooler | With Fan |
System Requirements | 450 Watt or greater power supply with 75 Watt 6-pin PCI Express power connector recommended (550 Watt and two 6-pin connectors for ATI CrossFireXTM technology in dual mode) Certified power supplies are recommended for ATI CrossFireX technology support. Refer to http://ati.amd.com/certifiedPSU for a list of Certified products |
Power Connector | 6-Pin |
Dual-Link DVI Supported | Yes |
HDCP Ready | Yes |
Features | Efficient and Quite IceQ4 Cooler |
---|

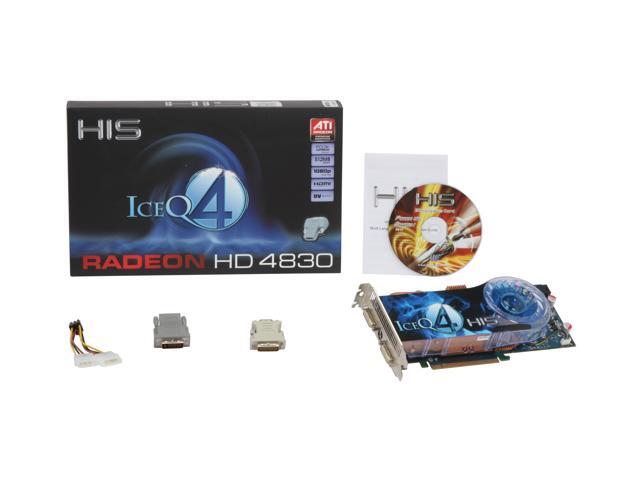

Package Contents | H483QS512P Driver Disk User's Manual Power Cable DVI to VGA/D-sub Adapter DVI to HDMI Adapter |
---|
Date First Available | December 30, 2008 |
---|
Pros: Great 256bit card for a little more than $100 Gaming on 24inch monitor looks amazing at 1920x1200 with this card. In the future I will run 2 of these.
Cons: Very long card, it has less than 1/2 inch from hitting my hard drives. Another His card rebate I'll never see.
Overall Review: I upgraded from a His Radeon HD 4670 512MB IceQ 128bit Running on a 24inch Acer Monitor was to much work for the 4670 at 1920x1200 on High end games Bioshock, FEAR 2, COD World at War, Condemnd but, this beautiful peice of technology is rock solid.
