| Case Series: |
ZENGINAL Blueberry Vanity |
| Case Model: |
ZC-01 |

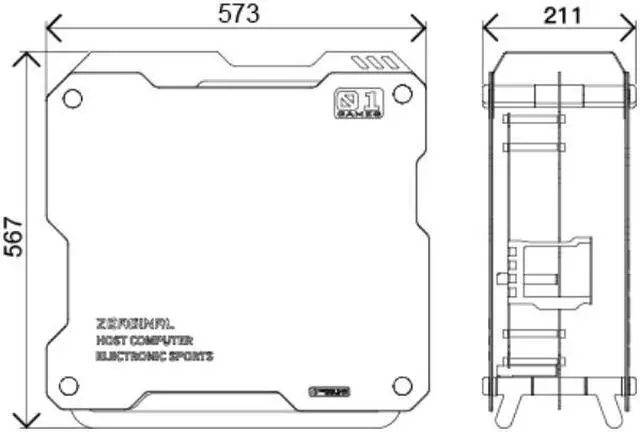

| Dimensions: |
573MM*211MM*567MM |
| Material: |
3.0mm Aluminum+ 5.0mm Tempered Glass |
| Drive Bays: |
Support 2.5SSD*2/3.5HDD*2 |
| Motherboard: |
Support Mini-ITX/ Micro ATX/ ATX Motherboard |
| Front Ports: |
USB*1/ AUDIO*1/ MIC*1 |
| Max PSU Length: |
Support Standard ATX (150*140*86mm) PSU |
| Max CPU Cooler Height: |
Max Height 166MM |
| Max GPU Length: |
Video card max length support 350MM |
| Cooling System: |
Support 360mm Radiators or 120mm fans*3 |
| Weight: |
14kg |
Design Memo:
results from the pursuit of modern aesthetics, designer to create a shape structure innovation, clever and appear a water-cooled computer case overturns the traditional case model, by the plain hale metal frame, and the large area of gleaming glass perfect combination, soft with just line, with the internal rich administrative levels sense, for the case given the soul, the other products more in line with modern fashion, static, and the pursuit of natural and clear state of mind
Sense of Decency And Freedom:
Every part of the case is detachable, so you can create your own world. You can choose your own air-cooled cooling scheme or all-in-one liquid cooling.
Solid Aluminium Alloy Frame:
The computer case is made of 3.0mm aluminum alloy and 5.0mm tempered glass, creating a solid case for you. It adopts laser cutting, CNC engraving, CNC stamping, high-precision bending, lathe, anode and fine surface sandblasting and other processing techniques.

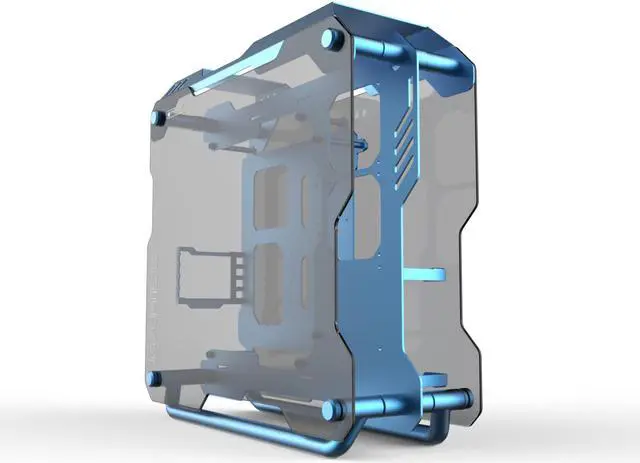

Transparent case:
Angle of view 0 dead Angle, with transparent, smart, combined with the strong line language, with water-cooled lighting all-round display of all parts inside the computer case.
Symmetrical design:
The host board can be disassembled and replaced.
Specifications:
Dimensions:211MM (W) * 588MM (D) * 570MM (H)
Front Panel:
Front Panel: Power Button; USB3.0*2; USB2.0 *2; Audio *1;MIC*1
Component Support:
Motherboard: Support Mini-ITX/ Micro ATX/ ATX Motherboards form factors
CPU Cooler: Max Height 166 mm
GPU: Video Card Max Length Support: 350 mm
PSU: Support Standard ATX (150*140*86mm) PSU
Drive Bay: 2*SSD Or 2*HDD
Cooling System :
3*120mm fans or 360mm Liquid cooler
Cable Management: 6 cable pass holes
PCI expansion slots: 4
Weight:14Kg
