HP J8762A 10/100Mbps Ports + 1000Mbps Uplinks ProCurve Switch 2600-8-PWR with Gigabit Uplink 8 RJ-45 10/100 ports (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-T) Supports a maximum of 8 10/100 ports. 1 RS-232C DB-9 console port

Be the first to review this product...

8 MB Flash capacity 32MB SDRAM Buffer Memory
Managed
PoE

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

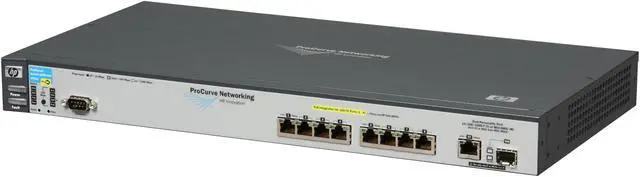

The ProCurve Switch 2600-8-PWR is a fully managed stackable switch with 8 auto-sensing 10/100 PoE ports and one Dual personality Gigabit uplink. With integrated PoE and enterprise level software features in a low-density form factor.

This switch is more cost-effective and has better functionality to support wide deployment of wireless access points. It is also ideal for small workgroups or remote offices that require general network connectivity and PoE for IP phones and access points.

The switch can provide 15.4 W of power per port simultaneously on all 8 10/100 ports, is IEEE 802.3af-compliant, and supports most of Cisco's pre-standard PoE devices.

Model
Brand	HP
Model	J8762A

Format & Standards
Format	Rackmount
Standards	IEEE 802.1w Rapid Convergence Spanning Tree IEEE 802.1AB Link Layer Discovery Protocol IEEE 802.3af Power over Ethernet IEEE 802.1p Priority IEEE 802.3x Flow Control IEEE 802.1D Spanning Tree IEEE 802.3ad Link Aggregation Control Protocol IEEE 802.1X Network Login IEEE 802.1Q GVRP
Network Management Type	Managed

Ports & Interface
Primary Ports	8 RJ-45 10/100 ports (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-T) Supports a maximum of 8 10/100 ports. 1 RS-232C DB-9 console port 1 Dual Personality Ports each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type 100Base-TX; IEEE 802.3ab 1000Base-T Gigabit Ethernet) or an open mini-GBIC slot (for use with mini-GBIC transceivers)
Primary Port Speed	10/100Mbps Ports + 1000Mbps Uplinks

Data Transmission
VLAN Support	No
Jumbo Frames	No
Buffer Memory	8 MB Flash capacity 32MB SDRAM

Details
Protocols	RFC 783 TFTP RFC 1542 BootP RFC 768 UDP RFC 793 TCP RFC 2030 SNTP DHCP Relay RFC 2236 IGMP v1/v2/v3 RFC 1492 TACACS+ Secure Sockets Layer (SSL) HTML and telnet management RFC 1213 MIB II RFC 2737 Entity MIB RFC 2665 Ethernet MIB RFC 3164 Syslog RFC 2668 802.3 MAU MIB RFC 2674 802.1p and IEEE 802.1Q Bridge MIB RFC 951 BootP RFC 854 Telnet RFC 792 ICMP RFC 826 ARP RFC 3046 DHCP Relay Agent Information Option 82 ANSI/TIA-1057 LLDP Media Endpoint Discovery (MED) SSHv1/SSHv2 Secure Shell SNMPv1/v2c/v3 RFC 1493 Bridge MIB RFC 2096 IP Forwarding Table MIB RFC 2863 Evolution of Interface RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events) RFC 2021 RMON probe configuration (RMON v2) RFC 2613 SMON RFC 2618 RADIUS Client MIB
PoE	Yes
Stackable	Yes
SNMP	Yes
QoS	Yes
LACP	Yes
Layer	3
Port Mirroring	Yes
Module Support	Yes

Power Supply
Power	Voltage: 100-120 VAC/200-240 VAC Current: 3.3 A /1.7 A Power: 190 W Frequency: 50/60 Hz

Dimensions & Weight

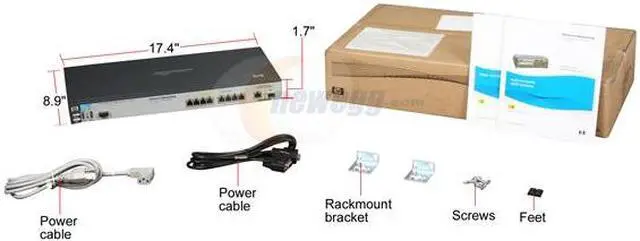

Dimensions	17.4" x 8.9" x 1.7"
Weight	7.5 lbs.

Environmental
Temperature	0°C to 50°C (32°F to 122°F)
Humidity	15 % to 95 % at 104 °F (40 °C), non-condensing

Features
Features	9.6 Gbps: wire-speed non-blocking architecture for low-latency throughput Dual-personality functionality Power over Ethernet (IEEE 802.3af) compliant IEEE 802.3ad Link Aggregation Control Protocol (LACP) and ProCurve trunking Spanning Tree Protocol (IEEE 802.1D) IEEE 802.1w Rapid Convergence Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Optional external redundant power supply Basic IP routing Port security: allows access only to specified MAC addresses, which can be learned or specified by the administrator MAC address lockout IP lockdown Secure FTP TACACS+: eases switch management security administration by using a password authentication server Source-port filtering Friendly port names: allow assignment of descriptive names to ports ProCurve/IEEE Auto-MDIX Dual flash images
