Specifications
General

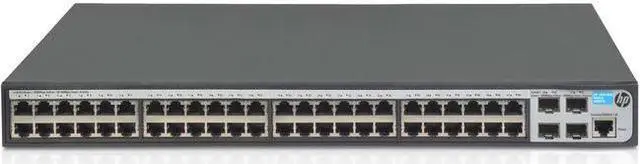

Device Type: Switch - 48 ports - L3 - managed
Enclosure Type: Desktop, rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 48 x 10/100/1000 + 4 x Gigabit SFP
Performance: Throughput: 77.4 Mpps ¦ Routing/switching capacity: 104 Gbps
Capacity: IPv4 routing table entries: 32 ¦ IPv6 routing table entries: 32
MAC Address Table Size: 16384 entries
Jumbo Frame Support: 10KB
Routing Protocol: Static IPv4 routing, static IPv6 routing
Remote Management Protocol: SNMP 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, CLI
Encryption Algorithm: SSL
Authentication Method: Secure Shell (SSH), RADIUS
Features: Flow control, layer 2 switching, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az
Processor: 1 x MIPS: 650 MHz
RAM: 128 MB SDRAM
Flash Memory: 32 MB
Miscellaneous
Rack Mounting Kit: Included
MTBF: 76.92 years
Compliant Standards: CISPR 22 Class A, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, ICES-003 Class A, RoHS, IEC 60950-1, EN 60950-1, WEEE, FCC Part 15 A, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, EN 61000-3-2:2000
Localization: English / United States
Dimensions & Weight
Width: 17.3 in
Depth: 9.4 in
Height: 1.7 in
Weight: 6.94 lbs
Manufacturer Warranty
Service & Support: Limited warranty - advance parts replacement - lifetime - response time: next business day ¦ Product info support - phone consulting - 3 years
Environmental Parameters
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 10 - 90% (non-condensing)
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 10 - 95% (non-condensing)
Additional Resources: Product Manuals
General
Device Type: Switch - 48 ports - L3 - managed
Enclosure Type: Desktop, rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 48 x 10/100/1000 + 4 x Gigabit SFP
Performance: Throughput: 77.4 Mpps ¦ Routing/switching capacity: 104 Gbps
Capacity: IPv4 routing table entries: 32 ¦ IPv6 routing table entries: 32
MAC Address Table Size: 16384 entries
Jumbo Frame Support: 10KB
Routing Protocol: Static IPv4 routing, static IPv6 routing
Remote Management Protocol: SNMP 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, CLI
Encryption Algorithm: SSL
Authentication Method: Secure Shell (SSH), RADIUS
Features: Flow control, layer 2 switching, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az
Processor: 1 x MIPS: 650 MHz
RAM: 128 MB SDRAM
Flash Memory: 32 MB
Miscellaneous
Rack Mounting Kit: Included
MTBF: 76.92 years
Compliant Standards: CISPR 22 Class A, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, ICES-003 Class A, RoHS, IEC 60950-1, EN 60950-1, WEEE, FCC Part 15 A, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, EN 61000-3-2:2000
Localization: English / United States
Dimensions & Weight
Width: 17.3 in
Depth: 9.4 in
Height: 1.7 in
Weight: 6.94 lbs
Manufacturer Warranty
Service & Support: Limited warranty - advance parts replacement - lifetime - response time: next business day ¦ Product info support - phone consulting - 3 years
Environmental Parameters
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 10 - 90% (non-condensing)
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 10 - 95% (non-condensing)
Additional Resources: Product Manuals
