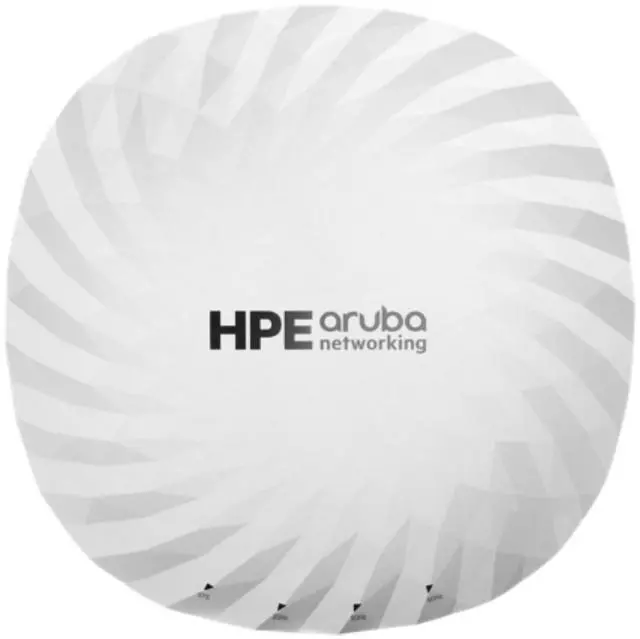

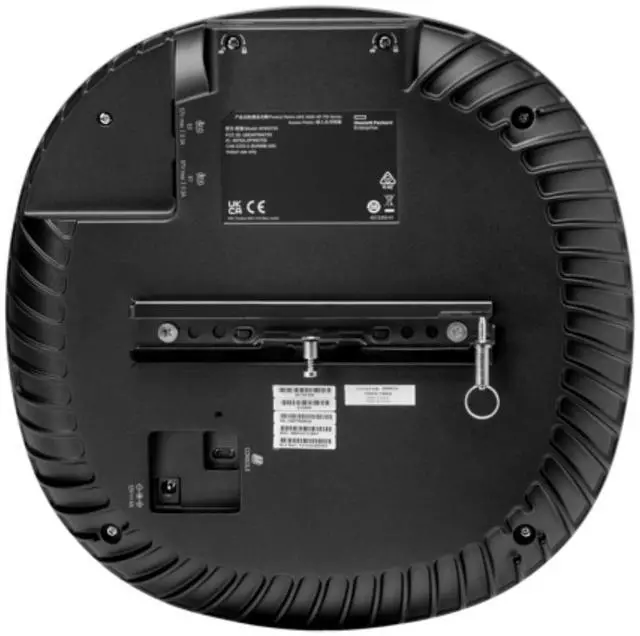

HPE Aruba Networking AP-755 Tri Radio 4x4 Wi-Fi 7 Internal Antennas Campus Access Point | S1G85A

AI-powered Wi-Fi 7 access points ideal for the most demanding enterprise, healthcare, LPV, education, retail, and industrial IoT deployments.
Three 4x4 MIMO radios provide comprehensive triband coverage across 2.4 GHz, 5 GHz, and 6 GHz for up to 18.7 Gbps maximum aggregate data rate.
High availability with dual 10 Gbps wired ports for redundant Ethernet and power, as well as the ability to combine (sum) power from both ports.
High density IoT support with two integrated [1] Bluetooth 5.4 and 802.15.4 radios for Zigbee support and two USB port extensions.

This item is covered under the Manufacturer Only Return Policy.

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the HPE AP-755

Details
WiFi Generation	Wi-Fi 7
Antenna	Integrated down tilt omni-directional antennas for 4x4 MIMO with peak antenna gain of 5.3 dBi in 2.4 GHz, 6.0 dBi in 5 GHz (5.8 dBi in dual-5 GHz mode) and 6.0 dBi in 6 GHz (5.9 dBi in dual-6 GHz mode). Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The down tilt angle for maximum gain is roughly 30 to 40 degrees.
Max Power Consumption	Maximum (worst case) power consumption (without/with USB devices attached): DC powered: 35W/46W PoE powered: 40W/51W This assumes that up to 10W is supplied to the attached USB device(s) Maximum (worst-case) power consumption in idle mode: 14W/25W (DC) or 12W/23W (PoE) Maximum (worst-case) power consumption in deep-sleep mode: 2.4W (DC) or 3.5W (PoE)

Additional Information
First Listed on Newegg	July 30, 2025
