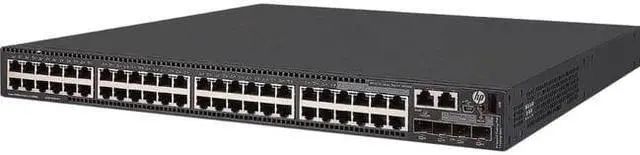

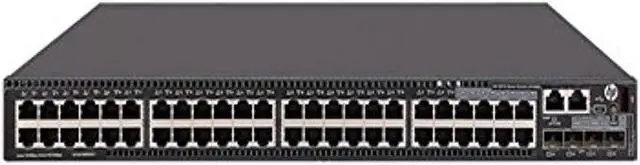

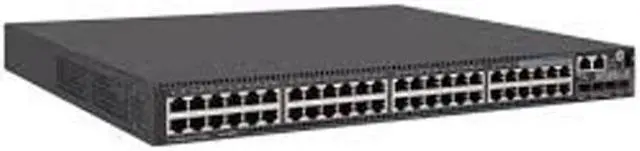

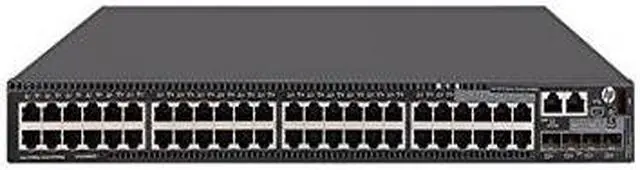

HP 5510 48G 4SFP+ HI 1-slot Switch

General InformationManufacturer: Hewlett Packard EnterpriseManufacturer
Part Number: JH146AManufacturer
Website Address:
http: //www. hpe.
comBrand Name: HPE
Product Line: FlexNetworkProduct
Series: 5510
HIProduct Model: 5510 48G 4SFP+ HI 1-slotProduct
Name: 5510 48G 4SFP+ HI 1-slot
SwitchMarketing Information: The HPE FlexNetwork 5510 HI Switch Series delivers outstanding resiliency, security, and multiservice support for medium and large enterprise networks. This switch includes enterprise-class QoS; dual, redundant power supplies with support for PoE+; 10GbE and 40GbE uplinks; 9 chassis IRF stacking; Static & RIP Routing, MACsec, OSPF, IPv6 and Energy Efficient Ethernet. The 5510 HI offers advanced technologies including OAM, CFD, multi-level QoS, MPLS, and VPLS. It can be managed with the HPE Intelligent Management Center (IMC) Software for a single view of your entire network. FeaturesHighly Resilient, More Secure, and Scalable Access Layer Switches The HPE FlexNetwork 5510 HI Switch Series delivers outstanding resiliency, security, and multiservice support capabilities for traditional large enterprise networks. Advanced technologies include OAM, CFD, RRPP, BFD, Multi-level QoS, MPLS, and VPLS. The HPE Intelligent Resilient Framework (IRF) virtualizes up to nine physical switches into one logical device for simpler, flatter, more agile networks. Offers scalable stacking with both built-in and modular 10GbE uplinks and 40GbE for high capacity, back-haul connectivity.

Dual, redundant, hot-swappable power supplies keep your network up and running and deliver up to 1440 Watt of PoE+ for powered cameras, phones and wireless access points. The 5510 HI has IPv6 support and fully featured Layer 3 functionality, including RIP, OSPF, ISIS, BGP, and PIM with no software licensing required. Powerful Performance The HPE FlexNetwork 5510 HI Switch Series provides higher levels of security with hardware-based, wire-speed access control lists (ACLs). Provides simple administration without impacting network performance offering feature-rich TCAM-based ACL implementation. Non-blocking architecture delivers up to 336 Gb/s of wire-speed switching with a non-blocking switching fabric and up to 250 million pps throughput. Robust Quality of Service (QoS) The HPE FlexNetwork 5510 HI Switch Series supports advanced classifier-based QoS which directs traffic using multiple match criteria based on Layer 2, 3, and 4 information and applies QoS policies such as setting priority level and rate limit to selected traffic on a port, VLAN, or whole switch. Creates traffic classes based on ACLs, IEEE 802.1 p precedence, IP, and DSCP or Type of Service (ToS) precedence.

Supports filter, redirect, mirror, or remark. Get extensive traffic prioritization with congestion actions: strict priority (SP) queuing, weighted round robin (WRR), weighted fair queuing (WFQ), weighted random early discard (WRED), weighted deficit round robin (WDRR), SP+WDRR, and SP+WFQ. Comprehensive Security Control and a Single View of the Network The HPE FlexNetwork 5510 HI Switch
