Specifications
:

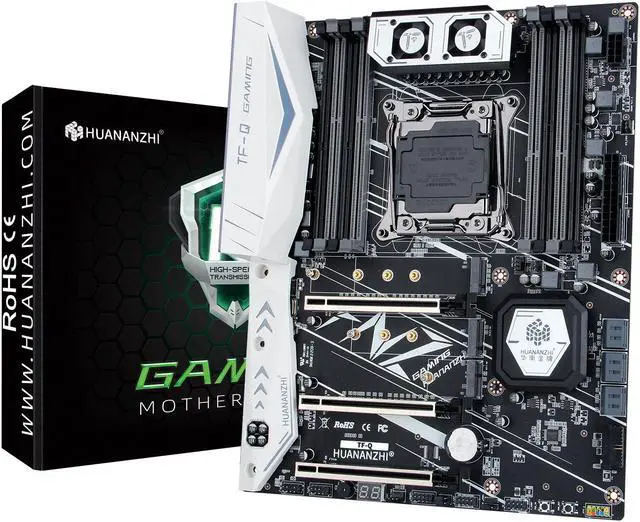

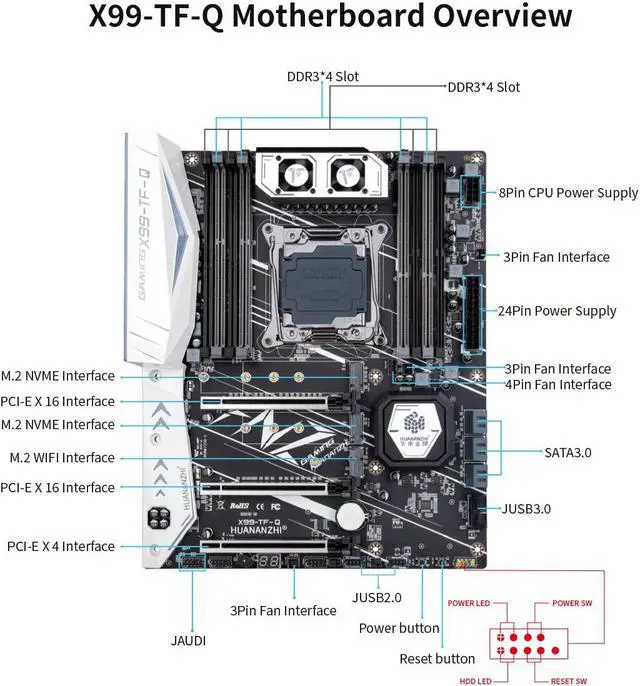

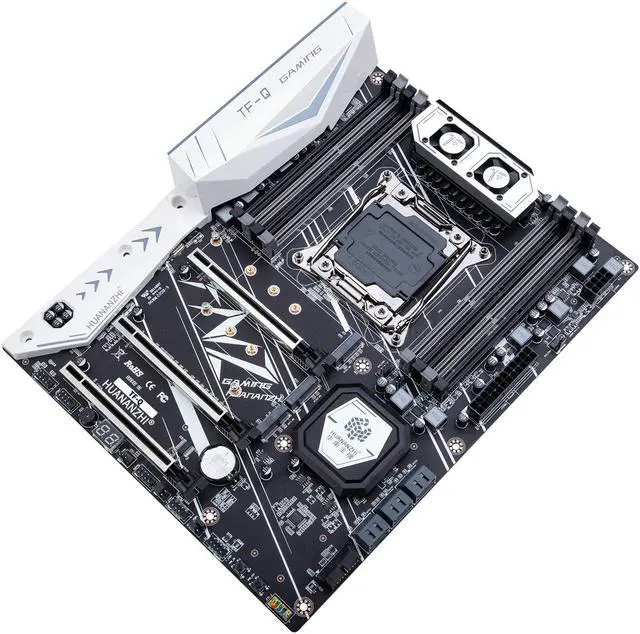

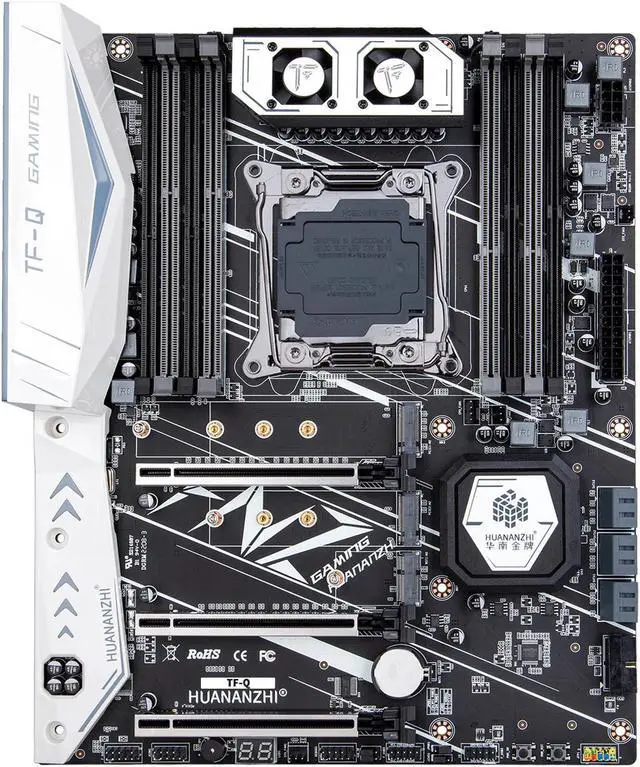

Model: HUANANZHI TF-Q Motherboard
CPU Socket: support Intel LGA2011-3 Platform processor
Main chipset: Q87... Etc chipset shipped randomly
Memory Socket: 4*DDR4, 4*DDR3, Support server memory(DDR3 memory must be used with Zhiqiang E5 2678v3/2676V3/2673V3/2629V3/2649V3/2669V3/2696V3)
Memory Standard: Support four channels DDR3 1866/1600/1333MHz, DDR4 2400/2133/1866MHz, D3 / D4 can support 128GB at most, while D3 / D4 cannot be used at the same time
SATA Inderface: 6*SATA 3.0 6Gb/s
Extended Inderface: 1*M. 2 22110 NVME PCIE X4 3.0 32Gb/s; 1*M. 2 2280 NVME PCIEX4 2.0 20Gb/s; 1*M. 2WIFI NGFF
Expansion Slots: 2*PCI
Express 3.0 x16; 1*PCI
Express 3.0 x4
Soud Track: 7.1
Network interface: Gigabit Ethernet:
Power interface: 24pin+8pin
Fan interface: 1*CPU_FAN PIN; 3*SYS_FAN PIN
PCB layer: 10 layer, 6-phase power supply

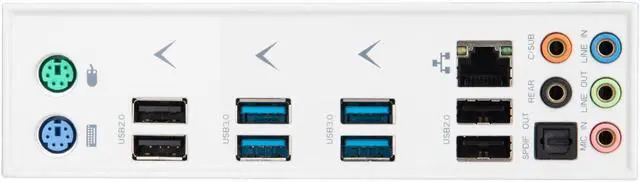

Rear panel interface: 1*PS/2 Keyboard mouse interface; 4*USB 2.0; 4*USB 3.0; 1*network interface; 1*5-hole audio interface; 1*Audio optical fiber interface (integrated on audio interface)
Front panel interface: 2*USB 2.0 PIN (One group controls the WiFi Bluetooth function by jumping the hat); 1*USB 3.0 PIN; 1*Front audio pin; 1*COM PIN; 1*Mainboard buzzer; 1*post card; 1*Start / restart button
support system: windows7, windows10, windows11,
Motherboard specification: 300*244MM ATX
Motherboard does not support RGB
Note:
1. The platform needs powerful power. Please make sure your power supply is sufficient to support it (at least 500w power supply).
2. Please allow 1-3mm differs due to manual measurement.
3. Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
4. The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.
5. We show photos of motherboard, pictures are for reference only, subject to our available products.
6. For Customs duties problem, pls make sure you can solve the customs clearance problems by yourself, if you can't solve it, we don't advise you to buy goods in our store. We are not responsible for customs duties. Thanks for your kindly understanding!
7. Due to computer accessories is toomuch, are likely to have some small brand, bad quality or ES/QS version of the CPU, RAM, M. 2 SSD or other accessories may occur incompatible situation with motherboard. You can confirm with our customer service before purchase. if there is no confirmation before purchase then incompatible happen when you receive the motherboard, we would not accept a refund, when you buy this link of single motherboard we default you have read and know the situation. Mind please don't buy!
We promise to test and deliver the order you submitted within 24 hours
