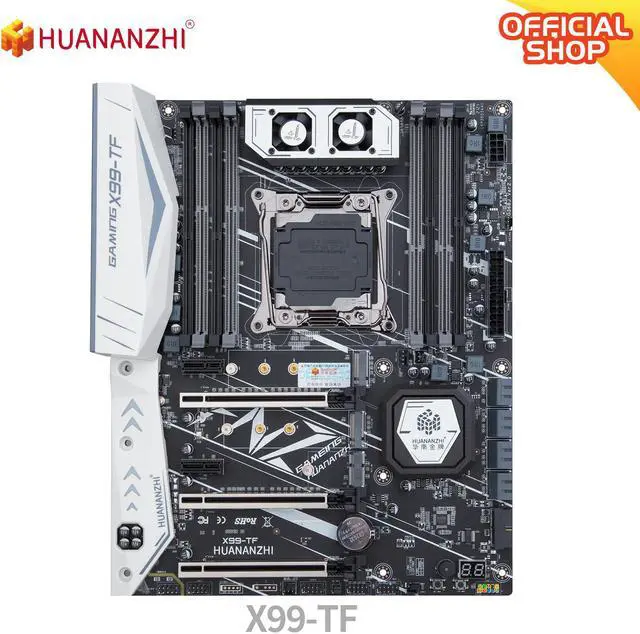

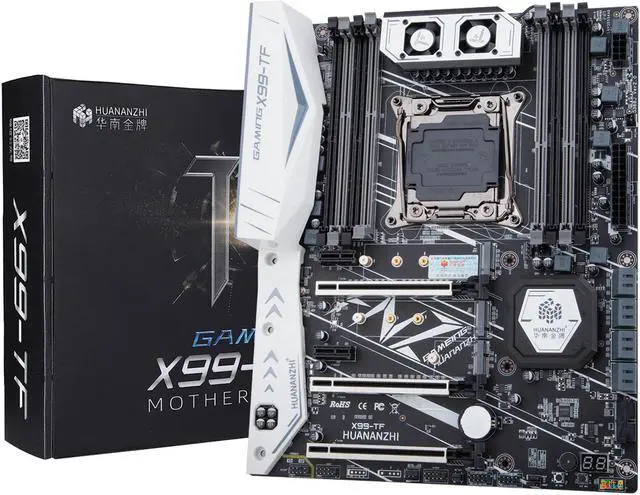

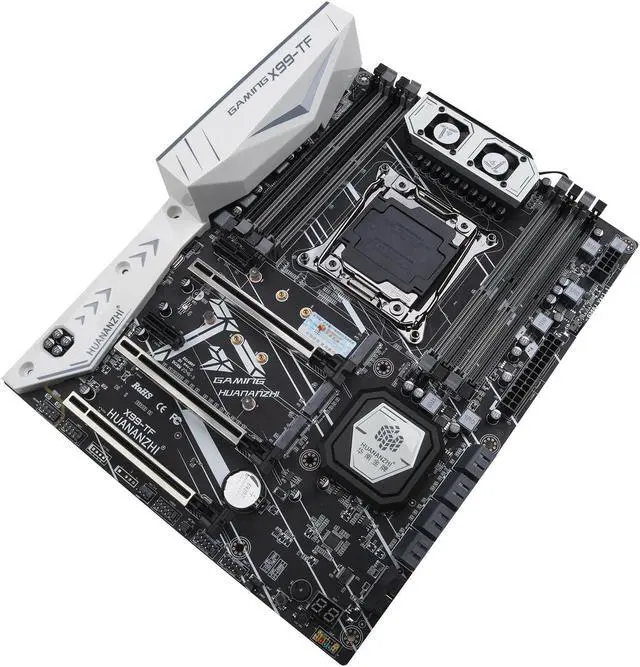

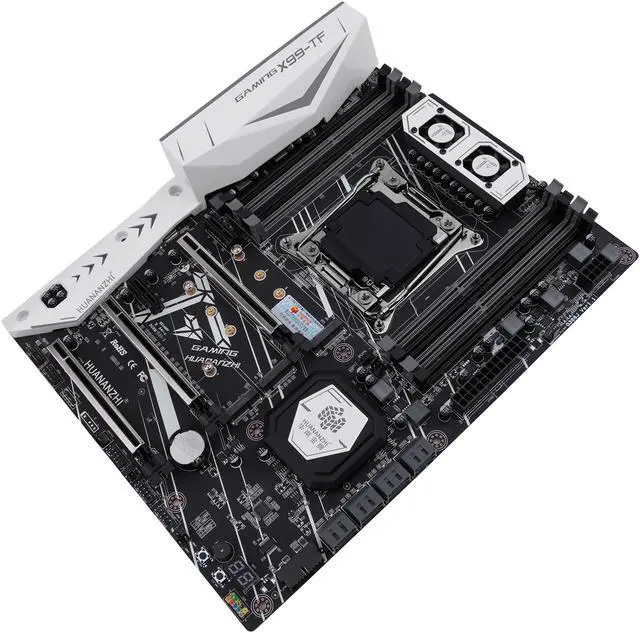

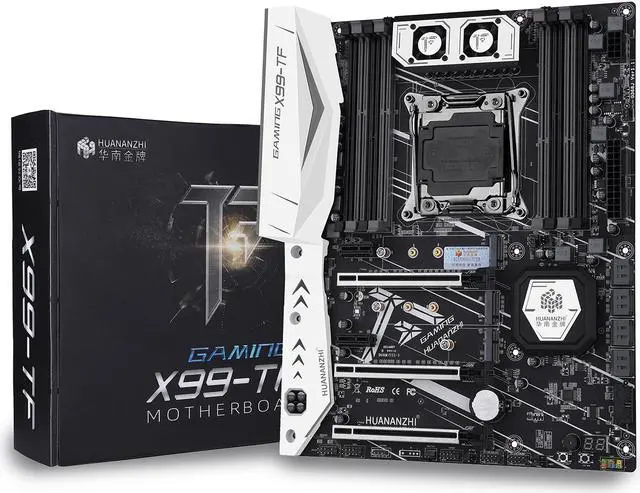

HUANANZHI X99-TF ATX Standard Desktop Motherboard LGA 2011-v3 E5 v3 v4 I7 CPU DDR4 DDR 3 RAM Supports E5 2680V3 2506V3 2678 V3 E5 V3 V4 Xeon CPU Dual M.2 PICE NVMe Socket Support DDR3 or DDR4 USB 3.0
- ATX Form Factor
- Support LGA 2011-3 Xeon / i7 Socket All CPU (Except XE editions)
- Dual M.2 NVMe PCIE Socket
- DDR4 * 4 / DDR3 * 4 (cannot be used at same time)
- M.2 WIFI Slot
- Onboard Power-on and Reset Button
- E5 2603 V3 E5 1603 V3 E5 1607 V3 E5 2630L V3 E5 4620 V3 E5 2680 V3 2678 V3 and more.
- Built on 10 Layer PCB
+
+
Overview
Specs
Reviews (7)
Any questions? Our AI beta will help you find out quickly.
Try me now
***This motherboard comes with Chinese Packaging and Manual while it has universal BIOS and form factor, Seller Sennow provides tech supports *** Three-year warranty covered and service provided by Manufacturer authorized and entrusted Newegg Seller Sennow.
Supports: DDR3 * 4 or DDR4 *4 RAM DIMM (cannot be used at same time) When using DDR3 Only these
CPUs would be supported: E5 2678 V3 / 2696 V3 / 2629 V3 / 2649 V3 / 2669 V3 / 2676 V3 Supports All DDR4 Channel LGA 2011-V3 CPUs **Does not support "es" edition Xeon CPU** Shenzhen South China Sanxian Technology Co., Ltd, the HUANANZHI Desktop Motherboard Manufacturer, was founded back in 2008, has been focusing on PC hardware development and production for more than a decade. It has self-owned factories and Research &Development center. It engages itself mainly in the concentrated production and sales of Desktop PC motherboards, graphics cards, mainframes, etc. Its product quality control and production line technologies are strictly in accordance with ISO system, and it owns and operates the whole series of South China Gold Medal (registered trademark HUANANZHI).
Product Specification:
Size: Motherboard
Size: 300mm x 244mm
Form Factor: ATX Processor
Support & Chipset: CPU
Socket: LGA 2011 v3
CPU Support: Core i7 / Xeon LGA 2011v3
Chipset: X99
Storage and RAM: 4 x DDR3 1333 / 1600 / 1866 Memory Slots 4 x DDR4 1866 / 2133 / 2400 Memory Slots (DDR3 DDR4 cannot be used at same time)
Memory Support Max: 128 GB SATA 3.0 ( 6Gb/s ) * 8 Input Output and Extension Support Built on a 10 layers PCB board Supports

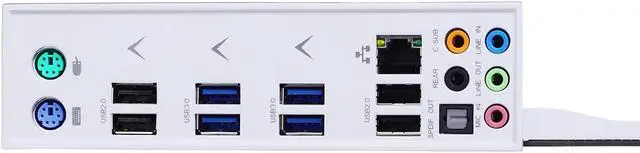

PS/2 Max LAN Speed: 1000 mb/s PCIE X 16 * 2 PCIE X 1 * 2 PCIE X 4 * 1 M. 2 PCIe NVMe SSD Socket * 2 M. 2 WIFI addon Card Socket * 1 USB 3.0 *6 ( 4 Rear + 2 Header) USB 2.0 *8 ( 4 Rear + 4 Header) 7.1 Channel Audio 3.5 mm jack * 5 SPDIF * 1 Power Support 6 Phase Power Support 24+8PIN Power Suppoly
Supports: DDR3 * 4 or DDR4 *4 RAM DIMM (cannot be used at same time) When using DDR3 Only these
CPUs would be supported: E5 2678 V3 / 2696 V3 / 2629 V3 / 2649 V3 / 2669 V3 / 2676 V3 Supports All DDR4 Channel LGA 2011-V3 CPUs **Does not support "es" edition Xeon CPU** Shenzhen South China Sanxian Technology Co., Ltd, the HUANANZHI Desktop Motherboard Manufacturer, was founded back in 2008, has been focusing on PC hardware development and production for more than a decade. It has self-owned factories and Research &Development center. It engages itself mainly in the concentrated production and sales of Desktop PC motherboards, graphics cards, mainframes, etc. Its product quality control and production line technologies are strictly in accordance with ISO system, and it owns and operates the whole series of South China Gold Medal (registered trademark HUANANZHI).
Product Specification:
Size: Motherboard
Size: 300mm x 244mm
Form Factor: ATX Processor
Support & Chipset: CPU
Socket: LGA 2011 v3
CPU Support: Core i7 / Xeon LGA 2011v3
Chipset: X99
Storage and RAM: 4 x DDR3 1333 / 1600 / 1866 Memory Slots 4 x DDR4 1866 / 2133 / 2400 Memory Slots (DDR3 DDR4 cannot be used at same time)
Memory Support Max: 128 GB SATA 3.0 ( 6Gb/s ) * 8 Input Output and Extension Support Built on a 10 layers PCB board Supports
PS/2 Max LAN Speed: 1000 mb/s PCIE X 16 * 2 PCIE X 1 * 2 PCIE X 4 * 1 M. 2 PCIe NVMe SSD Socket * 2 M. 2 WIFI addon Card Socket * 1 USB 3.0 *6 ( 4 Rear + 2 Header) USB 2.0 *8 ( 4 Rear + 4 Header) 7.1 Channel Audio 3.5 mm jack * 5 SPDIF * 1 Power Support 6 Phase Power Support 24+8PIN Power Suppoly
