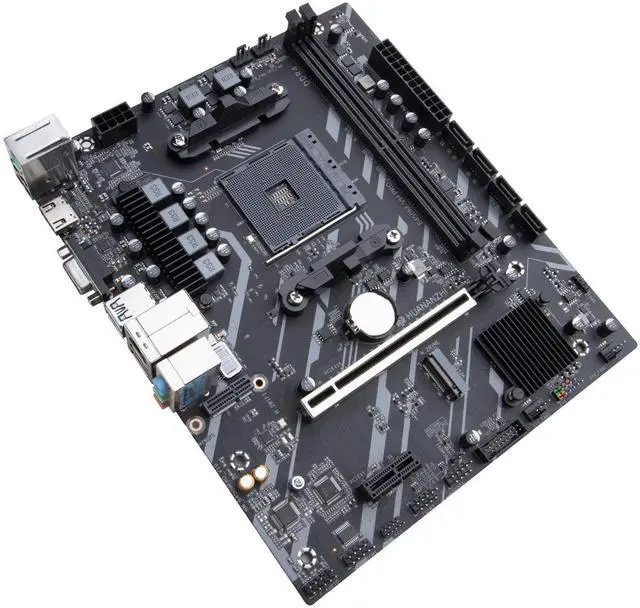

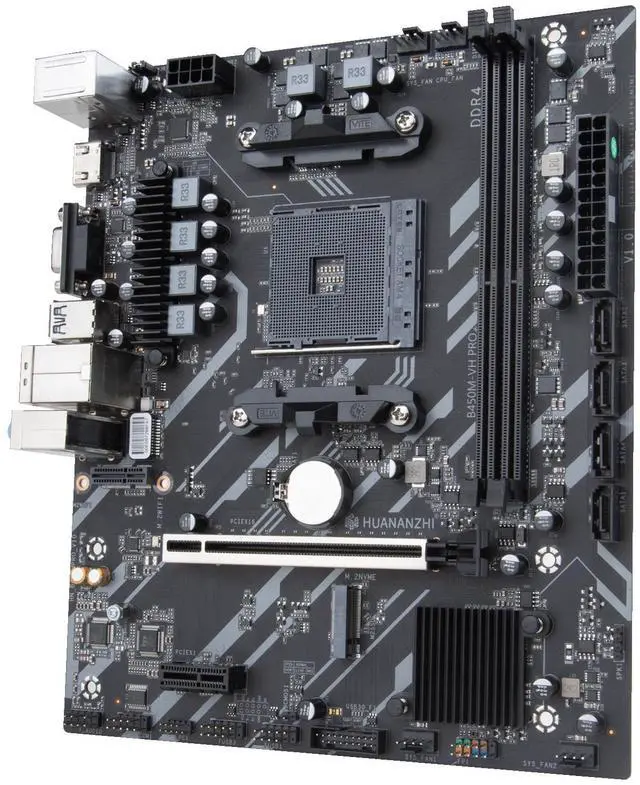

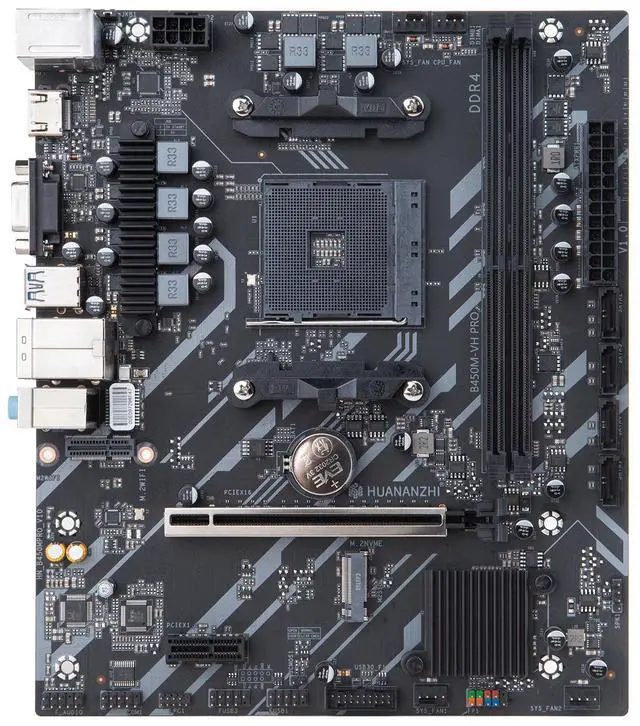

HUANANZHI AMD B450M VH Gaming Motherboard USB3.0 M.2 Nvme Sata3 Supports Ryzen 5500 5600 5600G CPU
- HUANANZHI B450M-VH Motherboard
- · SupportAMD Athlon,Ryzen1/2/3 gen/Ryzen4000/Ryzen5000/Ryzen5000g
- · 2 x DDR4 memory slot,Max support 64GB
- · 4xSATA3.0 6Gbps interfaces
- · 1xPCI Express3.0X16,1xPCIExpress3.0x1
- · 1xM.2 2280 NVME PCIE X4 [email protected]
- · 4xUSB2.0,1 x USB2.0 PIN,1 x USB3.0 PIN
- · Realtek Gigabit network card
Overview
Specs
Reviews (3)
Specifications
:Model: HUANANZHI B450M-VH Motherboard
Main chipset: Intel B450... Etc chipset shipped randomly
CPU Socket: Support AMD AM4 platform processor, support AMD Athlon, Ryzen1/2/3 generation/Ryzen4000/Ryzen5000/Ryzen5000g series processor
Memory slot: 2 x DDR4 memory slot
Memory standard: Support dual channel DDR4 3000/2933/2666/2400/2133MHz Memory (Depends on CPU), Max support 64GB
Storage interface: 4 x SATA 3.0 6Gbps
Expansion Slots: 1 x PCI Express 3.0 x16, 1xPCI Express 3.0 x1
Expansion interface: 1xM. 2 2280 NVME PCIE X4 3.0 @NGFFSATA 3.0
Soud Track: Realtek High Fidelity Audio
Network Card: Realtek Gigabit Ethernet
Power interface: 24PIN+8PIN
FAN PIN: 1xCPU_FAN PIN, 2xSYS_FAN PIN
power supply: 5-phase power supply
PCB layers: 4-layer PCB
Dimension: 212*175MMM-ATX

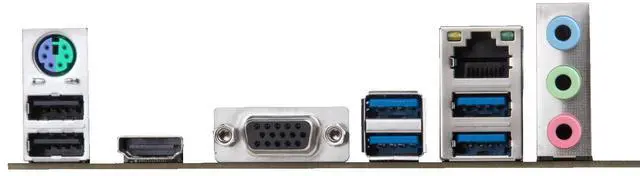

Rear panel interface: 1x PS/2 Mouse and Keyboard port, 4xUSB 3.0, 1xHDMI, 1xVGA interface, 1xRJ45Network card interface, 1x3-hole audio interface
Front panel interface: 1 x USB 2.0 PIN, 1 x USB 3.0 PIN, 1 xFront audioPIN, 1 xDEBUG PIN, 1xCOM PIN, 1 x Group of buzzer PIN, 1 x power on and restart PIN
Support system: Windows7 Windows10 Windows11
BIOS: AMI UEFI BIOS
