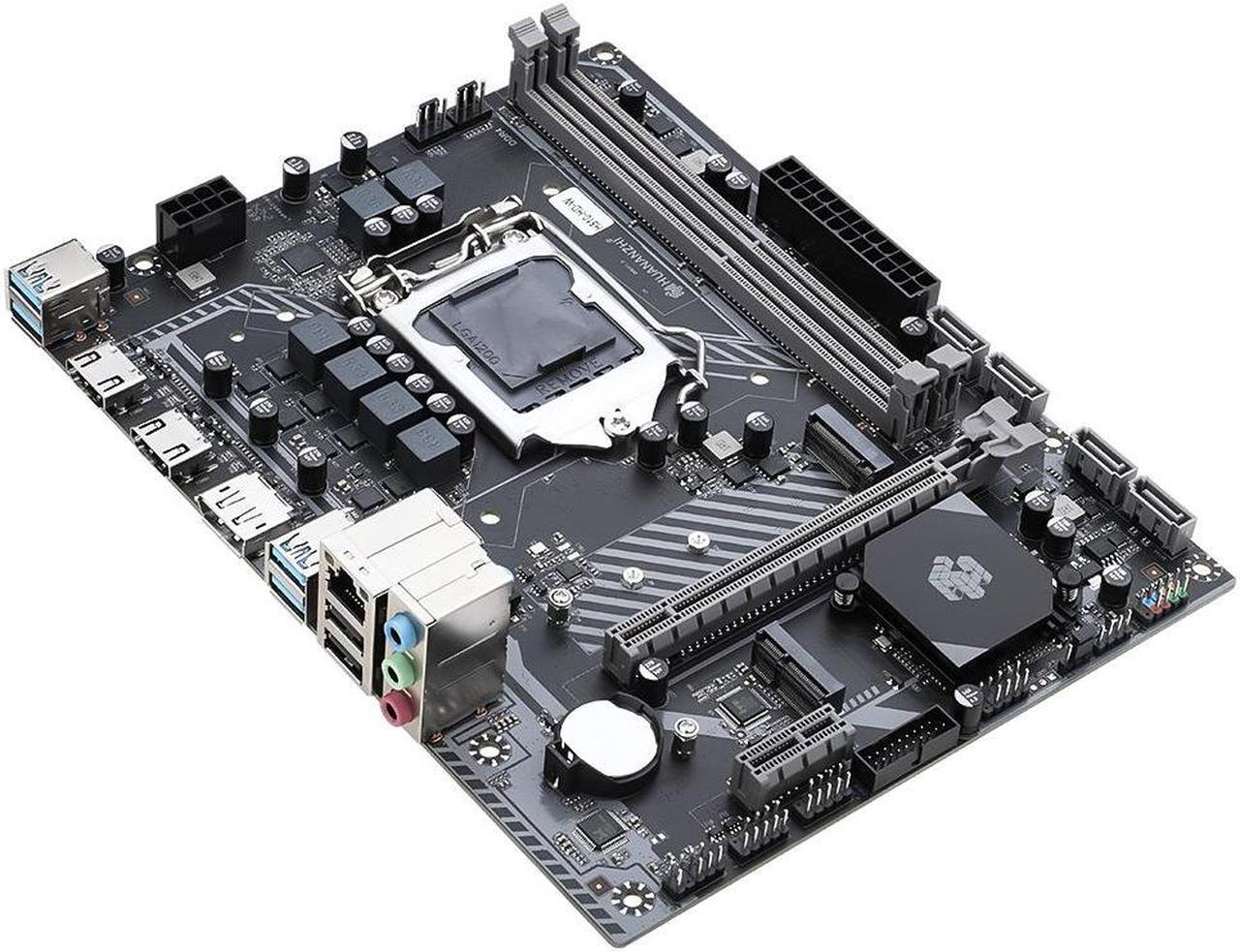

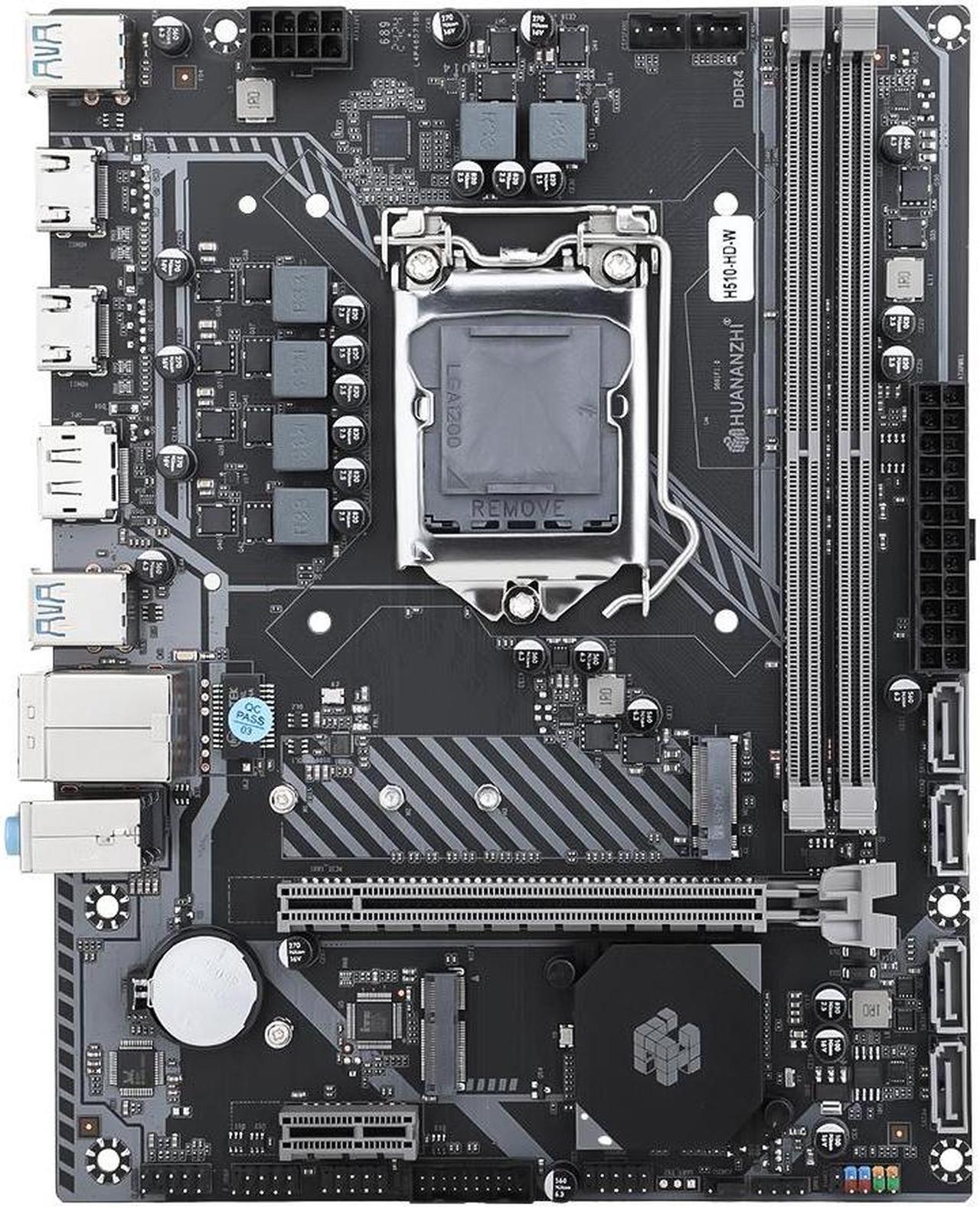

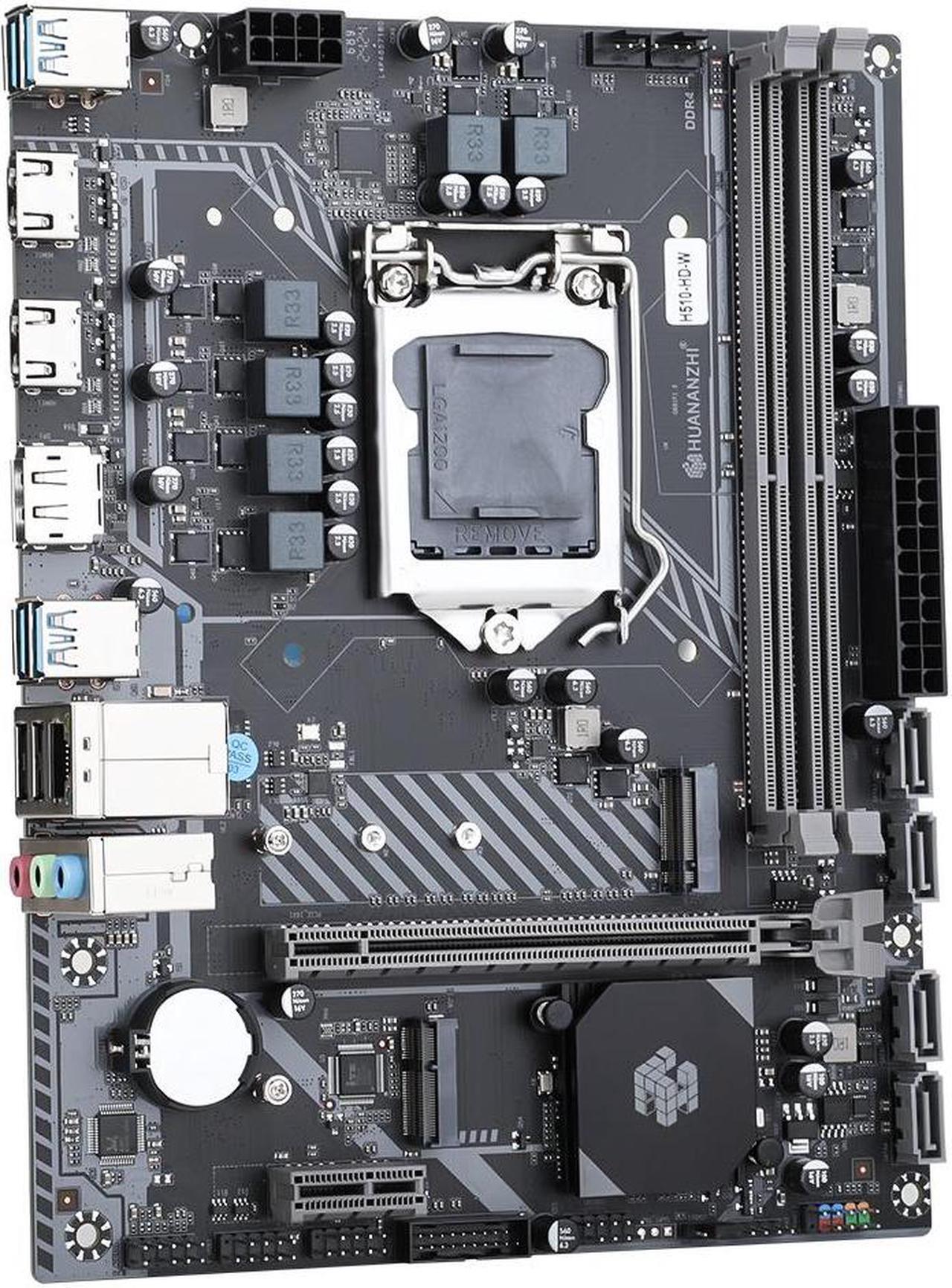

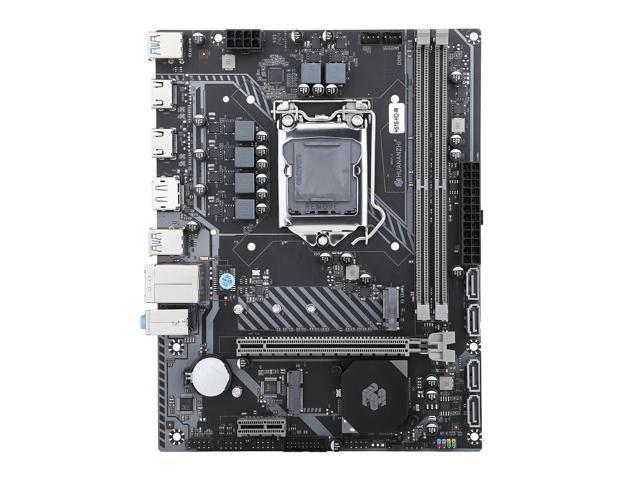

HUANANZHI H510 HD W M-ATX Motherboard LGA 1200 Support 10 11 generation DDR4 2400 2666 2933M 3200Hz 64G M.2 NVME SATA3.0
- · Support Intel LGA1200 platform processor
- · 2 x DDR4 memory slot,Max support 64 GB
- · DDR4 2933/2666/2400MHz Memory(Depends on CPU/supports XMP)
- · 1 x PCI Express3.0x16,1 xPCI Express3.0x1
- · 4 x SATA3.0 6Gbps
- · 1 x M.2 2280NVME PCIEX4 3.0 32Gb/s,1xM.2 WIFI
- · Realtek High Fidelity Audio
+
+
Overview
Specs
Reviews (7)
Model: HUANANZHI H510-HD Motherboard
Main chipset: IntelH470
CPU Socket: Supports Intel LGA1200
Memory slot: 2 x DDR4 memory slot
Memory standard: Support DDR4 3200/2933/2666/2133MHz, Max support 64GB
Storage interface: 4xSATA 3.0 6Gbps interfaces
Expansion Slots: 1xPCI Express 3.0 x16, 1xPCI Express 3.0 x1
Expansion interface: 1xM. 2 2280 NVME PCIEX4 3.0, 1xM. 2 WIFI
Soud Track: Realtek High Fidelity Audio
Network Card: Realtek Gigabit Ethernet
Power interface: 24pin+8pin
FAN PIN: 1x CPU_FAN, 1x SYS_FAN
Dimension: 210*165MM M-ATX

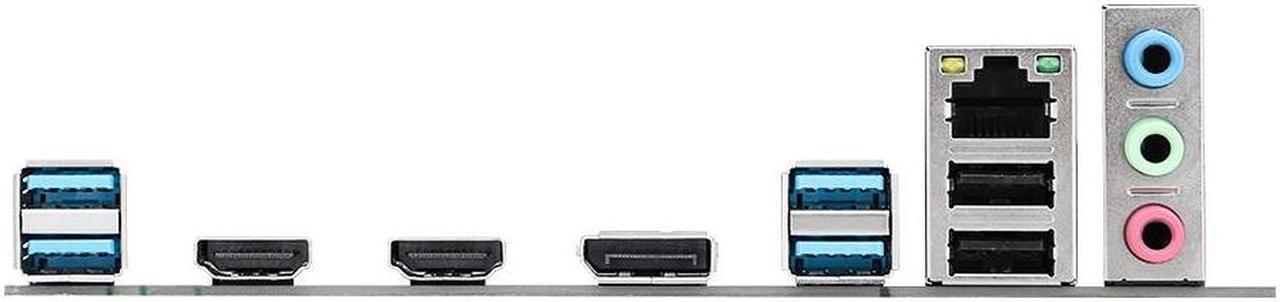

Rear panel interface: 4xUSB 3.0, 2xUSB 2.0, 2xHDMI, 1xDP, 1x Network card interface, 1x3-hole audio interface
Front panel interface: 2 x USB 2.0 PIN, 1 x USB 3.0PIN, 1 xFront audioPIN, 1xCOM PIN, 1 xPower on PIN, 1xOn-board start/restart button
Support system: Windows10 Windows11
BIOS: AMI EFI BIOS
Main chipset: IntelH470
CPU Socket: Supports Intel LGA1200
Memory slot: 2 x DDR4 memory slot
Memory standard: Support DDR4 3200/2933/2666/2133MHz, Max support 64GB
Storage interface: 4xSATA 3.0 6Gbps interfaces
Expansion Slots: 1xPCI Express 3.0 x16, 1xPCI Express 3.0 x1
Expansion interface: 1xM. 2 2280 NVME PCIEX4 3.0, 1xM. 2 WIFI
Soud Track: Realtek High Fidelity Audio
Network Card: Realtek Gigabit Ethernet
Power interface: 24pin+8pin
FAN PIN: 1x CPU_FAN, 1x SYS_FAN
Dimension: 210*165MM M-ATX
Rear panel interface: 4xUSB 3.0, 2xUSB 2.0, 2xHDMI, 1xDP, 1x Network card interface, 1x3-hole audio interface
Front panel interface: 2 x USB 2.0 PIN, 1 x USB 3.0PIN, 1 xFront audioPIN, 1xCOM PIN, 1 xPower on PIN, 1xOn-board start/restart button
Support system: Windows10 Windows11
BIOS: AMI EFI BIOS
