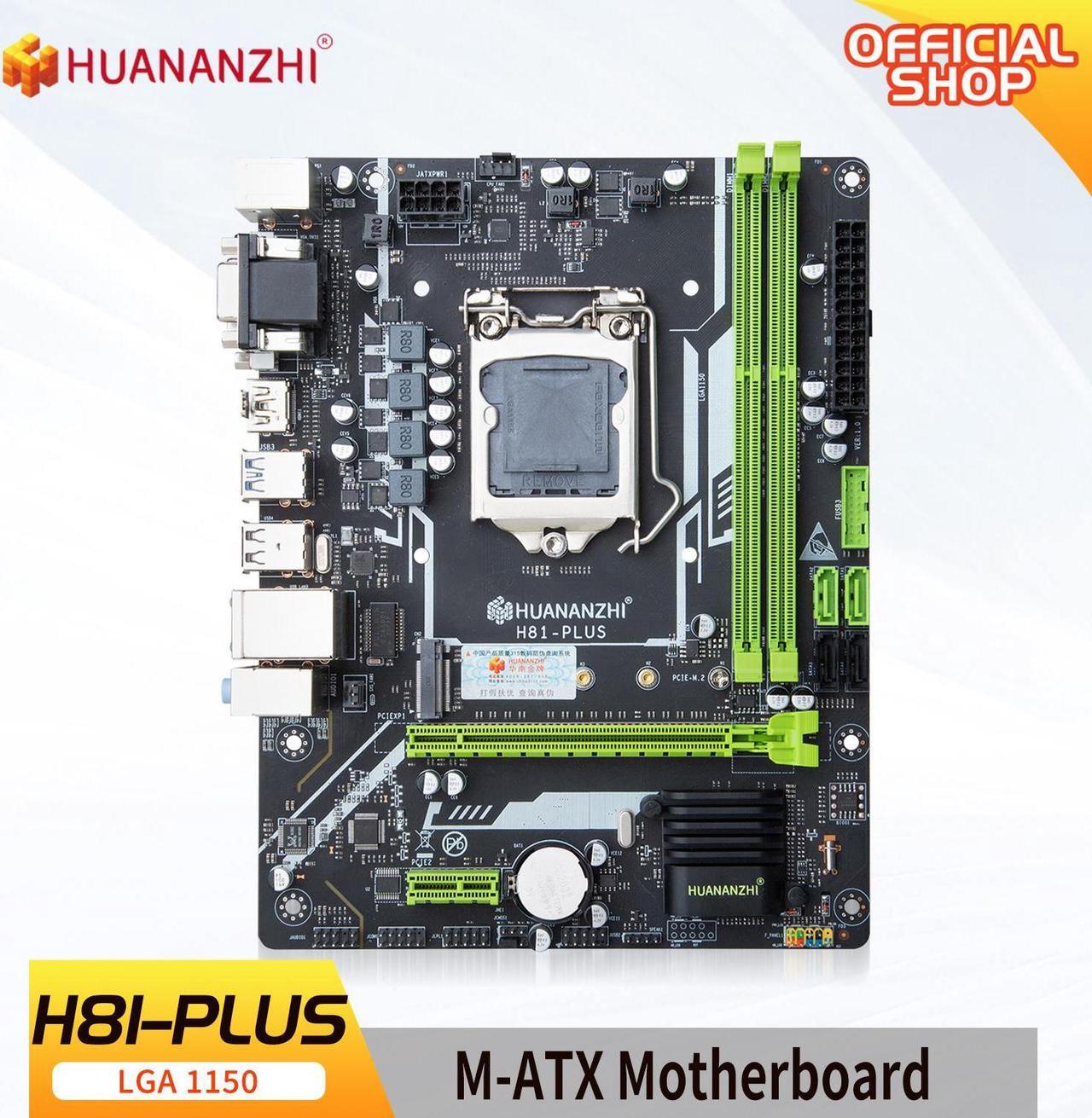

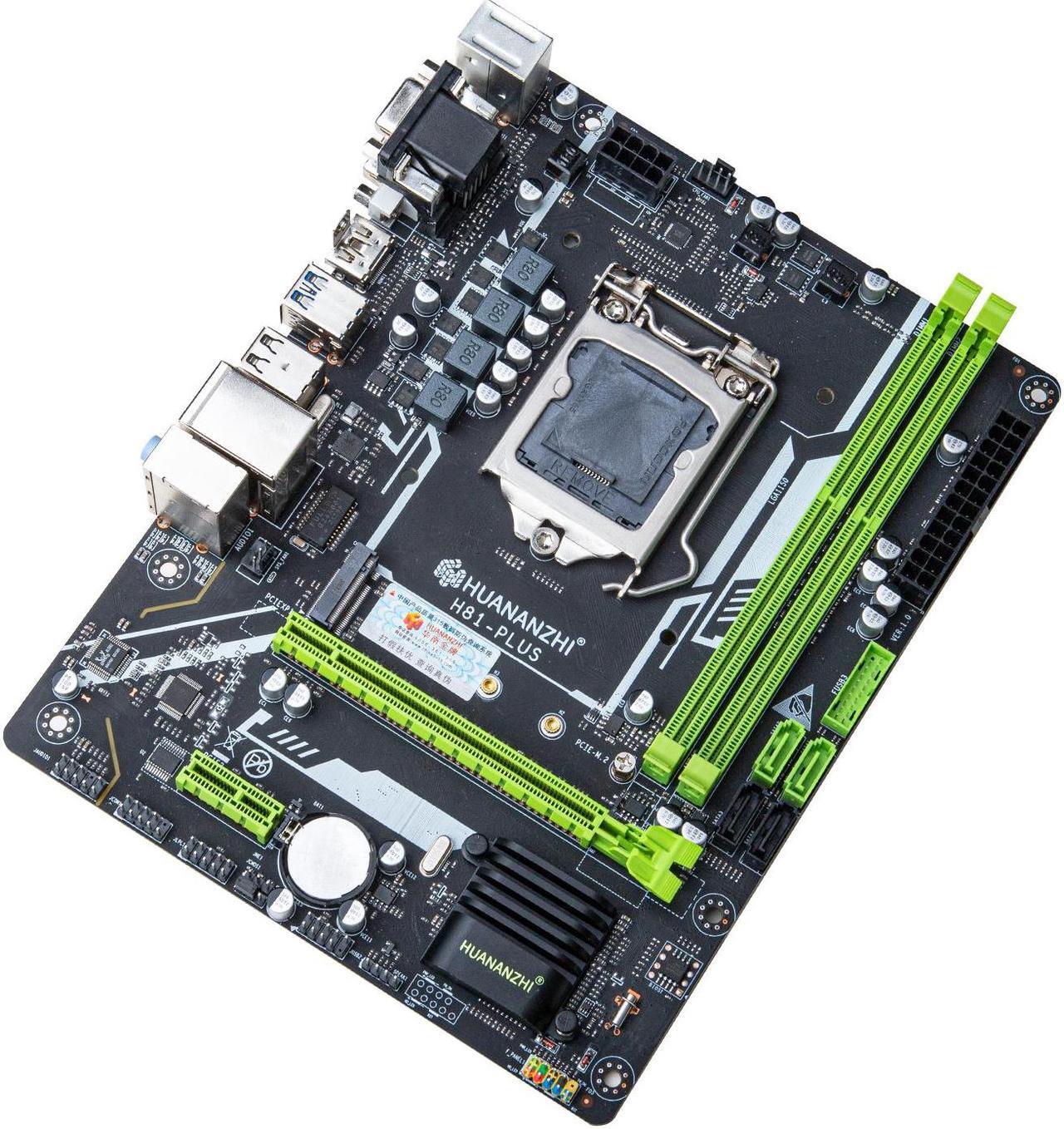

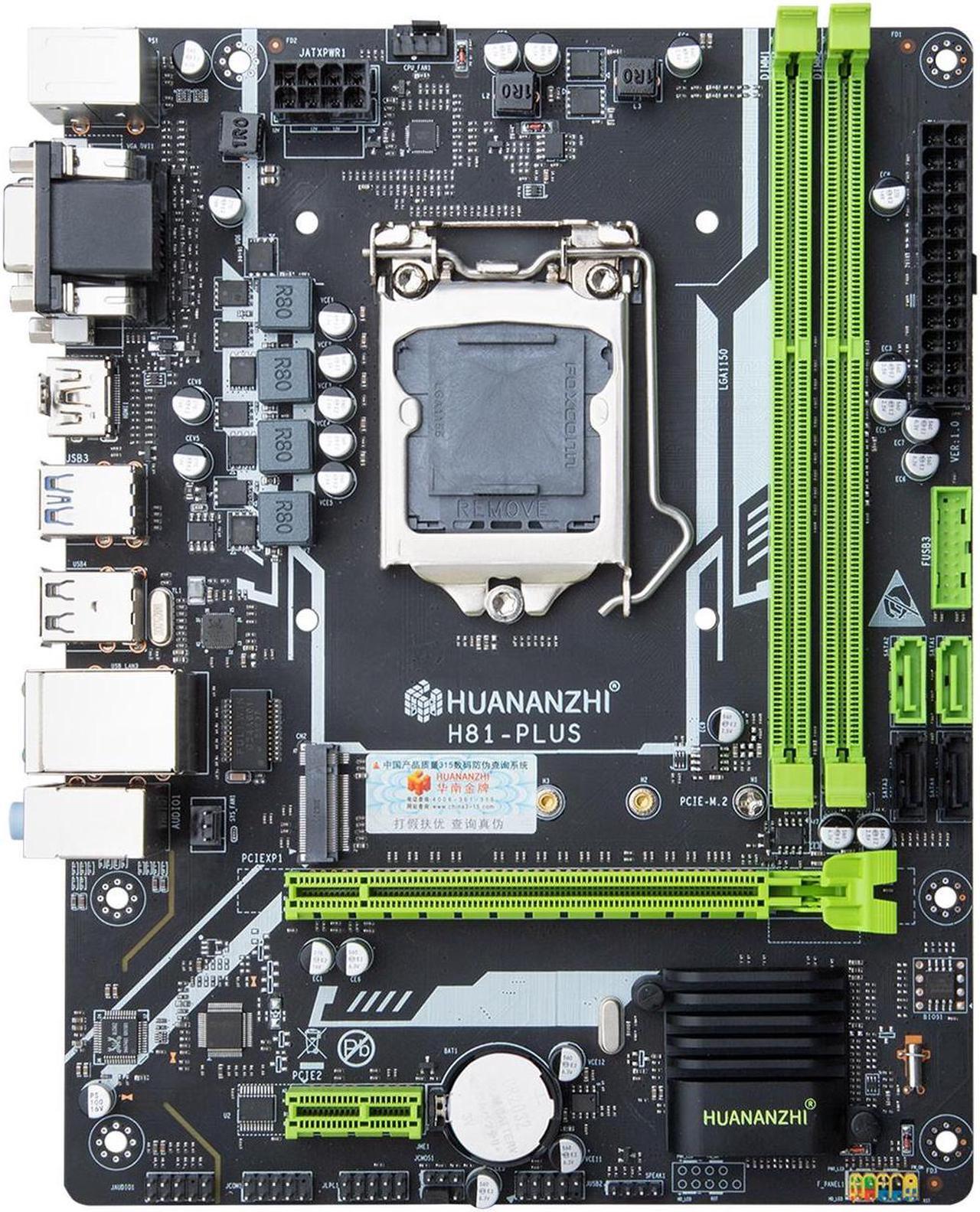

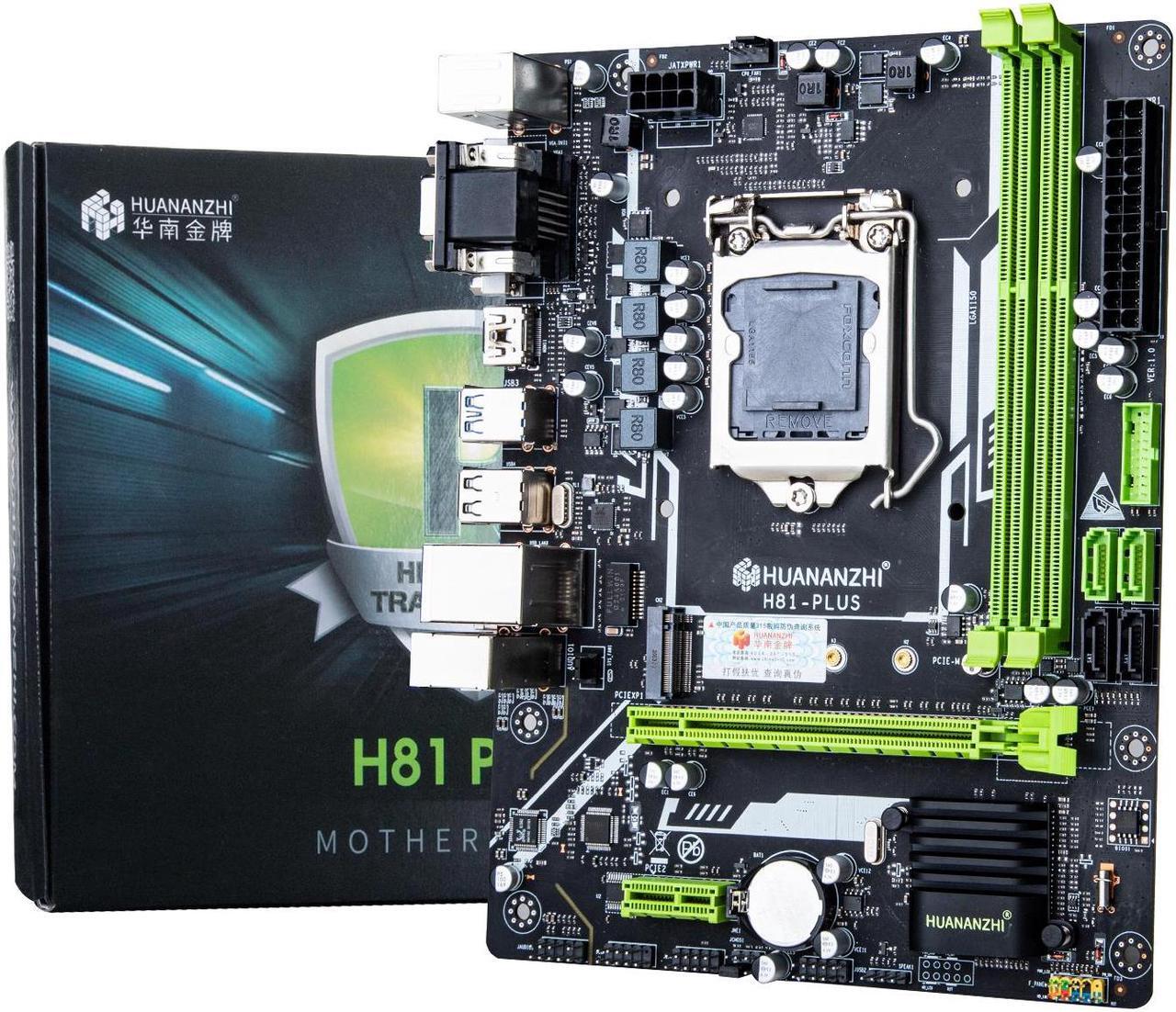

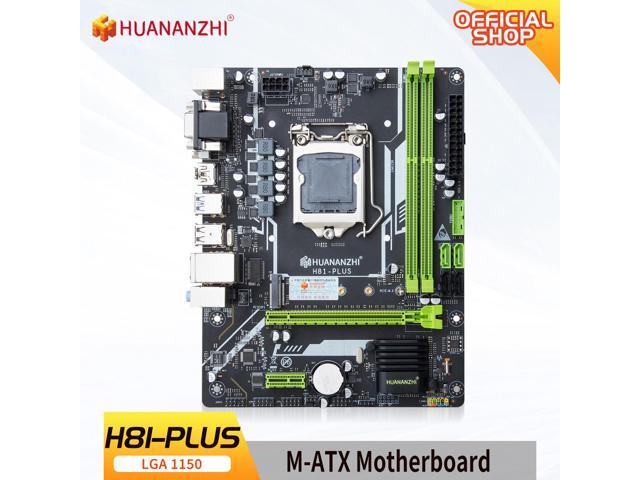

| Model | HUANANZHI H81 PLUS Motherboard |
|---|---|
| Main chipset | Intel H81 |
| CPU Socket | Support Intel LGA1150 |
| Memory slot | 2 x DDR3 memory slot |
| Memory standard | Support Dual channel DDR3 1600/1333MHz Memory, Max support 16GB |
| Storage interface | 2 x SATA3.0 6Gbps, 2 x SATA2.0 3Gbps |
| Expansion Slots | 1x PCI Express3.0x16, 1x PCI Express2.0x1 |
| Expansion interface | 1x M.2 2280 PCIEX4 2.0 20Gbps |
| Soud Track | 5.1 sound card |
| Network Card | Gigabit Ethernet |
| Power interface | 24PIN+8PIN |
| FAN PIN | 1xCPU_FAN PIN, 1xSYS_FAN PIN |
| power supply | 4-phase power supply |
| PCB layers | 4-layer PCB |
| Dimension | 220*170MM M-ATX |

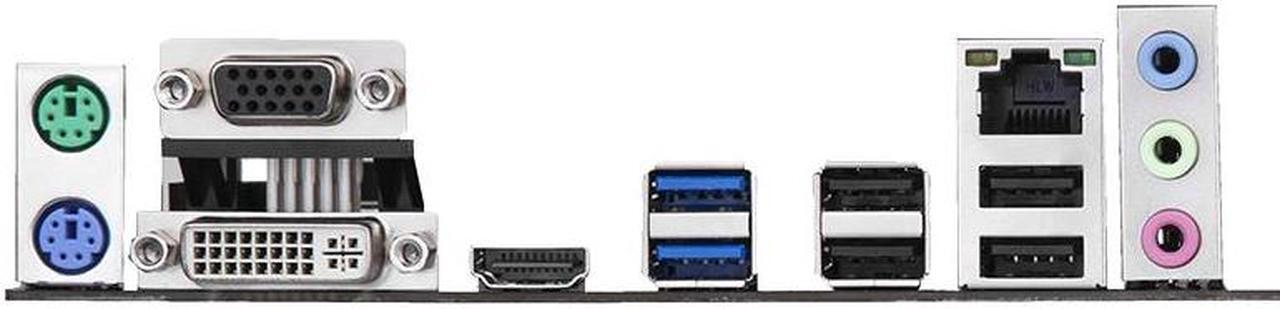

| Rear panel interface | 1xPS/2 Mouse and Keyboard port, 4xUSB2.0, 2xUSB3.0, 1xRJ45Network card interface, 1x3-hole audio interface, 1x VGA, 1x HDMI, 1xDVI |
| Front panel interface | 1 x USB2.0 PIN, 1 x USB3.0 PIN (USB2.0 speed), 1 xFront audioPIN, 1xCOM PIN |
| Support system | Windows7 Windows10 Windows11 |
| BIOS | AMI UEFI BIOS |
