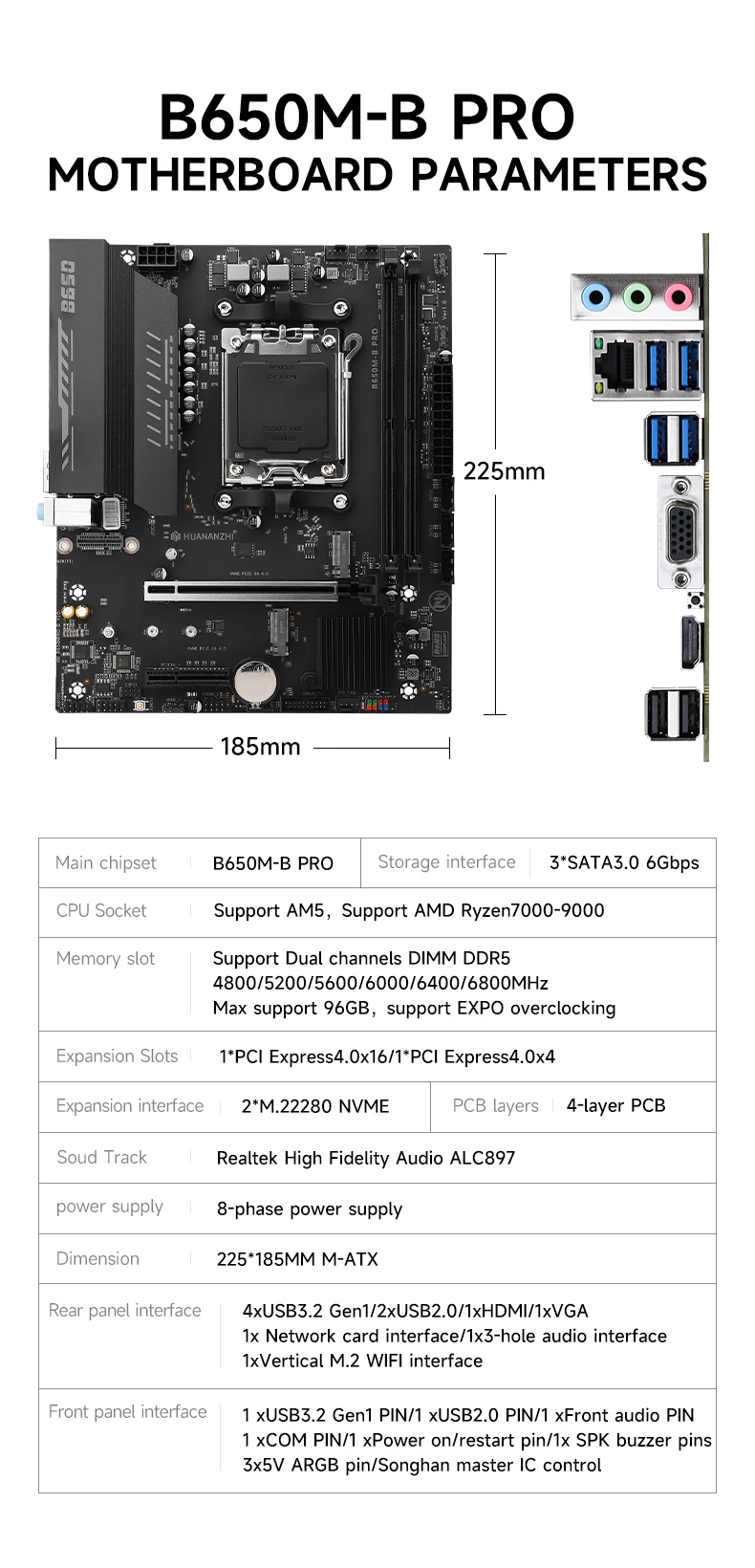

Specifications
:

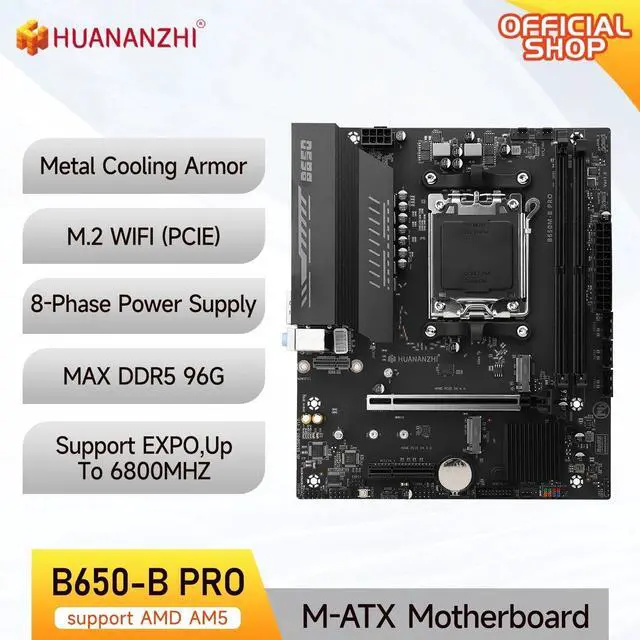

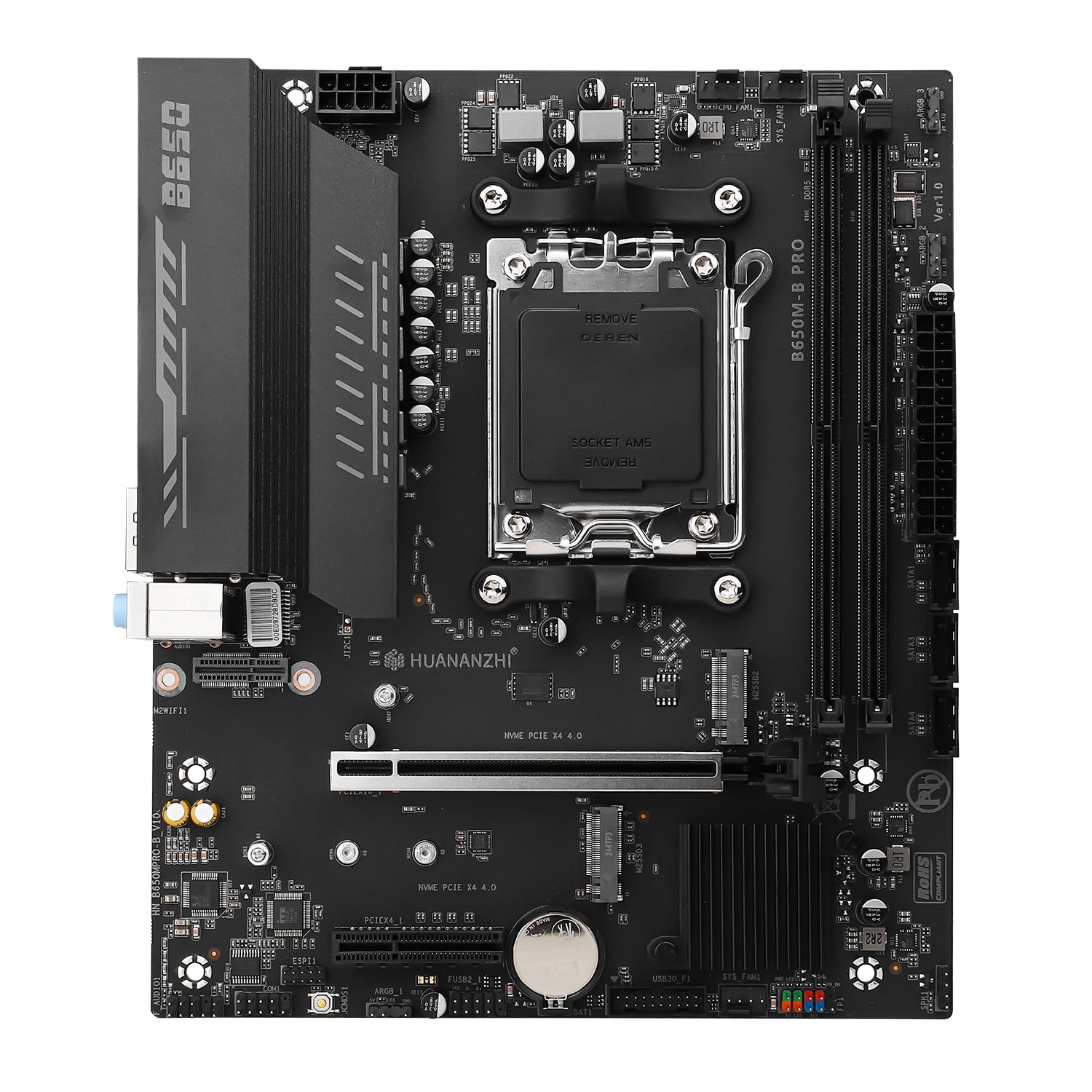

Model: HUANANZHI B650M-B PRO Motherboard
Main chipset: AMD B650... Etc chipset shipped randomly
CPU Socket: Support AMD AM5 platform processor, support AMD Ryzen7000-9000 series processor
Memory slot: 2 x DDR5 memory slot

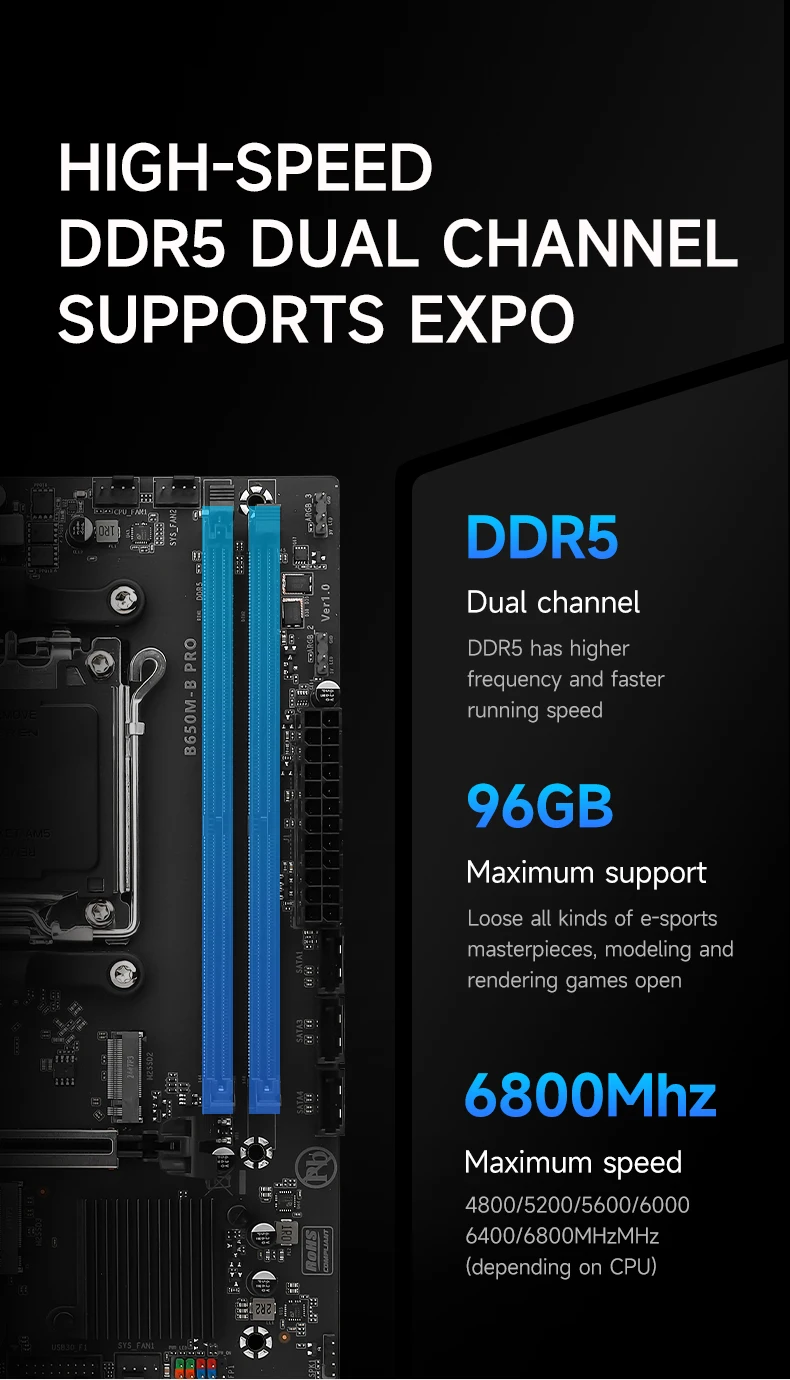

Memory standard: Support dual channel DDR5 4800/5200/5600/6000/6400/6800MHz Memory (Depends on CPU), Max support 96GB
Storage interface: 3 x SATA 3.0 6Gbps(Support RAID 0/1)

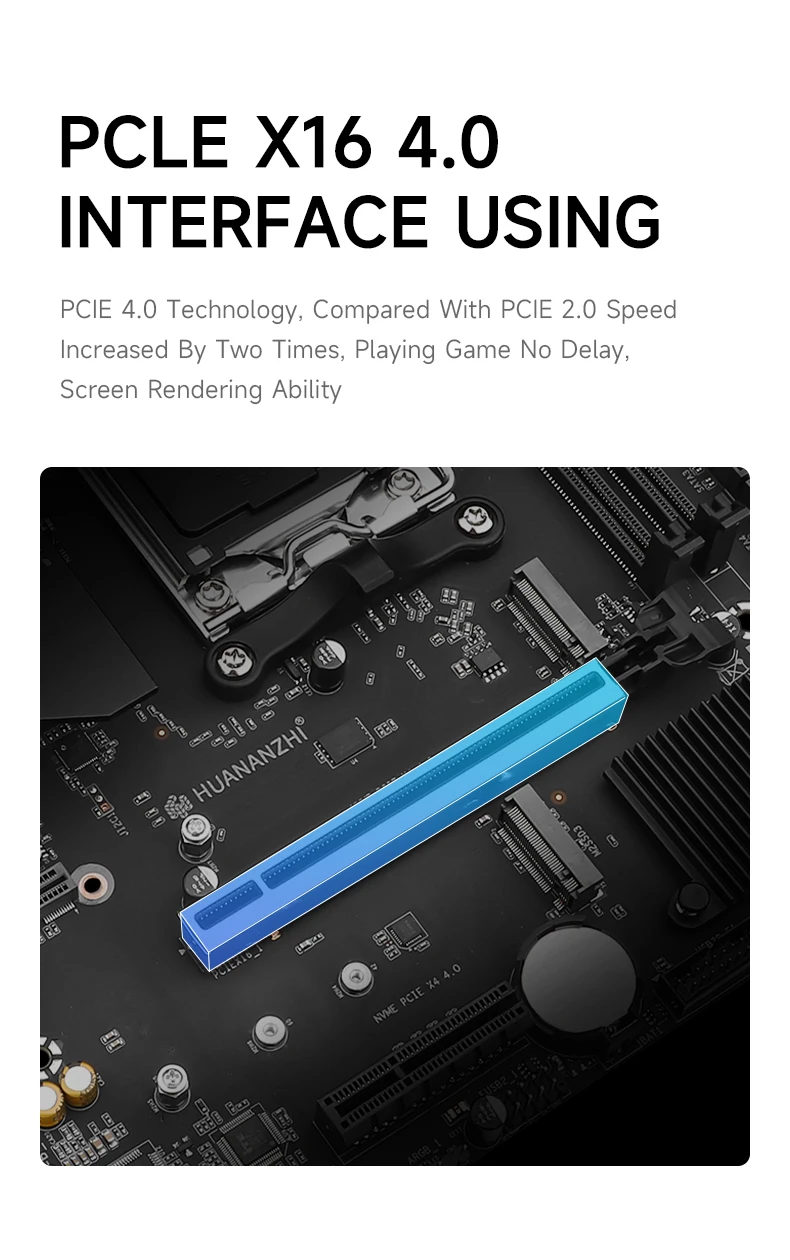

Expansion Slots: 1 x PCI Express 4.0 x16, 1xPCI Express 4.0 x4
Expansion interface: 2xM. 2 2280 NVME PCIE X4 4.0 (1*vertical plug M. 2 WIFI supports PCIE protocol at the IO port)
Soud Track: Realtek High Fidelity Audio
Network Card: Realtek Gigabit Ethernet
Power interface: 24PIN+8PIN
FAN PIN: 1xCPU_FAN PIN, 2xSYS_FAN PIN

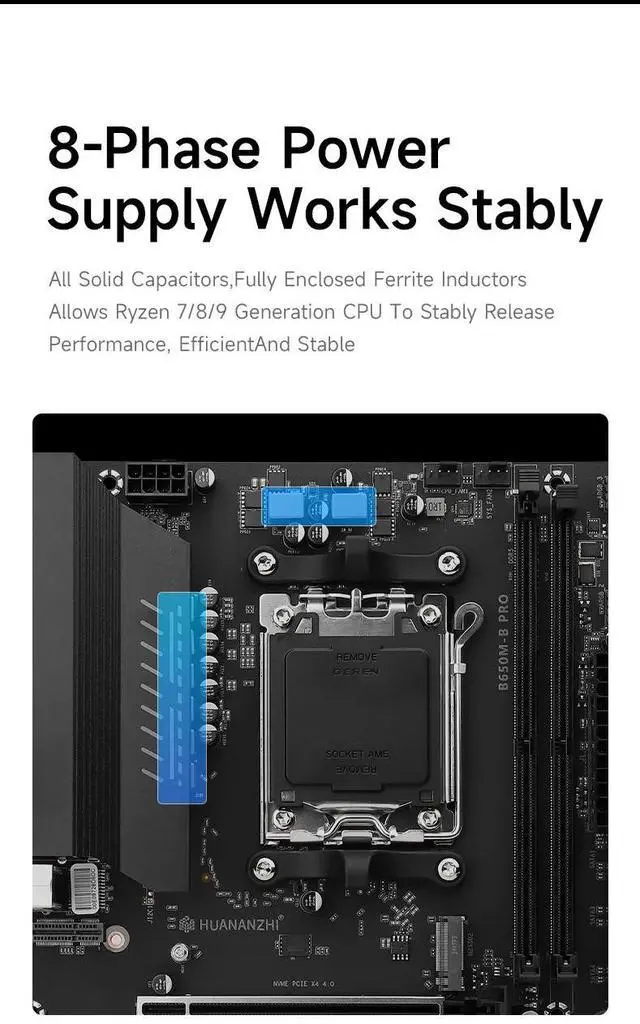

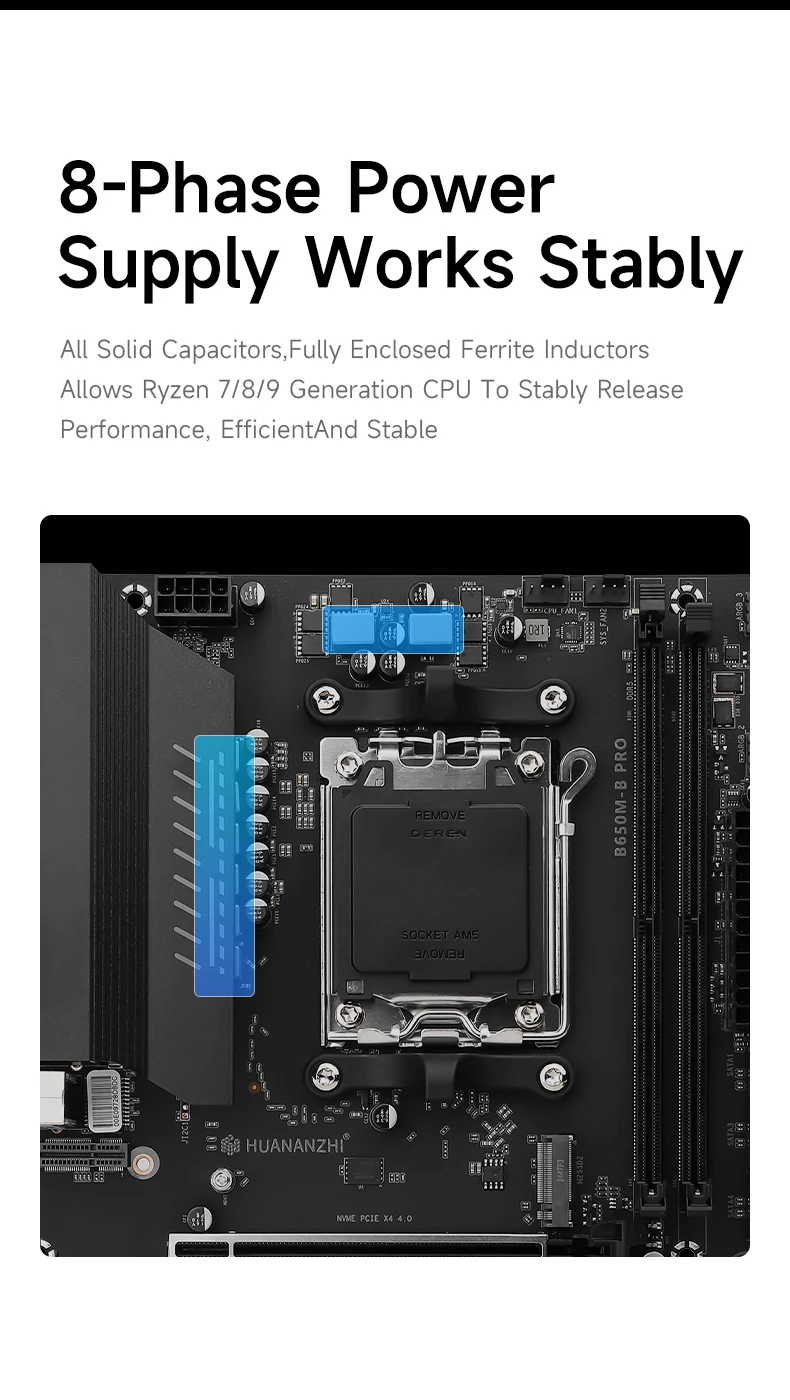

power supply: 8-phase power supply
PCB layers: 4-layer PCB
Dimension: 225*185MM M-ATX

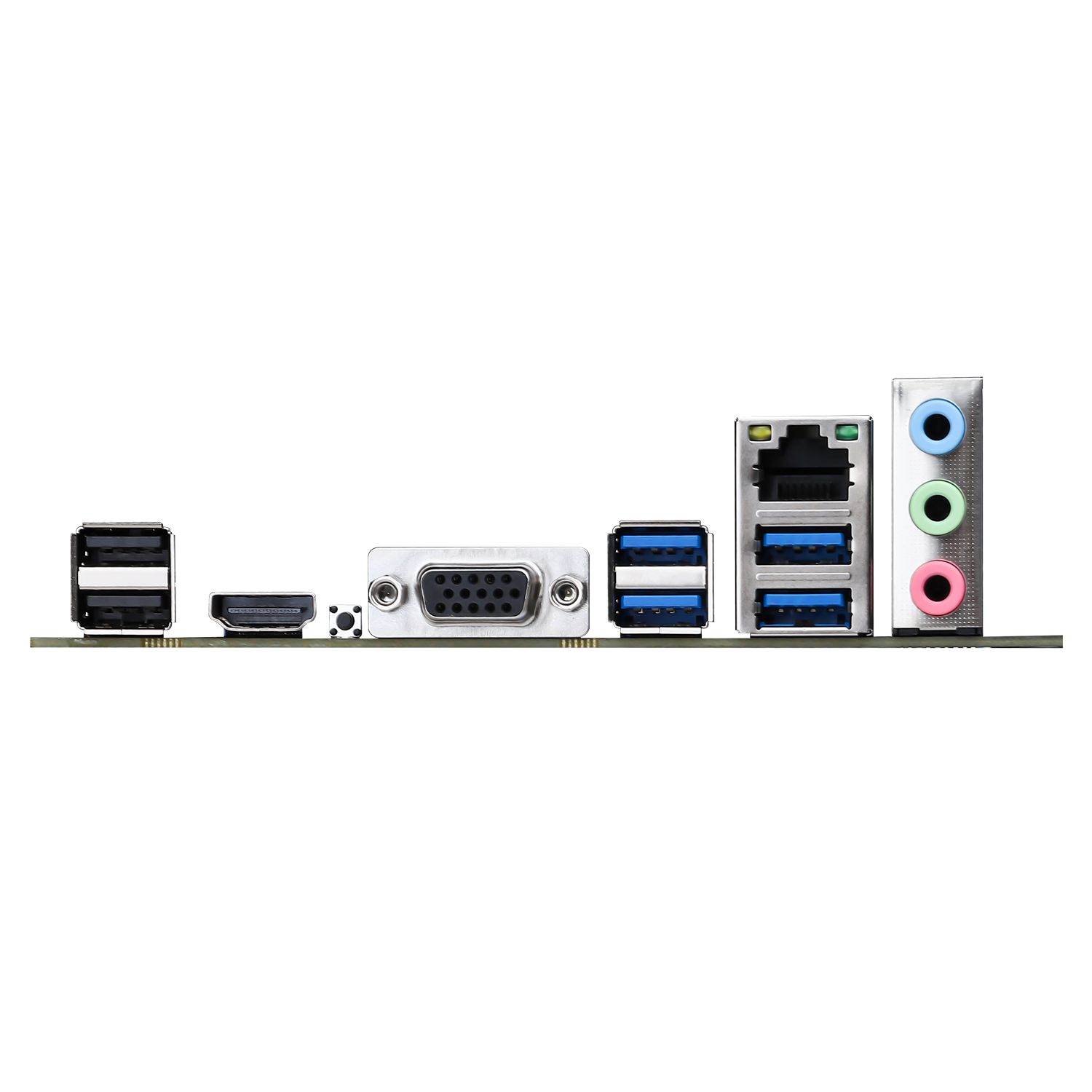

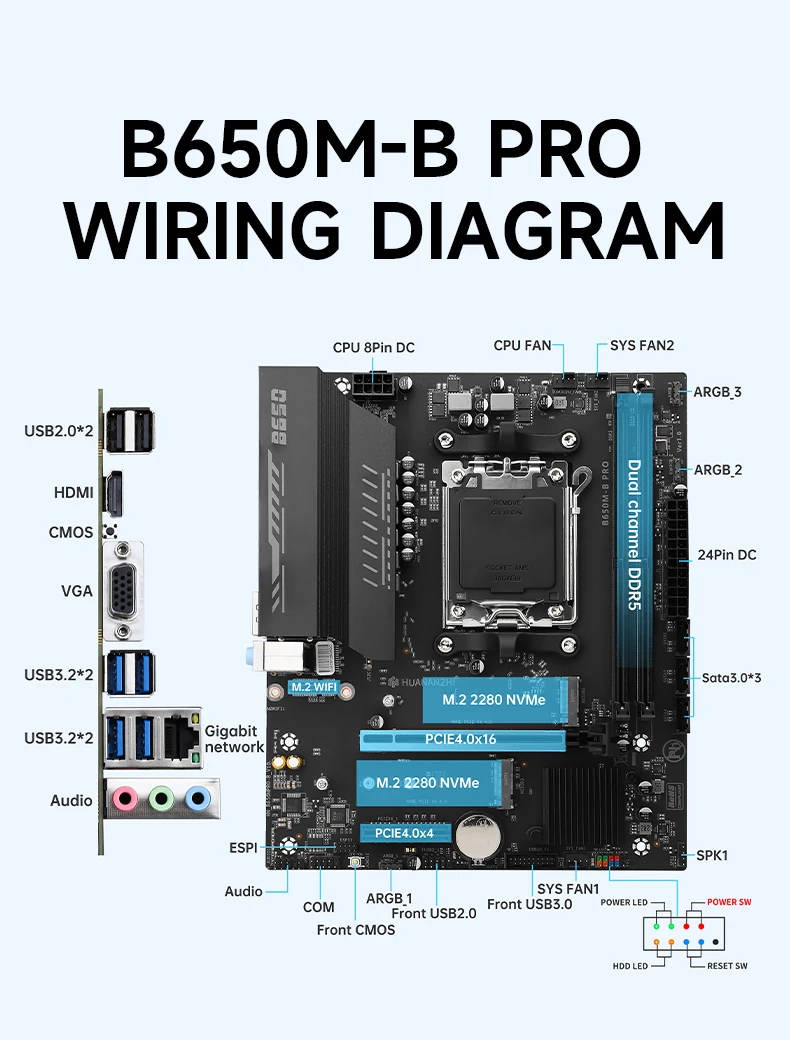

Rear panel interface: 4xUSB 3.2, 2xUSB 2.0, 1xHDMI, 1xVGA interface, 1xRJ45Network card interface, 1x3-hole audio interface, 1*Direct plug-in WIFI reserved interface

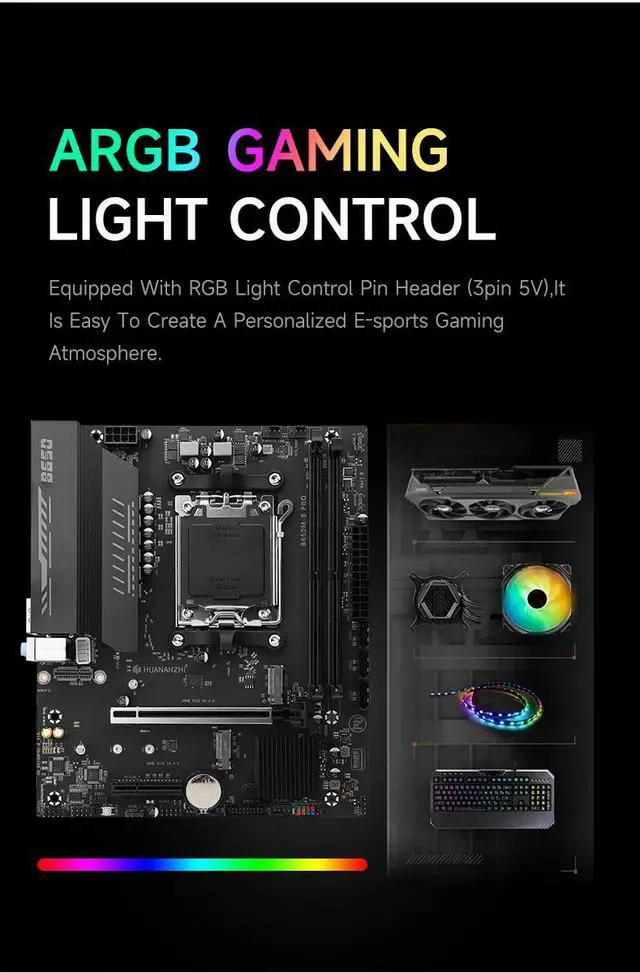

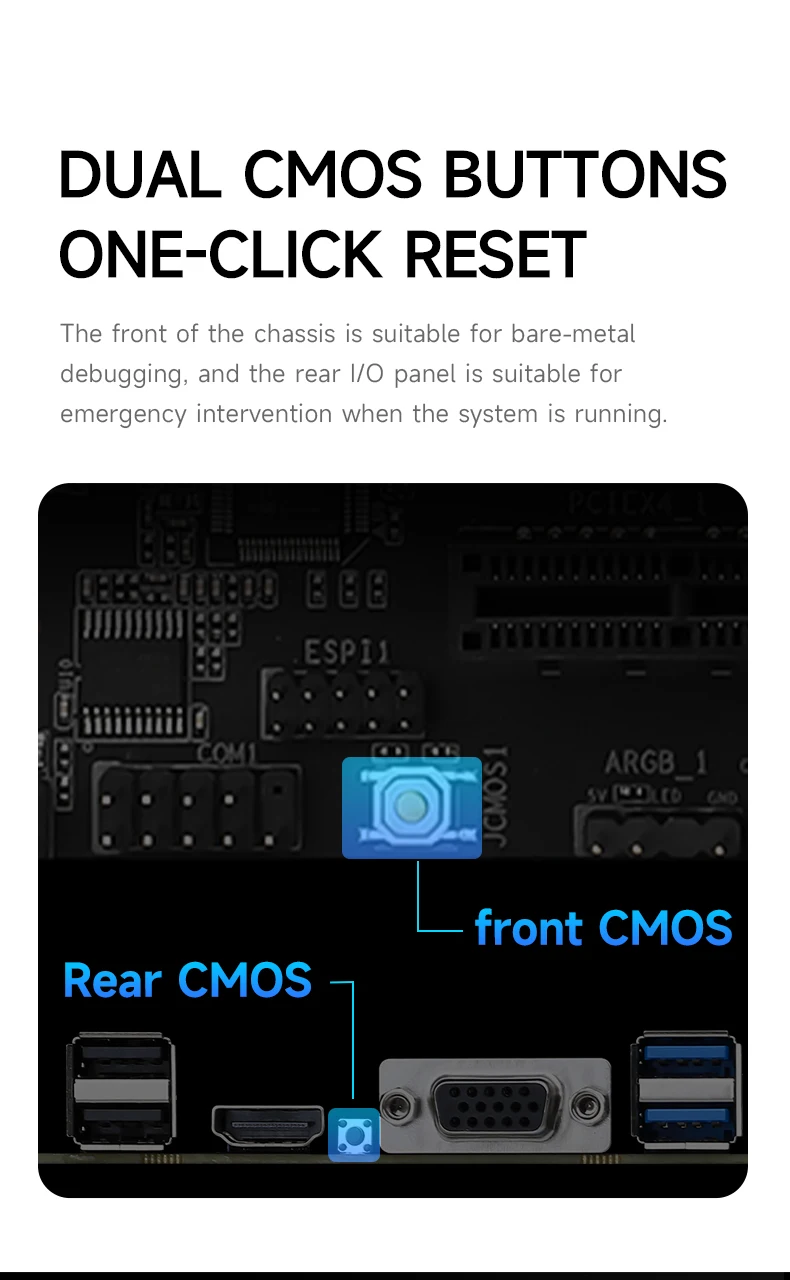

Front panel interface: 1 set of USB 3.2 Gen1 pins, 1 set of USB 2.0 pins, 1 set of audio pins, 1 set of COM pins, 1 set of CMOS buttons, 1 set of SPK buzzer pins, 1 set of power-on and restart pins, 3 sets of 5V ARGB pins/Songhan main control IC control
Support system: Windows10/Windows11
BIOS: AMI UEFI BIOS
