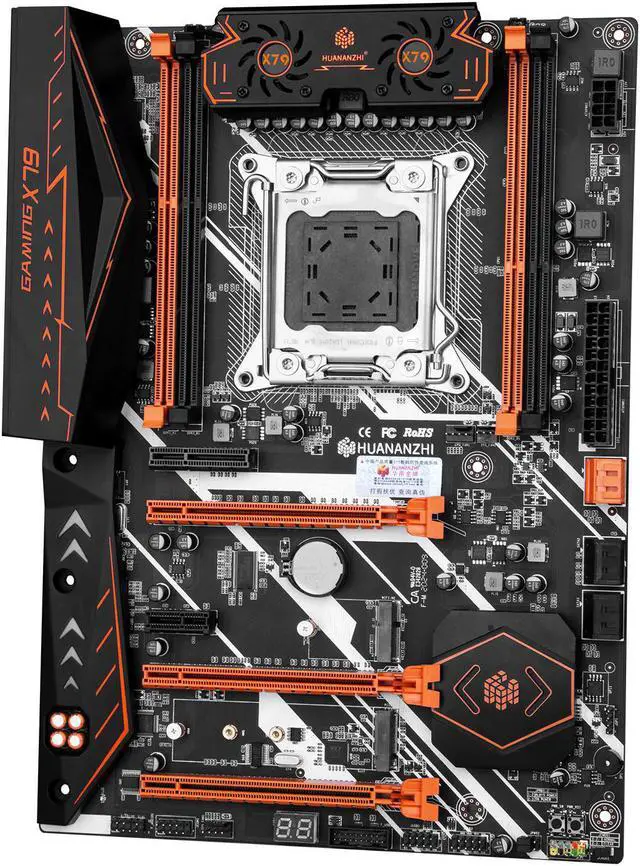

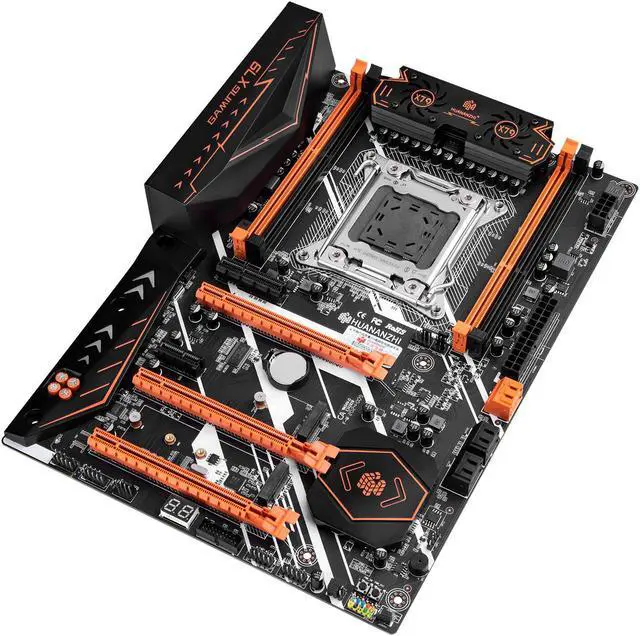

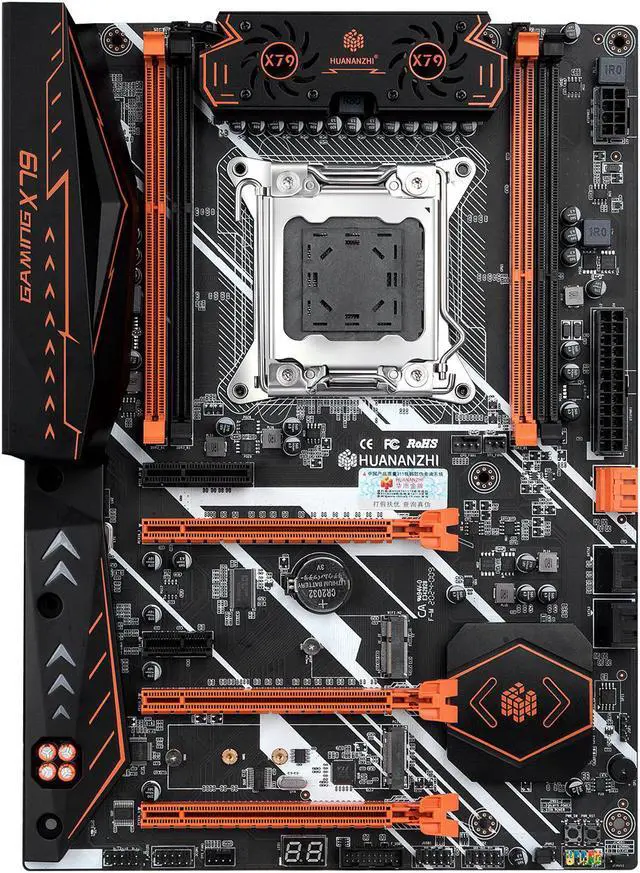

HUANANZHI X79 DELUXE V7.1 Motherboard
Specifications:
Model:HUANANZHI
Item Type: X79 DELUXE V7.1 Motherboard
Mainboard Type: ATX
Main Chip: X79 series
Graphics Card Slot: 2*PCI-E 3.0 16X 1*PCI-E 1X 2*PCI-E 4X
Integrated Video Card: NO
Power Supply: 7 power supply
PCB Layers:8
Ethernet: Gigabit
CPU Type: LGA2011 (XEON E5 2620/2630/2640/2650/2660/2665/2670/2680/2690 C2&V2)
Memory Slot: 4*DDR3(4 channel)
Memory Capacity Peak: 32Gx4 DDR3
Memory Speed: 1866/1600/1333
Memory type supported: non-ecc/reg ecc/ecc
SATA Interface: SATA3.0x2 SATA2.0x4
USB Interface: USB3.0x6 USB2.0x10(including expansion)
M.2 Interface: M.2 NVME.M.2 Wi-Fi
Audio port:ALC892 7.1 channel
Size: 305x220mm
Quantity: 1 Pc
Note:
1:The platform needs powerful power. Please make sure your power supply is sufficient to support it(at least 500w power supply) .
2:Please allow 1-3mm differs due to manual measurement.
3:Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
4:The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.
5:We show photos of motherboard, pictures are for reference only, subject to our available products.
