HUANANZHI X99 8M F X99 Motherboard with Intel XEON E5 2670 V3 with 2*16G DDR4 RECC memory combo kit set NVME USB3.0 Server

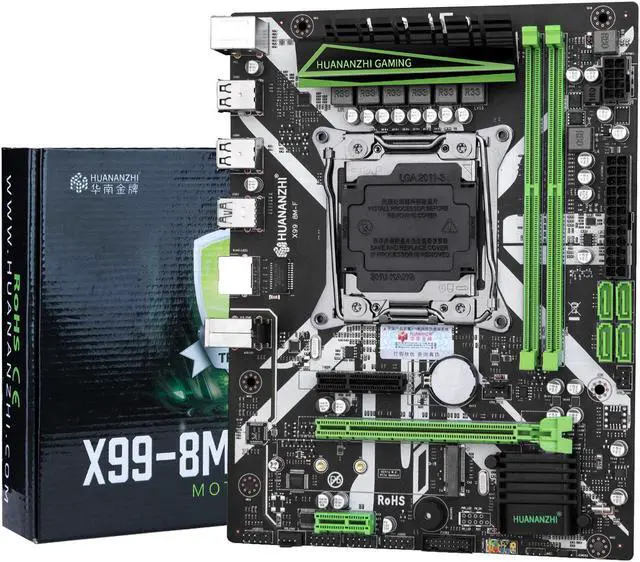

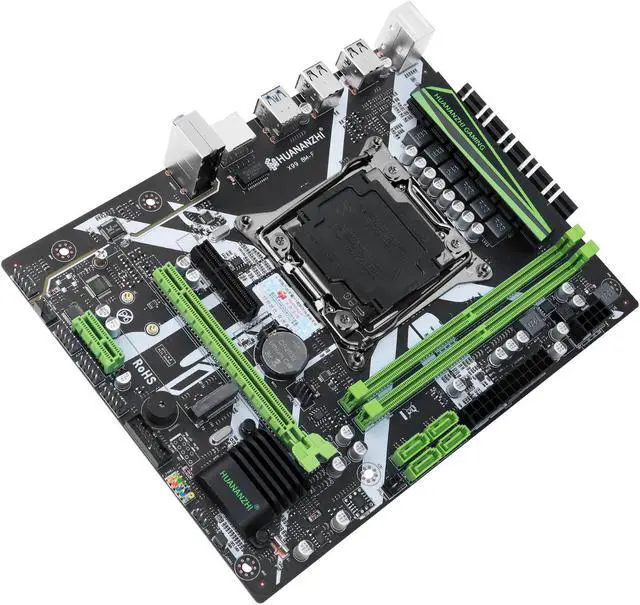

HUANANZHI X99-8M F Motherboard

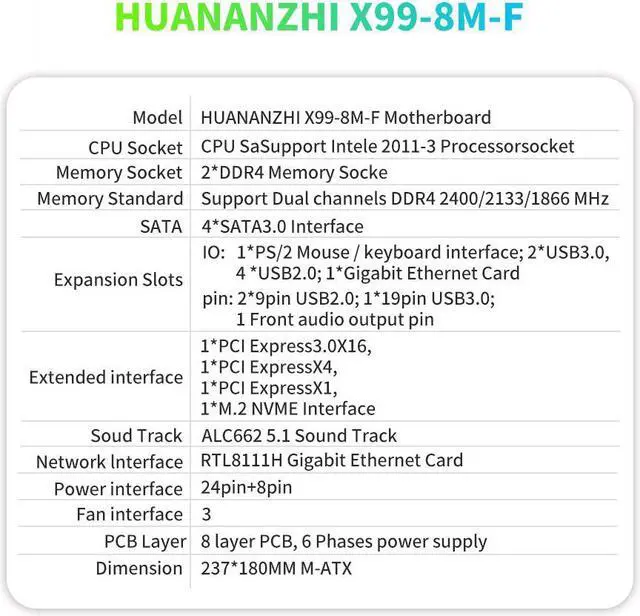

Specifications:

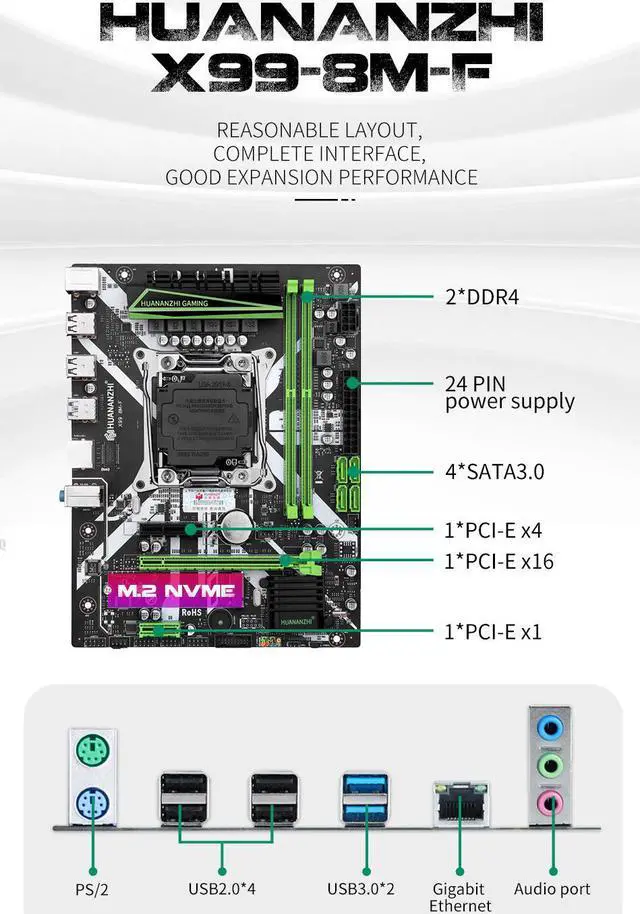

Model:HUANANZHI X99-8M-F Motherboard

CPU Socket:Support Intele 2011-3 Processors

Main chipset: H81/B85 shipped randomly

Memory Socket:2*DDR4 Memory Socke

Memory Standard :Support Dual channels DDR4 2400/2133/1866 MHz

SATA:4*SATA3.0 Interface

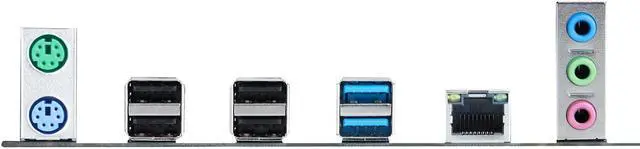

Expansion Slots:IO: 1*PS/2 Mouse / keyboard interface, 2*USB3.0, 4 USB2.0, 1*Gigabit Ethernet Card, 3*3.5MMAudio interface;Expansion pin: 2*9pin USB2.0; 1*19pin USB3.0; 1 Front audio output pin

Extended interface: 1*PCI Express3.0X16, 1*PCI ExpressX4, 1*PCI ExpressX1, 1*M.2 NVME Interface

Soud Track: 5.1 Sound Track.

Network lnterface:Gigabit Ethernet Card

Power interface:24pin+8pin

Fan interface:3

PCB ayer :8 layer PCB, 6 Phases power supply

Dimension:237*180MM M-ATX

CPU:

Processor Series: Xeon E5 2670V3 (12 cores/24 threads)

Main frequency: 2.3GHz

Socket type: LGA 2011-3

3rd level cache: 30MB

Technology: 22nm

Note:

1: CPU is used, condition good, 1 year warranty

2: There may have some little physical scratches on the surface of the CPU, this is pretty normal.

3: All CPU are strictly tested before shipping

4.The origin of CPU is from different country, like China, Malaysia, Vietnam, Costa Rica etc, but the performance is all the same. Random delivery. If you mind, please don't buy it.

Memory

Type: ECC RAM

Frequency: DDR4 2133MHZ

Capacity: 32G (2*16G)

Note:

Memory is used,condition good,1 year guarantee

Note:

1:The platform needs powerful power. Please make sure your power supply is sufficient to support it(at least 500w power supply) .

2:Please allow 1-3mm differs due to manual measurement.

3:Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.

4:The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.

5:We show photos of motherboard, pictures are for reference only, subject to our available products.
