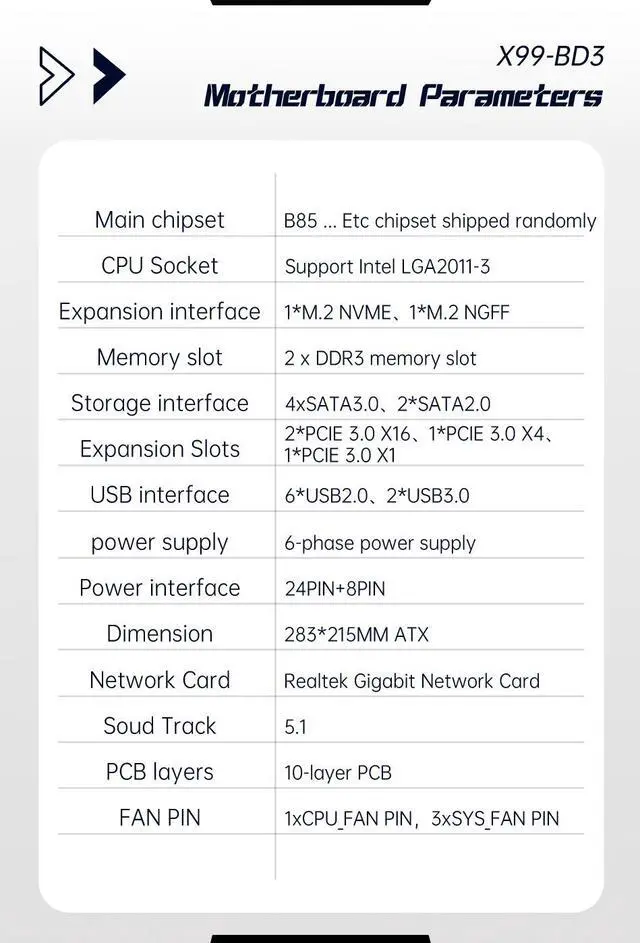

Specifications
:

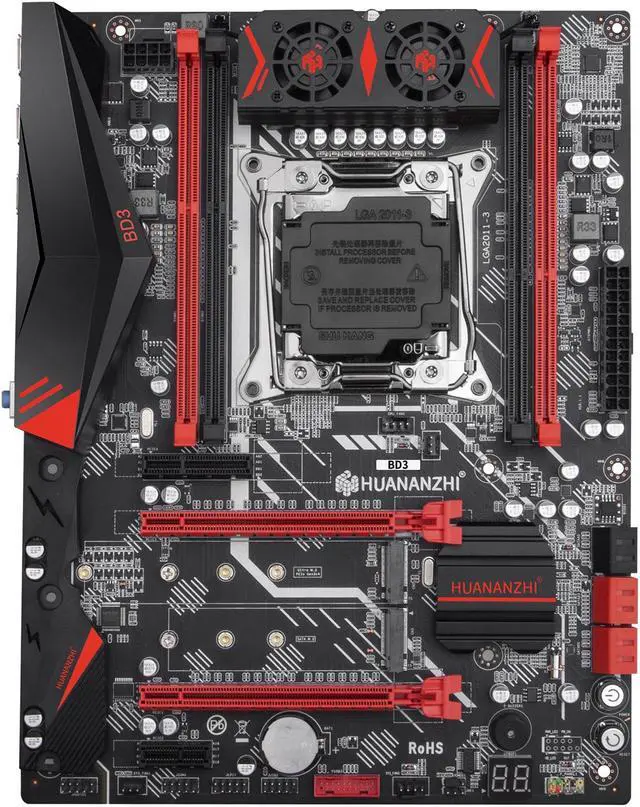

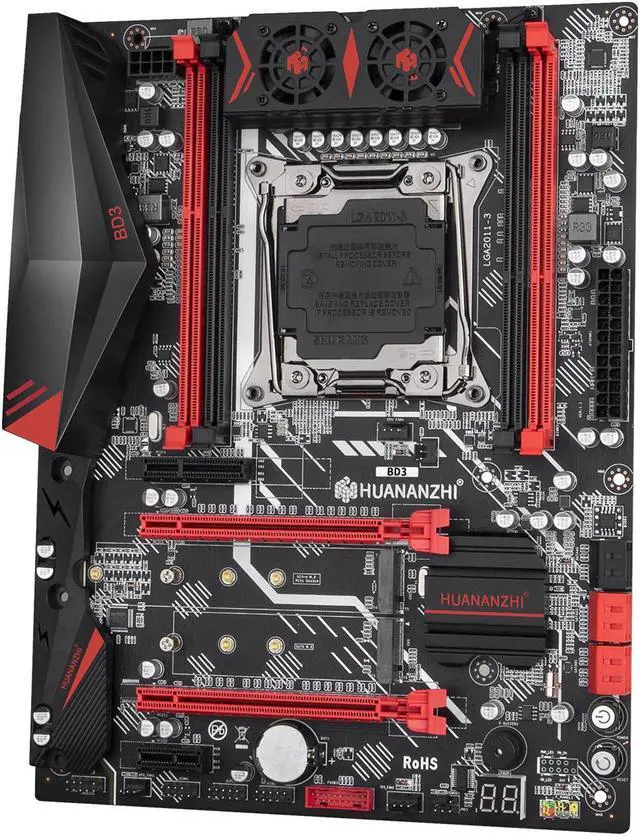

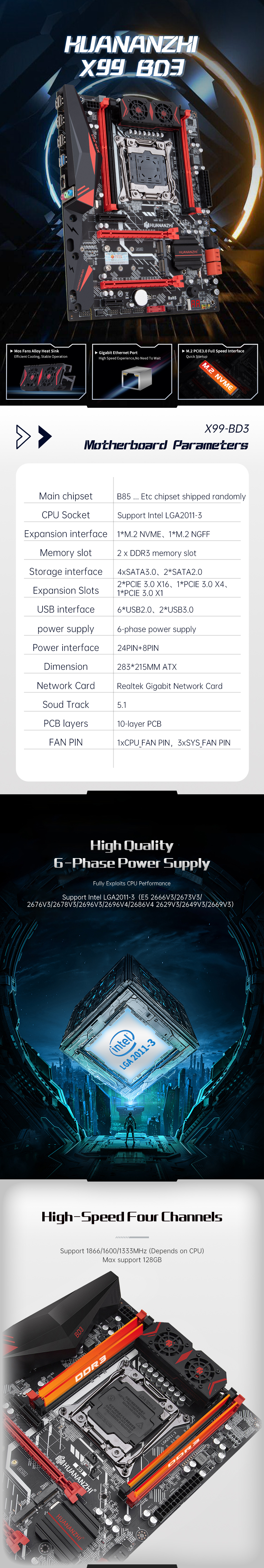

Model: HUANANZHI BD3 Motherboard
CPU Socket: Support Intel 2011-3 Processors(support E5 2678V3/2676V3/2673V3/2629V3/2649V3/2669V3/2696V3)
Main chipset: B85... Etc chipset shipped randomly
Memory Socket: 4*DDR3 Memory, Maximum Memory Capacity 128G
Memory Standard: Support Dual channel DDR3 1866/1600/1333MHz
SATA Inderface: 4*SATA 3.0 interface, 2*SATA 2.0 interface

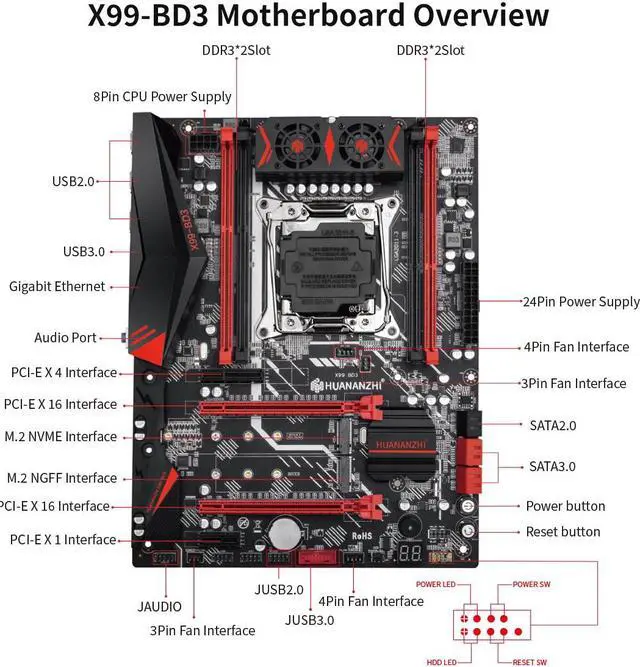

Extended Inderface:

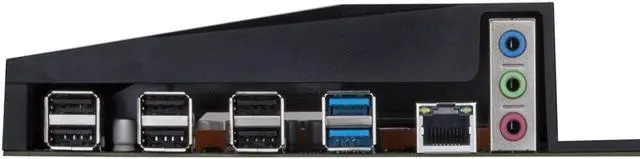

IO: 6*USB 2.0, 2*USB 3.0, 1*Gigabit Ethernet Card, 3* 3.5MM Audio interface;
Expansion pin: 1*9pin USB 2.0, 1*19pin USB 3.0, 1*Front audio output pin
Expansion Slots: 2*PCI Express 3.0X 16, 1*PCI Express 3.0X 4, 1*PCI ExpressX1, 1*M. 2 NVME(X4 3.0 ), 1*M. 2 NGFF(SATA 3.0 )
Soud Track: 5.1
Network interface: Gigabit Ethernet
Power interface: 24pin+8pin
Fan interface: 4
PCB layer: 10 layer PCB, 6Phases power supply
Dimension: 283*215MM ATX
X99-T8D / T8 / AD3 / BD3 / 8MD3 / 8M-T, "T" stands for "THREE", which means the motherboard USES DDR3 memory and only supports E5 2629V3/2649V3/2669V3/2696V3/2673V3/2676V3/2678V3, other type does not support or untested
Note:
1. The platform needs powerful power. Please make sure your power supply is sufficient to support it (at least 500w power supply).
2. Please allow 1-3mm differs due to manual measurement.
3. Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
4. The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.
5. We show photos of motherboard, pictures are for reference only, subject to our available products.
6. For Customs duties problem, pls make sure you can solve the customs clearance problems by yourself, if you can't solve it, we don't advise you to buy goods in our store. We are not responsible for customs duties. Thanks for your kindly understanding!
7. Due to computer accessories is toomuch, are likely to have some small brand, bad quality or ES/QS version of the CPU, RAM, M. 2 SSD or other accessories may occur incompatible situation with motherboard. You can confirm with our customer service before purchase. if there is no confirmation before purchase then incompatible happen when you receive the motherboard, we would not accept a refund, when you buy this link of single motherboard we default you have read and know the situation. Mind please don't buy!
