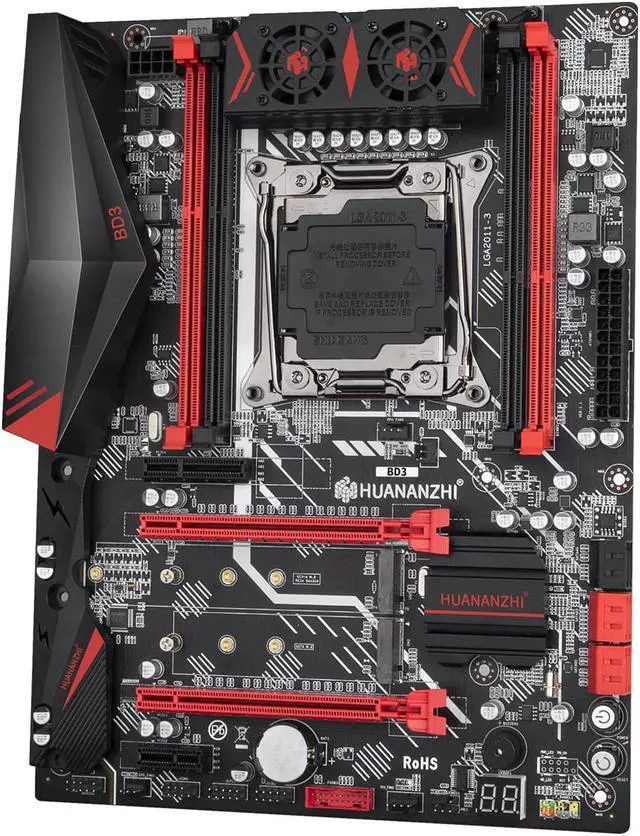

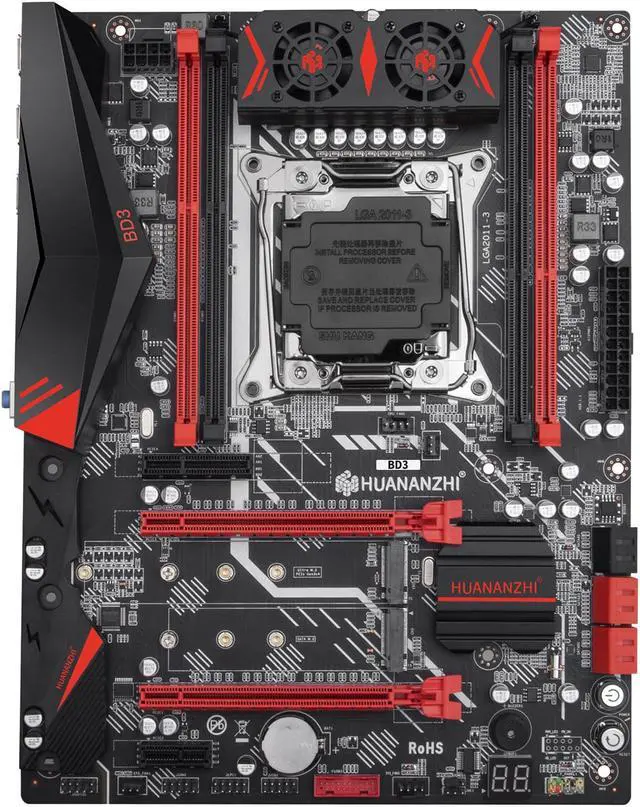

    HUANANZHI X99 BD3 LGA 2011-3 XEON X99 Motherboard suppor Intel E5 2696 2678 2676 2673 2666 V3 DDR3 RECC128GB M.2 PCI-E NVME NGFF

    Be the first to review this product...
    • Specifications:
    • Model:HUANANZHI BD3 Motherboard
    • CPU Socket:Support Intel 2011-3 Processors(support E5 2678V3/2676V3/2673V3/2629V3/2649V3/2669V3/2696V3)
    • Main chipset: B85 ... Etc chipset shipped randomly
    • Memory Socket:4*DDR3 Memory,Maximum Memory Capacity 128G
    • Memory Standard:Support Dual channel DDR3 1866/1600/1333MHz
    • SATA Inderface:4*SATA3.0 interface,2*SATA2.0 interface

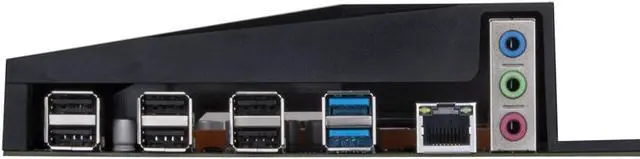

    • Extended Inderface:IO:6*USB2.0,2*USB3.0,1*Gigabit Ethernet Card,3*3.5MM Audio interface;Expansion pin:1*9pin USB2.0,1*19pin USB3.0,1*Front audio output pin
    • Expansion Slots:2*PCI Express3.0X16,1*PCI Express3.0X4,1*PCI ExpressX1,1*M.2 NVME(X4 3.0),1*M.2 NGFF(SATA3.0)
    • Soud Track:5.1
    • Network interface:Gigabit Ethernet
    • Power interface:24pin+8pin
    • Fan interface:4
    • PCB layer:10 layer PCB,6Phases power supply
    • X99-T8D / T8 / AD3 / BD3 / 8MD3 / 8M-T, "T" stands for "THREE", which means the motherboard USES DDR3 memory and only supports E5 2629V3/2649V3/2669V3/2696V3/2673V3/2676V3/2678V3,other type does not support or untested
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Note:

    X99-AD3/AD4/BD3/BD4 motherboard size is 283mmx215mm. Not standard ATX size. Make sure your case can be installed with this motherboard. Please read it carefully when purchasing. You can confirm with our customer service before purchase. if there is no confirmation before purchase then incompatible happen when you receive the motherboard, we would not accept a refund, when you buy this motherboard from our shop we default you have read and know all the Reference Information.

    Due to computer accessories is toomuch,are likely to have some small brand,bad quality or ES/QS version of the CPU, RAM, M. 2 SSD or other accessories may occur incompatible situation with motherboard. You can confirm with our customer service before purchase. if there is no confirmation before purchase then incompatible happen when you receive the motherboard, we would not accept a refund, when you buy this link of single motherboard we default you have read and know the situation. Mind please don't buy!

    Note:

    1.The platform needs powerful power. Please make sure your power supply is sufficient to support it(at least 500w power supply) .
    2.Please allow 1-3mm differs due to manual measurement.
    3.Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
    4.The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.
    5.We show photos of motherboard, pictures are for reference only, subject to our available products.


    image for this item
    image for this item
    image for this item
    image for this item
    image for this item
    image for this item
    image for this item
    image for this item
    image for this item
    image for this item
    image for this item
    image for this item
    image for this item
    image for this item

    Specifications:


    Model:HUANANZHI BD3 Motherboard


    CPU Socket:Support Intel 2011-3 Processors(support E5 2678V3/2676V3/2673V3/2629V3/2649V3/2669V3/2696V3)


    Main chipset: B85 ... Etc chipset shipped randomly


    Memory Socket:4*DDR3 Memory,Maximum Memory Capacity 128G


    Memory Standard:Support Dual channel DDR3 1866/1600/1333MHz


    SATA Inderface:4*SATA3.0 interface,2*SATA2.0 interface


    Extended Inderface:IO:6*USB2.0,2*USB3.0,1*Gigabit Ethernet Card,3*3.5MM Audio interface;Expansion pin:1*9pin USB2.0,1*19pin USB3.0,1*Front audio output pin


    Expansion Slots:2*PCI Express3.0X16,1*PCI Express3.0X4,1*PCI ExpressX1,1*M.2 NVME(X4 3.0),1*M.2 NGFF(SATA3.0)


    Soud Track:5.1


    Network interface:Gigabit Ethernet


    Power interface:24pin+8pin


    Fan interface:4


    PCB layer:10 layer PCB,6Phases power supply


    Dimension:283*215MM ATX



    X99-T8D / T8 / AD3 / BD3 / 8MD3 / 8M-T, "T" stands for "THREE", which means the motherboard USES DDR3 memory and only supports E5 2629V3/2649V3/2669V3/2696V3/2673V3/2676V3/2678V3,other type does not support or untested




    Note:


    X99-AD3/AD4/BD3/BD4 motherboard size is 283mmx215mm. Not standard ATX size. Make sure your case can be installed with this motherboard. Please read it carefully when purchasing. You can confirm with our customer service before purchase. if there is no
    confirmation before purchase then incompatible happen when you receive the motherboard, we would not accept a refund, when you buy this motherboard from our shop we default you have read and know all the Reference Information.




    Note:


    1.The platform needs powerful power. Please make sure your power supply is sufficient to support it(at least 500w power supply) .


    2.Please allow 1-3mm differs due to manual measurement.


    3.Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.


    4.The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.


    5.We show photos of motherboard, pictures are for reference only, subject to our available products.


    6.Due to computer accessories is toomuch,are likely to have some small brand,bad quality or ES/QS version of the CPU, RAM, M. 2 SSD or other accessories may occur incompatible situation with motherboard. You can confirm with our customer service before
    purchase. if there is no confirmation before purchase then incompatible happen when you receive the motherboard, we would not accept a refund, when you buy this link of single motherboard we default you have read and know the situation. Mind please
    don't buy!
