HUANANZHI X99 BD3 V1.1 X99 Motherboard Intel X99 LGA 2011-3 All Series DDR3 RECC128GB M.2 PCI-E NVME NGFF ATX Server Mainboard

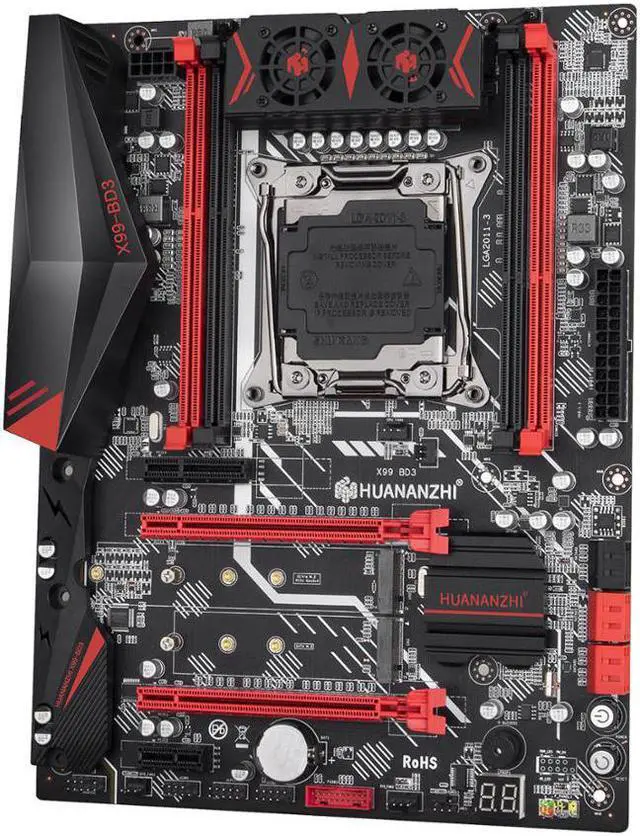

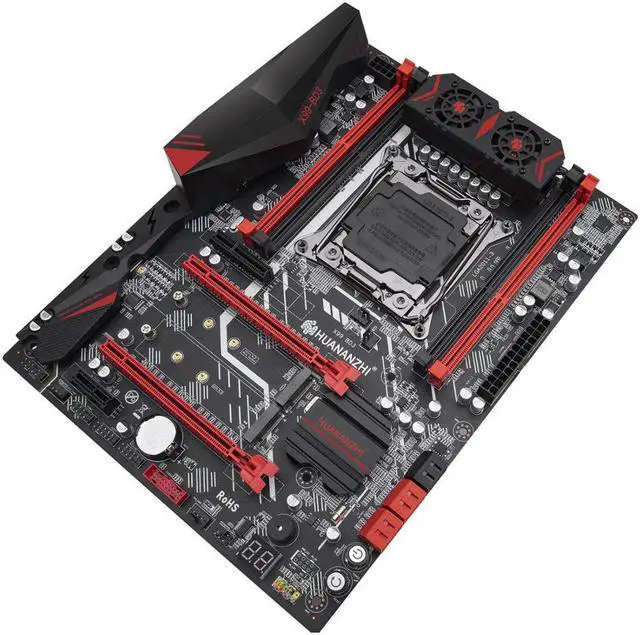

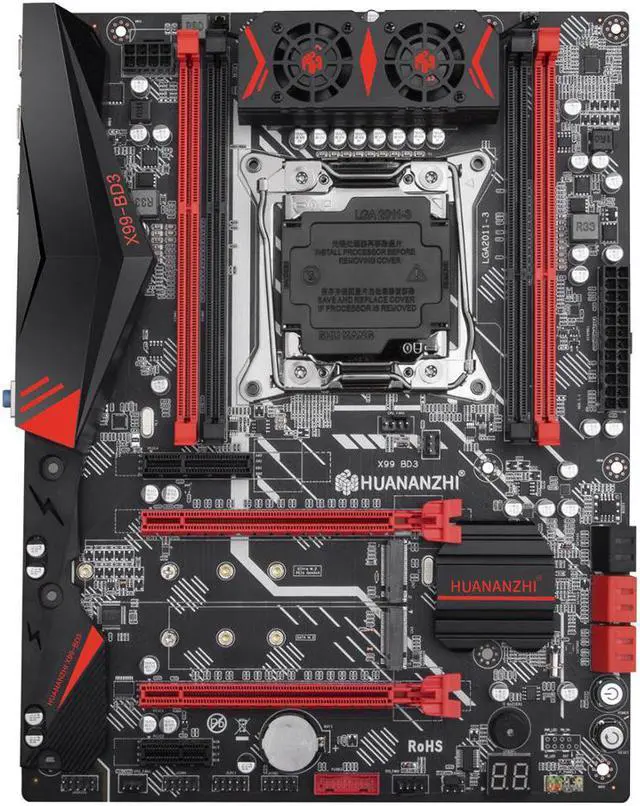

HUANANZHI X99-BD3 V1.1 Motherboard

Specifications:

Model:HUANANZHI X99-BD3 V1.1 Motherboard

CPU Socket:LGA 2011-3,X99-T8D / T8 / AD3 / BD3 / 8MD3 / 8M-T, "T" stands for "THREE", which means the motherboard USES DDR3 memory and only supports E5 2629V3/2649V3/2669V3/2696V3/2673V3/2676V3/2678V3,other type does not support or untested

Memory Socket:Support Four Channels DDR3 1866/1600/1333MHz Maximum

Memory Standard:Memory Capacity 4*32G

SATA:4*SATA3.0 Interface; 2*SATA2.0 Interface;

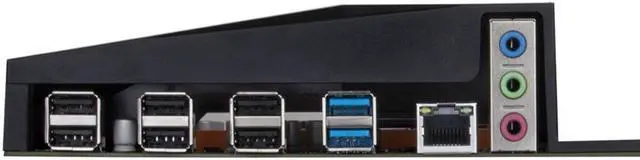

Extended interface:IO: 2* USB3.0, 6*USB2.0. 1*Gigabit Ethernet Card, 3*3.5MMAudio interface;Expansion pin: 1*9pin USB2.0; 1*19pin USB3.0; 1*Front audio output pin

Expansion Slots:2*PCI Express3.0X16, 1*PCI Express2.0X1 , 1*PCI Express3.0x4, 1*M.2 NVME (X43.0), 1*M.2 NGFF(SATA3.0)

Soud Track:ALC662 5.1 Sound Track

Network Interface:RTL8111G Gigabit Ethernet Card ;

Power interface:24pin+8pin

Fan interface:4

PC layer:10 layer, 6Phases

Note:

X99-AD3/AD4/BD3/BD4 motherboard size is 283mmx215mm. Not standard ATX size. Make sure your case can be installed with this motherboard. Please read it carefully when purchasing. You can confirm with our customer service before purchase. if there is no
confirmation before purchase then incompatible happen when you receive the motherboard, we would not accept a refund, when you buy this motherboard from our shop we default you have read and know all the Reference Information.
