HUANANZHI X99 CH8 X99 Motherboard Intel XEON E5 LGA2011-3 All Series DDR4 RECC NON-ECC memory NVME USB3.0 ATX Server workstation

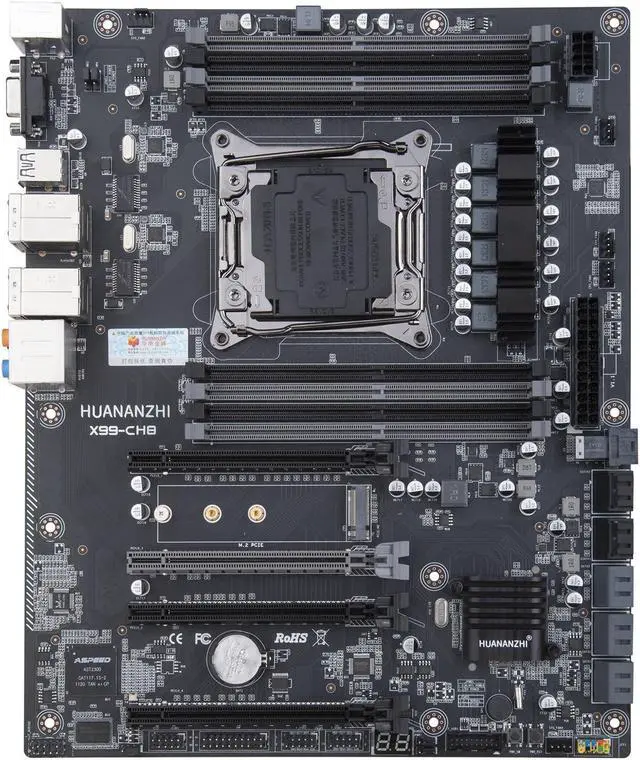

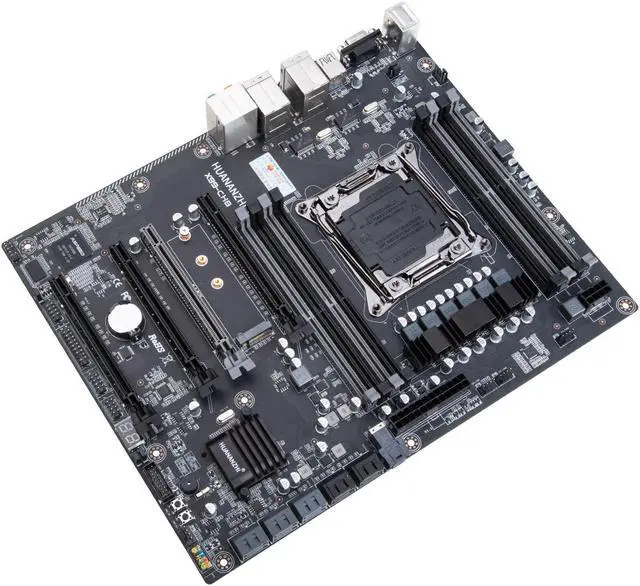

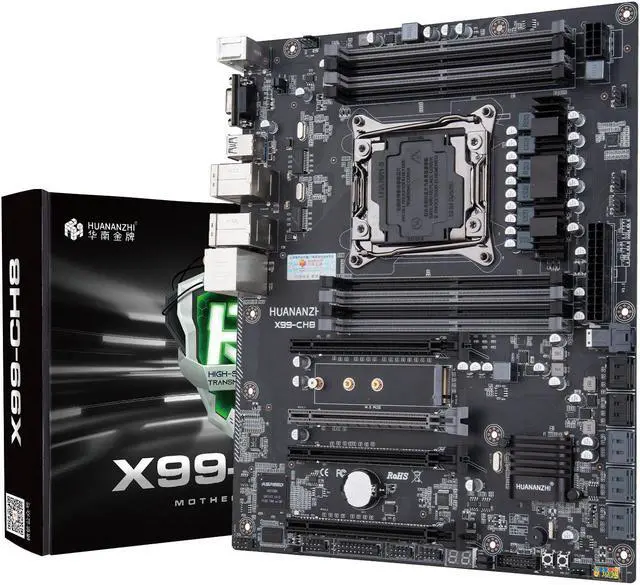

HUANANZHI X99-CH8 Motherboard

Specifications:

CPU Socket:Support Intele 2011-3 Processors
Memory Socket:8*DDR4 Memory Socket
Memory Standard:Support Four Channels DDR4 2400/2133/1866 MHz
SATA:6*SATA3.0 Interface; 4*SATA3.0 Interface

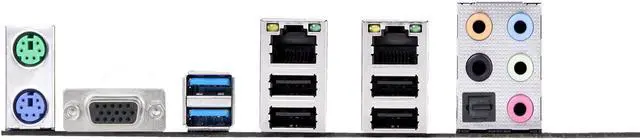

Extended interface:IO: 1*PS/2 Mouse / keyboard interface,
2*USB3.0, 4*USB2.0, 1*Gigabit Ethernet Card, 5*3.5MMAudio interface;Expansion pin: 2*USB2.0; 1*USB3.0; 1*Front audio output pin
Expansion Slots:1*PCI Express3.0x16 , 2*PCI Express3.0x8 , 1*PCI Express2.0X4 , 1*M.2 NVME (X43.0) , 1*U.2 (X43.0)
Soud
Track:7.1 Sound Track
Network Interface:Gigabit Ethernet Card
Power interface:24pin+8pin
Fan interface:5
C layer:10 layer, 6Phases
Dimension :300*240mm AX

Note:

1:The platform needs powerful power. Please make sure your power supply is sufficient to support it(at least 500w power supply) .
2:Please allow 1-3mm differs due to manual measurement.
3:Due to the different display and different light, the picture
may not show the actual color of the item. Thanks for your understanding.
4:The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.
5:We show photos of motherboard, pictures are for
reference only, subject to our available products.
