HUANANZHI X99 T8D Motherboard Intel Dual CPU X99 LGA 2011-3 E5 V3 DDR3 RECC M.2 NVME NGFF USB3.0 E-ATX Server Mainboard Workstation
- CPU Socket: Support Intel® 2011-3 Processors(support E5 2678V3/2676V3/2673V3/2629V3/2649V3/2669V3/2696V3)
- Memory Socket: 8*DDR3 Memory, Maximum Memory Capacity 8*32G
- Memory Standard: Support Four channel DDR3 1866/1600/1333MHz
- SATA Interface: 10*SATA3.0 interface
- Extended Interface: IO:4*USB2.0,4*USB3.0,2*Gigabit Ethernet Card,6*3.5MM Audio interface;Expansion pin:1*9pin USB2.0,1*19pin USB3.0,1*Front audio output pin
- Expansion Slots: 3*PCI Express3.0X16,1*M.2 NVME,1*M.2 NGFF
- Soud Track: 7.1
- Network interface: Gigabit Ethernet
- Power interface: 24pin+8pin+8pin
- Fan interface: 6
- PCB layer: 12 layer PCB,12Phases power supply
- Dimension: 300*320MM E-ATX
- Packing list: 1*I/O baffle 2*SATA line
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

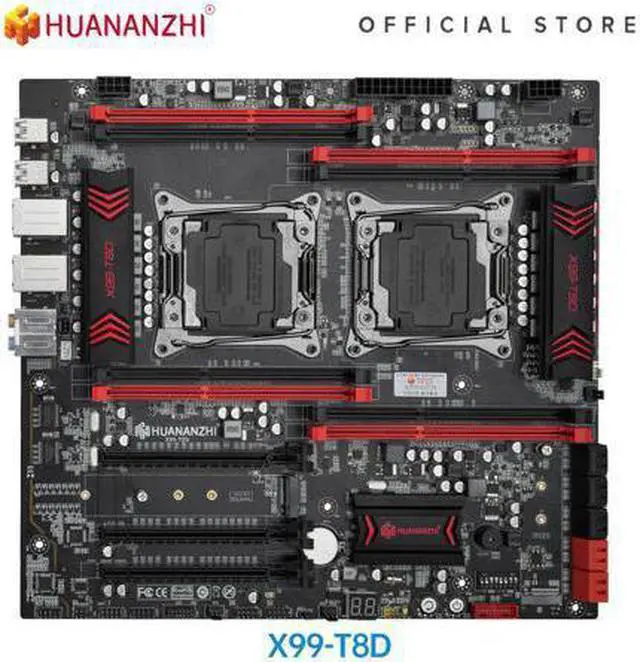

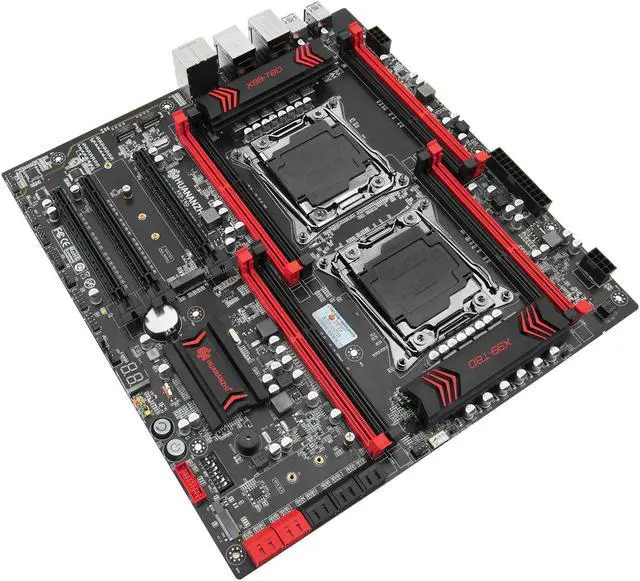

HUANANZHI X99-T8D Motherboard Details
Model:HUANANZHI X99 Dual-T8D Motherboard
CPU Socket:LGA 2011-3,X99-T8D / T8 / AD3 / BD3 / 8MD3 / 8M-T, "T" stands for "THREE", which means the motherboard USES DDR3 memory and only supports E5 2629V3/2649V3/2669V3/2696V3/2673V3/2676V3/2678V3,other type does not support or untested
Memory Socket:8*DDR3 Memory Socket
Memory Standard:Support Four Channels DDR3 1866/1600/1333MHz Maximum Memory Capacity 8*32G
SATA:6*SATA3.0 / 4*SSATA3.0

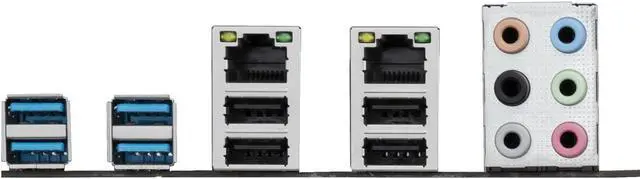

Extended interface:IO: 4* USB3.0, 4 USB2.0, 2*Gigabit Ethernet Card, 6*3.5MMAudio interface;
Expansion pin: 2*9pin USB2.0; 1*19pin USB3.0; 1*Front audio output pin
Expansion Slots:3*PCI Express3.0X16, 1*M.2 NVME, 1*M.2 NGFF Interface
Soud Track:ALC887 7.1 Sound Track
Network Interface:RTL8111H Gigabit Ethernet Card
Power interface:24pin+8pin+8pin
Fan interface:4PIN
C layer:12 layer, 12Phases
Dimension :300*320MM E-ATX
Note:
1:The platform needs powerful power. Please make sure your power supply is sufficient to support it(at least 750w power supply) .
2:Please allow 1-3mm differs due to manual measurement.
3:Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
4:The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.
5:We show photos of motherboard, pictures are for reference only, subject to our available products.
6.The motherboard does not support RGB
Model:HUANANZHI X99 Dual-T8D Motherboard
CPU Socket:LGA 2011-3,X99-T8D / T8 / AD3 / BD3 / 8MD3 / 8M-T, "T" stands for "THREE", which means the motherboard USES DDR3 memory and only supports E5 2629V3/2649V3/2669V3/2696V3/2673V3/2676V3/2678V3,other type does not support or untested
Memory Socket:8*DDR3 Memory Socket
Memory Standard:Support Four Channels DDR3 1866/1600/1333MHz Maximum Memory Capacity 8*32G
SATA:6*SATA3.0 / 4*SSATA3.0
Extended interface:IO: 4* USB3.0, 4 USB2.0, 2*Gigabit Ethernet Card, 6*3.5MMAudio interface;
Expansion pin: 2*9pin USB2.0; 1*19pin USB3.0; 1*Front audio output pin
Expansion Slots:3*PCI Express3.0X16, 1*M.2 NVME, 1*M.2 NGFF Interface
Soud Track:ALC887 7.1 Sound Track
Network Interface:RTL8111H Gigabit Ethernet Card
Power interface:24pin+8pin+8pin
Fan interface:4PIN
C layer:12 layer, 12Phases
Dimension :300*320MM E-ATX
Note:
1:The platform needs powerful power. Please make sure your power supply is sufficient to support it(at least 750w power supply) .
2:Please allow 1-3mm differs due to manual measurement.
3:Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
4:The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.
5:We show photos of motherboard, pictures are for reference only, subject to our available products.
6.The motherboard does not support RGB
