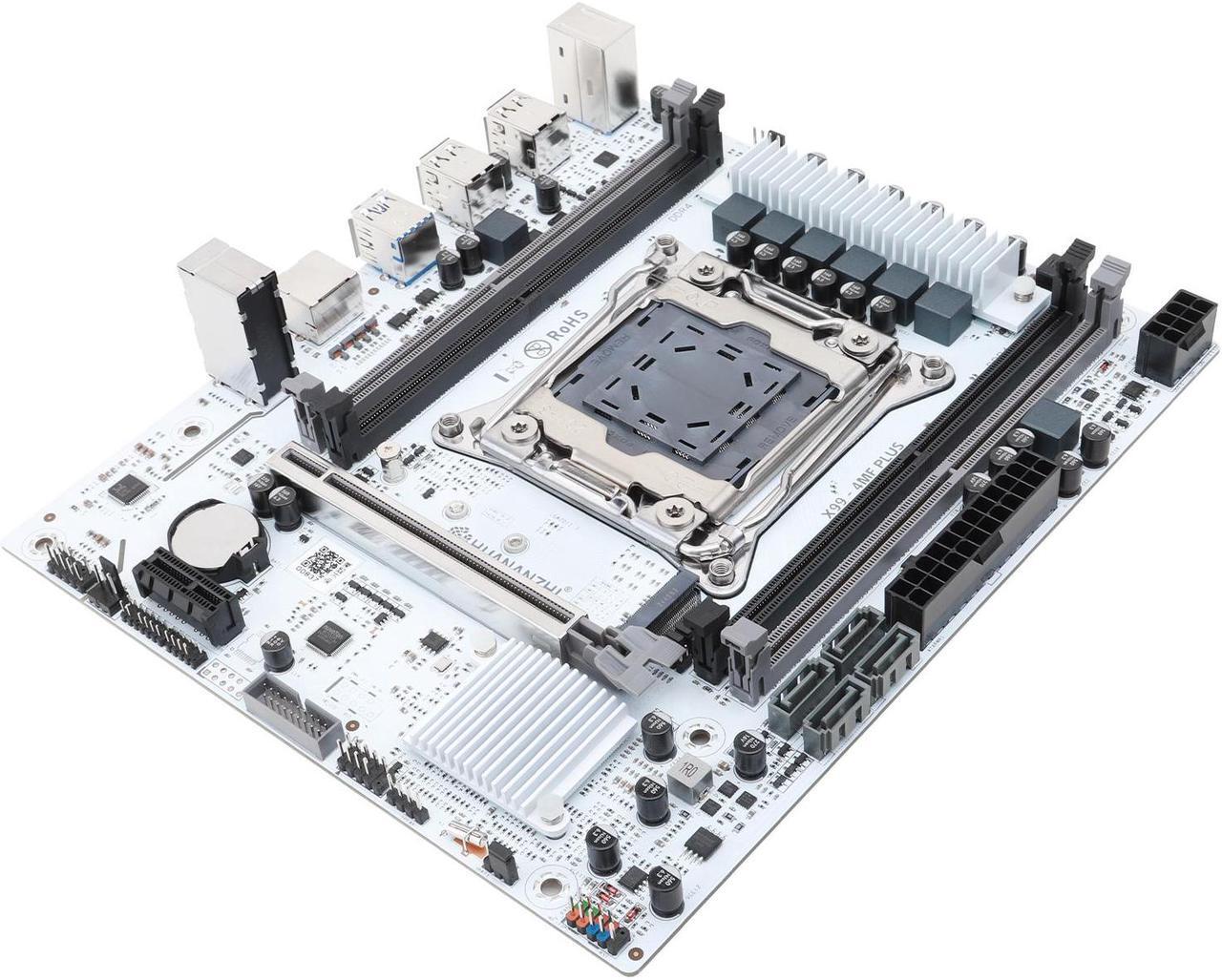

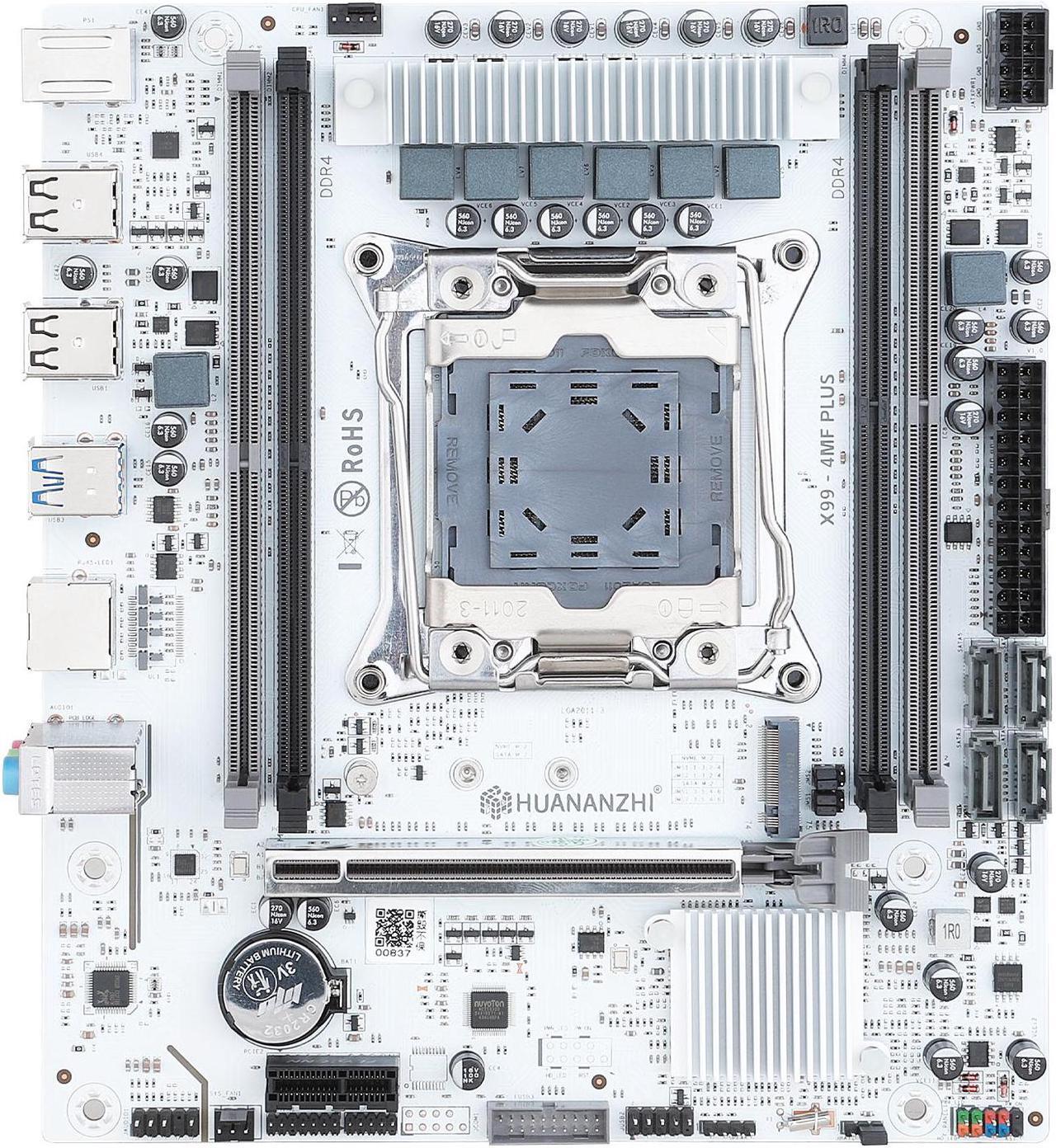

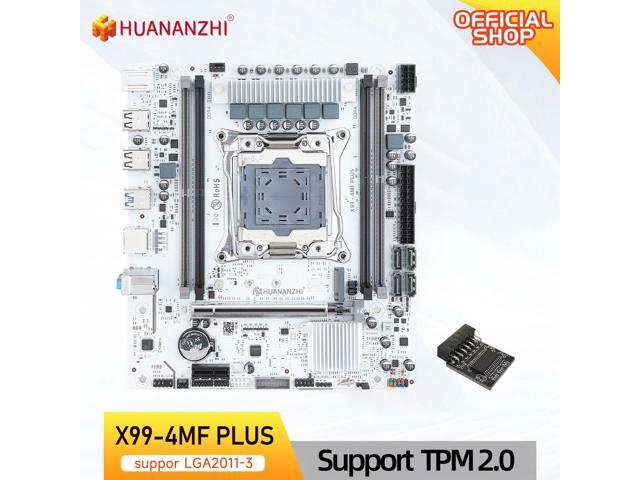

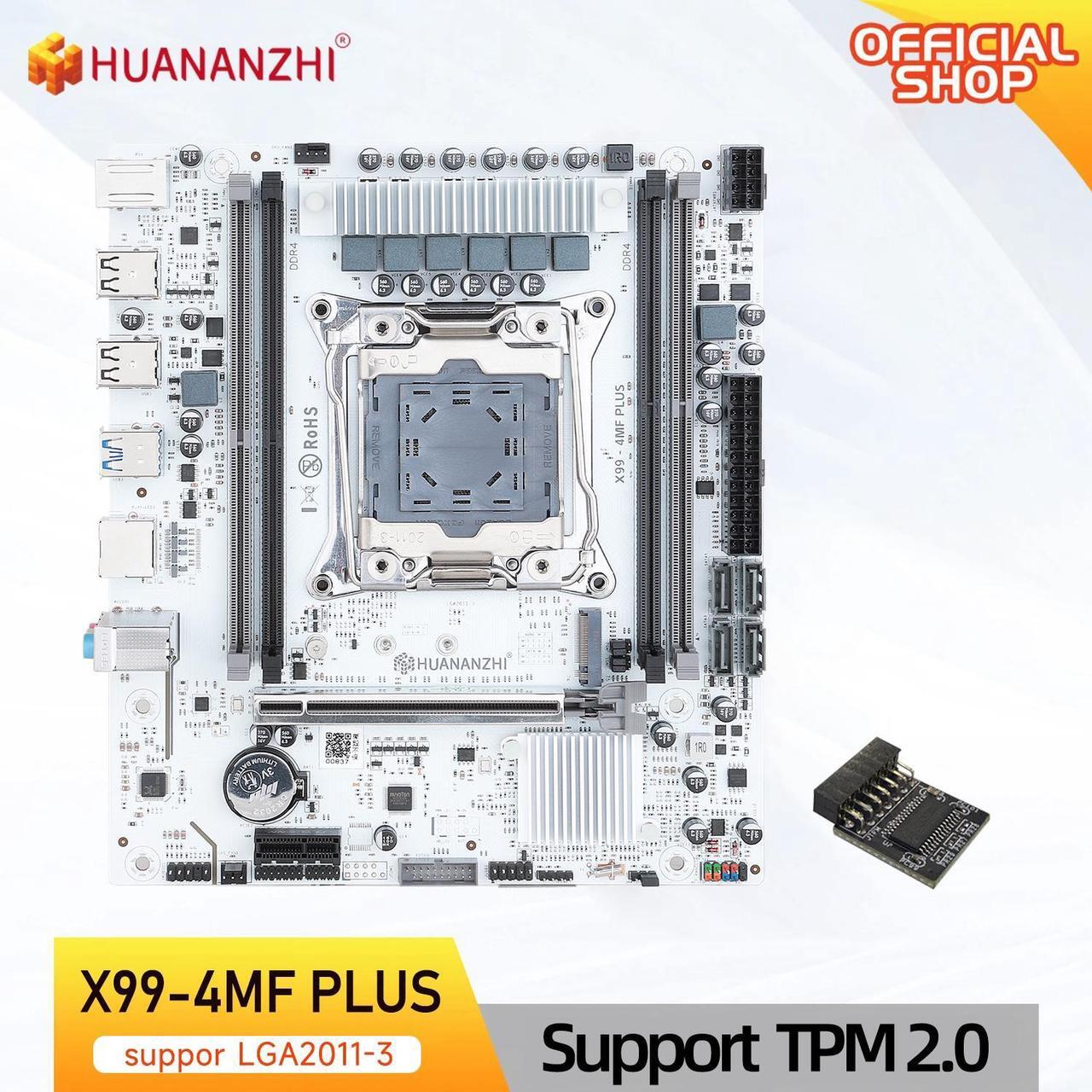

HUANANZHI X99 4MF plus LGA 2011-3 Xeon Motherboard - DDR4 RECC/NON-ECC Memory Support NVME Connectivity with TPM 2.0
- HUANANZHI X99-4MF PLUS Motherboard
- · Support Intel LGA2011-3
- · 4 x DDR4 memory slot,Max support 128GB
- · Support Dualchannels DIMM DDR4 2400/2133/1866MHz
- · 4xSATA3.0 6Gbps interfaces
- · 1xM.2 2280 (NVME PCIE X4 3.0&NGFF SATA3.0)
- · 2xUSB3.0,4xUSB2.0
+
+
Overview
Specs
Reviews (1)
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
:Model: HUANANZHI X99-4MF PLUS Motherboard
Main chipset: Intel C612... Etc chipset shipped randomly
CPU Socket: Support lntel LGA2011-3
Memory slot: 4 x DDR4 memory slot(Gray is the main card slot, black is the secondary card slot)
Memory standard: Support Dual channels DDR4 2400/2133/1866MHz, Max support 128GB
Storage interface: 4xSATA 3.0 6Gbps interfaces
Expansion Slots: 1xPCI Express 3.0 x16, 1xPCI Express 2.0 x1
Expansion interface: 1xM. 2 2280 NVME PCIEX4 3.0 @1xM. 2 NGFF SATA 3.0 (Need to switch mode to default NVME protocol mode through skip hat)
Soud Track: Realtek High Fidelity Audio
Network Card: Realtek Gigabit Network Card
Power interface: 24pin+8pin
FAN PIN: 1xCPU_FAN PIN, 1xSYS_FAN PIN
power supply: 6-phase power supply
PCB layers: 4-layer PCB
Dimension: 215*190MM ITX

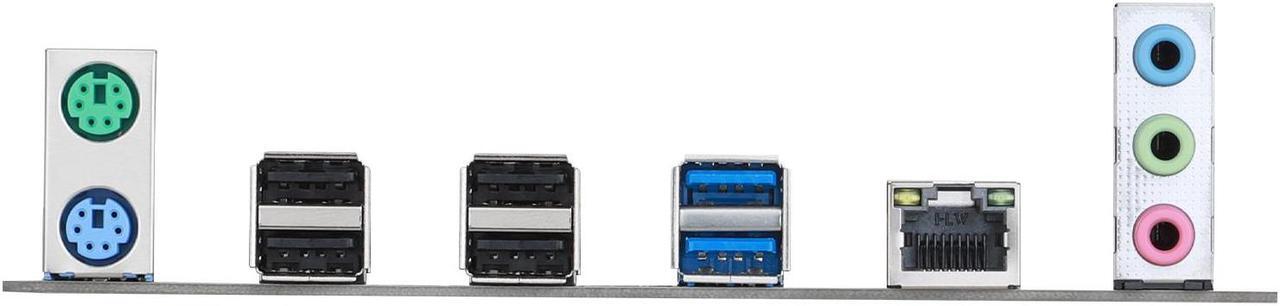

Rear panel interface: 1xPS/2 Mouse and Keyboard port, 4xUSB 2.0, 2xUSB 3.0, 1x Network card interface, 1x3-hole audio interface
Front panel interface: 1x USB 3.0 PIN, 1x USB 2.0 PIN, 1 x Front audio PIN, 1 x JBAT PIN, 1 xPower on/restart Pin, 1xJLPC PIN
Support system: Windows7 Windows10 Windows11, Supports power on by incoming call/scheduled power on/wake on network/diskless boot/CPU FAN temperature control
BIOS: AMI UEFI BIOS
The black slot is an auxiliary slot. Please prioritize using the orange memory slot.
