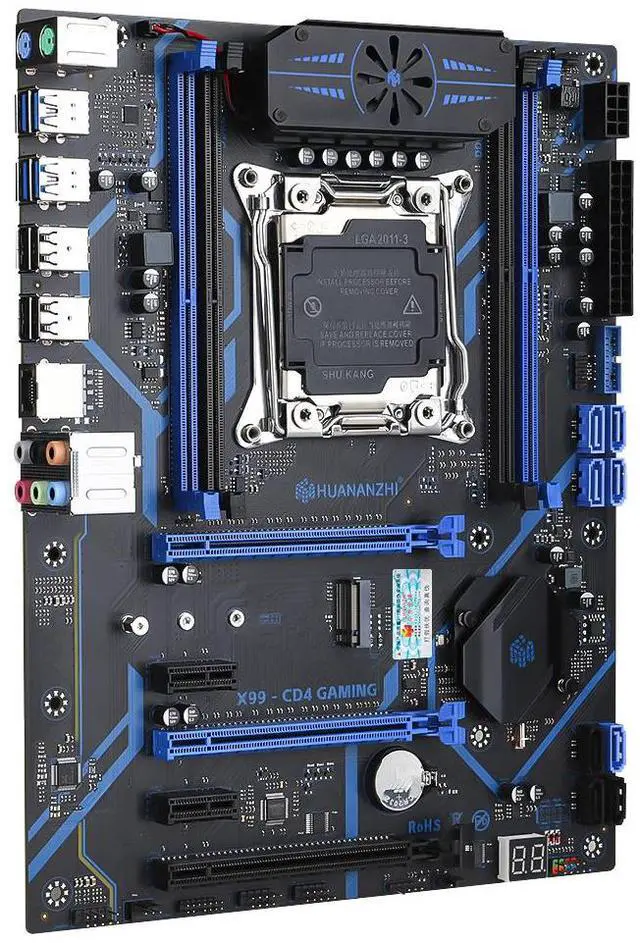

HUANANZHI X99 CD4 LGA 2011-3 Xeon Motherboard - DDR4 RECC/NON-ECC Memory Support NVME Connectivity with TPM 2.0
Limited time offer, ends 08/24 By HUANANZHI Store
- X99-CD4 GAMING
- · Support LGA2011-3 Processor
- · 4 x DDR4memory slot,Max support 128GB
- · DUAL channels DIMM DDR4 1866/2133/2400MHz
- · 2xPCI Express3.0 x16,3x PCI Express2.0 x1
- · 1xM.2 2280 NVME PCIE X4 3.0
- · 4xUSB3.2,4xUSB2.0,1 x USB3.2 PIN,1 x USB2.0 PIN
- · 5xSATA3.0 6Gbps,3x SSATA3.0 6Gbps
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model: HUANANZHI X99-CD4 Motherboard
Main chipset: Intel C612... Etc chipset shipped randomly
CPU Socket: Support Intel LGA2011-3 platform processor
Memory slot: 4 x DDR4 memory slot
Memory standard: Support Dual channel DDR4 2400/2133/1866MHz Memory (Depends on CPU), Max support 128GB
Storage interface: 5 x SATA 3.0 6Gbps, 3 x SSATA 3.0 6Gbps
Expansion Slots: 2x PCI Express 3.0 x16, 3xPCI Express 2.0 x1(One of the X1s is a full-length X16 slot)
Expansion interface: 1x M. 2 2280 NVME PCIE X4 3.0 32Gb/s
Soud Track: Realtek High Fidelity Audio
Network Card: Realtek Gigabit Ethernet
Power interface: 24PIN+8PIN
FAN PIN: 1xCPU_FAN PIN, 2xSYS_FAN PIN
power supply: 6-phase power supply
PCB layers: 4-layer PCB
Dimension: 280*220MM ATX

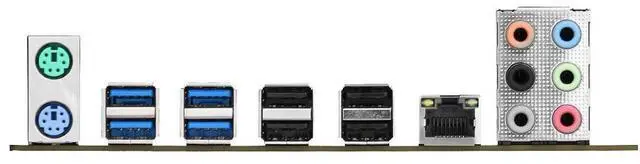

Rear panel interface: 4xUSB 3.2 Gen1, 4xUSB 2.0, 1x Network card interface, 1x6-hole audio interface
Front panel interface: 1 x USB 3.2 PIN, 1x USB 2.0 PIN, 1x USB 3.2 Gen1 pin, 1x USB 2.0 pin, 1x audio pin, 1x COM pin, 1x CMOS jumper cap, 1x JLPC pin, 1x SPK buzzer pin, 1 set of power-on/reset pin, 1 set of TPM pin, 1x DEBUG diagnostic card supporting the system.
Support system: Windows7 Windows10 Windows11
BIOS: AMI UEFI BIOS
Main chipset: Intel C612... Etc chipset shipped randomly
CPU Socket: Support Intel LGA2011-3 platform processor
Memory slot: 4 x DDR4 memory slot
Memory standard: Support Dual channel DDR4 2400/2133/1866MHz Memory (Depends on CPU), Max support 128GB
Storage interface: 5 x SATA 3.0 6Gbps, 3 x SSATA 3.0 6Gbps
Expansion Slots: 2x PCI Express 3.0 x16, 3xPCI Express 2.0 x1(One of the X1s is a full-length X16 slot)
Expansion interface: 1x M. 2 2280 NVME PCIE X4 3.0 32Gb/s
Soud Track: Realtek High Fidelity Audio
Network Card: Realtek Gigabit Ethernet
Power interface: 24PIN+8PIN
FAN PIN: 1xCPU_FAN PIN, 2xSYS_FAN PIN
power supply: 6-phase power supply
PCB layers: 4-layer PCB
Dimension: 280*220MM ATX
Rear panel interface: 4xUSB 3.2 Gen1, 4xUSB 2.0, 1x Network card interface, 1x6-hole audio interface
Front panel interface: 1 x USB 3.2 PIN, 1x USB 2.0 PIN, 1x USB 3.2 Gen1 pin, 1x USB 2.0 pin, 1x audio pin, 1x COM pin, 1x CMOS jumper cap, 1x JLPC pin, 1x SPK buzzer pin, 1 set of power-on/reset pin, 1 set of TPM pin, 1x DEBUG diagnostic card supporting the system.
Support system: Windows7 Windows10 Windows11
BIOS: AMI UEFI BIOS
