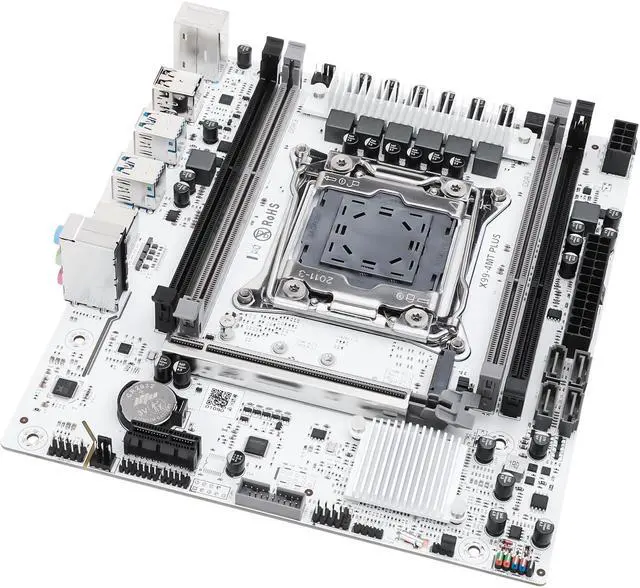

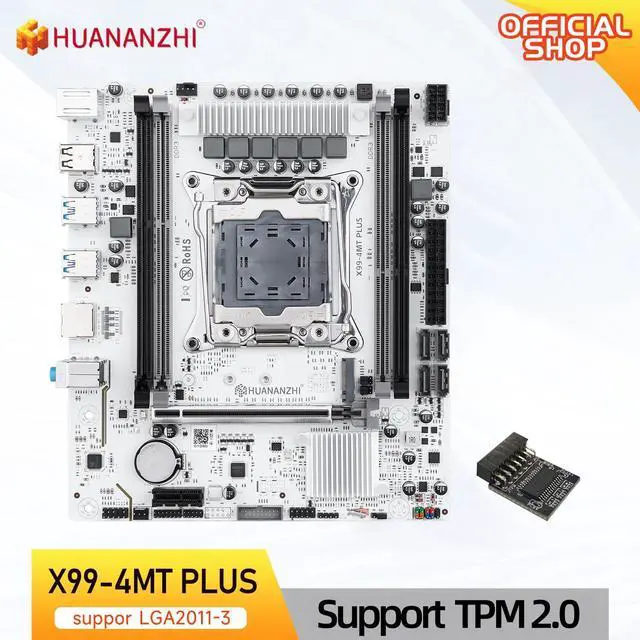

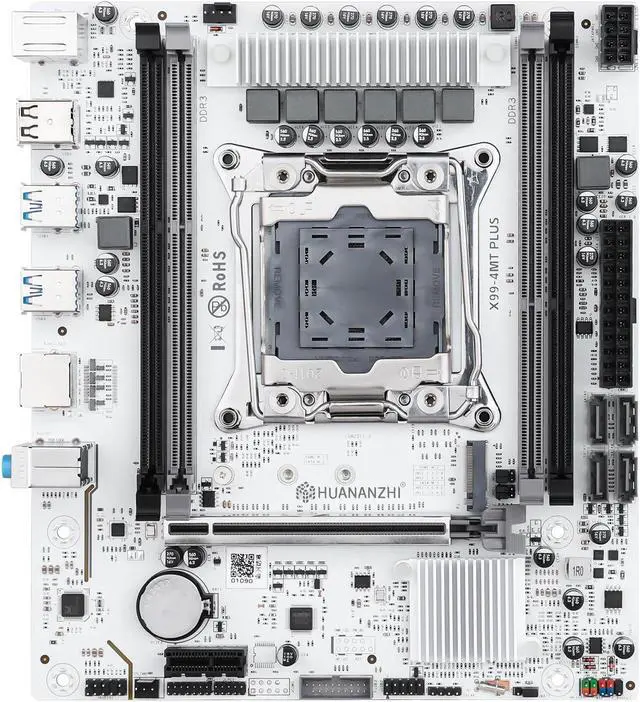

HUANANZHI X99 4MT Plus LGA 2011-3 Xeon Motherboard with TPM2.0 Support DDR3 Memory, NVMe SATA for Gaming and Business Use

Specifications

:

Model: HUANANZHI X99-4MT PLUS Motherboard
Main chipset: Intel C612... Etc chipset shipped randomly
CPU Socket: Support lntel LGA2011-3(only supports E5 2629V3/2649V3/2669V3/2696V3/2673V3/2676V3/2678V3/2696V4, other type does not support or untested)
Memory slot: 4 x DDR3 memory slot(Gray is the main card slot, black is the secondary card slot)
Memory standard: Support Dual channels DDR3 1866/1600/1333MHz, Max support 128GB
Storage interface: 4xSATA 3.0 6Gbps interfaces
Expansion Slots: 1xPCI Express 3.0 x16, 1xPCI Express 2.0 x1
Expansion interface: 1xM. 2 2280 NVME PCIEX4 3.0 @1xM. 2 NGFF SATA 3.0 (Need to switch mode to default NVME protocol mode through skip hat)
Soud Track: Realtek High Fidelity Audio
Network Card: Realtek Gigabit Network Card
Power interface: 24pin+8pin
FAN PIN: 1xCPU_FAN PIN, 1xSYS_FAN PIN
power supply: 6-phase power supply
PCB layers: 4-layer PCB
Dimension: 215*190MM ITX

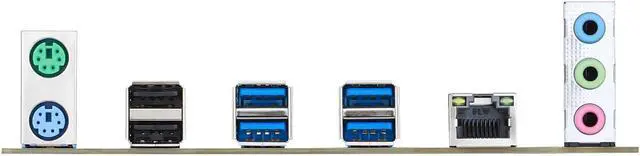

Rear panel interface: 1xPS/2 Mouse and Keyboard port, 4xUSB 2.0, 2xUSB 3.0, 1x Network card interface, 1x3-hole audio interface
Front panel interface: 1x USB 3.0 PIN, 1x USB 2.0 PIN, 1 x Front audio PIN, 1 x JBAT PIN, 1 xPower on/restart Pin, 1xJLPC PIN
Support system: Windows7 Windows10 Windows11, Supports power on by incoming call/scheduled power on/wake on network/diskless boot/CPU FAN temperature control
BIOS: AMI UEFI BIOS

The black slot is an auxiliary slot. Please prioritize using the orange memory slot.
