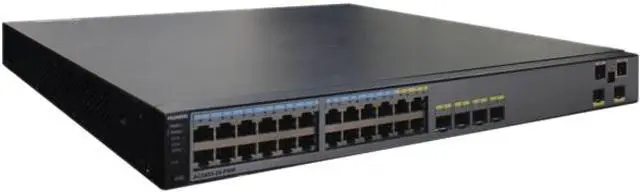

HUAWEI AC6605-26-PWR-16AP Access Controller

Be the first to review this product...
  • 16K MAC Address Table
  • PoE
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Huawei AC6605-26-PWR-16AP

Model
Brand HUAWEI
Model AC6605-26-PWR-16AP
Ports & Interface
Primary Ports 20 x 10/100/1000BASE-T Ethernet electrical ports
4 x combo ports
1 x ETH management port
1 x Mini USB por
2 x Console port
2 x 10GE SFP+ uplink optical ports
Primary Port Speed 10/100/1000Mbps
Data Transmission
MAC Address Table 16K
VLAN Support Access modes of access, trunk, hybrid, and
Default VLAN
Details
Security Different user levels for commands, preventing unauthorized users from accessing AC
SSHv2.0
RADIUS and HWTACACS authentication for login users
ACL filtering
DHCP packet filtering (with the Option 82 field)
Defense against control packet attacks
Defenses against attacks such as source address spoofing, Land, SYN flood (TCP SYN), Smurf, ping flood (ICMP echo), Teardrop, and Ping of Death attacks
PoE Yes
QoS Yes
Power AC input voltage
Rated voltage: 100 V AC to 240 V AC, 50/60 Hz
Voltage range: 90 V AC to 264 V AC, 47 Hz to 63 Hz
DC input voltage
Rated voltage: -48 V DC to -60 V DC
Voltage range: -36 V DC to -72 V DC

Maximum power consumption: 85 W
Features
Features Box-shaped Access Controller

managing a maximum of 512 APs

2*10GE optical ports, 24*GE ports, provide PoE+ power for 24 ports

Support L2/L3 roaming, 1+1/N+1 backup, WDS management

Processor Dominant frequency: 1 GHz
Switching capacity: 128 Gbit/s
Packet forwarding capacity: 10 Gbit/s
DDR memory: 4 GB
Flash memory: 256 MB

Number of managed APs: 512/1024(The specification of 1024 APs will be implemented in 2014Q2)
Number of access users
Entire device: 10K
Single AP: a maximum of 256 (depending on the AP model)

Number of MAC address entries: 16K
Number of VLANs: 4K
Number of routing entries: 10K
Number of ARP entries: 8K
Number of multicast forwarding entries: 4K
Number of DHCP IP address pools : 128 IP address pools, each of which contains a maximum of 16K IP addresses
Number of local users: 1000
Number of ACLs: 8K
Number of ESSIDs: 4K

User group management:
128 user groups
Each user group can reference a maximum of eight ACLs.
Each user group can associate with a maximum of 128 ACL rules.
Dimensions & Weight
Dimensions 17.4" x 16.54" x 1.75" (W x D x H)
Environmental
Temperature -5 degree C to +50 degree C
Humidity 5% - 95%, Non-condensing
