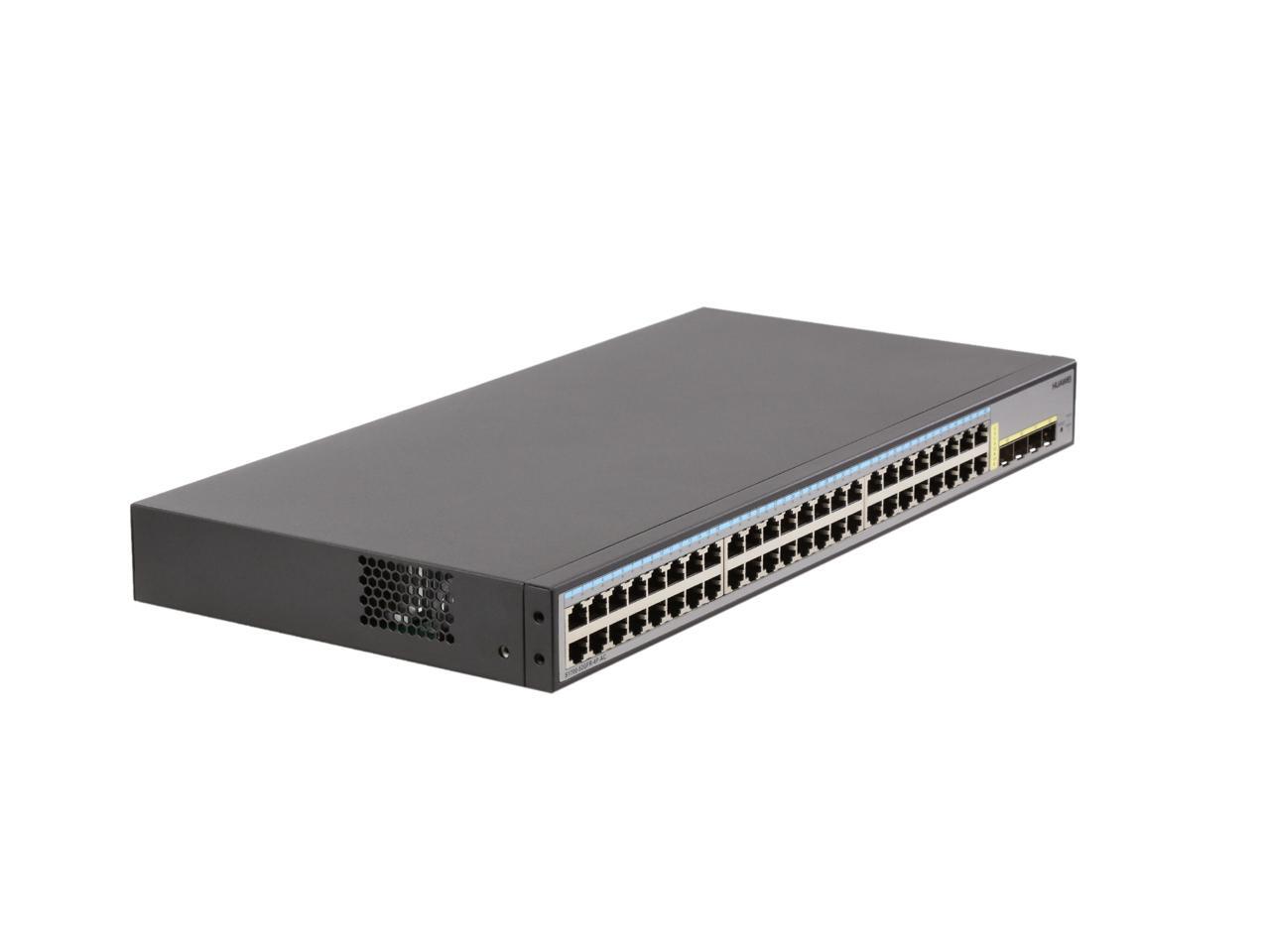

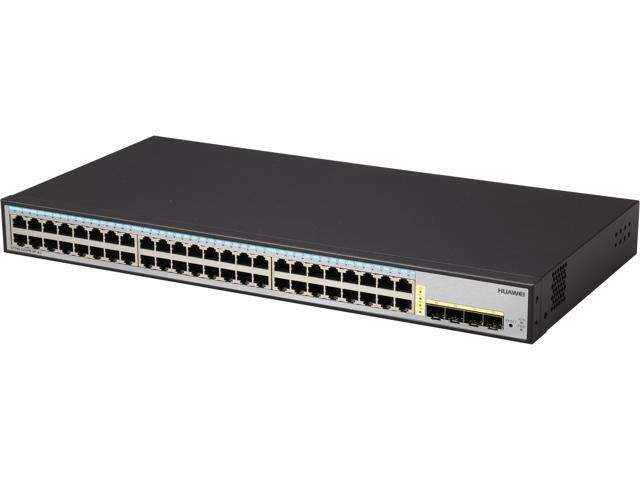

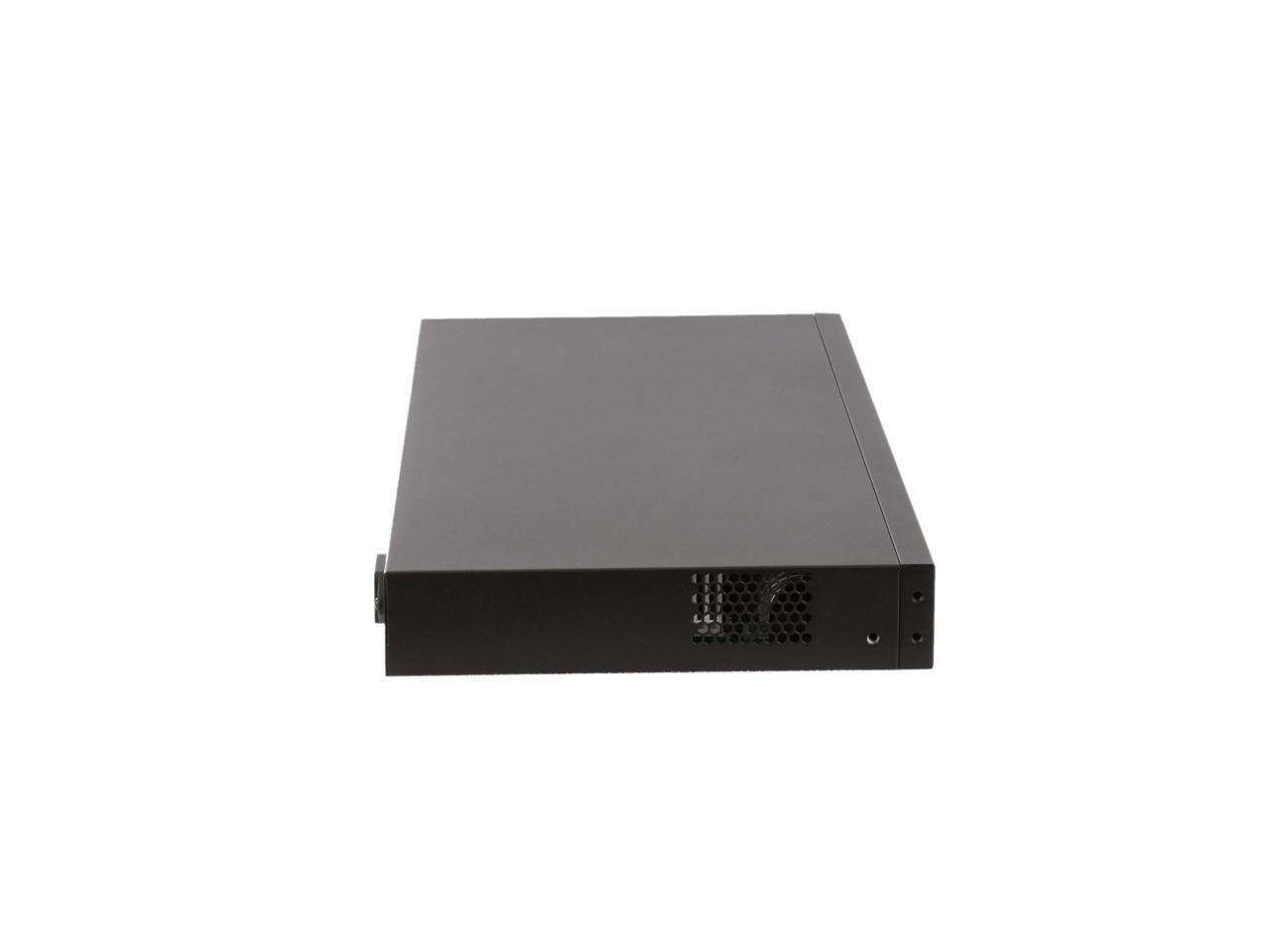

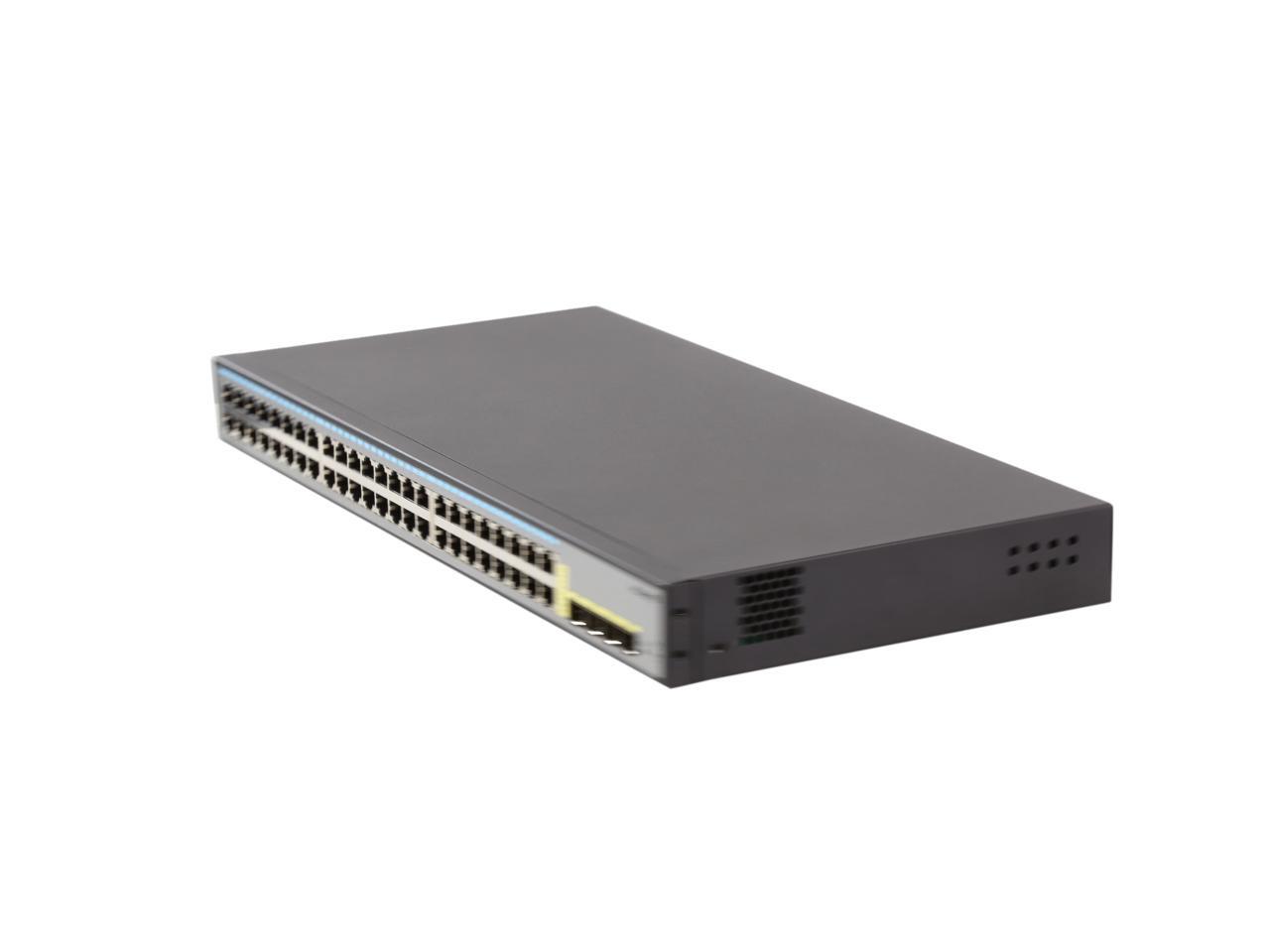

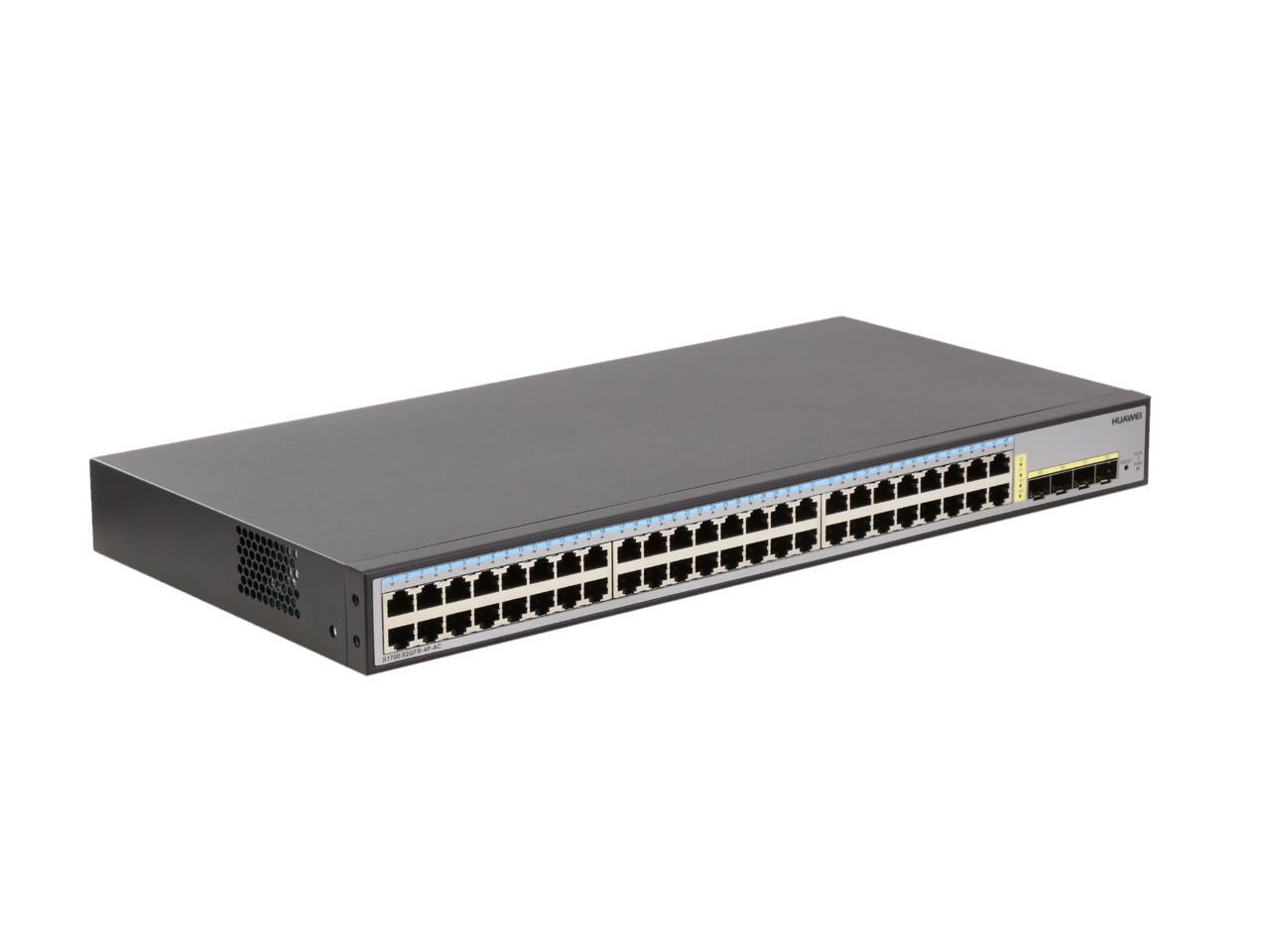

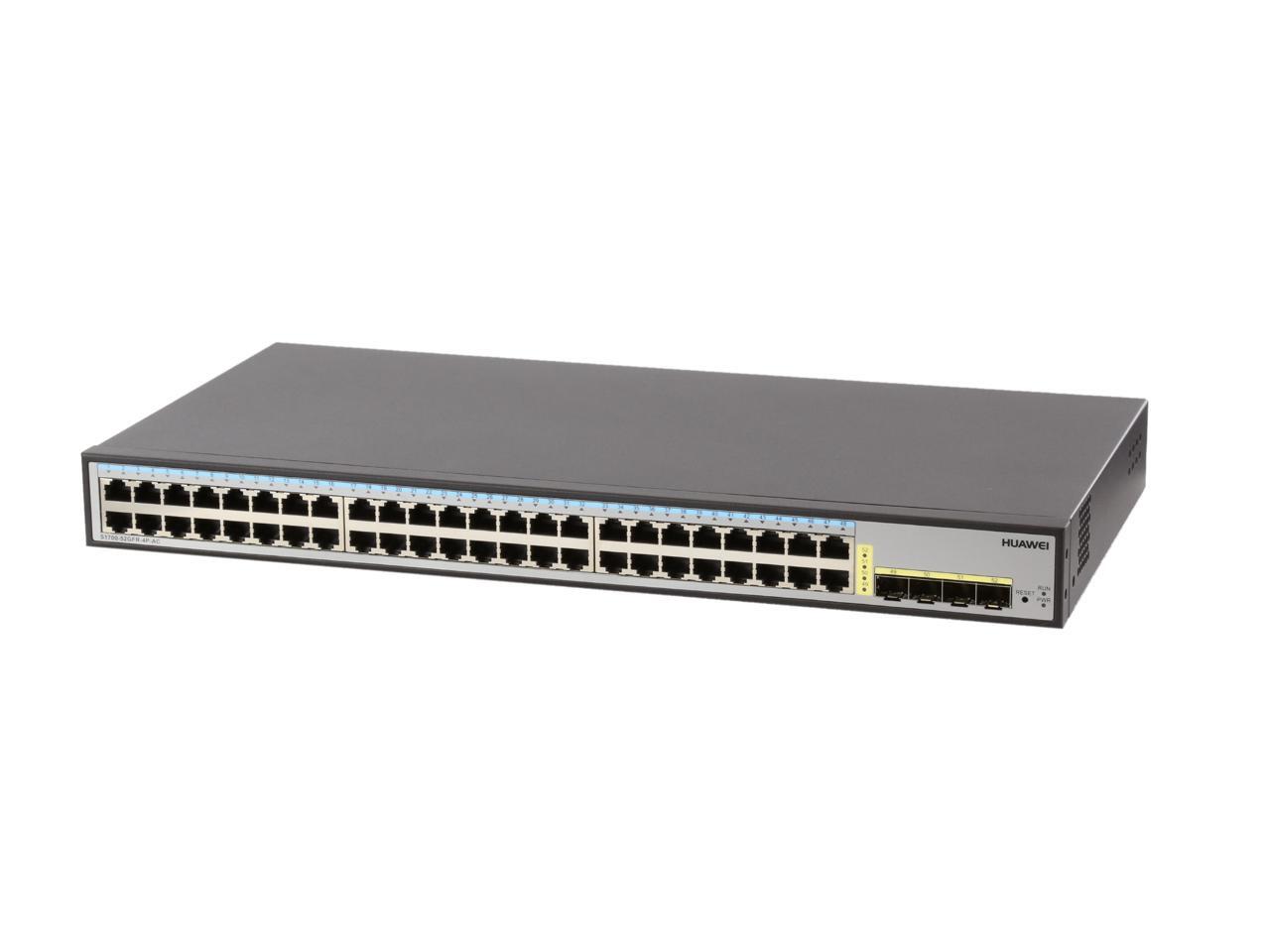

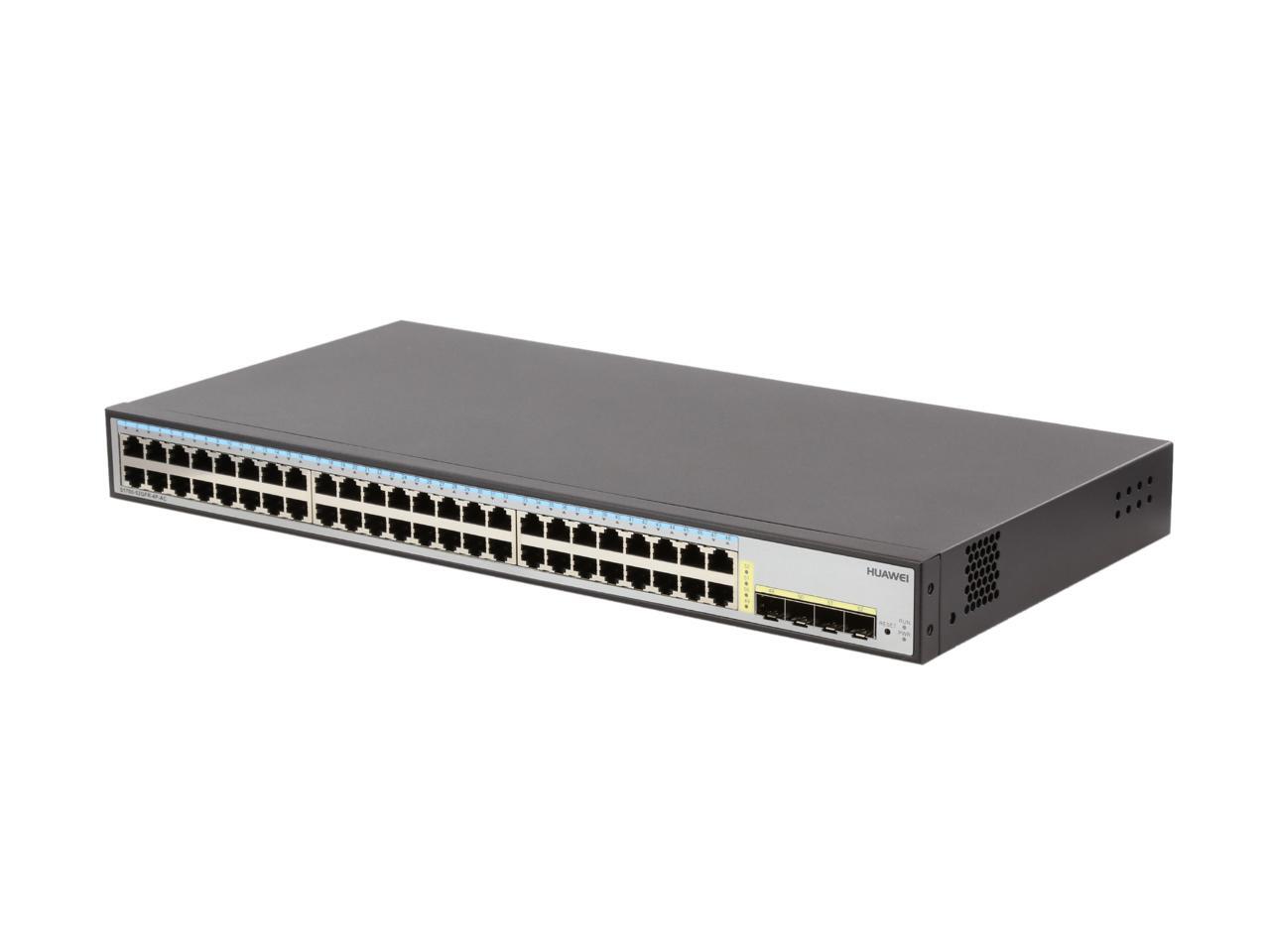

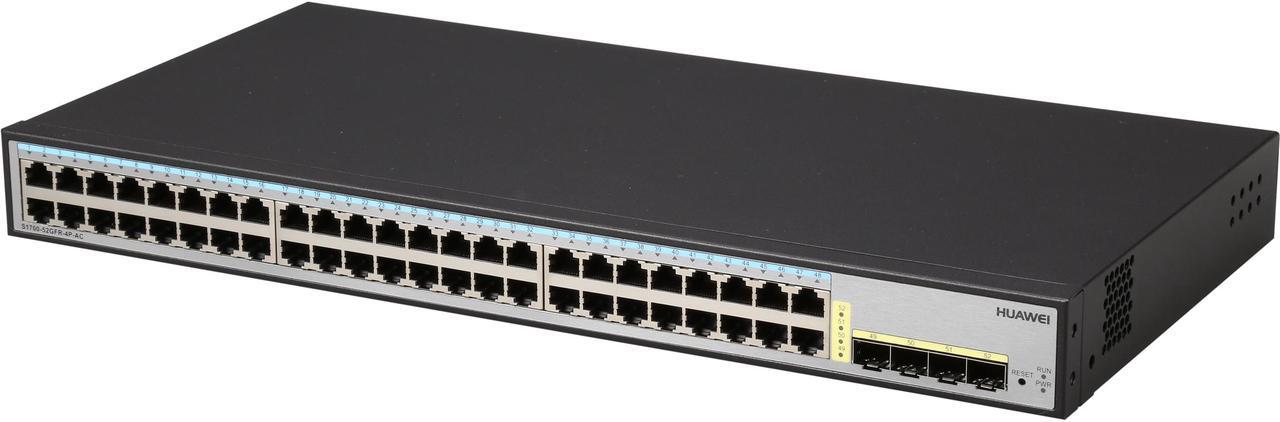

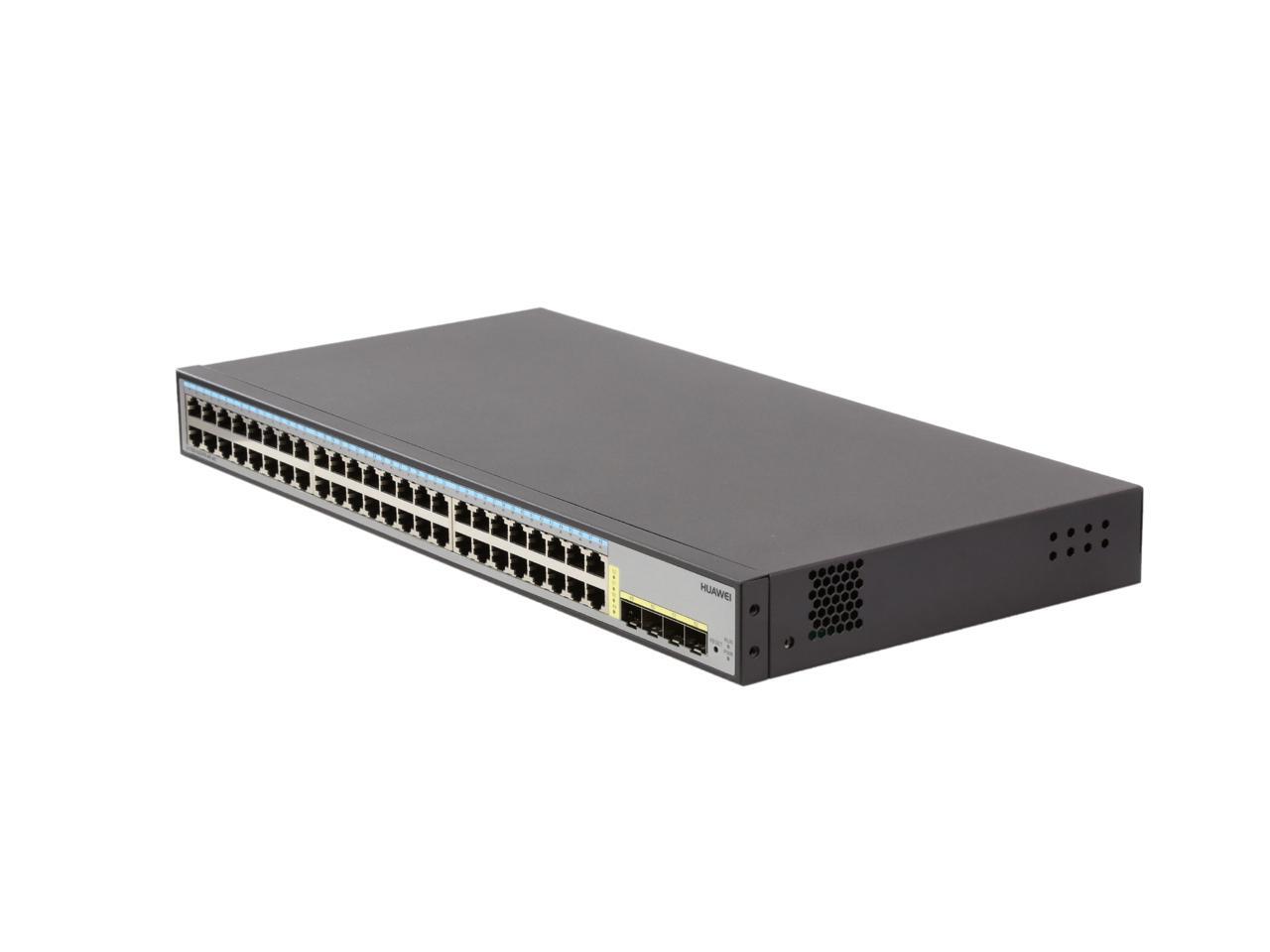

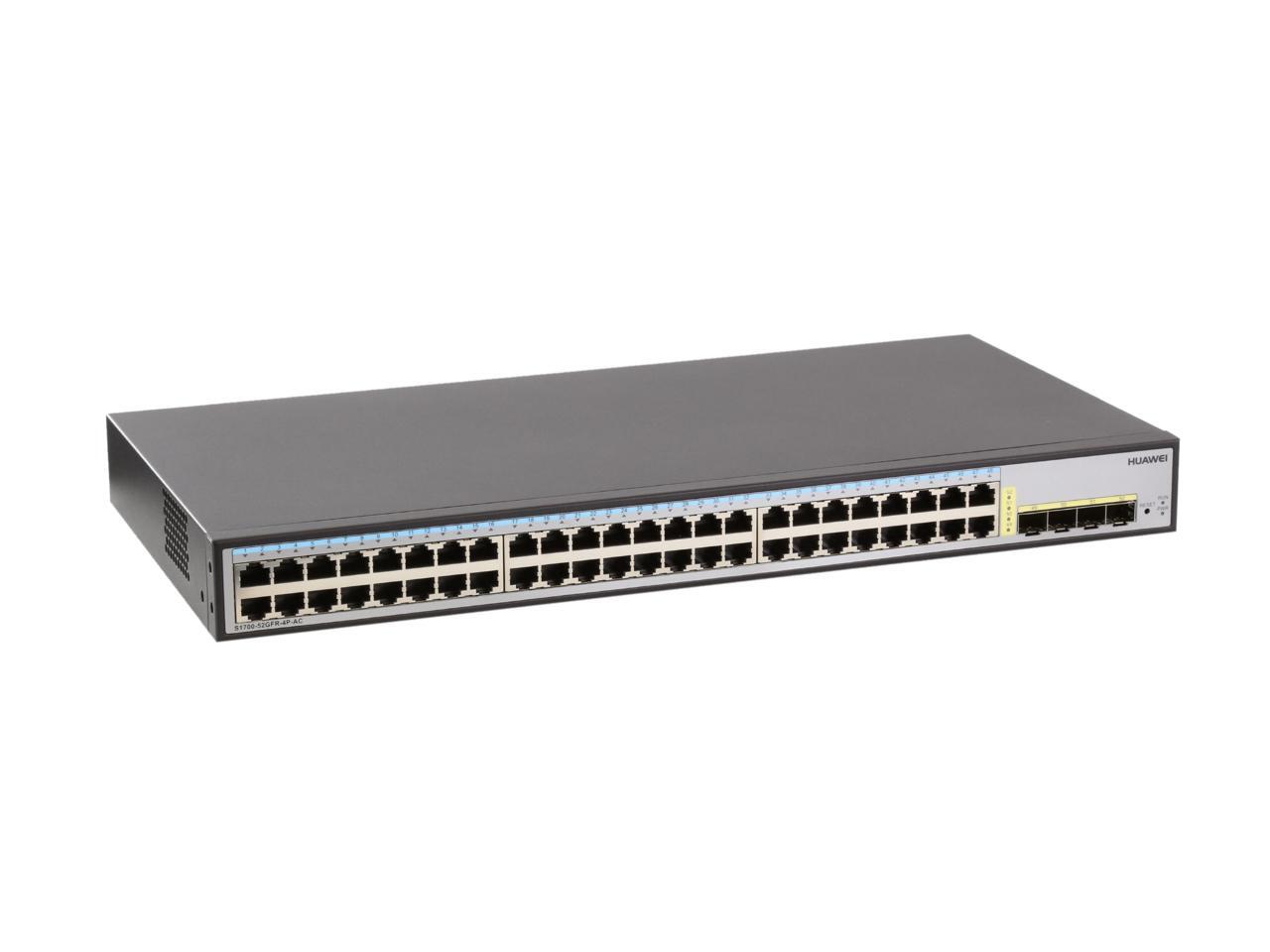

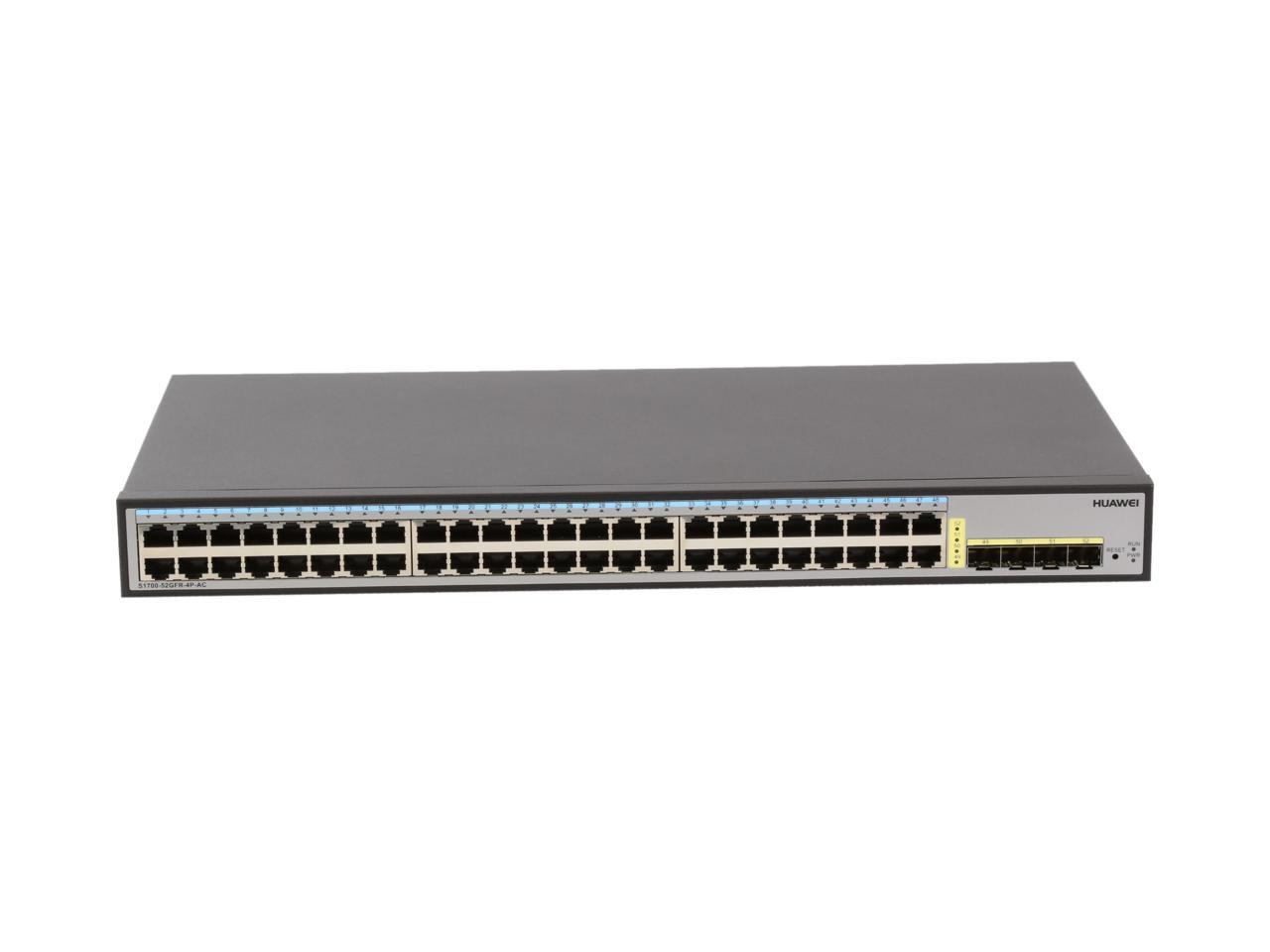

HUAWEI S1700-52GFR-4P-AC Managed Switch

S1700 Series Enterprise Switches

Overview

The Huawei Quidway® S1700 enterprise switch (S1700) is a next-generation energy-saving Ethernet access switch. The S1700 uses high-performance hardware provides a rich array of features to help customers build secure, reliable high-performance networks. It is easy to install and maintain and is suitable for use by middle- and small-size enterprises, Internet cafes, hotel, and schools.

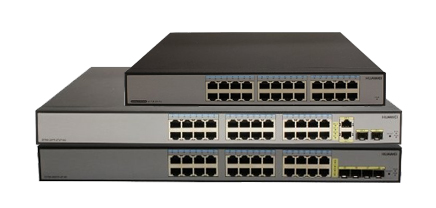

The S1700 series consist of SNMP-based switches, a web-managed switch, and maintenance-free switches.

Maintenance-free switches include S1700-8-AC, S1700-24-AC, S1700-52R-2T2P-AC, S1700-8G-AC, and S1724G; the web-managed switch is S1728GWR-4P; SNMP-based switches include S1700-28FR-2T2P-AC, S1700-52FR-2T2PAC, S1700-28GFR-4P-AC, and S1700-52GFR-4P-AC.

Based on management types, the S1700 Series includes unmanaged, Web-managed and SNMP-based switches.

• Fan-free design
• One-key operation
• Energy Efficient Ethernet (EEE)

Application

Product Characteristics and Advantages

Innovative Energy Saving Design

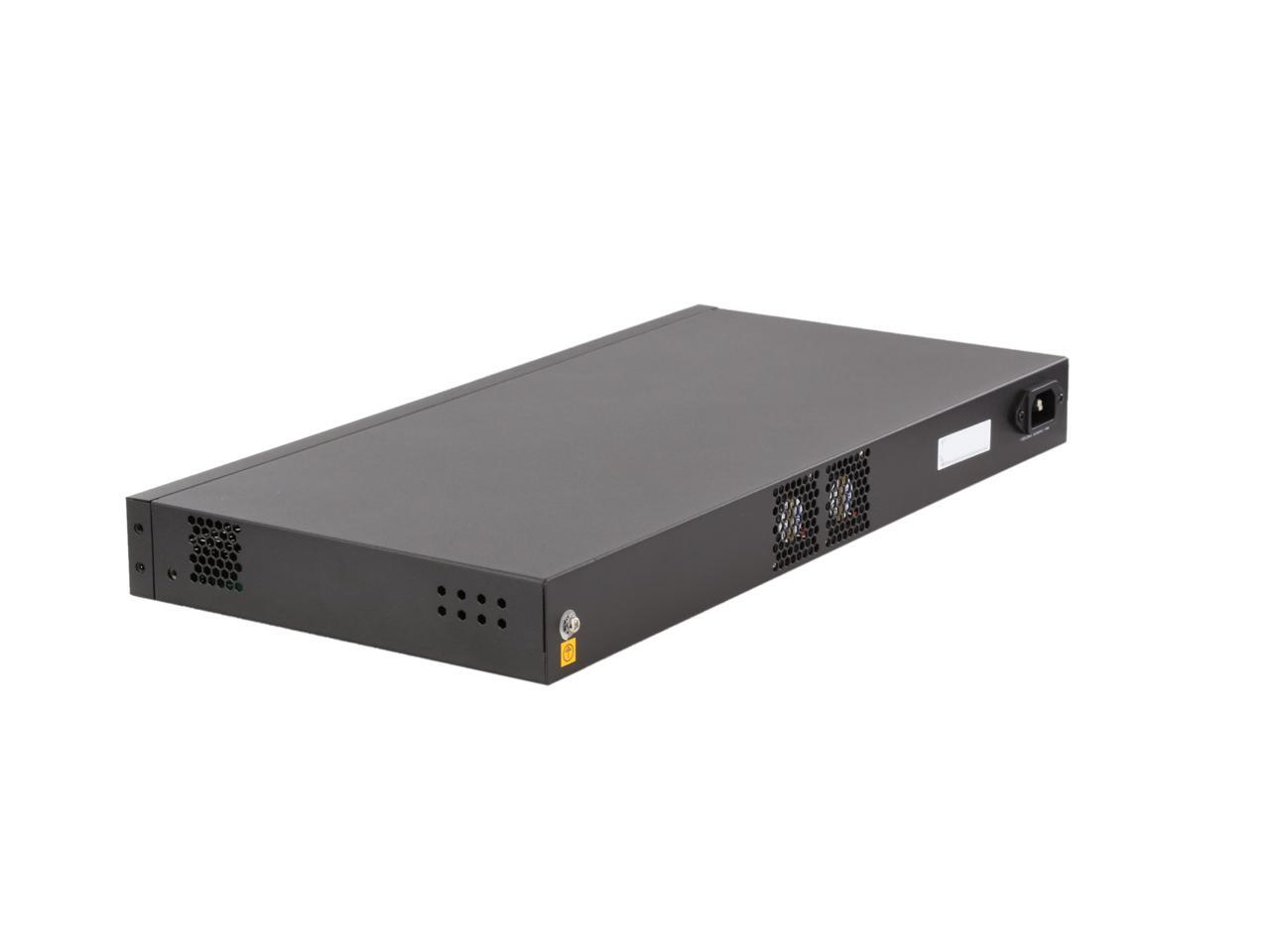

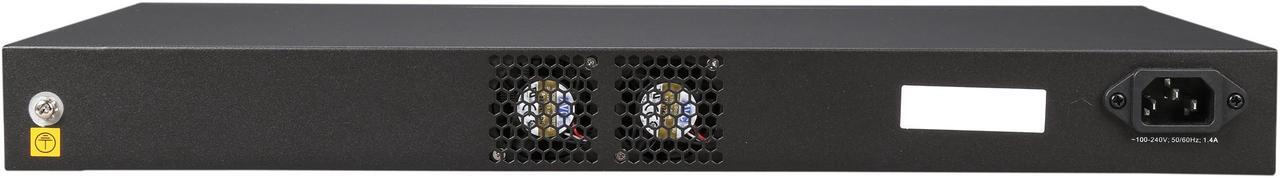

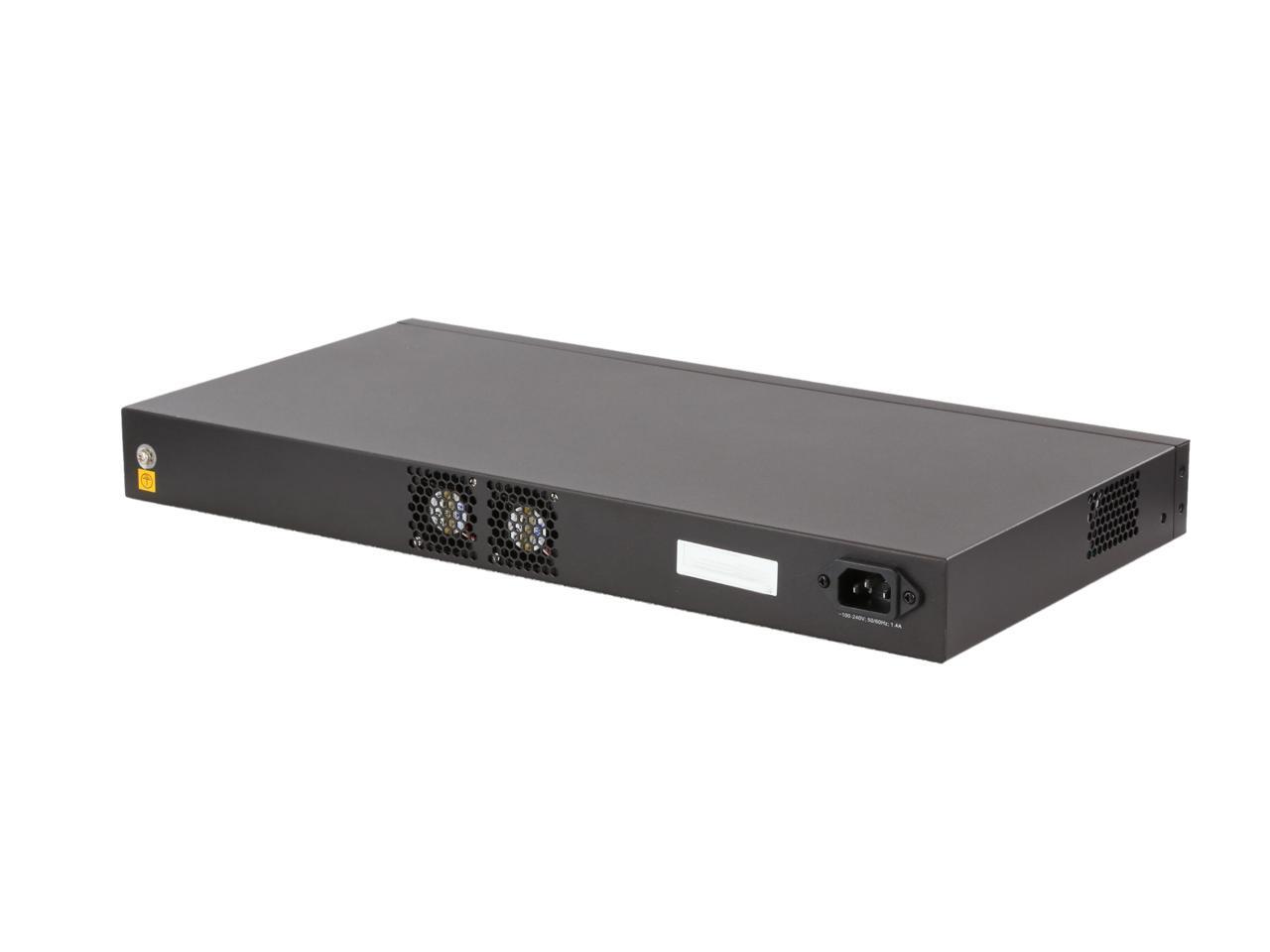

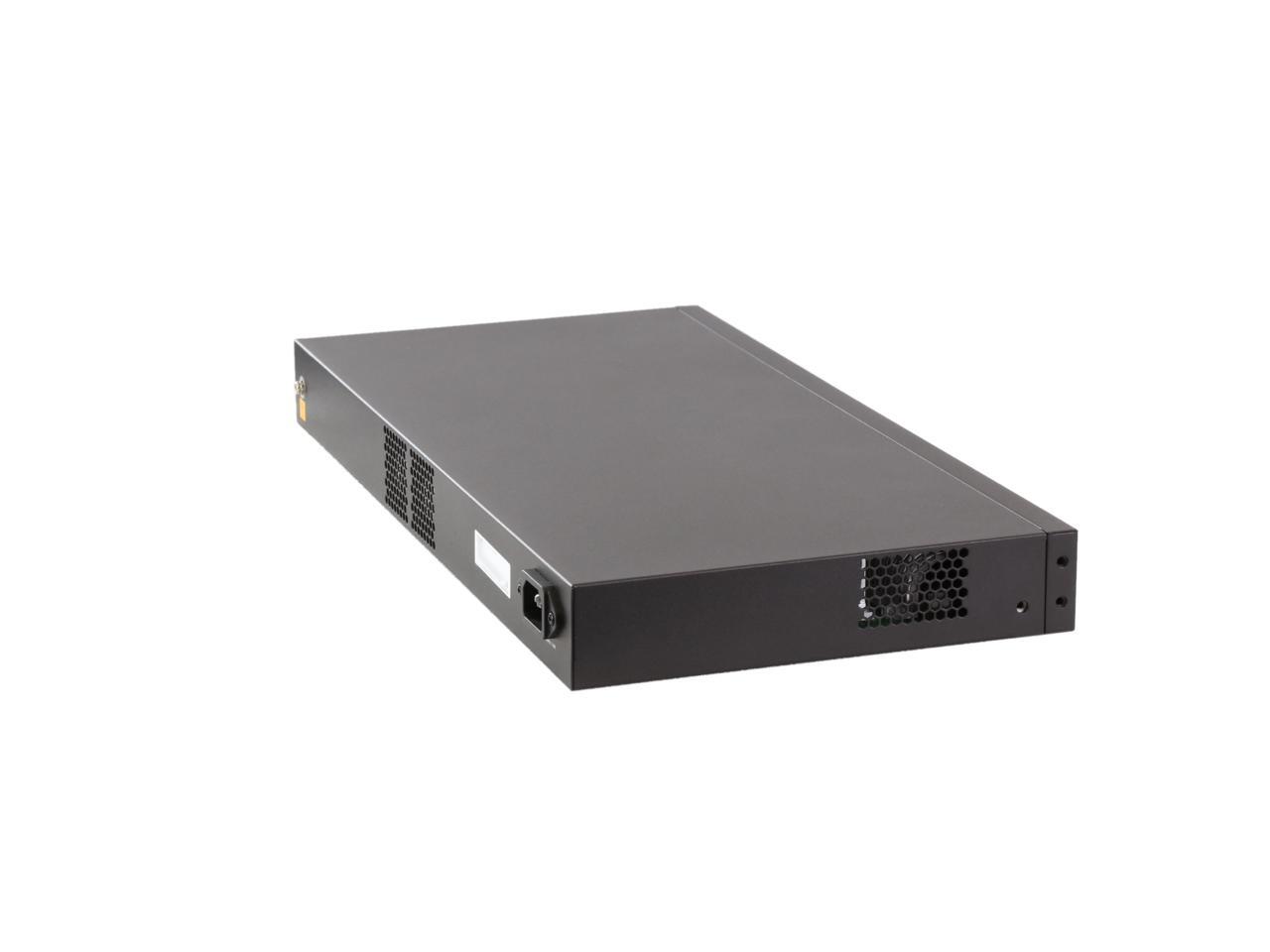

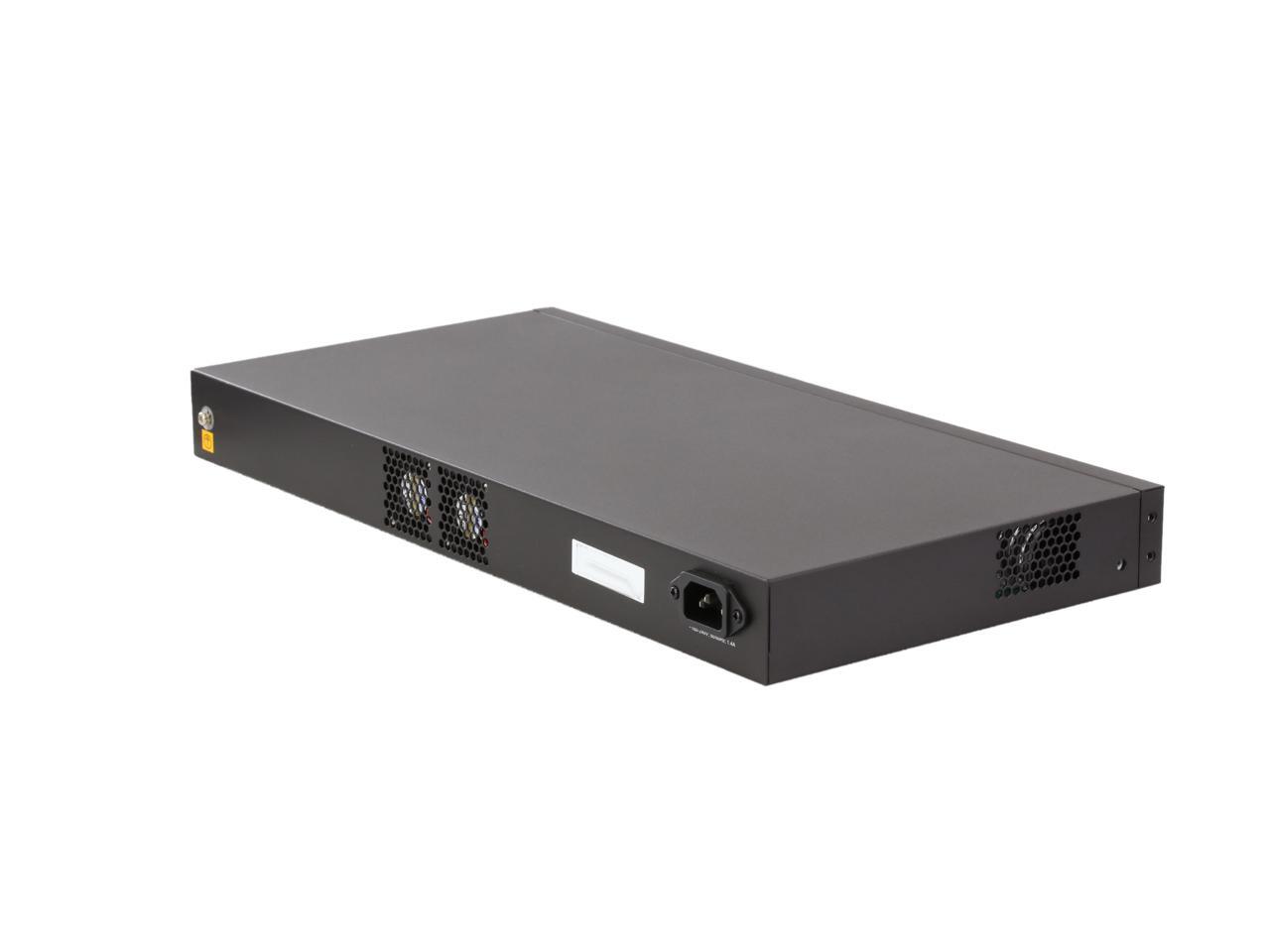

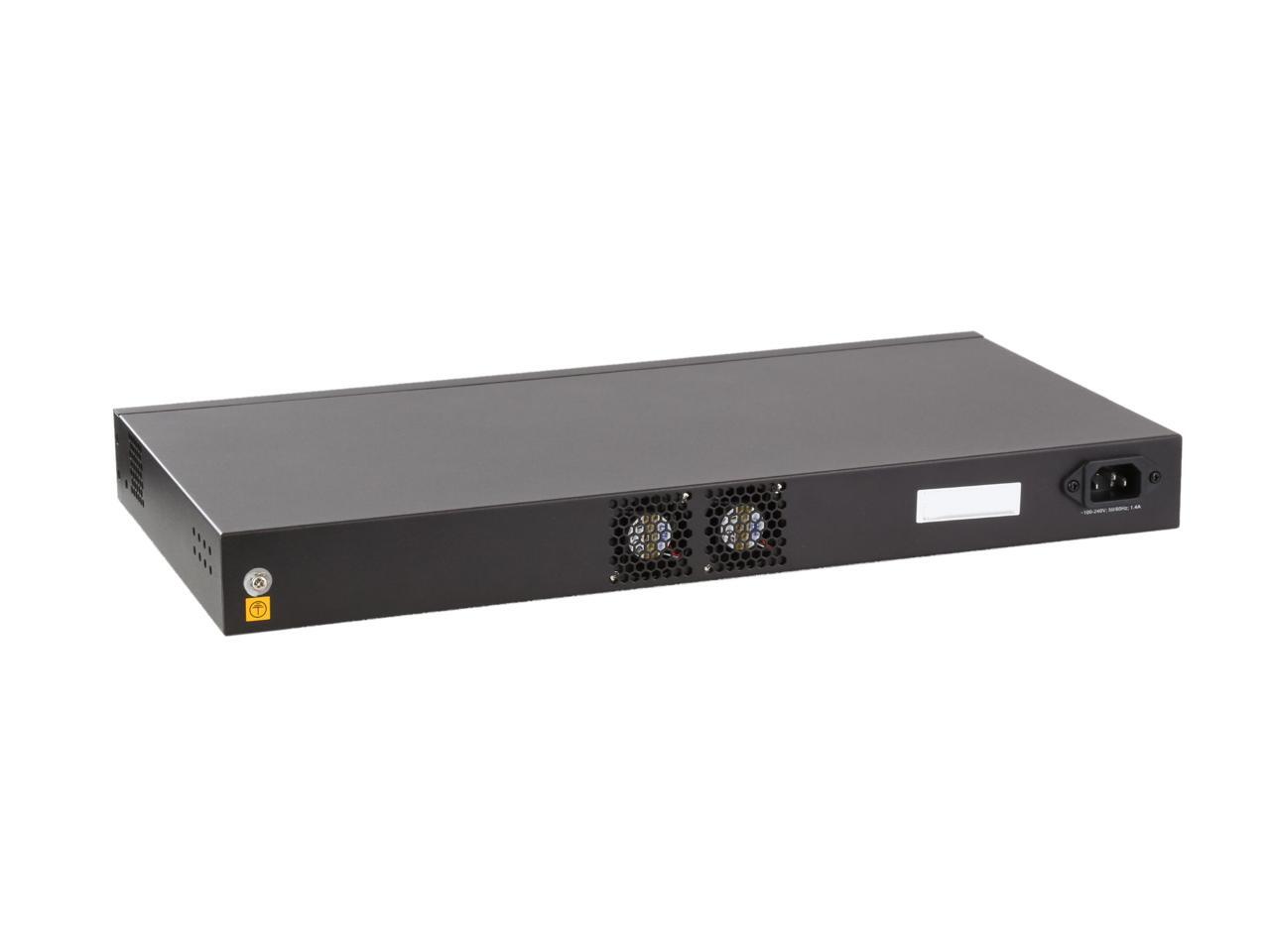

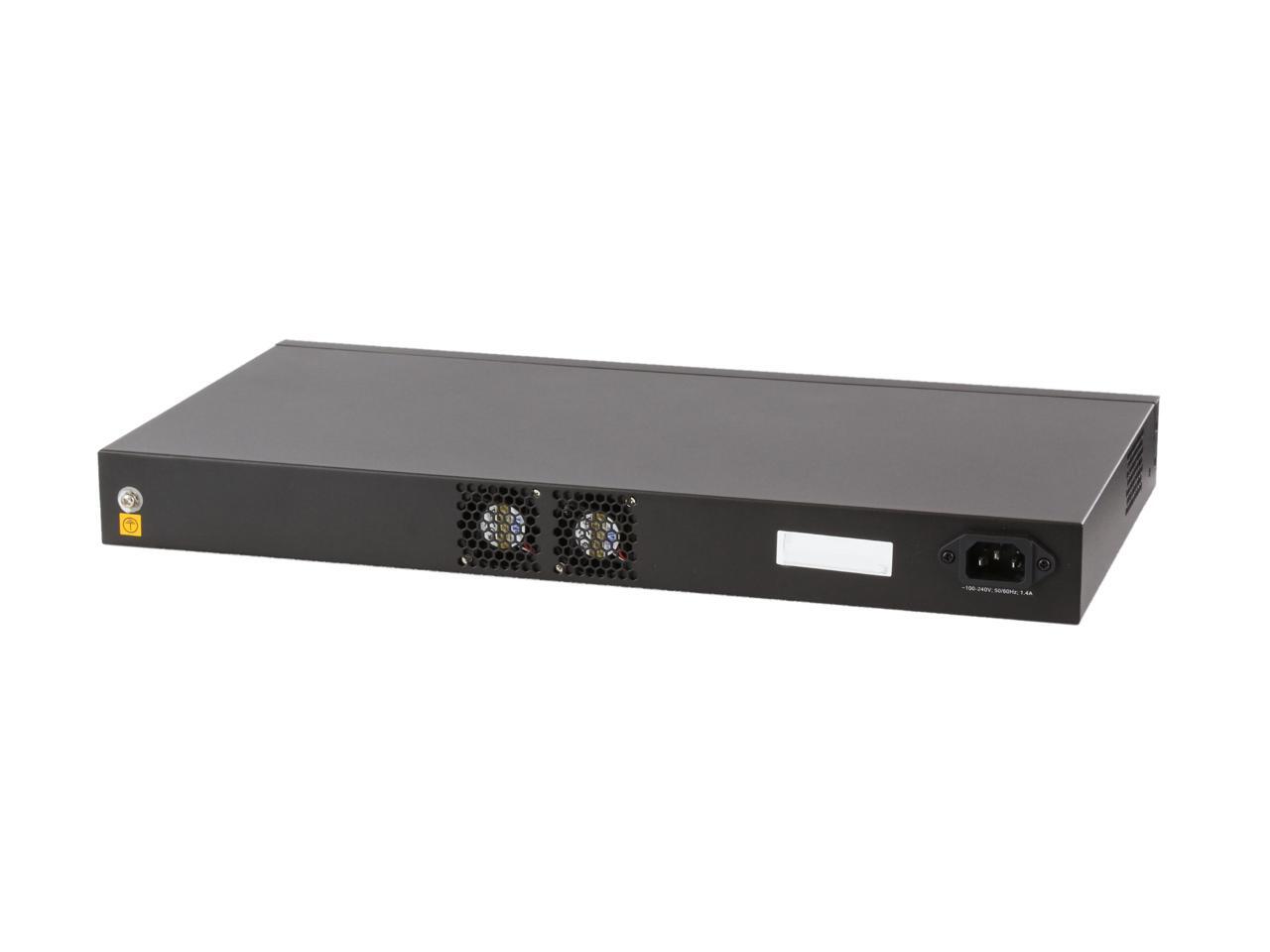

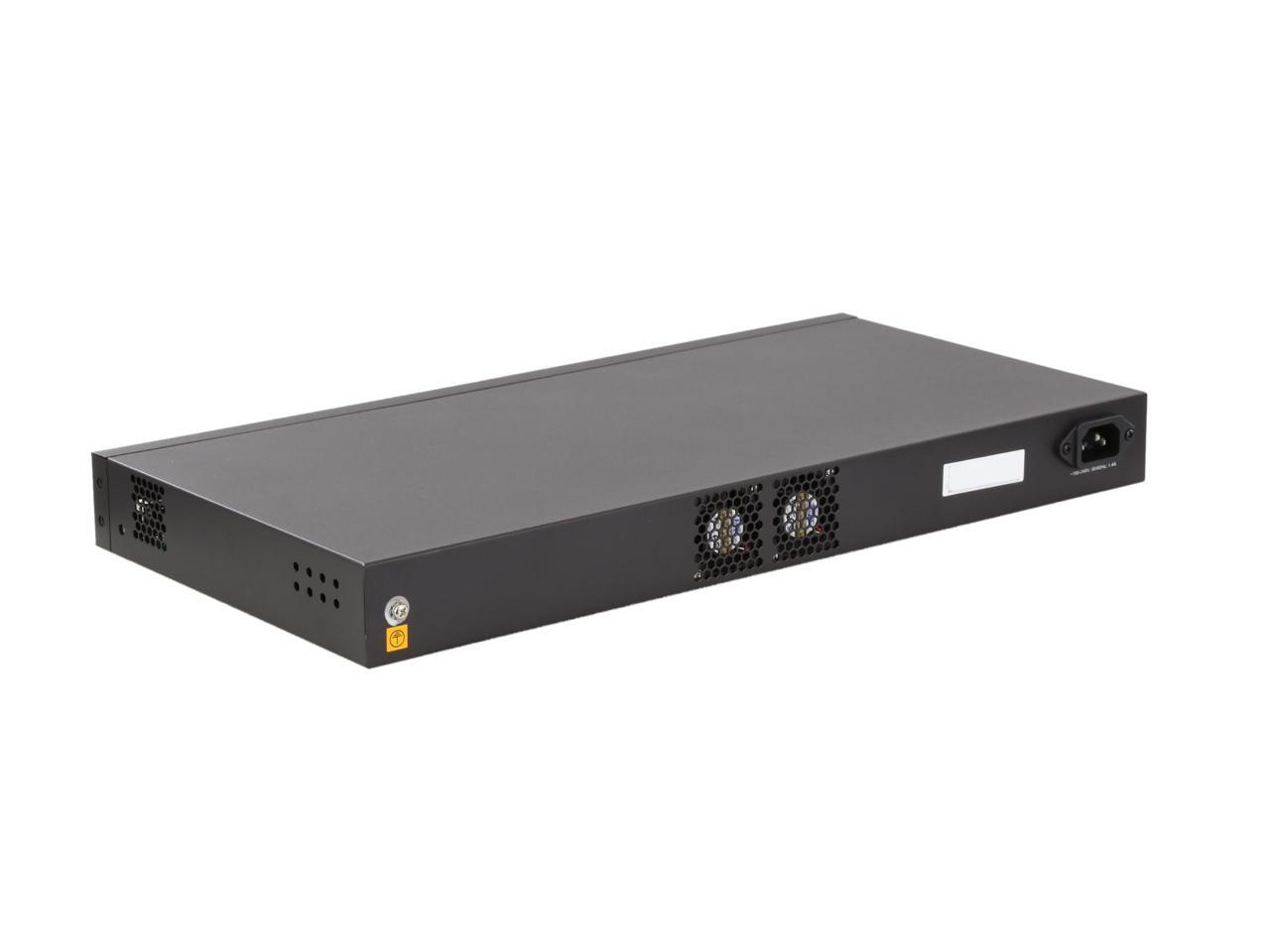

• All the S1700 series switches except the S1700-52GFR-4P-AC use a fan-free design that reduces power consumption and noise.
• The S1700 supports Energy Efficient Ethernet (EEE) that enables the switch to enter power-saving mode when the traffic is light.
• The S1700 can adjust power output for transmissions based on the cable length and set ports that are transmitting no traffic to sleep mode.

Non-Blocking and High-Speed Forwarding

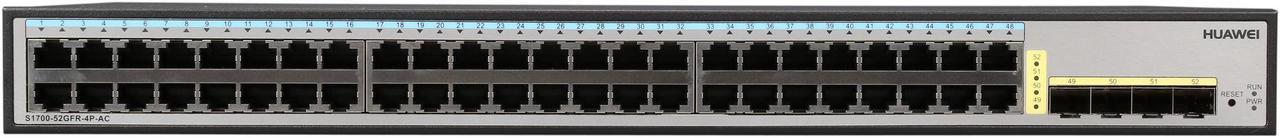

• All S1700 ports provide Layer 2 wire-speed forwarding capabilities to ensure non-blocking packet forwarding. Most S1700 models provide optical and electrical GE uplink ports, which facilitate user access and are cost effective.
• The S1700 MAC address table supports up to 8K of MAC addresses, making it easy to expand networks and deploy new services.

Convenient Management and Maintenance

• The S1700 is easy to manage and maintain and comes with one-key operation button on the front panel.
• Web-managed S1700 models come with a web network management system, making it easy to configure switches.
• SNMP-based S1700 models allow for the use of an SNMP-based NMS for centralized configuration and management.

Powerful Security Performance

• The S1700 provides a range of security features, including 802.1x, RADIUS, and NAC. The S1700 also supports packet filtering based on MAC addresses or ports to defend against hacker and virus attacks.

Great Networking and Bandwidth Extensibility

• The S1700 provides LACP, STP, RSTP, and MSTP functions to implement link aggregation and backup. SNMPbased switches support up to eight MSTP instances for flexible networking.
