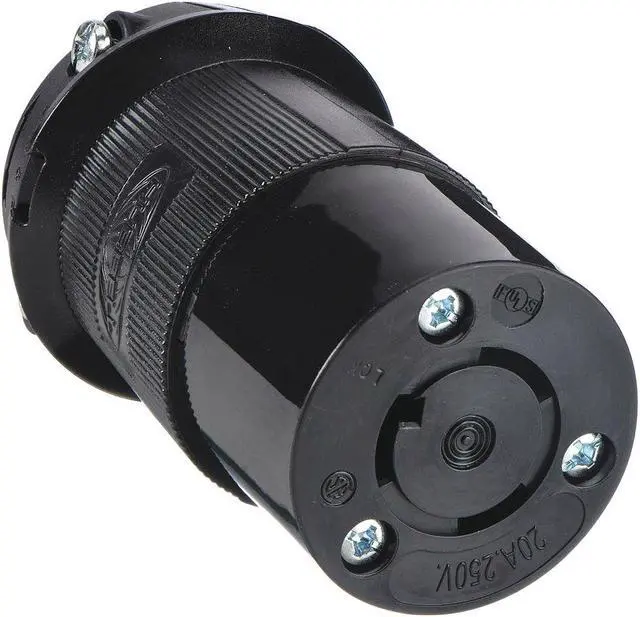

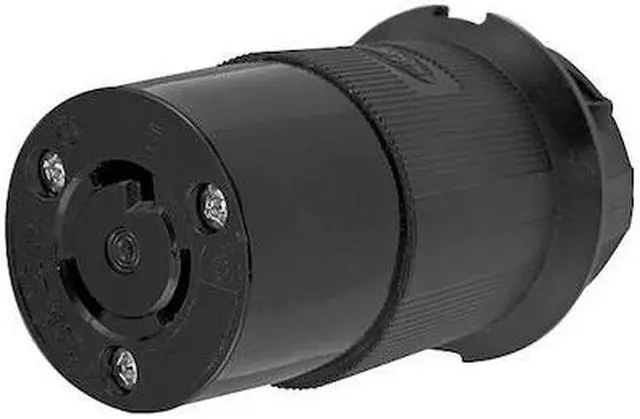

HUBBELL WIRING DEVICE-KELLEMS HBL2323BK 20A Locking Connector 2P 3W 250VAC

The HUBBELL 20A Locking Connector L6-20R is an industrial-grade connector rated for use in specified electrical applications. It features a black ribbed nylon housing constructed with a black ribbed nylon housing rated for impact and chemical resistance per manufacturer specifications, that provides both impact and chemical resistance, with an integral dust shield to protect the wiring chamber from contaminants. The connector accommodates cord sizes ranging from 0.360" to 0.930", and utilizes screw terminals for wire connection.

Key Features of the HUBBELL 20A Locking Connector L6-20R:

• Amperage/Voltage Rating: Rated for 20 A and 250V AC, suitable for single-phase applications


• NEMA Configuration: L6-20R (2-pole, 3-wire grounding)


• Housing Material: Ribbed nylon construction; rated by manufacturer for grip, impact, and chemical resistance


• Cord Range: Accepts cords with diameters between 0.360" and 0.930"


• Wire Size Compatibility: Supports #16 AWG to #8 AWG stranded copper wire


• Operating Temperature Range: -40°C minimum (without impact) to +75°C maximum continuous use


• Flammability Rating: HB or better per UL94 or CSA standards


• Standards Compliance: Certified to CSA C22.2 No.42, Fed.Spec. W-C-596; Listed to UL498


• Cord Grip Design: Cord grip design intended to reduce strain on terminations; includes a funnel-shaped entry to assist with wire termination
