Ibm System X

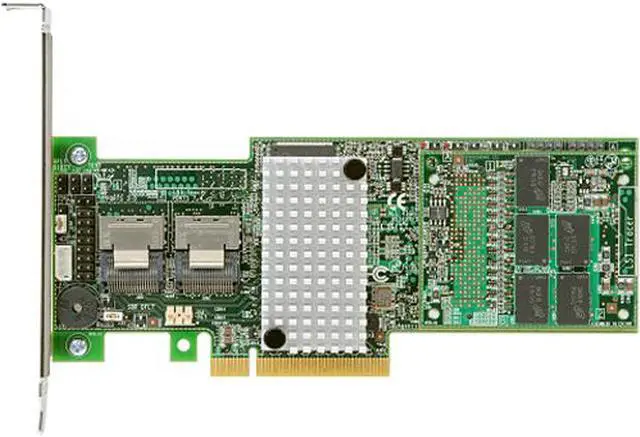

Learn more about the IBM 81Y4481
Model
Brand
IBM
Model
81Y4481
Form Factor
Low Profile Ready
Details
Type
SATA / SAS
Internal Connectors
2 x SFF-8087 mini-SAS
Interface
PCI-Express 3.0 x8
Transfer Rate
Up to 6Gb/s
RAID
RAID 0/1/10
Operating Systems Supported
Microsoft Windows Server 2008 R2 Microsoft Windows Server 2008, Datacenter x64 Edition Microsoft Windows Server 2008, Datacenter x86 Edition Microsoft Windows Server 2008, Enterprise x64 Edition Microsoft Windows Server 2008, Enterprise x86 Edition Microsoft Windows Server 2008, Standard x64 Edition Microsoft Windows Server 2008, Standard x86 Edition Microsoft Windows Server 2008, Web x64 Edition Microsoft Windows Server 2008, Web x86 Edition Red Hat Enterprise Linux 5 Server with Xen x64 Edition Red Hat Enterprise Linux 5 Server x64 Edition Red Hat Enterprise Linux 6 Server x64 Edition SUSE Linux Enterprise Server 10 for AMD64/EM64T SUSE Linux Enterprise Server 11 for AMD64/EM64T SUSE Linux Enterprise Server 11 for x86 SUSE Linux Enterprise Server 11 with Xen for AMD64/EM64T VMware vSphere 5
Features
Features
800 MHz dual-core IBM PowerPC processor with LSI SAS2208 6 Gbps RAID on Chip (ROC) controller
Support Eight internal 6 Gbps SAS/SATA ports
Support for SAS and SATA HDDs and SSDs
Support for intermixing SAS and SATA HDDs and SSDs; mixing different types of drives in the same array (drive group) not recommended
S.M.A.R.T. support
MegaRAID Storage Manager management software
Supported System x servers: x3500 M4 x3530 M4 x3550 M4 x3630 M4 x3750 M4
Additional Information
First Listed on Newegg
April 04, 2025
