| Products |
|
|
|
|
|
| Available Size |
80 / 120 / 140 mm |
80 / 120 / 140 mm |
120 / 140 mm |
80 / 120 / 140 mm |
120 / 140 mm |
| Available Color |
Teal / Gray / Black |
Teal / Gray / Black |
Teal / Black |
Teal / Gray / Black |
Teal / Black |
| Bearing |
Fluid Dynamic Bearing |
Dual Ball Bearing |
Dual Ball Bearing |
Dual Ball Bearing |
Dual Ball Bearing |
| Speed |
500 - 1600 RPM |
500 - 2500 RPM |
500 - 1600 RPM |
500 - 3000 RPM |
500 - 2200 RPM |
| Airflow |
96 CFM |
169 CFM |
96 CFM |
127 CFM |
94 CFM |
| Noise Level |
0 - 36 dBA (with Auto START/STOP) |
0 - 47 dBA (with Auto START/STOP) |
0 - 36 dBA (with Auto START/STOP) |
0 - 44 dBA (with Auto START/STOP) |
0 - 38 dBA (with Auto START/STOP) |
| Static Pressure |
2.65 mm H2O |
4.7 mm H2O |
2.65 mm H2O |
4.6 mm H2O |
3.27 mm H2O |
| Lighting |
- |
- |
Addressable RGB |
- |
Addressable RGB |

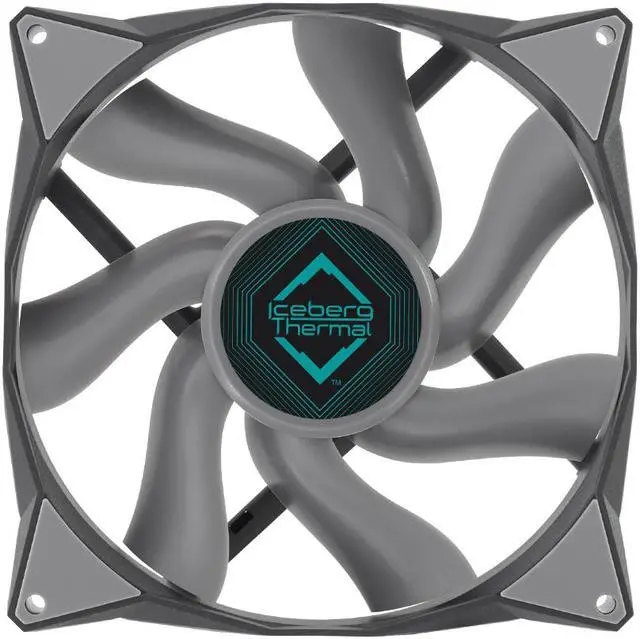

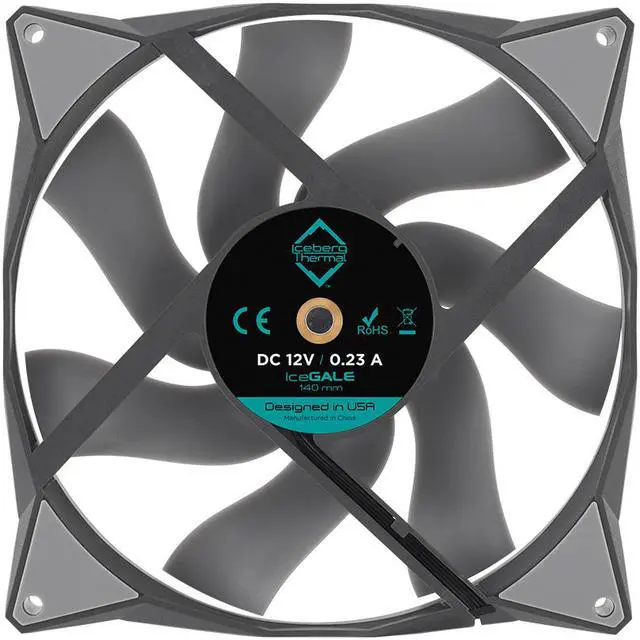

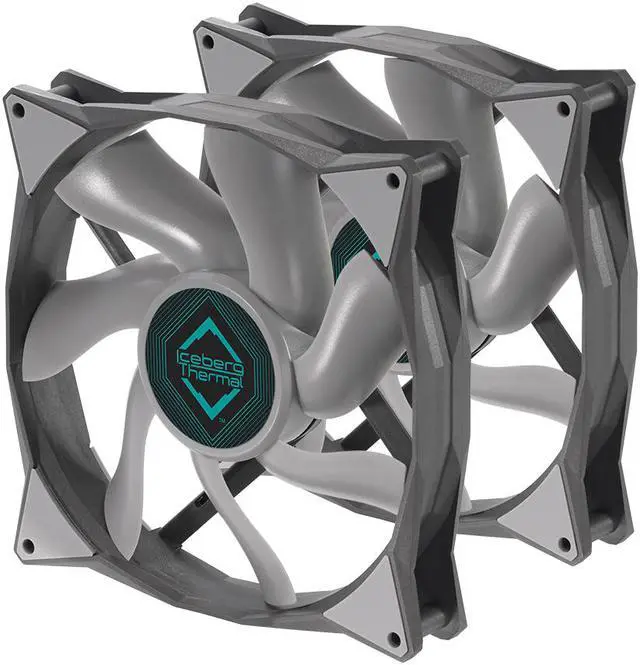

IceGALE 140 mm Premium Case Fan Technical Specifications
| Available Color |
Teal / Gray / Black |
| Dimensions |
140 (L) x 140 (W) x 25 (H) mm |
| Connector |
4-pin PWM |
| Bearing |
Fluid Dynamic Bearing |
| Speed |
500 - 1600 RPM |
| Airflow / Static Pressure |
96 CFM / 2.65 mm H2O |
| Noise Level |
0 - 36 dBA (with Auto START/STOP) |
| Voltage / Current |
12 V / 0.23 A |
| MTTF |
> 150000 hours |
Iceberg Thermal IceGALE fans are designed to transport airflow in an aerodynamic way, delivering a concentrated airflow that helps to generate higher PC performance and efficiency. Our fans provide a more powerful airflow, allowing the temperature inside your case to stay cooler, expanding the longevity of your PCs components. All IceGALE fans have been Two-Plane balanced to ensure stability. Anti-vibration pads are attached to the outer corners of the fans frame to absorb and eliminate vibration. Our IceGALE 140mm fan is made with a Rigid Brass Housing to provide a reliable product, and a Fluid Dynamic Bearing helping to reduce noise levels, ensuring quiet operation.
