| Products | |||||
|---|---|---|---|---|---|
| Available Size | 80 / 120 / 140 mm | 80 / 120 / 140 mm | 120 / 140 mm | 80 / 120 / 140 mm | 120 / 140 mm |
| Available Color | Teal / Gray / Black | Teal / Gray / Black | Teal / Black | Teal / Gray / Black | Teal / Black |
| Bearing | Dual Ball Bearing | Fluid Dynamic Bearing | Dual Ball Bearing | Dual Ball Bearing | Dual Ball Bearing |
| Speed | 500 - 2500 RPM | 500 - 1600 RPM | 500 - 1600 RPM | 500 - 3000 RPM | 500 - 2200 RPM |
| Airflow | 169 CFM | 96 CFM | 96 CFM | 127 CFM | 94 CFM |
| Noise Level | 0 - 47 dBA (with Auto START/STOP) | 0 - 36 dBA (with Auto START/STOP) | 0 - 36 dBA (with Auto START/STOP) | 0 - 44 dBA (with Auto START/STOP) | 0 - 38 dBA (with Auto START/STOP) |
| Static Pressure | 4.7 mm H2O | 2.65 mm H2O | 2.65 mm H2O | 4.6 mm H2O | 3.27 mm H2O |
| Lighting | - | - | Addressable RGB | - | Addressable RGB |

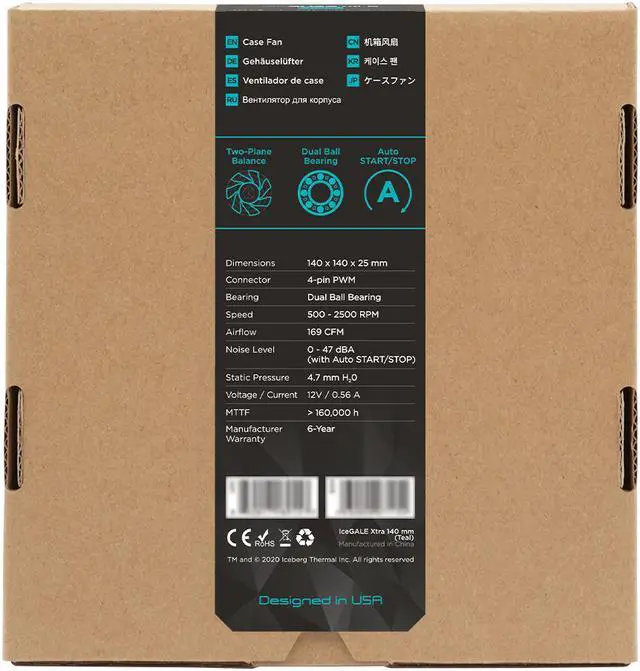

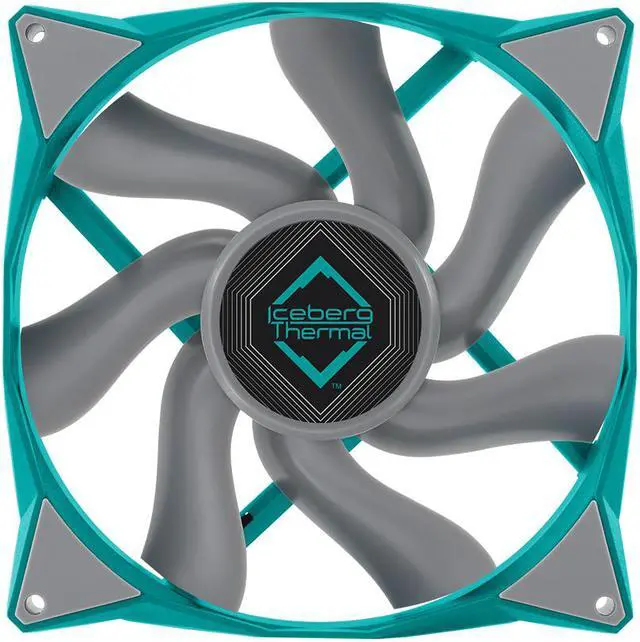

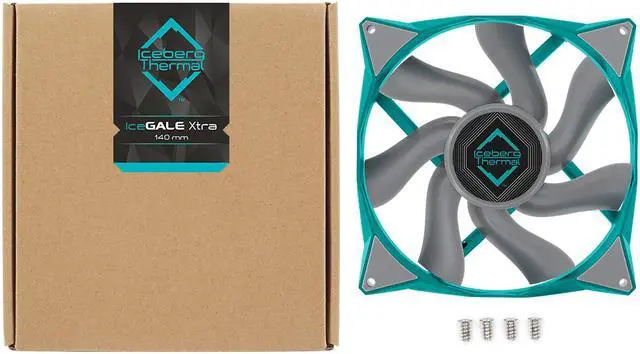

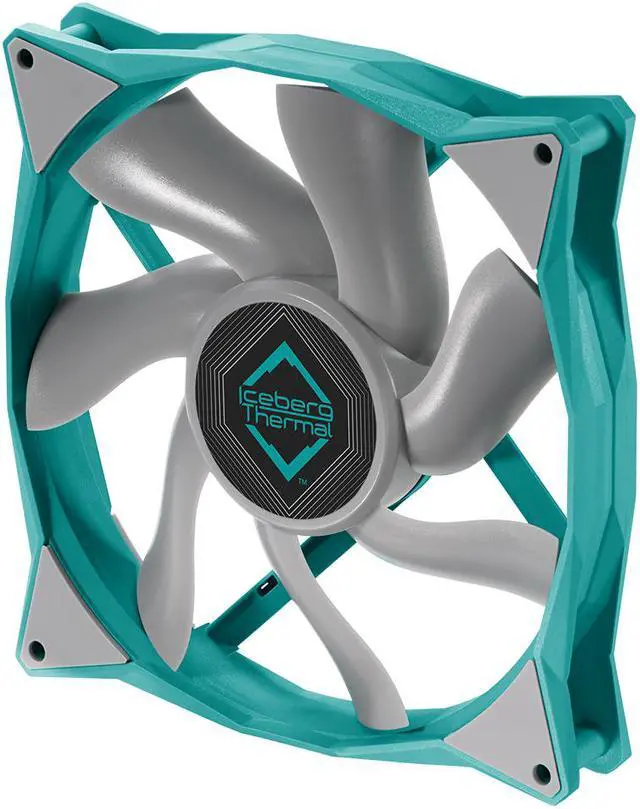

IceGALE Xtra 140 mm Case Fan Technical Specifications
| Available Color | Teal / Gray / Black |
|---|---|
| Dimensions | 140 (L) x 140 (W) x 25 (H) mm |
| Connector | 4-pin PWM |
| Bearing | Dual Ball Bearing |
| Speed | 500 - 2500 RPM |
| Airflow / Static Pressure | 169 CFM / 4.7 mm H2O |
| Noise Level | 0 - 47 dBA (with Auto START/STOP) |

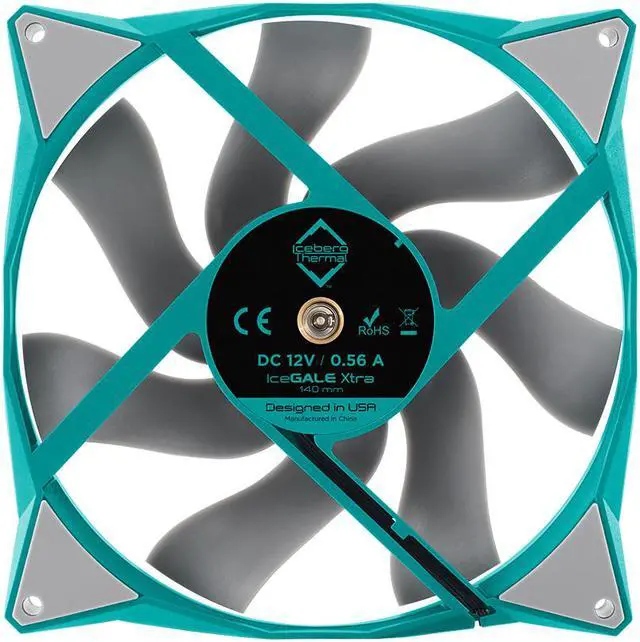

| Voltage / Current | 12 V / 0.56 A |
| MTTF | > 160000 hours |
