will i need this to mount a ssd into a slot where a hdd would normally go?

The unit will hold two SDD's that slide in and lock in place with spring tensioners so no mounting kit is needed for the SSDs. The dock itself fits into a standard drive bay in the computer case. The only con of the unit is the two SDD slots are lined up with each other and have no gap between them. Once you plug in the SATA data and power are a tight fit. Overall, it is a good unit.

Can you place one of the two SSDs upside down in relation to the other, for cable end connection clearance?

Yes you can place one of the two SSDs upside down in relation to the other, for cable end connection clearance.

Using this to hold a single 2.5" SSD: Is this tray compatible with ICY DOCK TurboSwap MB171SP-B 3.5” hot-swappable SATA drive cage???

This bracket is for the internal 3.5" hard drive bay. You cannot use this with docking stations such as the MB171SP-B as the bracket would move the SATA port into a non-standard location. If you plan to use a 2.5" drive in a docking station that only accepts 3.5" drives, you would need a 2.5" to 3.5" converter, where the converter would give the 2.5" drive the same dimensions of a standard 3.5" hard drive.

$23^.67

Free 30-day Returns

Limit 99999 per customer.

Price alert

Add to wish list

Sold by Pelle Pelle USA

Top Rated

4.2 (6 seller ratings)

Shipped by Pelle Pelle USA

Best Sellers

Dzign Innovations

Top Rated

3.8 (25 total ratings)

$23^.68
+ FREE SHIPPING

Baiwaiz Lighting

Top Rated

4.1 (120 total ratings)

$30^.00
+ FREE SHIPPING

antonline

Top Rated

4.5 (17,935 total ratings)

$32^.67
+ FREE SHIPPING

Meet Your Seller

Pelle Pelle USA

See Seller Store

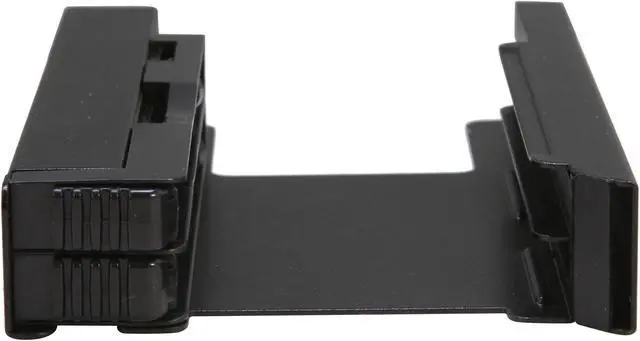

Main image of ICY DOCK 2 x 2.5 Inch to 3.5 Inch Drive Bay SATA SSD/HDD Mounting Kit / Bracket / Adapter - EZ-FIT MB082SP PRO

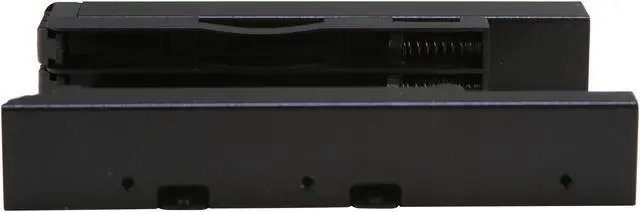

Alt view image 2 of 5 - ICY DOCK 2 x 2.5 Inch to 3.5 Inch Drive Bay SATA SSD/HDD Mounting Kit / Bracket / Adapter - EZ-FIT MB082SP PRO

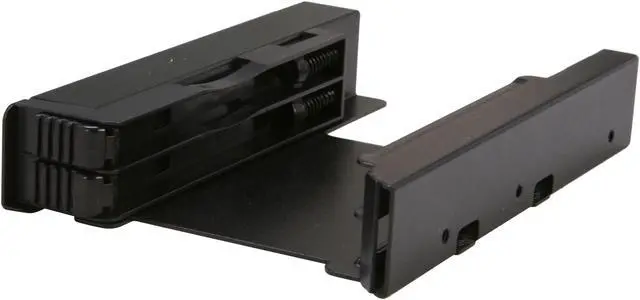

Alt view image 3 of 5 - ICY DOCK 2 x 2.5 Inch to 3.5 Inch Drive Bay SATA SSD/HDD Mounting Kit / Bracket / Adapter - EZ-FIT MB082SP PRO

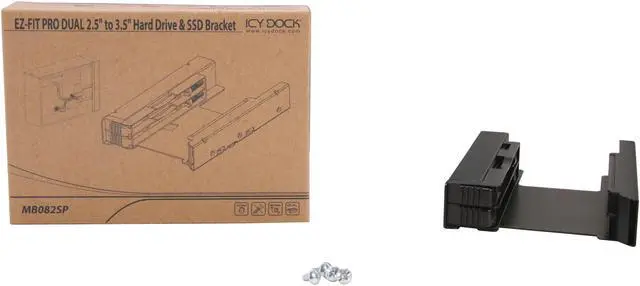

Alt view image 4 of 5 - ICY DOCK 2 x 2.5 Inch to 3.5 Inch Drive Bay SATA SSD/HDD Mounting Kit / Bracket / Adapter - EZ-FIT MB082SP PRO

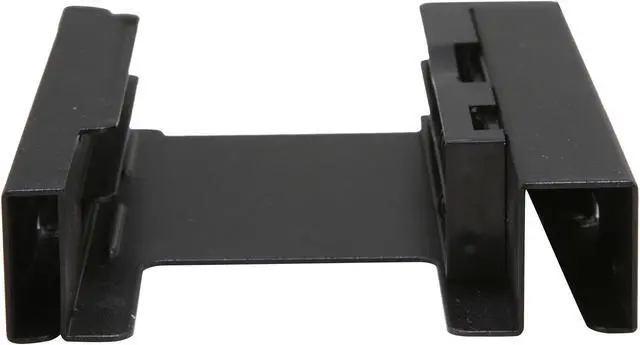

Alt view image 5 of 5 - ICY DOCK 2 x 2.5 Inch to 3.5 Inch Drive Bay SATA SSD/HDD Mounting Kit / Bracket / Adapter - EZ-FIT MB082SP PRO

Shop All ICY DOCK Products | Visit Pelle Pelle USA Store

ICY DOCK 2 x 2.5 Inch to 3.5 Inch Drive Bay SATA SSD/HDD Mounting Kit / Bracket / Adapter - EZ-FIT MB082SP PRO

(851) Write a Review

Model: Brackets Metal

Brackets Metal
Brackets Versatile
Brackets 4BAY
Brackets 3BAY
Brackets Versatile x2
Bracket ODD

Color: Black
Compatible Drive Type: 2.5" SATA/IDE HDD & SSD (HDD up to 9.5mm thickness in height)
Device Fit: Internal 3.5" device bay
Structure: Metal
Dimension: 146 x 102 x 25mm
Weight: 244g

Overview

Specs

Reviews (851)

Any questions? Our AI beta will help you find out quickly.

Try me now

Icy Dock is proud to introduce the MB082SP, the newest product in the incredibly popular SSD/HDD bracket & converter line. Easy installation and Durability is the key to this product, perfect for users that require the best physical protection of their data, with the least amount of hassle of installation. Switching from HDD to SSD is very affordable with this drive bay adapterTakes minimal energy and effort to get installed internally Manufacturer Part NumberMB082SPProduct LineEZ-FIT PROProduct ModelMB082SPProduct NameEZ-FIT PRO MB082SP Storage Bay AdapterProduct TypeDrive Bay AdapterNumber of Total Expansion Bays2Number of 2.5" Bays2Drive InterfaceIDESerial ATAColorMatte BlackMaterialMetalForm FactorInternalCompatible Drive Bay Width3.5"Height1"Width4"Depth5.7"Weight (Approximate)8.61 ozEnvironmentally FriendlyYesEnvironmental CertificationRoHSLimited Warranty3 Year

Best Seller Ranking	#39 in HDD / SSD Accessories

Model
Brand	ICY DOCK
Model	MB082SP
Color	Black

Details
Conversion Tray	2 x 2.5" Drive to 3.5" Bay
Mobile Rack Drives Support	Multi 2.5" Drives to 3.5" Bay
Mobile Rack Interface	SATA I/II
Protection Case	Multiple Drives
Specifications	Color: Black Compatible Drive Type: 2.5" SATA / IDE HDD & SSD (HDD up to 9.5mm thickness in height) Device Fit: Internal 3.5" device bay Structure: Metal Dimension: 146.00 x 102.00 x 25.00mm Weight: 244g Compatible Drive Type: 2.5" IDE Hard Drive / 2.5" SATA Hard Drive / 2.5" SATA Solid State Drive / 2.5" IDE Solid State Drive, Fits any 9.5mm height drive

Features
Features	EZ-Lock mechanism for tool-less drive installation Heavy Duty Full metal construction with matte black finish Fits 2 x 2.5" SSD / HDD into one 3.5" device bay Compatible with SSD or hard drives up to 9.5mm height Anti-Vibration design for improved reliability Universally designed screw placement for maximum compatibility

Additional Information
First Listed on Newegg	July 03, 2025
