Icy Dock MB720MK-B | 4 x M.2 NVMe SSD PCIe 4.0 Mobile Rack for 5.25" Bay with 4x OcuLink (not support Tri-mode) | Tough Armor
Be the first to review this product...
Fits 4x M.2 NVMe SSDs of all lengths, 30mm (2230), 42mm (2242), 60mm (2260), 80mm (2280), and 110mm (22110)
Installs into any standard external 5.25" optical drive bay
Supports Tri-mode controllers PCIe/NVMe pinout (Broadcom, Areca, and more)
Connects with 4x OCulink (SFF-8612) (NVMe host required)
Supports PCIe 4.0 specification with transfer rates up to 64Gb/s per drive bay
Removable and tool-less drive installation design for easy drive maintenance
2-segment key lock for additional physical security
5 years limited warranty against all defects
+
+
Overview
Specs
Reviews
idokm720mk-|4xm. 2nvmessdpie 4.0 moilerkfor 5.25" it4xoulink(notsupporttri-mode)|tougrmor
Learn more about the ICY DOCK MB720MK-B V2
Model
Brand
ICY DOCK
Series
ToughArmor
Model
MB720MK-B V2
Details
Color
Black
Size
M.2
Type
Enclosure
AC Adapter
No
Material
Metal
Internal Interface
M.2 NVME M-Key
External Interface
1:1
HDD Count Supported
No
Number of Bay
4 Bay
Fan
2 x 40x40x20mm Fan
Specifications
Support Drive Size: 4 x M.2 SSD (2230~22110)
Compatible Drive Type: NVMe PCIe Gen 4x4
Number of Drives: 4
Support Drive Length: 30mm - 110mm
Drive Bay: 1 x 5.25" half height bay
Host Interface: 4 x OCuLink(SFF-8612), pin-out defined by SFF-9402 Rev 1.1
Power Input: 2 x 15pin SATA power connector
Transfer Rate: Up to 64Gbps (Depending on SSD Speed)
Support SSD Capacity: No Limitation

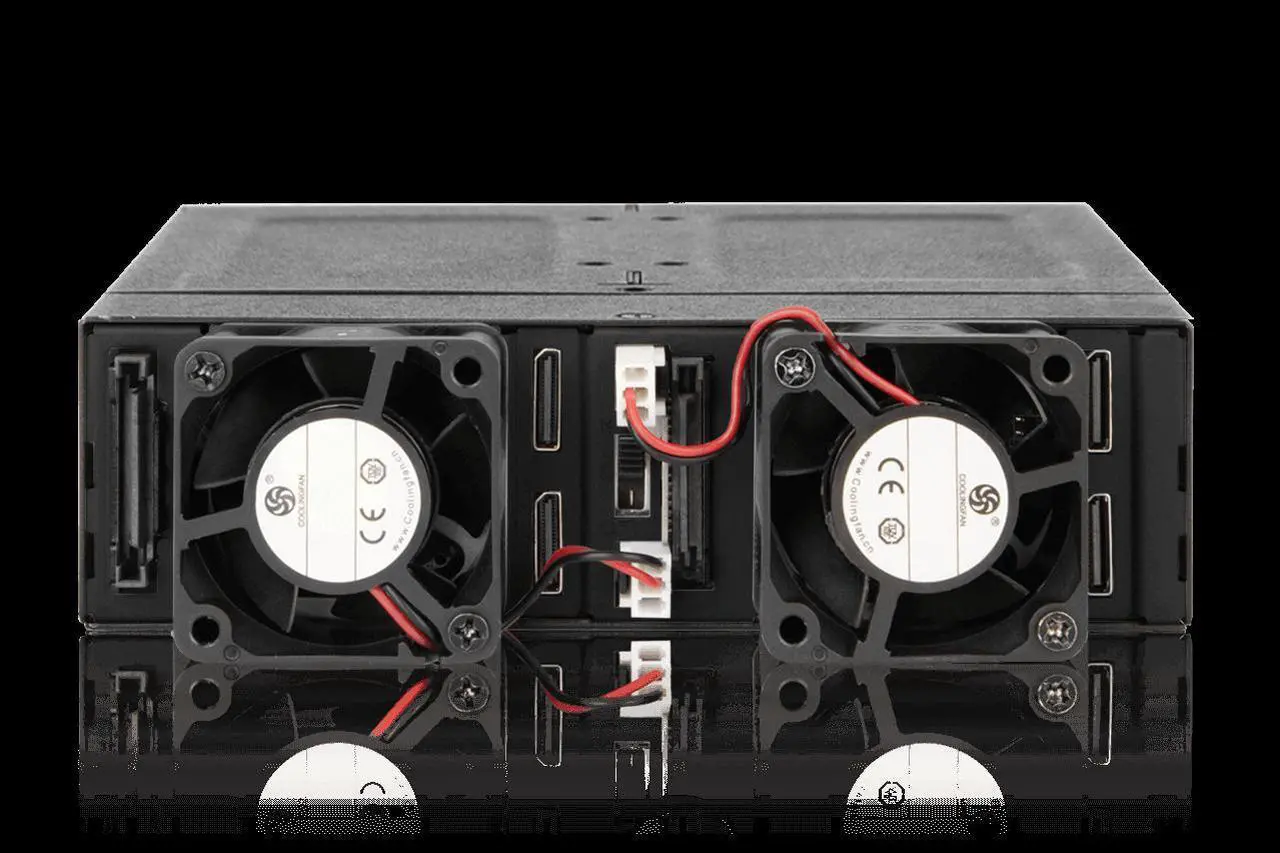

Drive Cooling (Active): 2 x 40*40*20mm Fan
Structure / Material: Full Metal
Drive Security: 2 segment key lock
Support Hot-Plug: Yes (host must support hot-plug function)
Drive Activity LED Indication: Drive power: solid green; Drive access: flashing green
M.2 Connector Insertion Rate: 5,000
Humidity: 5%~65% RH
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Storage Temperature: -35°C to 70°C (-31°F to 158°F)
Compliance: CE, RoHS, REACH
Features
Features
Fits 4x M.2 NVMe SSD of all lengths, 30mm (2230), 42mm (2242), 60mm (2260), 80mm (2280), and 110mm (22110)
Installs into any standard external 5.25" optical drive bay
Uses 4x OCulink (SFF-8612) to connect (NVMe host required)
Supports PCIe 4.0 specification with transfer rates up to 64Gb/s per drive bay
Patent-pending screw-less M.2 adjustable locker holds all length drives securely
Removable and tool-less drive installation design for easy drive maintenance
Ruggedized full-metal enclosure meeting flammability requirements
Integrated large high-efficiency heatsink and ample ventilation for excellent cooling performance
2-segment key lock for additional physical security
The Eagle-hook tray latch securely holds the drive tray inside the enclosure
EMI Grounding - protects SSDs from electrical damage
Dimensions & Weight
Dimensions
5.75" x 1.63" x 7.17"
Weight
2.98 lbs.
Package Contents
Package Contents
Device, User manual, Drive ID plugs, Screws ,Keys
