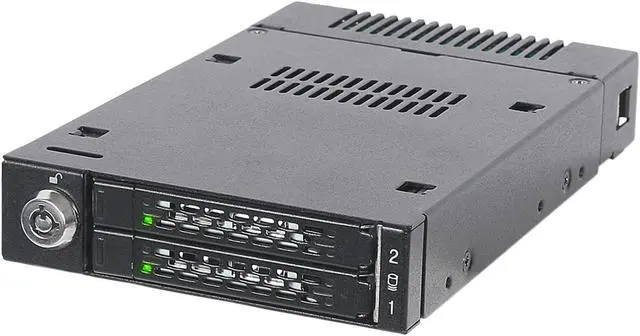

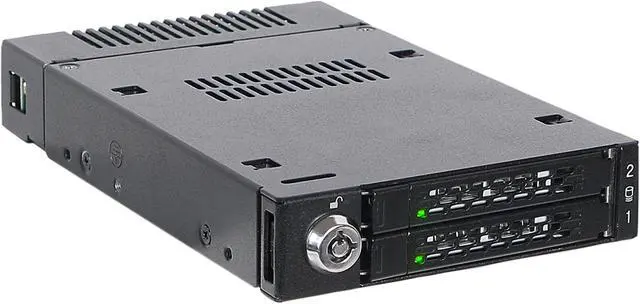

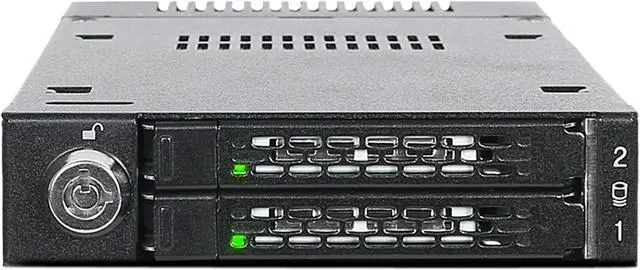

Support Drive Size: 2 x M.2 PCIe NVMe SSD 2230/2242/2260/2280/22110 Compatible Drive Type: NVMe M.2 Number of Drives: 2 Drive Bay: 1 x external 3.5" device bay Host Interface: 2 x miniSAS HD (SFF-8643) Power Input: 1 x 15pin SATA power connector Transfer Rate: Up to 32Gbps (Depending on hard drive speed) Support HDD Capacity: No Limitation Drive Cooling: Metal heat dispersion with thermal pad for passive cooling Structure / Material: Metal with partial plastic Support Hot-Plug: Yes (host must support hot-plug function) Drive Security: 2 segment key lock
Features
Features
Fits 2x M.2 NVMe SSD of all lengths, 30mm (2230), 42mm (2242), 60mm (2260), 80mm (2280), and 110mm (22110)
Adjustable drive locker holds all length drives securely

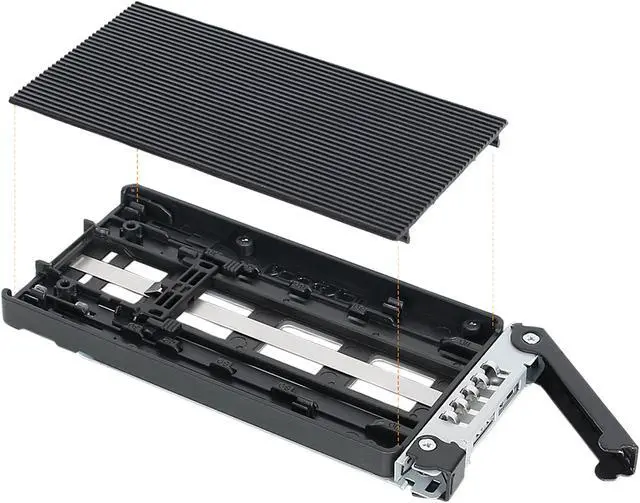

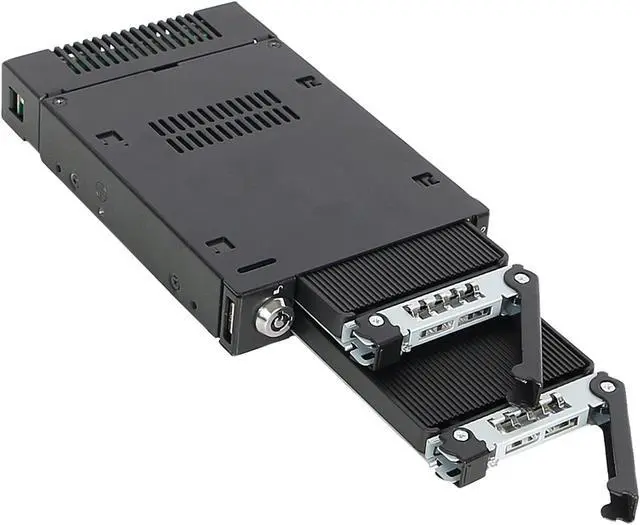

Tool-less drive installation design for easy drive maintenance and system upgrading
Installs into any standard external 3.5" device bay or floppy bay

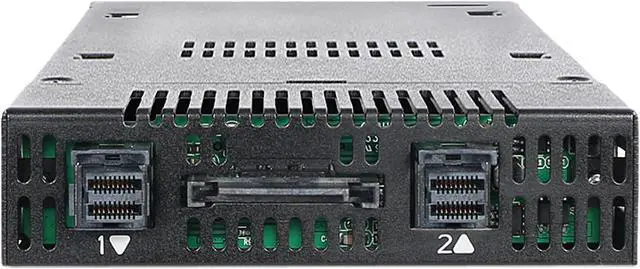

Uses a miniSAS HD port (SFF-8643) to connect, requires NVMe host
Supports the full NVMe bandwidth specification of 32 Gbps
