Will this device fit any type of SATA hard drive or SSD?

The device supports 2.5-inch SATA hard drives or SSDs with heights ranging from 7mm to 9.5mm.

Is this device compatible with my PCIe 3.0 x16 slot?

Yes, this device supports installation into PCIe 3.0 x16 slots.

Does this mobile rack have any cooling features?

Yes, the product features metal heat dispersion with passive cooling for drive cooling.

Can I hot-swap drives with this device?

Yes, this device supports hot-swapping of drives.

$65^.99

Free 30-day Returns

This product is available for $65.57 from a Top Rated seller.

Limit 99999 per customer.

Sold by Newegg

Shipped by Newegg

Price alert

Add to wish list

Best Sellers

Technology Galaxy

Top Rated

4.1 (2,353 total ratings)

$65^.57
+ FREE SHIPPING

BeachAudio

Top Rated

4.4 (8,573 total ratings)

$73^.65

Volume Discounts Available

BTE Outlet

3.5 (1,441 total ratings)

$168^.75
+ FREE SHIPPING

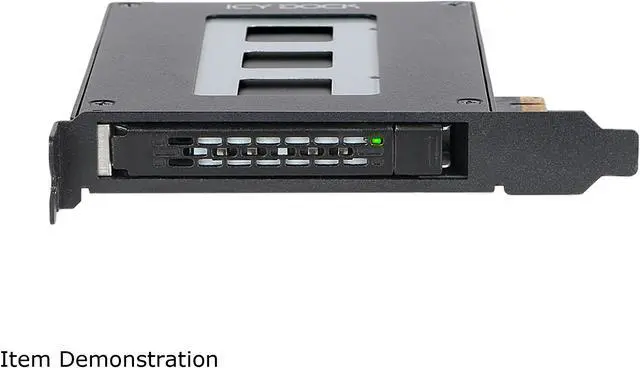

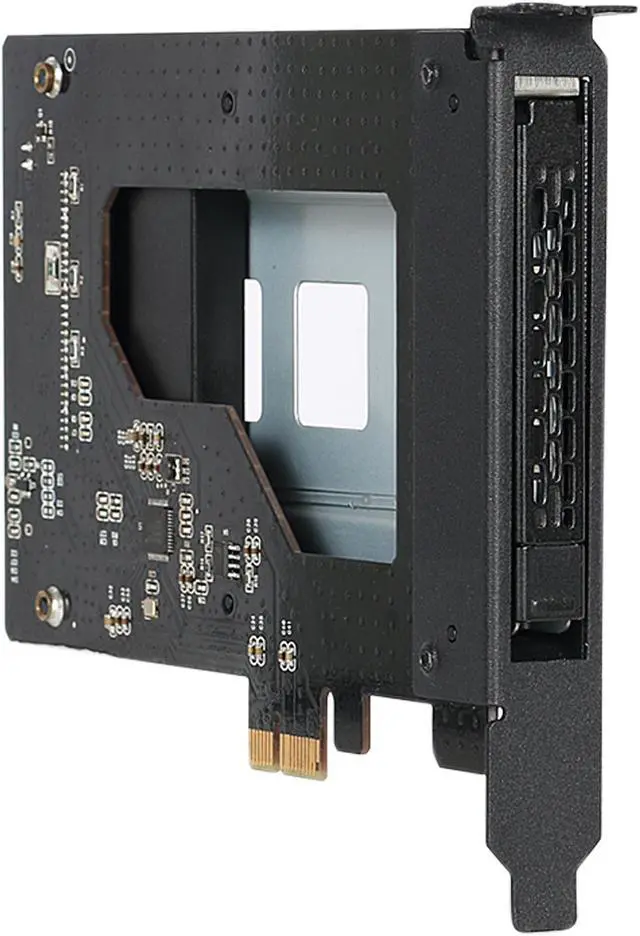

Main image of ICY DOCK ToughArmor MB839SP-B 2.5" SATA SSD/HDD to PCIe 2.0 x1 Hot-Swap Mobile Rack for PCIe Expansion Slot

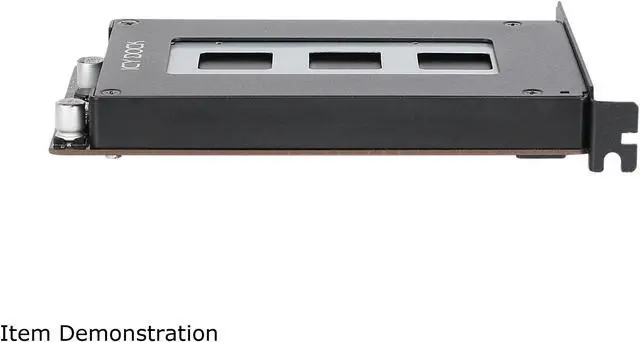

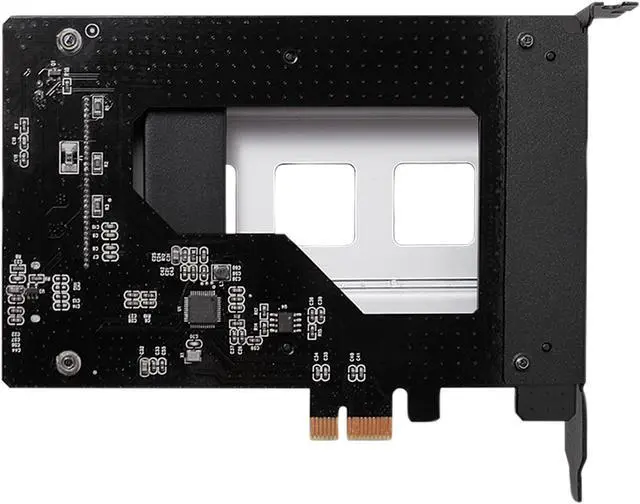

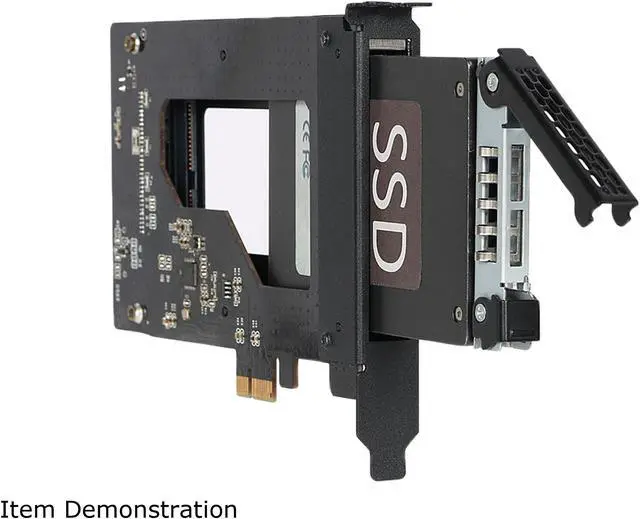

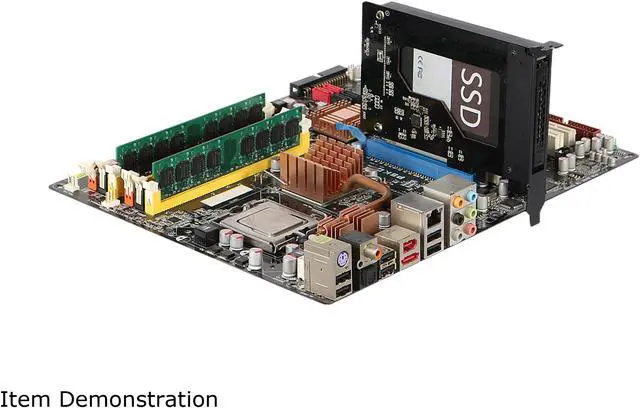

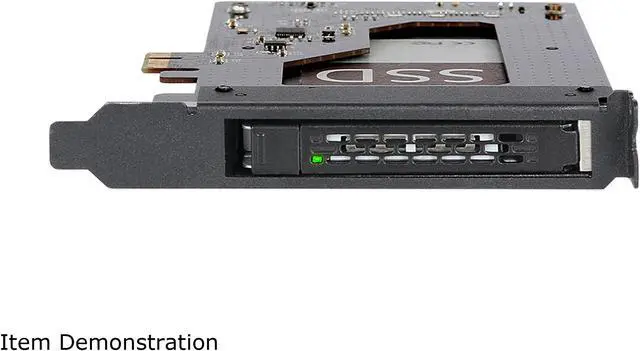

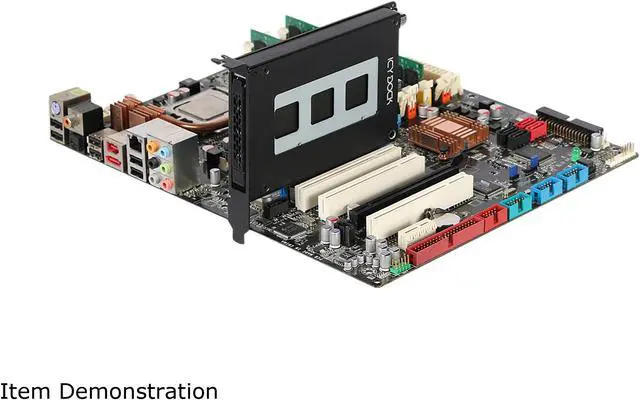

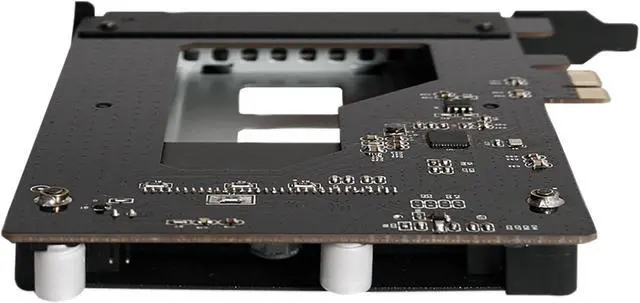

Alt view image 2 of 10 - ICY DOCK ToughArmor MB839SP-B 2.5" SATA SSD/HDD to PCIe 2.0 x1 Hot-Swap Mobile Rack for PCIe Expansion Slot

Alt view image 3 of 10 - ICY DOCK ToughArmor MB839SP-B 2.5" SATA SSD/HDD to PCIe 2.0 x1 Hot-Swap Mobile Rack for PCIe Expansion Slot

Alt view image 4 of 10 - ICY DOCK ToughArmor MB839SP-B 2.5" SATA SSD/HDD to PCIe 2.0 x1 Hot-Swap Mobile Rack for PCIe Expansion Slot

Alt view image 5 of 10 - ICY DOCK ToughArmor MB839SP-B 2.5" SATA SSD/HDD to PCIe 2.0 x1 Hot-Swap Mobile Rack for PCIe Expansion Slot

Alt view image 6 of 10 - ICY DOCK ToughArmor MB839SP-B 2.5" SATA SSD/HDD to PCIe 2.0 x1 Hot-Swap Mobile Rack for PCIe Expansion Slot

Alt view image 7 of 10 - ICY DOCK ToughArmor MB839SP-B 2.5" SATA SSD/HDD to PCIe 2.0 x1 Hot-Swap Mobile Rack for PCIe Expansion Slot

Alt view image 8 of 10 - ICY DOCK ToughArmor MB839SP-B 2.5" SATA SSD/HDD to PCIe 2.0 x1 Hot-Swap Mobile Rack for PCIe Expansion Slot

Alt view image 9 of 10 - ICY DOCK ToughArmor MB839SP-B 2.5" SATA SSD/HDD to PCIe 2.0 x1 Hot-Swap Mobile Rack for PCIe Expansion Slot

Alt view image 10 of 10 - ICY DOCK ToughArmor MB839SP-B 2.5" SATA SSD/HDD to PCIe 2.0 x1 Hot-Swap Mobile Rack for PCIe Expansion Slot

Shop All ICY DOCK Products

ICY DOCK ToughArmor MB839SP-B 2.5" SATA SSD/HDD to PCIe 2.0 x1 Hot-Swap Mobile Rack for PCIe Expansion Slot

Be the first to review this product...

Fits 1x SATA hard drive or SSD from 7mm to 9.5mm in height
Uses PCIe 2.0 x1 interface, also supports installation into PCIe 2.0 and PCIe 3.0 x1, x4, x8, and x16 slots
Installs into single-width PCIe expansion slot
Includes full-height PCIe faceplate to protect against buildup of dust
Eagle-hook lock system keeps the drive secure in the enclosure

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

idoktougrmorm839sp- 2.5" stssd/ddtopie 2.0 x1ot-spmoilerkforpieexpnsionslot

Model
Brand	ICY DOCK
Model	MB839SP-B
Color	Black

Details
Mobile Rack Drives Support	1 x 2.5" Drive to PCI Slot
Mobile Rack Interface	SATA I/II/III
Protection Case	Single Drive
Compatible Products	2.5"
Specifications	Support Drive Size: 1 x 2.5" SSD / HDD Compatible Drive Type: SATA Number of Drives: 1 Max Drive Height: 9.5mm Drive Bay: 1 x PCIe 2.0 Expansion Slot Host Interface: PCIe 2.0 x1 or above Power Input: PCIe 2.0 Transfer Rate: Up to 500MB/s (Depending on Hard Drive Speed) Support HDD Capacity: No Limitation Drive Cooling: Metal Heat Dispersion with Passive Cooling Structure / Material: Metal with Partial ABS Plastic Support Hot-Swap: Yes Drive Activity LED Indication: Drive Power: Solid Green; HDD Access: Flashing Green SATA Connector Insertion Rate: 10,000

Features
Features	Compatible with Mac Pro 2008-2012 models with no driver required Fits 1x SATA hard drive or SSD from 7mm to 9.5mm in height Uses PCIe 2.0 x1 interface, also supports installation into PCIe 2.0 and PCIe 3.0 x1, x4, x8, and x16 slots Installs into single-width PCIe expansion slot PCIe interface provides both power and data transfer which ultimately reduce cable clutter Narrow design allows for multiple bays to be installed side-by-side in a modular design Includes full-height PCIe faceplate to protect against buildup of dust Strong hot-swap connector rated for a minimum of 10,000 insertion/removal cycles Eagle-hook lock system keeps the drive secure in the enclosure EMI Grounding - protects hard drives from electrical damage Anti-Vibration Technology (AVT) reduces noise and protects against environmental damage Active Power Technology (APT) saves power by shutting the device down when no drive is installed. Complimentary support from professionally trained US-based technical support agents
Package Contents	Device, User Manual, Screws
