Is this only the PCI card or does this package include the tray for the drive?

This comes with the PCI-E card and the tray to install an M.2 drive. (You have to supply the drive)

Is this only the PCI card or does this package include the tray for the drive?

This comes with the PCI-E card and the tray to install an M.2 drive. (You have to supply the drive)

$115^.71

Free 30-day Returns

Limit 99999 per customer.

Sold by IPC Store

4.4 (3,115 seller ratings)

Shipped by IPC Store

Price alert

Add to Wish List

Best Sellers

BeachAudio

Top Rated

4.4 (8,584 total ratings)

$117^.27

Volume Discounts Available

TELeasy

Top Rated

4 (1,158 total ratings)

$118^.04
+ FREE SHIPPING

Deal Targets

Top Rated

3.2 (2,127 total ratings)

$115^.84
+ $9.99 Shipping

Meet Your Seller

IPC Store

See Seller Store

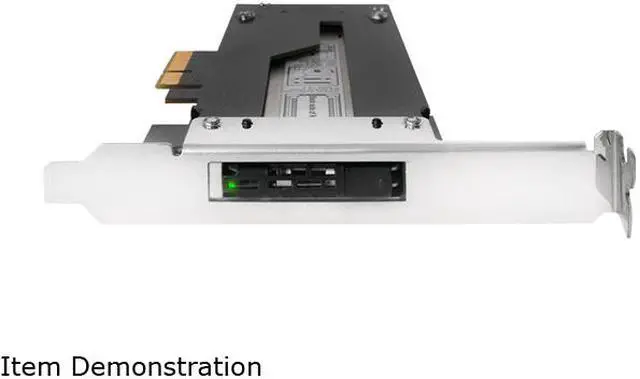

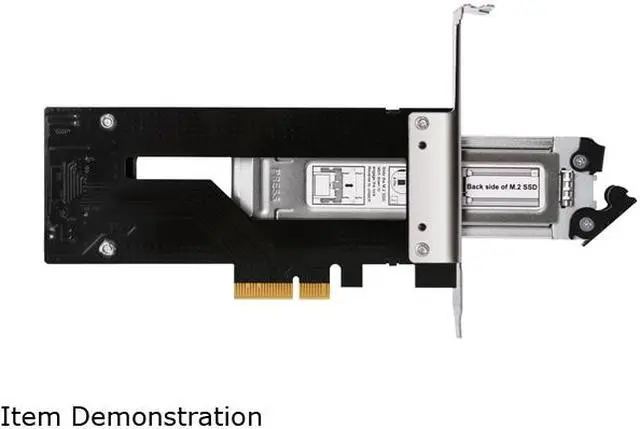

Main image of ICY DOCK ToughArmor MB840M2P-B M.2 NVMe SSD to PCIe 3.0 x4 Removable SSD Mobile Rack for PCIe Expansion Slot

Alt view image 2 of 14 - ICY DOCK ToughArmor MB840M2P-B M.2 NVMe SSD to PCIe 3.0 x4 Removable SSD Mobile Rack for PCIe Expansion Slot

Alt view image 3 of 14 - ICY DOCK ToughArmor MB840M2P-B M.2 NVMe SSD to PCIe 3.0 x4 Removable SSD Mobile Rack for PCIe Expansion Slot

Alt view image 4 of 14 - ICY DOCK ToughArmor MB840M2P-B M.2 NVMe SSD to PCIe 3.0 x4 Removable SSD Mobile Rack for PCIe Expansion Slot

Alt view image 5 of 14 - ICY DOCK ToughArmor MB840M2P-B M.2 NVMe SSD to PCIe 3.0 x4 Removable SSD Mobile Rack for PCIe Expansion Slot

Alt view image 6 of 14 - ICY DOCK ToughArmor MB840M2P-B M.2 NVMe SSD to PCIe 3.0 x4 Removable SSD Mobile Rack for PCIe Expansion Slot

Alt view image 7 of 14 - ICY DOCK ToughArmor MB840M2P-B M.2 NVMe SSD to PCIe 3.0 x4 Removable SSD Mobile Rack for PCIe Expansion Slot

Alt view image 8 of 14 - ICY DOCK ToughArmor MB840M2P-B M.2 NVMe SSD to PCIe 3.0 x4 Removable SSD Mobile Rack for PCIe Expansion Slot

Alt view image 9 of 14 - ICY DOCK ToughArmor MB840M2P-B M.2 NVMe SSD to PCIe 3.0 x4 Removable SSD Mobile Rack for PCIe Expansion Slot

Alt view image 10 of 14 - ICY DOCK ToughArmor MB840M2P-B M.2 NVMe SSD to PCIe 3.0 x4 Removable SSD Mobile Rack for PCIe Expansion Slot

Alt view image 11 of 14 - ICY DOCK ToughArmor MB840M2P-B M.2 NVMe SSD to PCIe 3.0 x4 Removable SSD Mobile Rack for PCIe Expansion Slot

Alt view image 12 of 14 - ICY DOCK ToughArmor MB840M2P-B M.2 NVMe SSD to PCIe 3.0 x4 Removable SSD Mobile Rack for PCIe Expansion Slot

Alt view image 13 of 14 - ICY DOCK ToughArmor MB840M2P-B M.2 NVMe SSD to PCIe 3.0 x4 Removable SSD Mobile Rack for PCIe Expansion Slot

Alt view image 14 of 14 - ICY DOCK ToughArmor MB840M2P-B M.2 NVMe SSD to PCIe 3.0 x4 Removable SSD Mobile Rack for PCIe Expansion Slot

Shop All ICY DOCK Products | Visit IPC Store

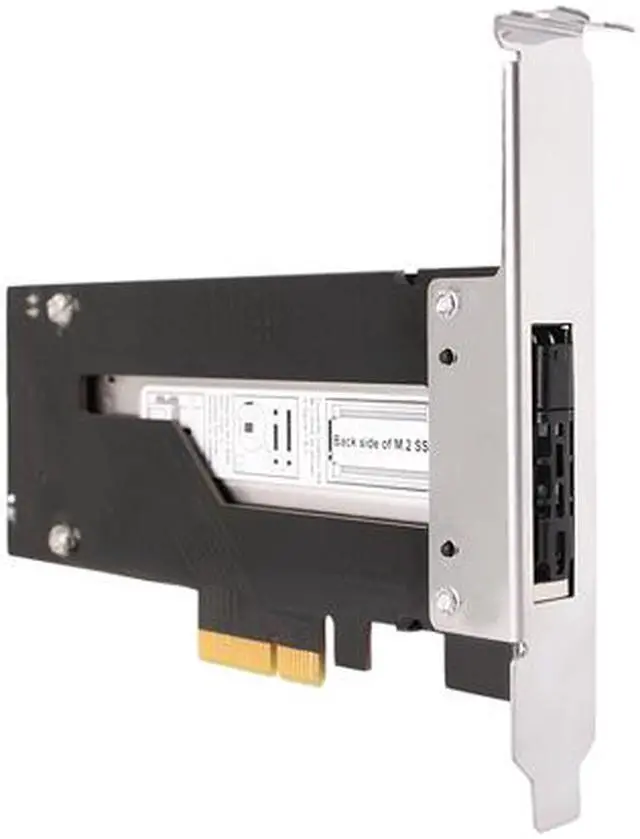

ICY DOCK ToughArmor MB840M2P-B M.2 NVMe SSD to PCIe 3.0 x4 Removable SSD Mobile Rack for PCIe Expansion Slot

(5) Write a Review

PCI Express to M.2 Card
NVMe
Up to 32Gbps (Depending on hard drive speed) Data Transfer Rate

Overview

Specs

Reviews (5)

See all Q & A

Any questions? Our AI mode will help you find out quickly.

Try me now

Fashion Women Large Belt Buckle Leather Hat Spring Autumn Sailor Hats Black Ladies Beret Caps Men Flat Top Captain Military Caps

Model
Brand	ICY DOCK
Model	MB840M2P-B

Details
Type	PCI Express to M.2 Card
External USB Ports	1 M.2 NVME & 1 SATA
External Ports	1 x M.2 PCIe NVMe SSD (2230/2242/2260/2280/22110)
Standard	NVMe
Data Transfer Rate	Up to 32Gbps (Depending on hard drive speed)
Specifications	Support Drive Size: 1x M.2 PCIe NVMe SSD (2230/2242/2260/2280/22110) Compatible Drive Type: NVMe Number of Drives: 1 Support Drive Length: 30mm – 110mm Drive Bay: 1 x PCIe 3.0 or 4.0 x4 / x8 / x16 expansion slot Host Interface: PCIe 3.0 x4 Power Input: Via PCIe Transfer Rate: Up to 32Gbps (Depending on hard drive speed) Support HDD Capacity: No Limitation Drive Cooling: Metal heat dispersion with passive cooling Structure / Material: Metal with partial ABS plastic Dimension (W x H x D): 160 x 122 x 22mm Product Net Weight: 181.5g Package Net Weight: 260g Drive Activity LED Indication: Drive power: solid green; HDD access: flashing green Package contents: Device, user manual, screw, I/O Faceplate SATA Connector Insertion Rate: 5,000 Humidity: 5%~65% RH Opertating Temperature: 0°C to 60°C (32°F to 140°F) Storage Temperature: -35°C to 70°C (-31°F to 158°F) Compliance: CE, RoHS, REACH

Features

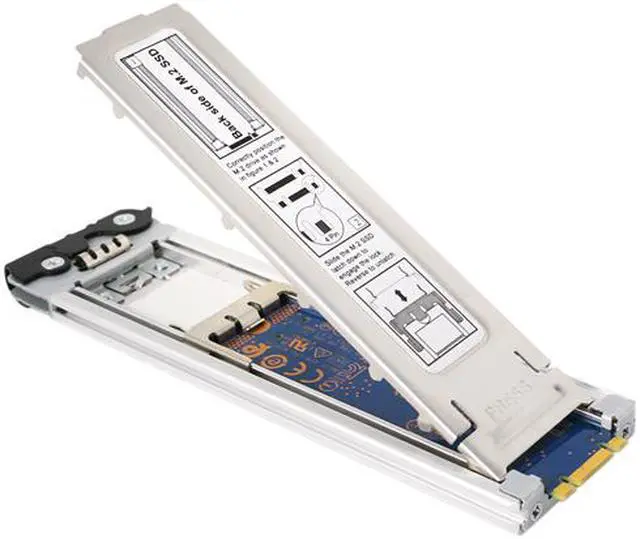

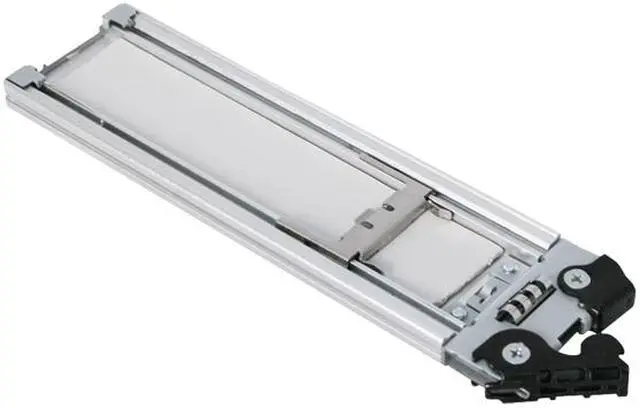

Features	Fits 1x M.2 PCIe NVMe SSD with all drive length including 2230 (30mm), 2242 (42mm), 2260 (60mm), 2280 (80mm), and 22110 (110mm) Use 1x PCIe 3.0 x4 interface, also supports installation into PCIe 3.0/4.0 x4, x8, and x16 slots Install into a single-width full-height/half-height PCIe expansion slot Removable drive tray with tool-less drive installation design for easy drive maintenance Low profile design allows for multiple bays to be installed side-by-side in a modular design Eagle-hook lock system keeps the drive secure in the enclosure EMI Grounding – protects hard drives from electrical damage Anti-Vibration Technology (AVT) reduces noise and protects against environmental damage Active Power Technology (APT) saves power by shutting the device down when no drive is install PCIe interface provides both power and data transfer which ultimately reduce cable clutter Built-in thermal pad conducts the heat from the drive to the metal tray Optional HDD activity signal output lets you transfer the drive activity signal to computer case Complimentary support from professionally trained US-based technical support agents

Dimensions & Weight

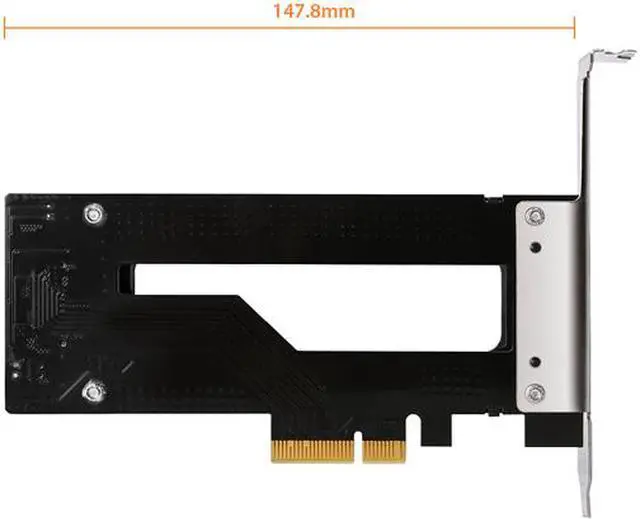

Dimensions	6.30" x 4.80" x 0.87"
Weight	0.40 lbs.

Additional Information
First Listed on Newegg	November 06, 2025
