Icy Dock MB852M2PO-B | 2 x M.2 NVMe SSD Mobile Rack Enclosure for Ultra Slim ODD Bay (9.5mm) | ToughArmor

Be the first to review this product...

Fits 2x M.2 PCIe NVMe SSD with all length - 2230 (30mm), 2242, (42mm), 2260 (60mm), 2280 (80mm), and 22110 (110mm)

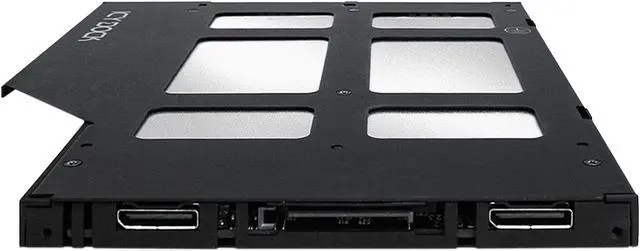

Uses 2x PCIe Gen 4 OCuLink connector and support up to 64Gbps transfer speed
OCuLink connector pinout supports SFF-9402 specification

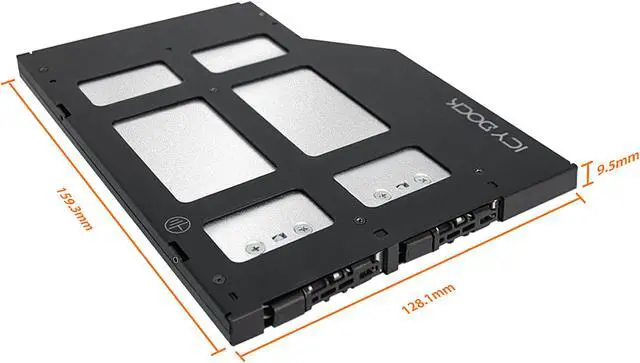

Installs into 9.5mm ultra-slim optical disk drive (ODD) bay
Designed for customized Industrial-PC, server rackmount, and embedded systems

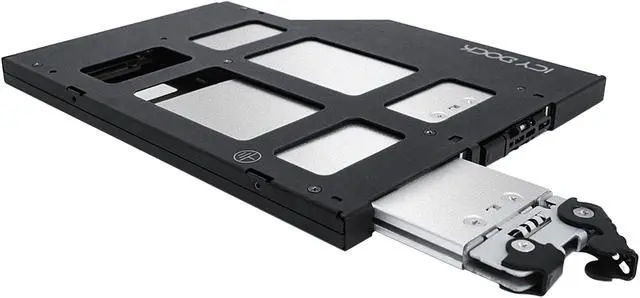

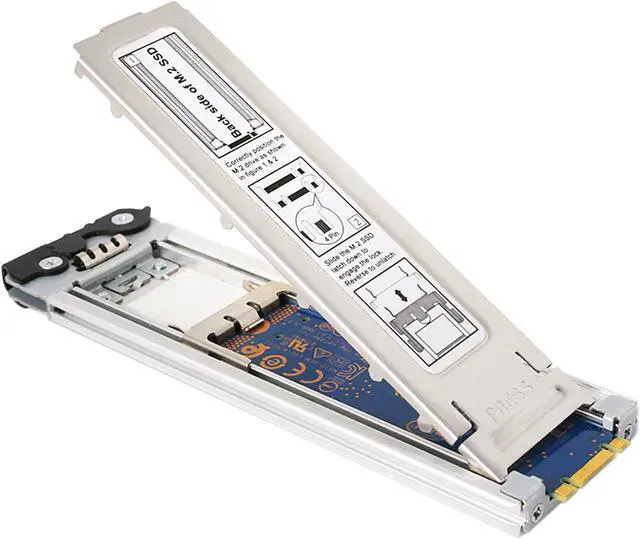

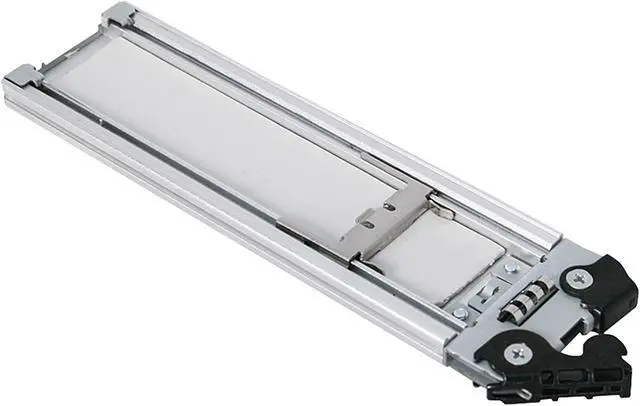

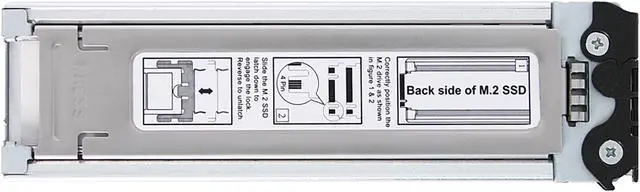

Removable drive tray with tool-less drive installation design for easy drive maintenance
Eagle-hook lock system keeps the drive secure in the enclosure
EMI-Grounding - protects drives from electrical damage
Anti-Vibration Technology (AVT) reduces noise and protects against environmental damage
Active Power Technology (APT) saves power by shutting the device down when no drive installed
Built-in thermal pad conducts the heat from the drive to the metal tray
Designed for backplane-less Slim ODD bay with minimum 160mm clearance
NVMe host and OCuLink connection required. Not compatible with the SAT

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

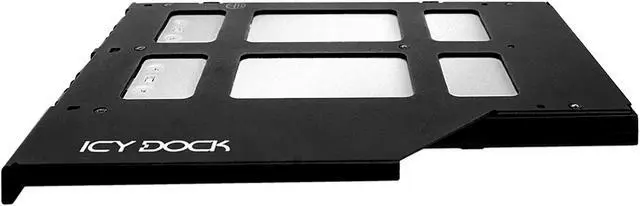

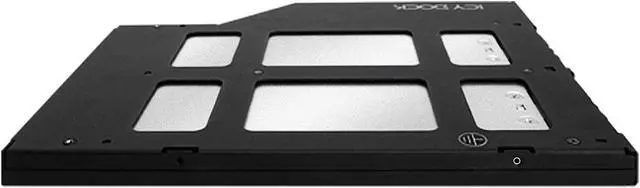

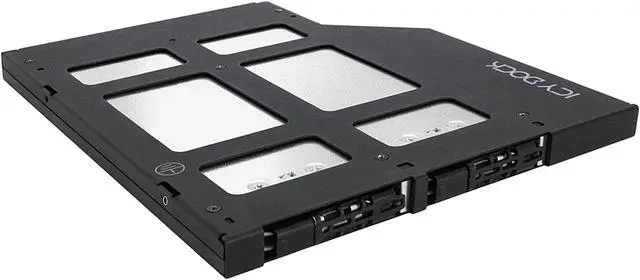

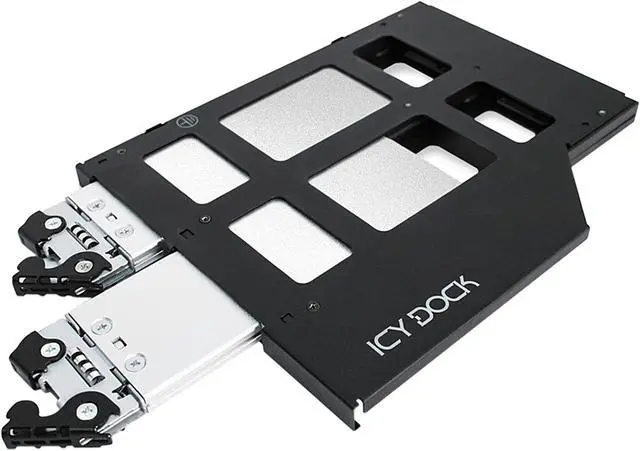

The ToughArmor MB852M2PO-B replaces the legacy slim CD/DVD bay with 2 x high-speed M.2 NVMe SSD. It fits Ultra-Slim 9.5mm optical disk drive (ODD) bay and uses removable M.2 drive trays for effortless drive access and maintenance. It is a perfect storage upgrade solution for customized Industrial-PC, Server Rackmount, and Embedded Systems.

Model
Brand	ICY DOCK
Model	MB852M2PO-B
Color	Black

Details
Mobile Rack Drives Support	2 x M.2 NVMe SSD Mobile Rack Enclosure for Ultra Slim ODD Bay
Mobile Rack Interface	M.2
Protection Case	Multiple Drives
Compatible Products	2 x M.2 PCIe NVMe SSD (2230/2242/2260/2280/22110)
Specifications	Support Drive Size: 2 x M.2 PCIe NVMe SSD (2230/2242/2260/2280/22110) Compatible Drive Type: NVMe Number of Drives: 2 Support Drive Length: 30mm - 110mm Drive Bay: 1 x external Ultra Slim ODD Bay (Length clearance requirement - 160mm) Host Interface: 2 x OCuLink (SFF-8612) Power Input: 1 x 15pin SATA power connector Transfer Rate: Up to 64Gbps (Depending on SSD Speed) Support SSD Capacity: No Limitation Drive Cooling: Metal heat dispersion with passive cooling Structure / Material: Metal with partial ABS plastic Drive Activity LED Indication: SSD power: solid green; SSD access: flashing green M.2 Connector Insertion Rate: 5,000 Humidity: 5%~65% RH Compliance: CE, RoHS, REACH

Features
Features	Fits 2x M.2 PCIe NVMe SSD with all length - 2230 (30mm), 2242, (42mm), 2260 (60mm), 2280 (80mm), and 22110 (110mm) Uses 2x PCIe Gen 4 OCuLink connector and support up to 64Gbps transfer speed OCuLink connector pinout supports SFF-9402 specification Installs into 9.5mm ultra-slim optical disk drive (ODD) bay Designed for customized Industrial-PC, server rackmount, and embedded systems Removable drive tray with tool-less drive installation design for easy drive maintenance Eagle-hook lock system keeps the drive secure in the enclosure EMI-Grounding – protects drives from electrical damage Anti-Vibration Technology (AVT) reduces noise and protects against environmental damage Active Power Technology (APT) saves power by shutting the device down when no drive installed Built-in thermal pad conducts the heat from the drive to the metal tray Complimentary support from professionally trained technical support agents Designed for backplane-less Slim ODD bay with minimum 160mm clearance NVMe host and OCuLink connection required. Not compatible with the SATA host
Package Contents	Device, user manual, screws

Additional Information
First Listed on Newegg	January 19, 2021

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.
