Icy Dock MB873MP-B | 8 x M.2 NVMe SSD PCIe 4.0 Mobile Rack for 5.25" Bay with 8 x OCuLink (not support Tri-mode) | ToughArmor

Supports 8 x PCIe M.2 NVMe SSDs of all lengths - 30mm (2230), 42mm (2242), 60mm (2260), 80mm (2280), and 110mm (22110)

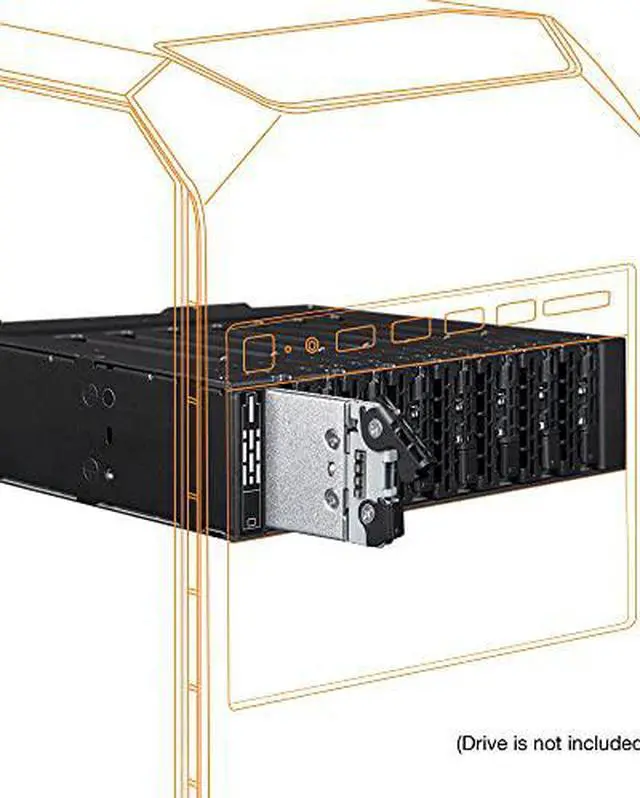

Installs into 1 x standard external 5.25" optical drive bay
Uses 8 x OCuLink (SFF - 8612) to connect
Supports PCIe 4.0 specifications with transfer rates up to 64Gbps per drive bay
Powers 8 x M.2 SSDs through 2 x 15 - pin SATA power connectors
Supports SATA 15-pin and OCuLink cables with locking latch design for a secure connection
2 x SATA 15pin power cable are included
Industry-leading 5 years limited warranty with exceptional customer support

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ICY DOCK MB873MP-B

Details
Color	Black
Size	M.2
Type	Enclosure
AC Adapter	No
Material	Metal
Internal Interface	M.2 NVME M-Key
Number of Bay	8

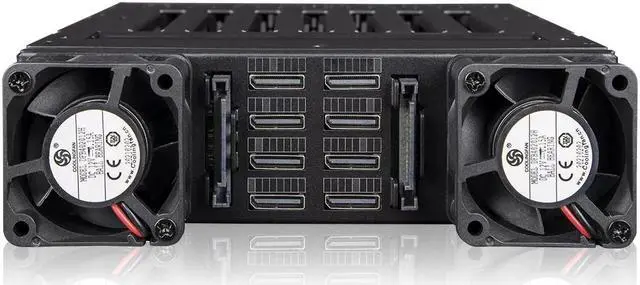

Fan	2 x 40x40x20mm Fan
Specifications	Support Drive Size: 8 x M.2 SSD (2230-22110) Compatible Drive Type: NVMe Number of Drives: 8 Support Drive Length: M.2 SSD (2230-22110) Drive Bay: 1 x 5.25" half height bay Host Interface: 8 x OCuLink(SFF-8612), pin-out defined by SFF - 9402 Rev 1.1 Power Input: 2 x 15pin SATA power connector Transfer Rate: Up to 64Gbps (Depending on SSD Speed) Support SSD Capacity: No Limitation Structure / Material: Full Metal Drive Activity LED Indication: Drive power: solid green; Drive access: flashing green M.2 Connector Insertion Rate: 5,000 Humidity: 5%~65% RH Operating Temperature: 0°C to 60°C (32°F to 140°F) Storage Temperature: -35°C to 70°C (-31°F to 158°F) Compliance: CE, RoHS, REACH

Features
Features	Supports 8 x PCIe M.2 NVMe SSDs of all lengths - 30mm (2230), 42mm (2242), 60mm (2260), 80mm (2280), and 110mm (22110) Installs into 1 x standard external 5.25" optical drive bay Uses 8 x OCuLink (SFF - 8612) to connect, pin-out defined by SFF - 9402 Rev 1.1 Supports PCIe 4.0 specifications with transfer rates up to 64Gbps per drive bay Powers 8 x M.2 SSDs through 2 x 15 - pin SATA power connectors Ruggedized full - metal enclosure meeting flammability requirements Equipped with high-performance dual 40 x 20mm cooling fans Removable drive tray with tool - less drive installation for easy drive maintenance Huge heatsink trays with thermal pads included dispersing heat from the drive Anti-Vibration Technology - Creates a safe environment for SSDs Active Power Technology - Saves power by shutting off the enclosure when no drive is installed EMI Grounding - Protects SSDs from electrical damage Drive ID plugs are included to keep track of your drives The Eagle - hook tray latch securely holds the tray inside the enclosure Supports SATA power cables with locking latch design 2 x SATA 15pin power extension cable are included

Dimensions & Weight
Dimensions	5.75" x 1.63" x 6.61"
Weight	2.54 lbs.

Package Contents

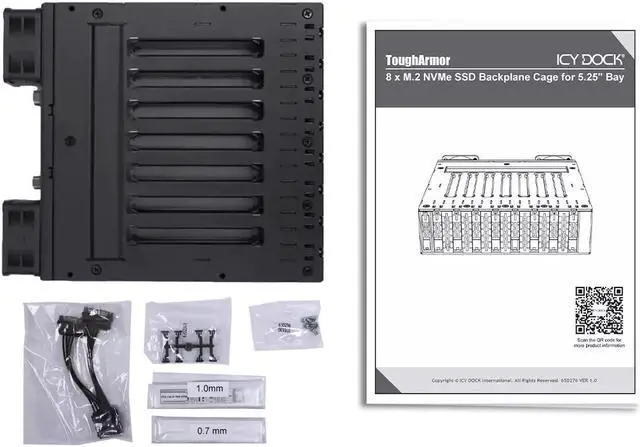

Package Contents	Device, user manual, drive ID plugs, screws, 2 x SATA 15pin power extension cable
