Question 1

Does this utilize a tray for each drive or is it trayless?

Accepted Answer

It has trays. Each drive screws onto the tray with 4 Phillips head screws. Drives must have bottom screw holes. Some do not, or do not have all 4, so watch out for that.

Question 2

Do you still need a RAID controller card to pair with this chassis?

Accepted Answer

You just need the number of ports available that you plan to use with this chassis.  Most motherboards don't have 8 SATA ports, so it would be likely that you'll need some form of controller card with additional ports.  Not all ports on this rack need to be on the same controller either.  It is a one-to-one link between bay and port on MB/Controller.

Question 3

Can the drives be hot-swapped?

Accepted Answer

Yes.  But remember that hot swapping has more to do with the capability of the individual drives and the controller that the drives are attached to, than the chassis/tray that holds the drive.

Question 4

Does the MB998SP-B have screw holes on the bottom (not the sides)?
I have a custom built case and the only way to mount devices are via the bottom (all SSD and HD have similar bottom holes)

Accepted Answer

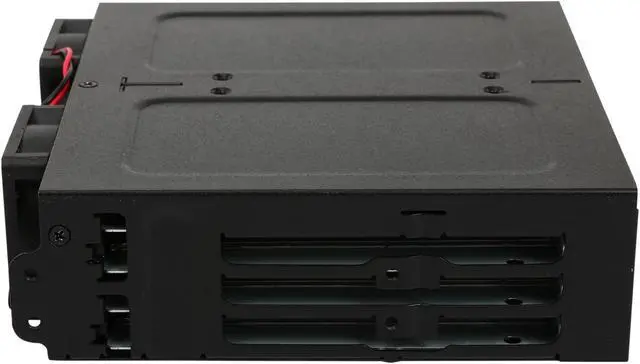

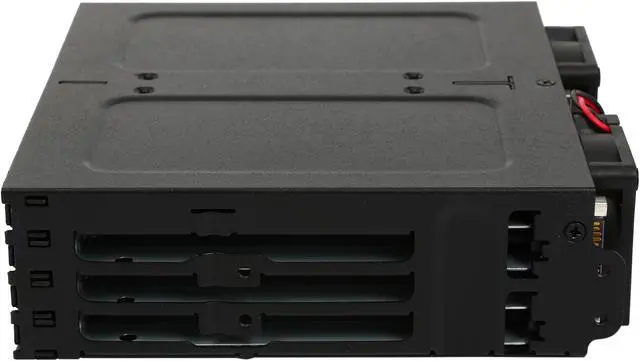

They have mount screw holes only in the sides to be mounted in 5.25" mounting bay, the icydock comes with screws to mount device.  Screws cannot be installed in top or bottom because they would interfere with drives in trays, as well if wrong screws are used they will also interfere with drive trays

Question 5

My 2xSamsung 850 Pro 512GB work, but LED indication doesn't work on it (LED on 850 evo drives and kingston work well) need some ssd tweaks?

Accepted Answer

On the same controller 850 evo normally displays all indications. One addition - 850 pro does not display the power indication, but it shows the activity of the disk. I'll try to connect to another controller and report the resultsEnter an answer to this question.

Question 6

Is this compatible with consumer level 3.5 HDD's?

Accepted Answer

No.  It is only compatible with 7mm 2.5" drives, commonly referred to as laptop drives.  I use this to pass consumer SSD's to virtual machines on my Hypervisor and it works great.

Question 7

Would this unit work with these drives?  Western Digital Bare Drives 2TB WD Green SATA III Intellipower 8 MB Cache Bulk/OEM Hard Drive WD20NPVX

Accepted Answer

This will ONLY accommodate up to 7mm drive heights.  Basically, most SSD drives and spinning disks up to 2TB in capacity.

Question 8

Does the product have buttons on each bay to turn the drives ON/OFF?

Accepted Answer

No it does not and that wouldn't be a good idea. I like the idea of being able to turn them on and off as you choose, but you better off unmounting it thru your software for a safer storage. SSD drives while very much like USB sticks are vastly different depending on how you use them.

Question 9

Are there switches on each bay to turn the drives ON/OFF for hot swapping etc.? That's an important feature for me. I won't buy without that.

Accepted Answer

There is no switch.  You would just pull the drive, which is equivalent to cutting power via a switch.

Question 10

What kind of cooling system does this device use?

Accepted Answer

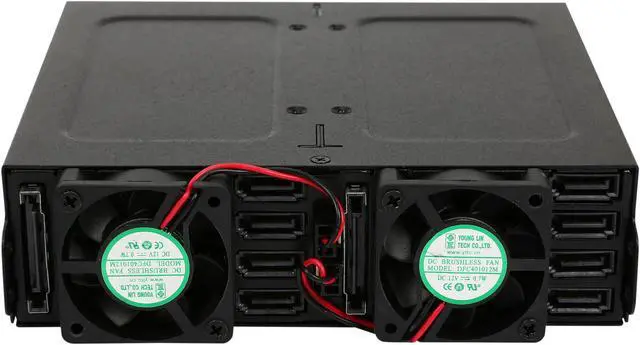

The device uses dual 40mm rear cooling fans and metal heat dispersion for cooling.

Brand	ICY DOCK
Model	MB998SP-B
Color	Black

Conversion Tray	2 x 5.25" Drive to 8 x 2.5" Bay
Mobile Rack Drives Support	Multi 2.5" Drives to 5.25" Bay
Mobile Rack Interface	SATA I/II/III/SAS
Protection Case	Multiple Drives
Compatible Products	2.5"
Specifications	Host Interface : 8 x 7pin SATA Drive Fit : 8 x 2.5" SATA I / II / III SSD or HDD (7mm thickness) Device Fit : Single 5.25" half height device bay Transfer Rate : Up to 6 Gb/sec. (depending on hard drive speed) Power Input : 2 x 15pin SATA power port Insert& Extract connection Via : Direct SATA hard drive connection Structure : Metal Drive Cooling : Dual 40mm rear cooling fan Metal heat dispersion Power Indicator : Solid Green LED HDD Access Indicator : Flashing Amber LED Dimension (L x W x H) : 5.75" x 5.6" x 1.63" Weight : 1.93 lbs
