2-segment key lock for additional physical security
Eagle-hook tray latch securely holds the tray inside the enclosure
EMI Grounding - protects hard drives from electrical damage
Anti-Vibration Technology (AVT) reduces noise and protects against environmental damage
Active Power Technology (APT) saves power by shutting the device down when no drive is installed.
Complimentary support from professionally trained US-based technical support agents
+
+
Overview
Specs
Reviews (1)
Any questions? Our AI beta will help you find out quickly.
Try me now
idoktougrmorm601vk- 12.5" u. 2nvmessdmoilerkforexternl 3.5" drive

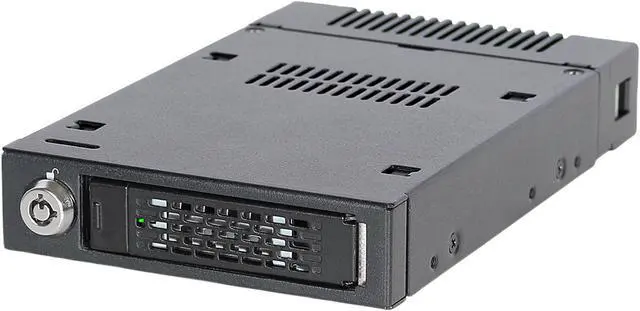

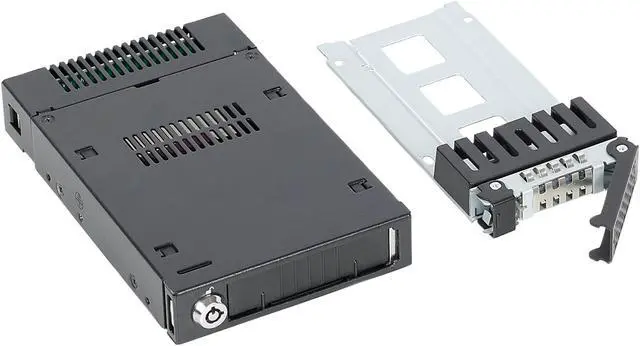

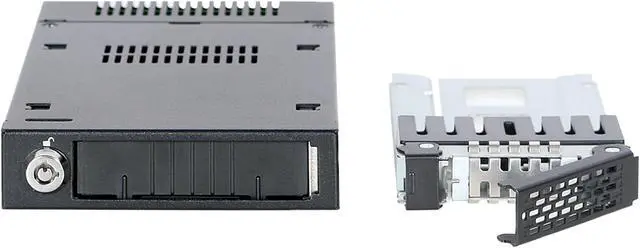

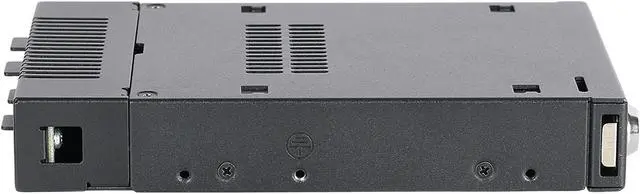

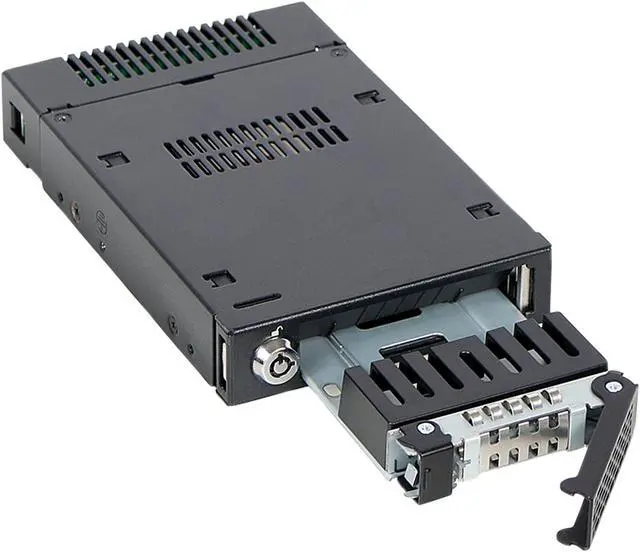

Learn more about the ICY DOCK ToughArmor MB601VK-1B
Model
Brand
ICY DOCK
Model
ToughArmor MB601VK-1B
Color
Black
Part Number
MB601VK-1B
Details

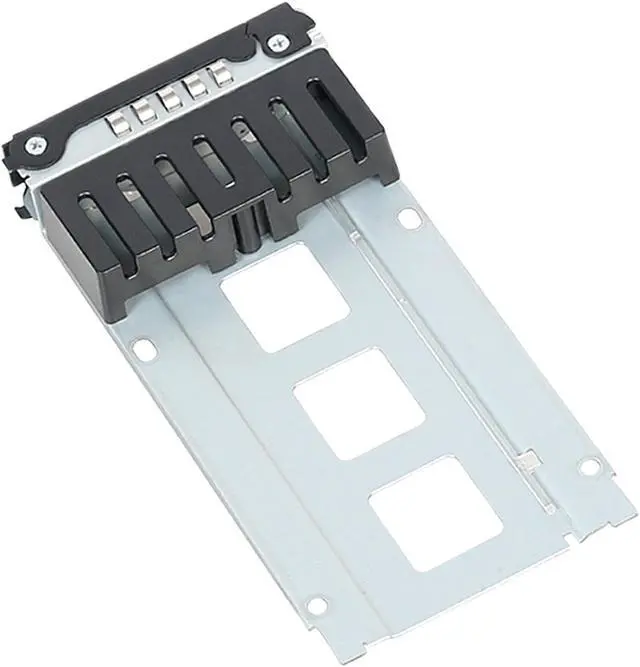

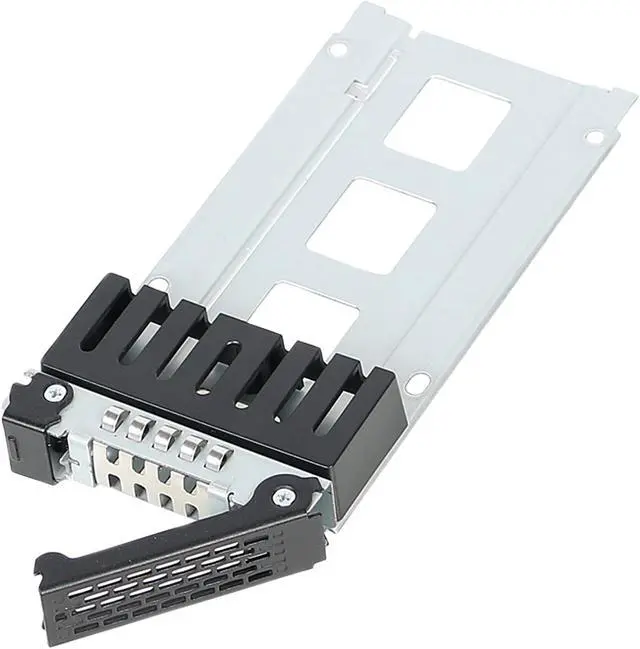

Conversion Tray
1 x 2.5" Drive to 3.5" Bay
Mobile Rack Drives Support
1 x 2.5" Drive to 3.5" Bay
Mobile Rack Interface

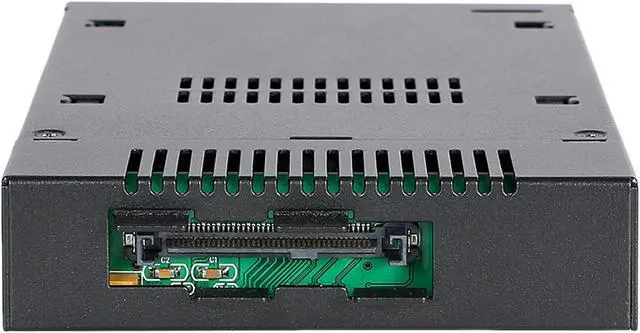

U.2 Connector (SFF-8639)
Protection Case
Single Drive
Compatible Products
1 x 2.5" U.2 NVMe SSD (Up to 15mm height)
Specifications
Support Drive Size: 1 x 2.5" U.2 NVMe SSD (Up to 15mm height) Compatible Drive Type: U.2 NVMe Number of Drives: 1 Drive Bay: 1 x external 3.5" drive bay Host Interface: 1 x U.2 connector (SFF-8639) Power Input: Via U.2 (SFF-8639) Transfer Rate: Up to 32Gbps Support HDD Capacity: No Limitation Drive Cooling: Metal heat dispersion with passive cooling Structure / Material: Full Metal Support Hot-Swap: Yes Drive Security: 2 segment key lock Product Dimension (L x W x H): 168.7 x 101.2 x 25.4mm Product Net Weight: 441g Drive Activity LED Indication: Drive power: solid green; HDD access: flashing green SATA Connector Insertion Rate: 10,000 Humidity: 5%~65% RH Operating Temperature: 0°C to 60°C (32°F to 140°F) Storage Temperature: -35°C to 70°C (-31°F to 158°F) Compliance: CE, RoHS, REACH
Features
Features
Fits 1x 2.5" U.2 NVMe SSD, up to 15mm in height
Installs into any standard external 3.5" device bay or floppy bay
Uses a U.2 port (SFF-8639) to connect, requires NVMe host
Supports the full NVMe bandwidth specification of 32 Gbps
