IN WIN IP-P300F1-0 300 W TFX12V Power Supply - OEM
- TFX12V
- 115 / 230 V 50/60 Hz
- +3.3V@18A, +5V@22A, +12V1@16A, +12V2@16A, [email protected], [email protected]
Specs
Reviews (23)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the In Win IP-P300F1-0
| Brand | IN WIN |
|---|---|
| Model | IP-P300F1-0 |
| Type | TFX12V |
|---|---|
| Maximum Power | 300 W |
| Fans | 1 |
| PFC | No |

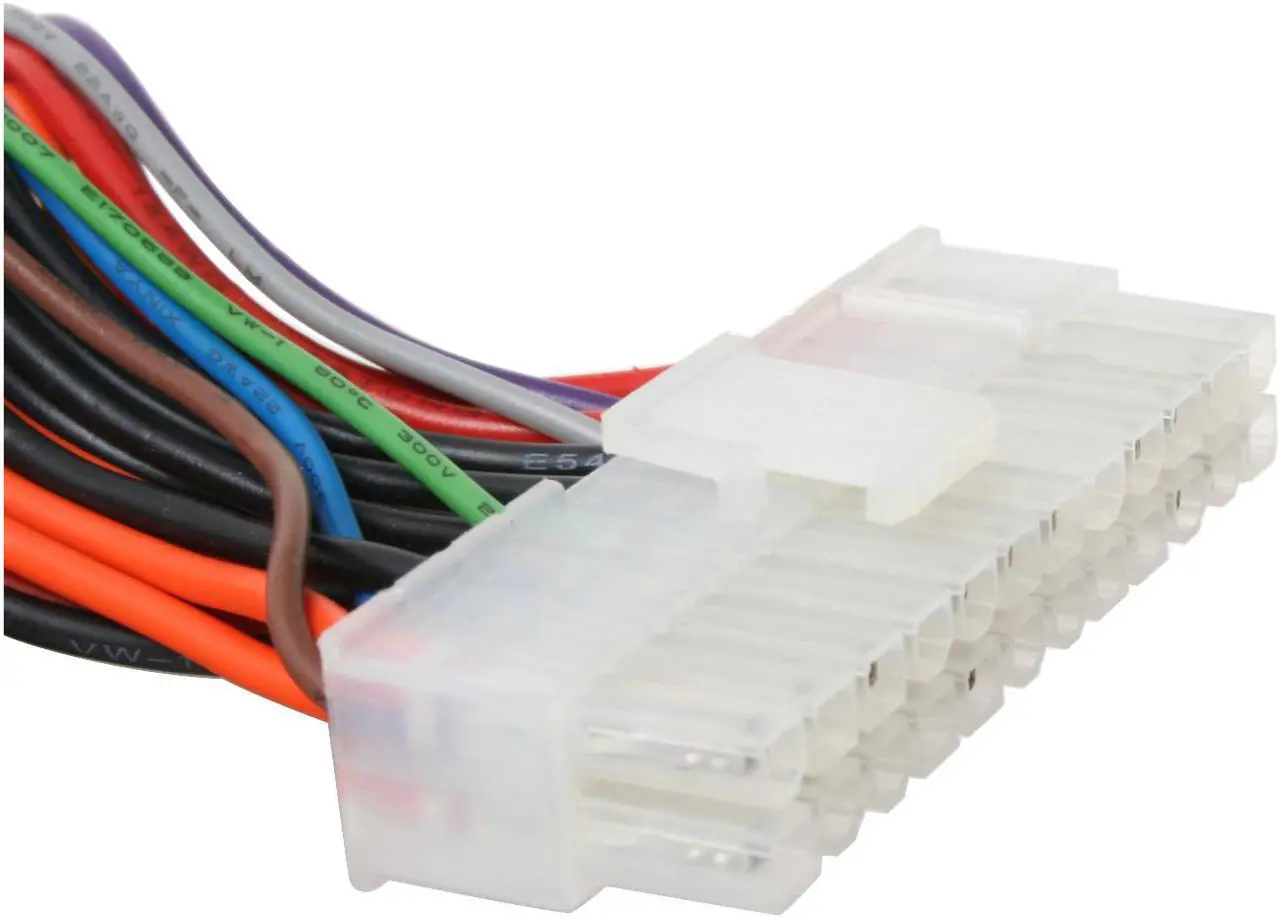

| Main Connector | 20+4Pin |
| +12V Rails | 2 |
| PCI-Express Connector | No |
| SATA Power Connector | 2 |
| SLI | No |
| Modular | No |
| Hold-up Time | 17ms minimun with full load |
| Efficiency | >70% at full load, 230Vac input |
| Over Voltage Protection | Yes |
| Overload Protection | Yes |
| Input Voltage | 115 / 230 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 7/4A |

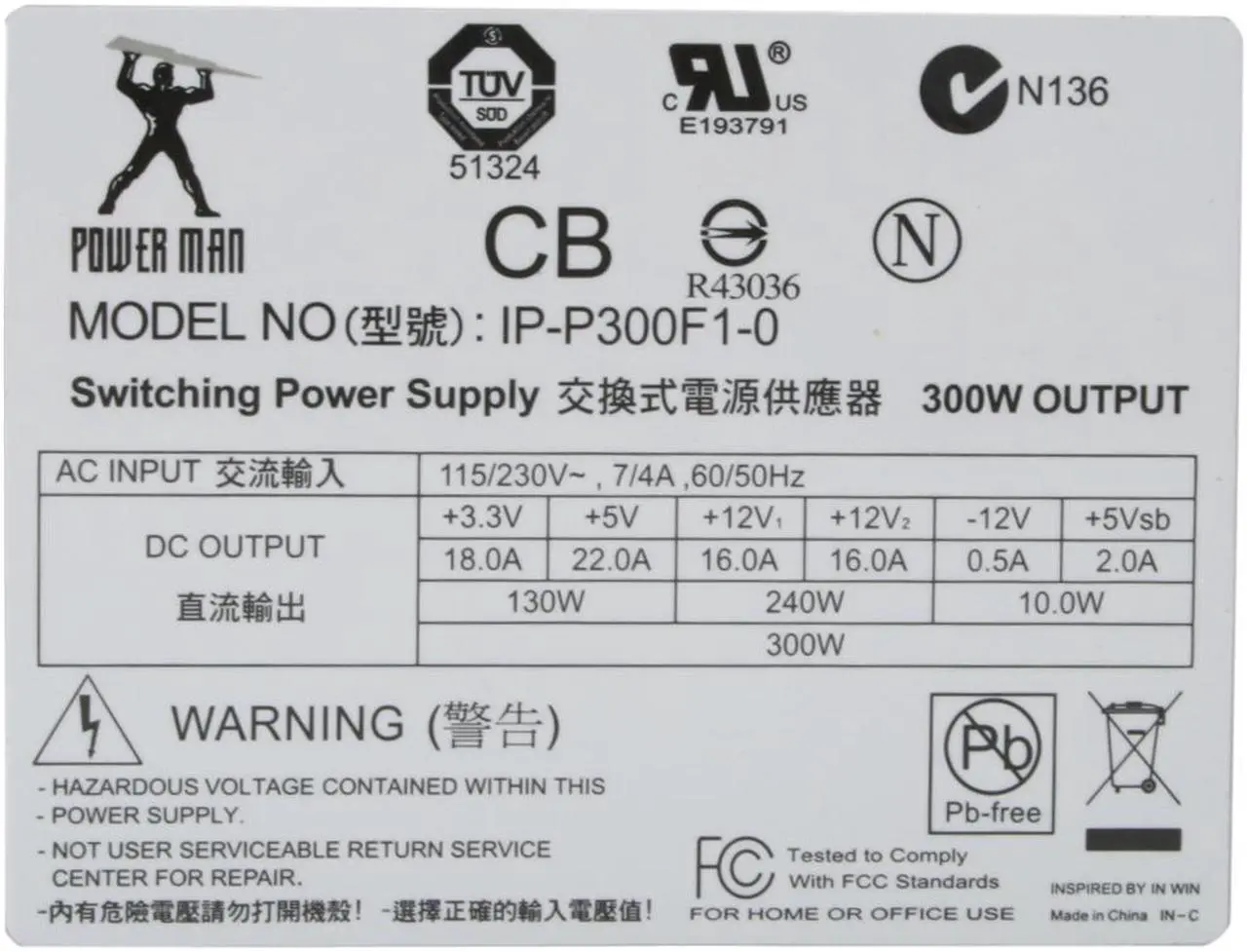

| Output | +3.3V@18A, +5V@22A, +12V1@16A, +12V2@16A, [email protected], [email protected] |
| MTBF | >100,000 Hours |
| Approvals | UL/cUL 60950, TUV and CB EN 60950 certified |

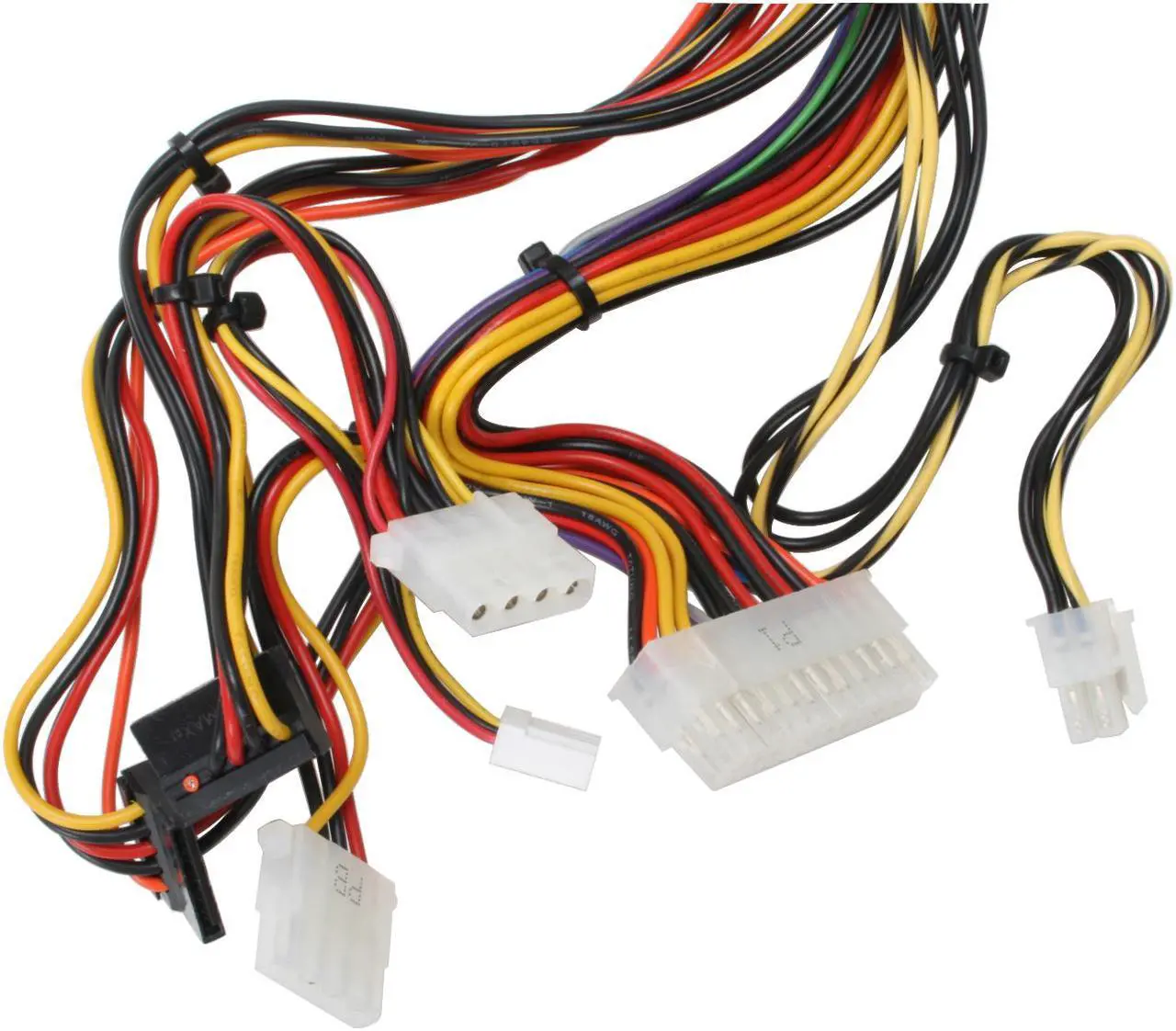

| Connectors | 1 x Main connector (20+4Pin) 1 x 12V(P4) 2 x peripheral 2 x SATA 1 x Floppy |
| First Listed on Newegg | May 04, 2007 |
|---|
