IN WIN IP-S300FF1-0 300 W TFX 12V v2.1 Power Supply
- TFX 12V v2.1
- 115 / 230 V 50/60 Hz
- +12V1@16A, +12V2@16A, +5V@16A, +3.3V@16A, [email protected], +5VSB@2A
Learn more about the In Win IP-S300FF1-0
| Brand | IN WIN |
|---|---|
| Model | IP-S300FF1-0 |
| Type | TFX 12V v2.1 |
|---|---|
| Maximum Power | 300 W |
| Fans | 1 |
| PFC | No |
| Main Connector | 20+4Pin |
| +12V Rails | 2 |
| SATA Power Connector | 2 |
| SLI | No |
| CrossFire | No |
| Modular | No |
| Input Voltage | 115 / 230 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 7A @ 115V, 4A @ 230V |
| Output | +12V1@16A, +12V2@16A, +5V@16A, +3.3V@16A, [email protected], +5VSB@2A |
| MTBF | >100,000 Hours |

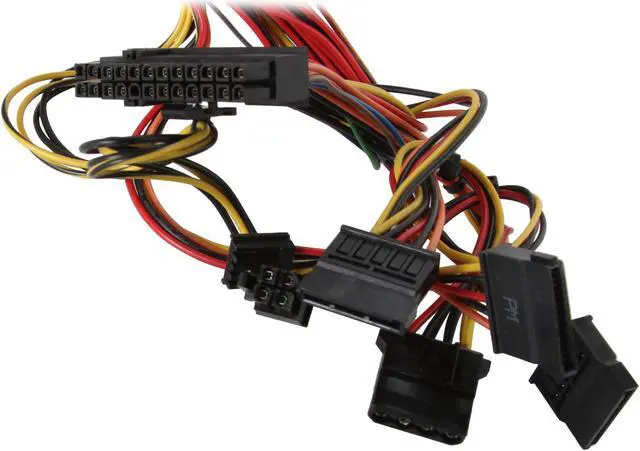

| Connectors | 1 x 20+4 Pin Main Power Connector 1 x 4Pin +12V CPU Power Connector 1 x 4 Pin FDD Power Connector 2 x Peripheral Power Conncetor 2 x SATA Power Connector |
| Features | Multiple +12V Output Smart Thermal Control to Balance Noise & Cooling 8cm Cooling Fan MTBF 100KHRs @ 25°C per MIL-STD-217D/F Operating ambient +10°C minimum to +50°C maximum |
|---|
| Dimensions | 3.35" x 6.89" x 2.56" |
|---|---|
| Weight | 6.1 lbs. |
| First Listed on Newegg | November 11, 2011 |
|---|
