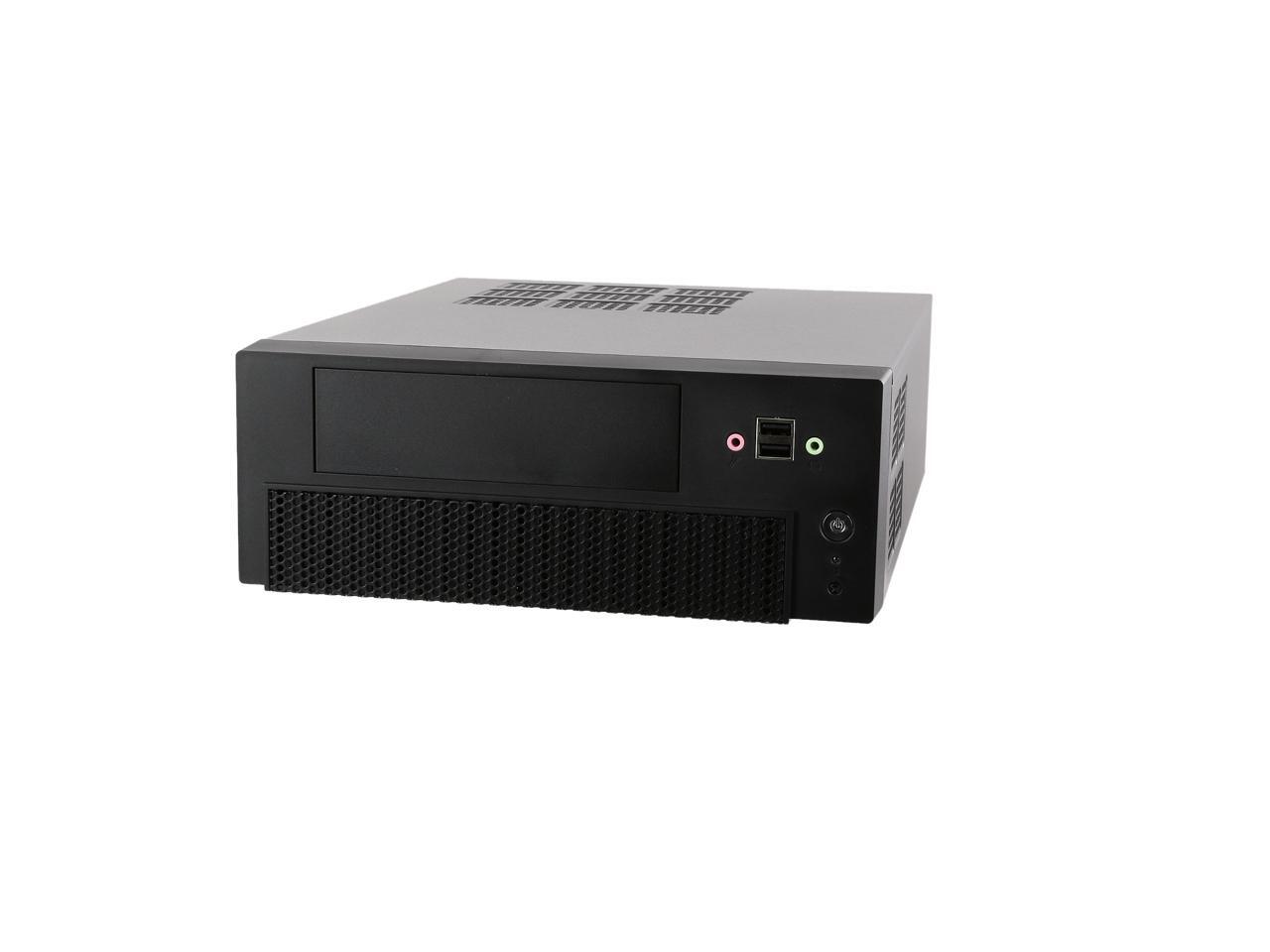

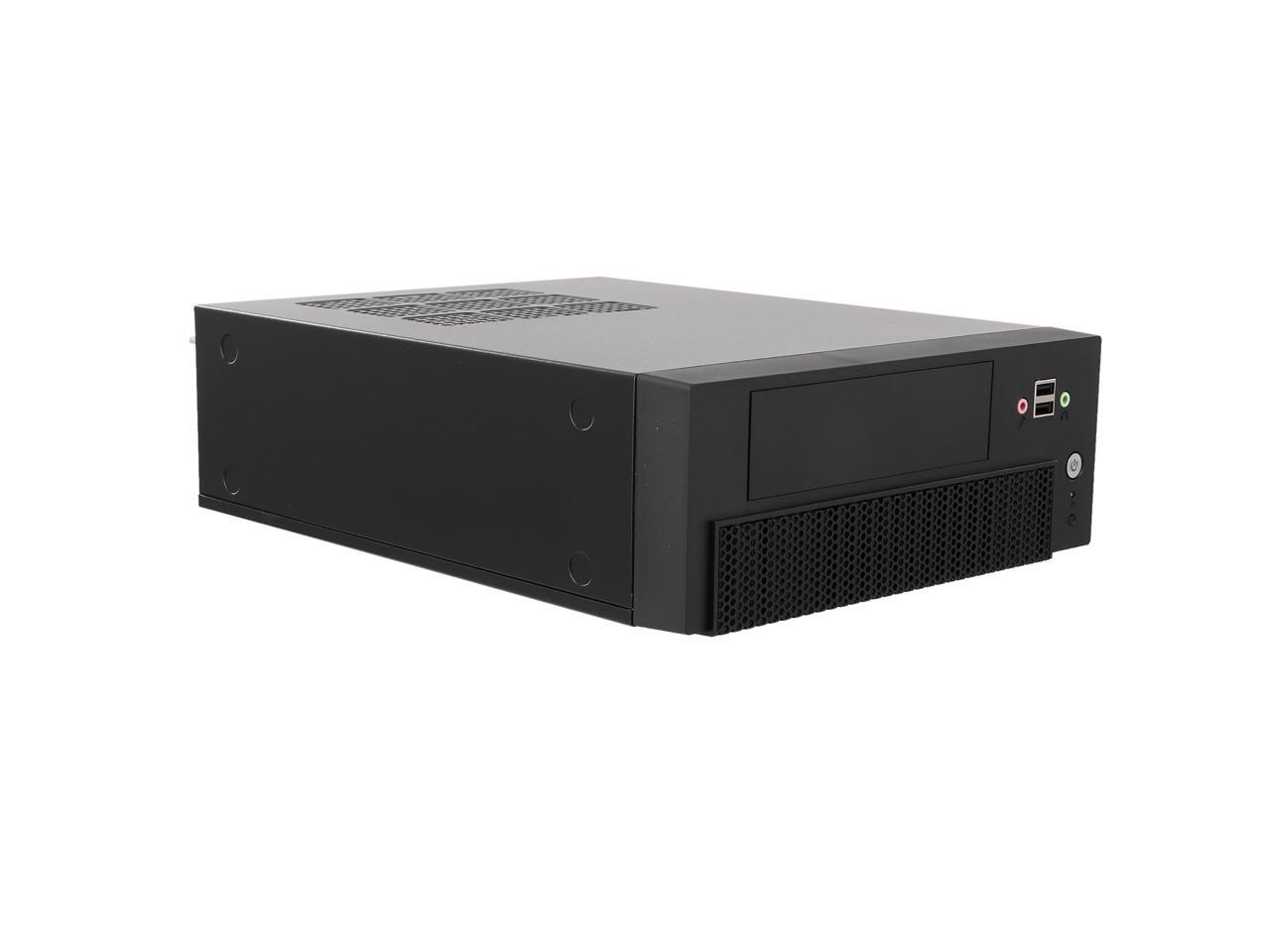

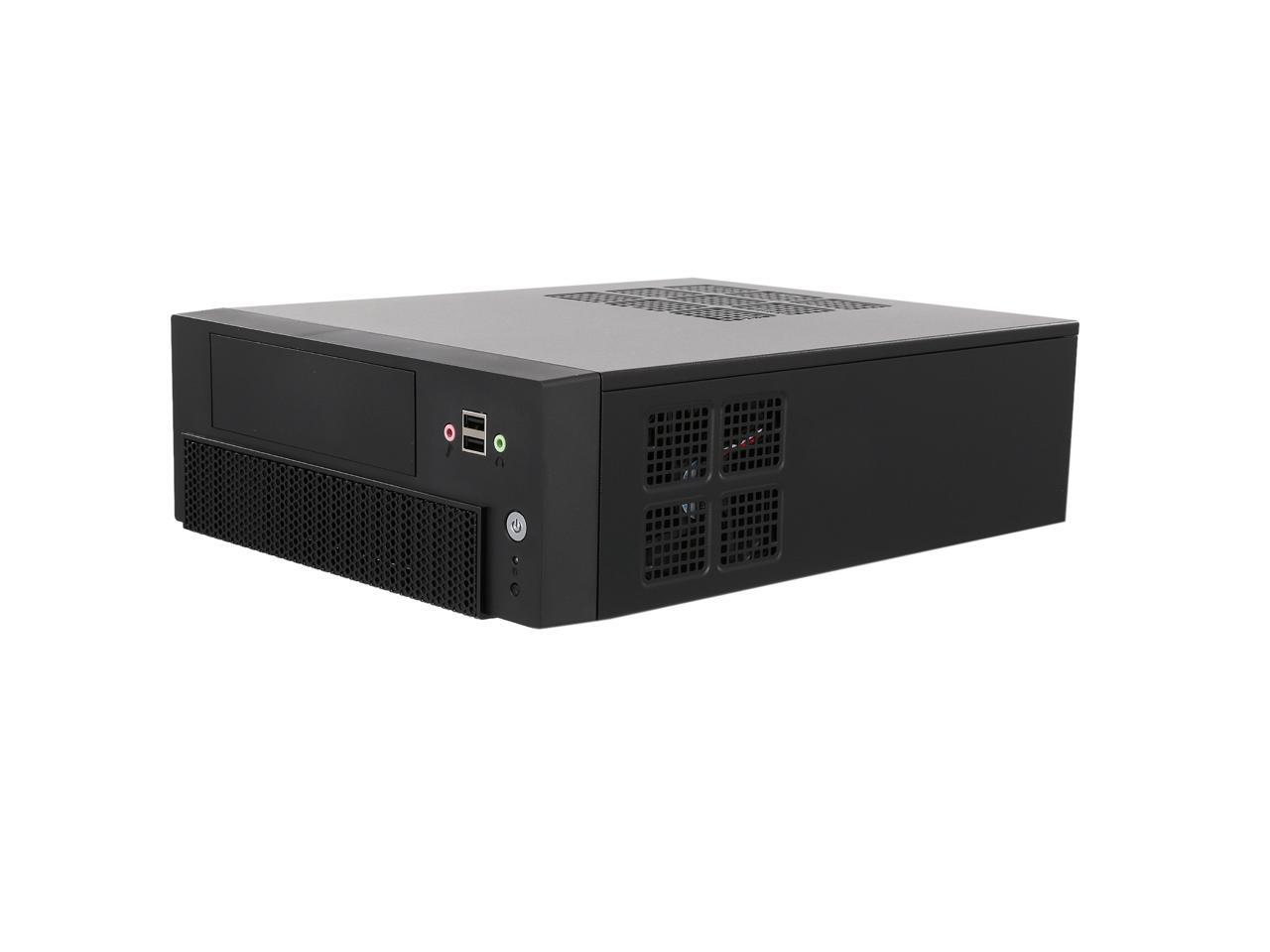

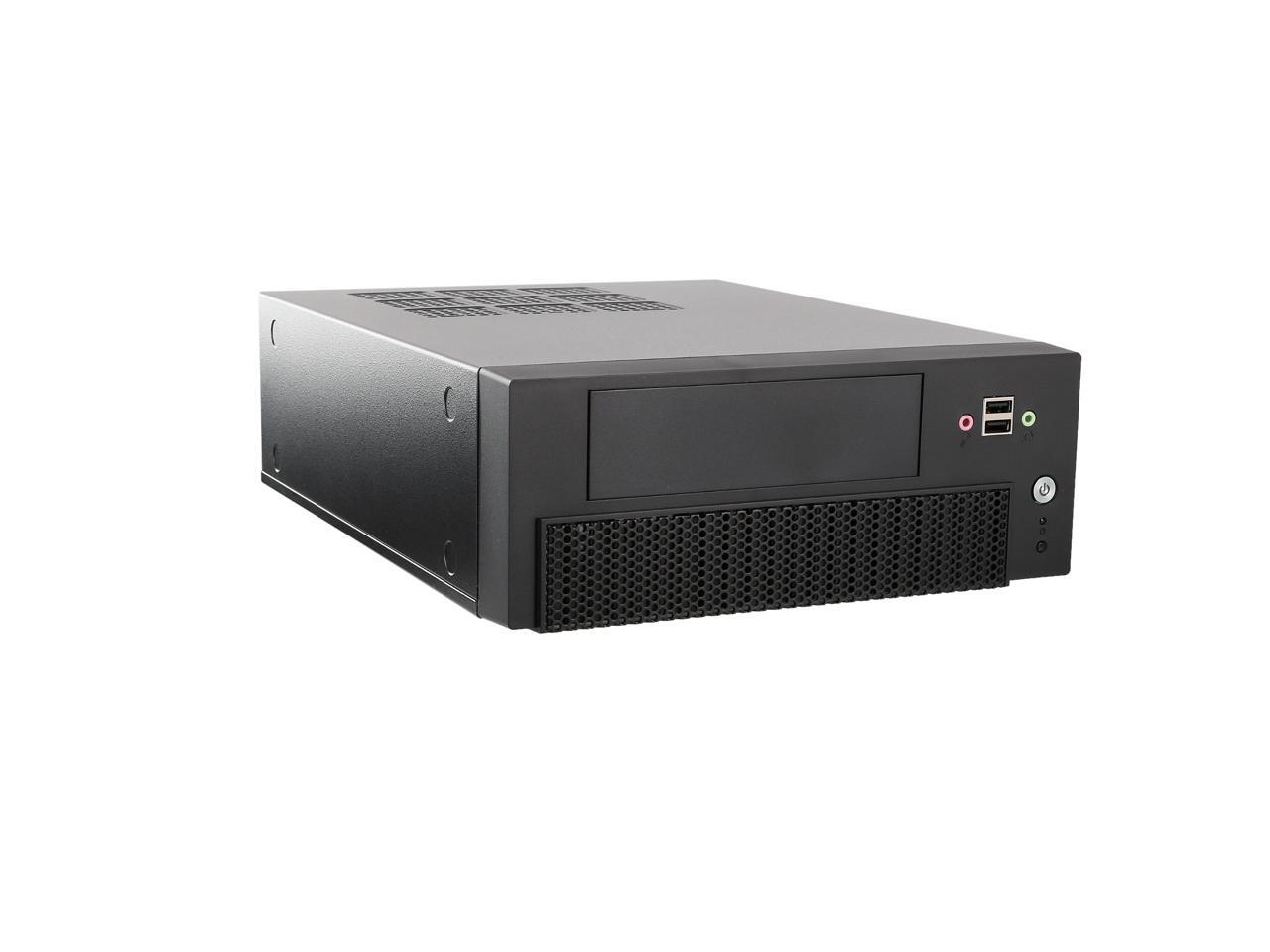

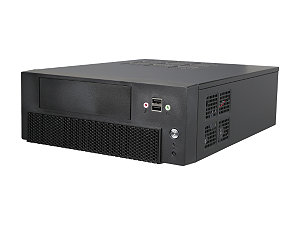

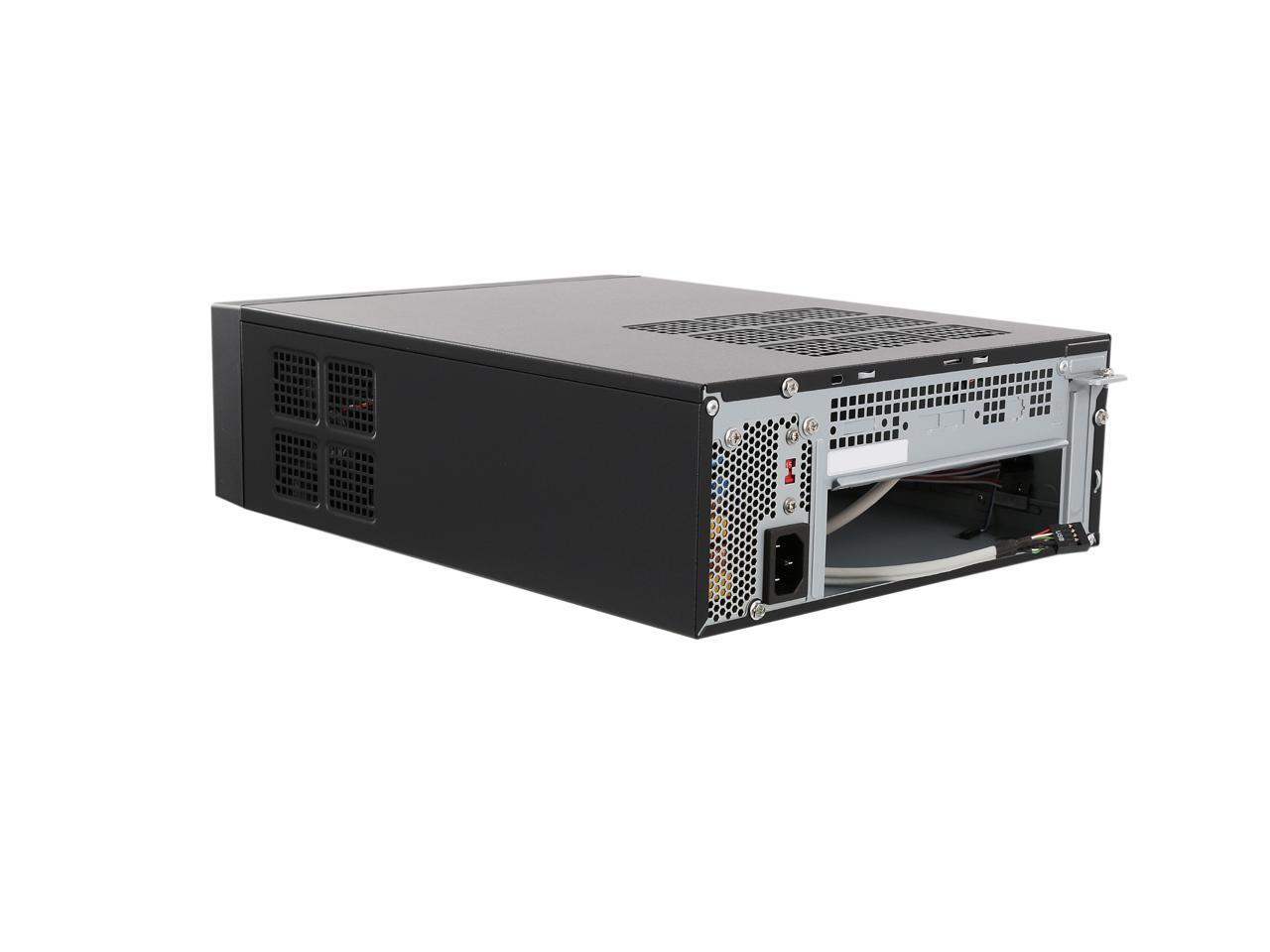

IN WIN BP691.FH200B Black S.F.F Slim Chassis (Ultra Small Form Factor) Computer Case Standard TFX 12V, 200W Power Supply
- S.F.F Slim Chassis (Ultra Small Form Factor)
- 2 x USB 2.0 / Audio Front Ports
- Standard TFX 12V, 200W Power Supply
- 1 External 5.25" Drive Bays
- 3.5" HDD (1") x 1 3.5" HDD (0.8") x 1 Internal 3.5" Drive Bays
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

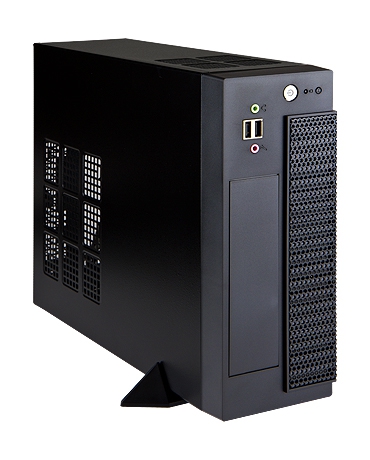

BP691
8.2L Small Form Factor
8.2L Small Form Factor
The BP Series was designed to offer quick integration. No peripheral carrier or bezel must be removed for assembly. This allows really quick assembly and reduces costs.
Features
Easy Integration
The BP Series was designed to offer quick integration. No peripheral carrier or bezel must be removed for assembly. This allows really quick assembly and reduces costs.
Antenna Mounting Hole Ready for WLAN Card
Supports Mini-ITX Motherboard
Supports Mini-ITX motherboards for a wide choice of system features and price points.
Standard TFX 12V Power Supply
Internal TFX 200W Power supply equipped with a temperature control sensor that reduces noise allows for quiet operation.

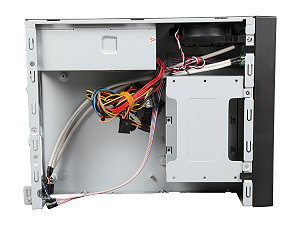

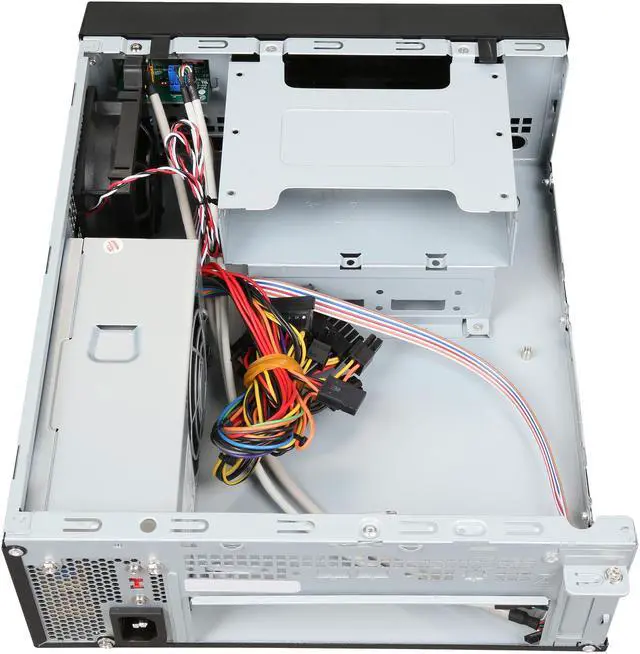

Standard Components
The BP Series supports standard size components (5.25" & 3.5"). The use of standard components helps to maximize configuration choices and minimize product costs.
Tool-Free
Optional screwless designs - ODD bay and side panel for easy assembly.
Optimal Thermal Performance
An ultra silent 80 mm case fan with Intel Thermally Advantaged Small Chassis 1.0 vents help to improve the airflow and optimize thermal performance, keeping temperatures below 39°C.
Excellent Thermal Solution
- 80x80x25mm System Fan
- Intel Thermally Advantaged Small Chassis 1.0 Vents
- Keeps temperatures below 39°C
- Optional Removable Air Filter
System Acoustic Result
| System Run | Sound Pressure |
| Idle | 29.2 dB |
| Max Power (CPU 100%) | 33.4 dB |
System Thermal Result
CPU Ambient Average Temperature 38.4°C(101°F)
| CPU | Core™ 2 Duo E6550 2.33GHz(65W) |
| Ambience Temperature | 35°C(95°F) |
| Ta Average | 34.6(94°F) |
| Host Bridge | 50.7°C(123°F) |
| RAM | 48.3°C(119°F) |
| ODD | 47.2°C(117°F) |
| HDD | 50.5°C(123°F) |
| PSU Fan inside | 43.6°C(110°F) |
| PSU Fan outside | 47.7°C(118°F) |
| Second Fan inside | 43.6°C(110°F) |
| Second Fan outside | 44.3°C(112°F) |
+ Source from In Win lab. All examined sources are subject to change at anytime, without prior notice.
+ Performance tests and ratings are measured using specific computer systems and/or components and reflect the approximate performance of In Win products as measured by those tests. Any difference in system hardware, software design, or configuration may affect actual performance.

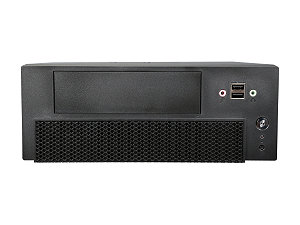

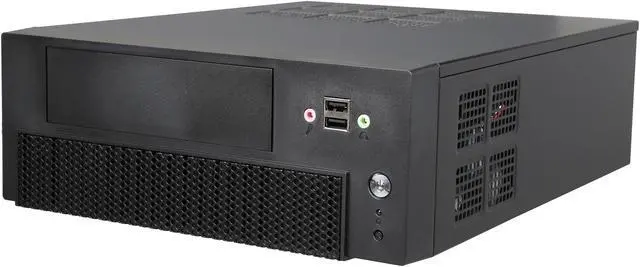

Front Ports
- USB 2.0 x 2
- HD Audio x 1
- Optional IEEE 1394
- Optional USB 3.0 x 2

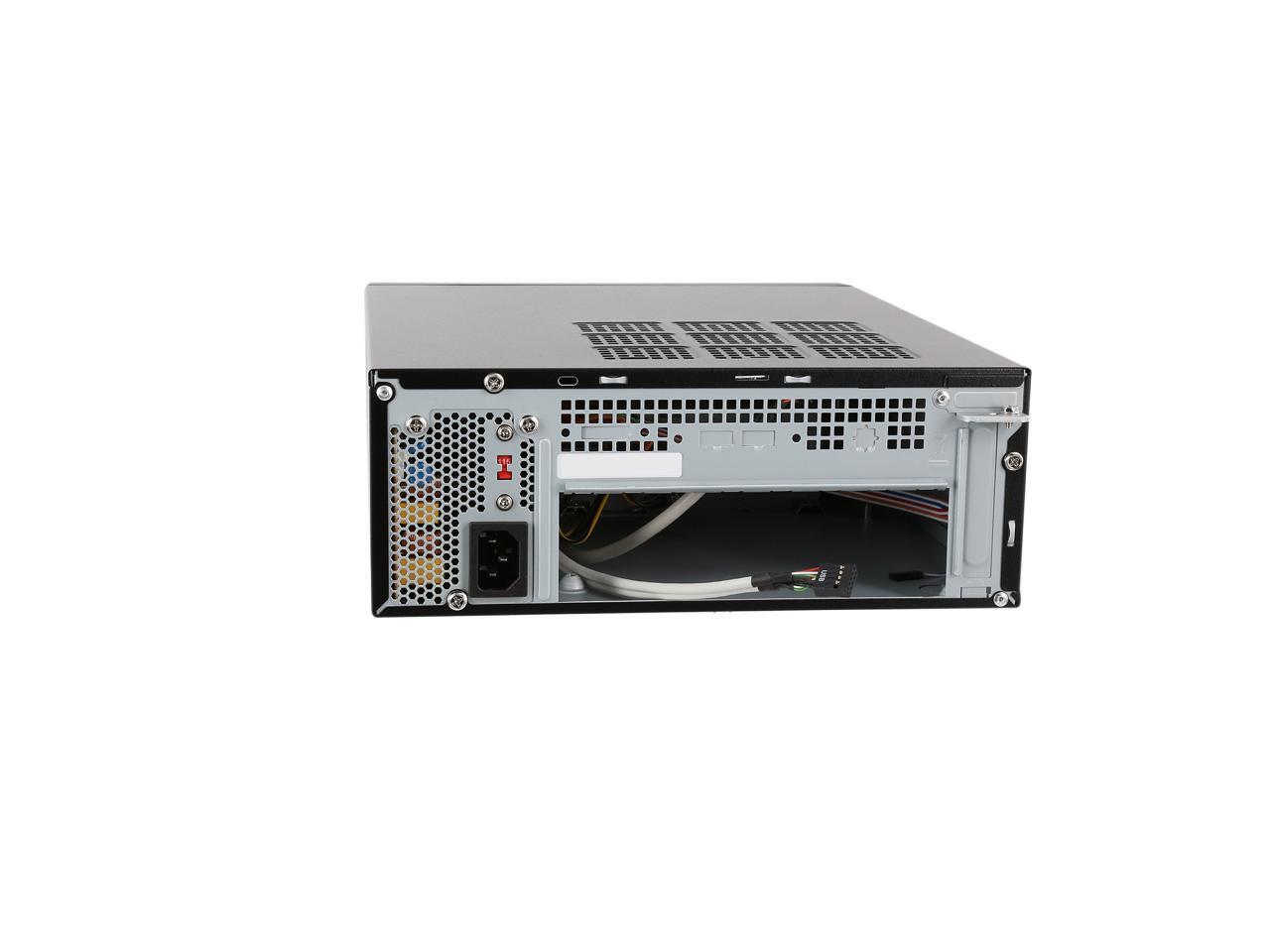

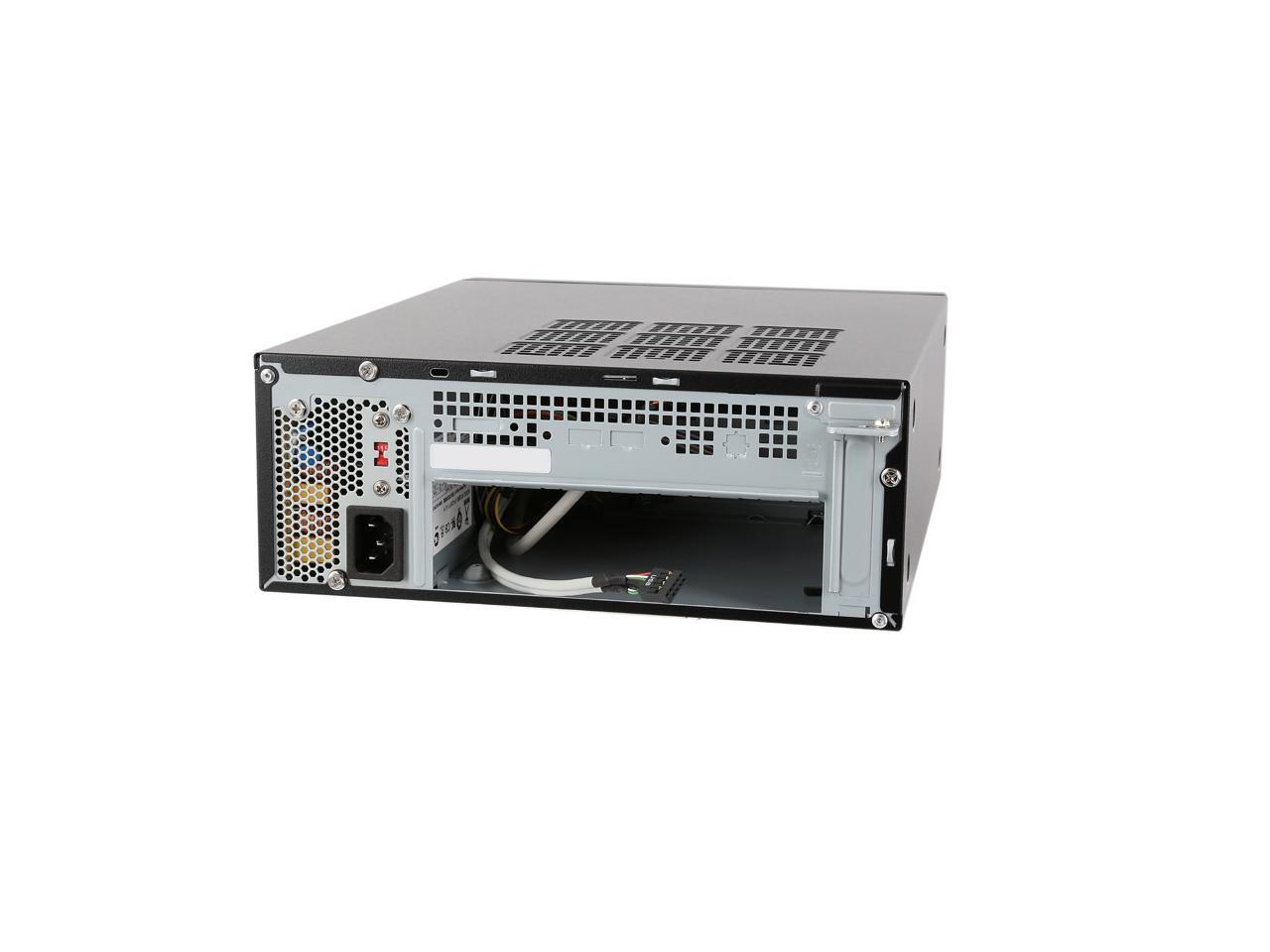

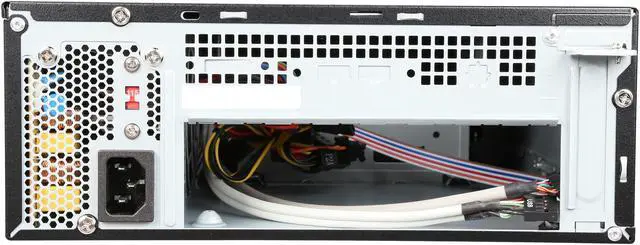

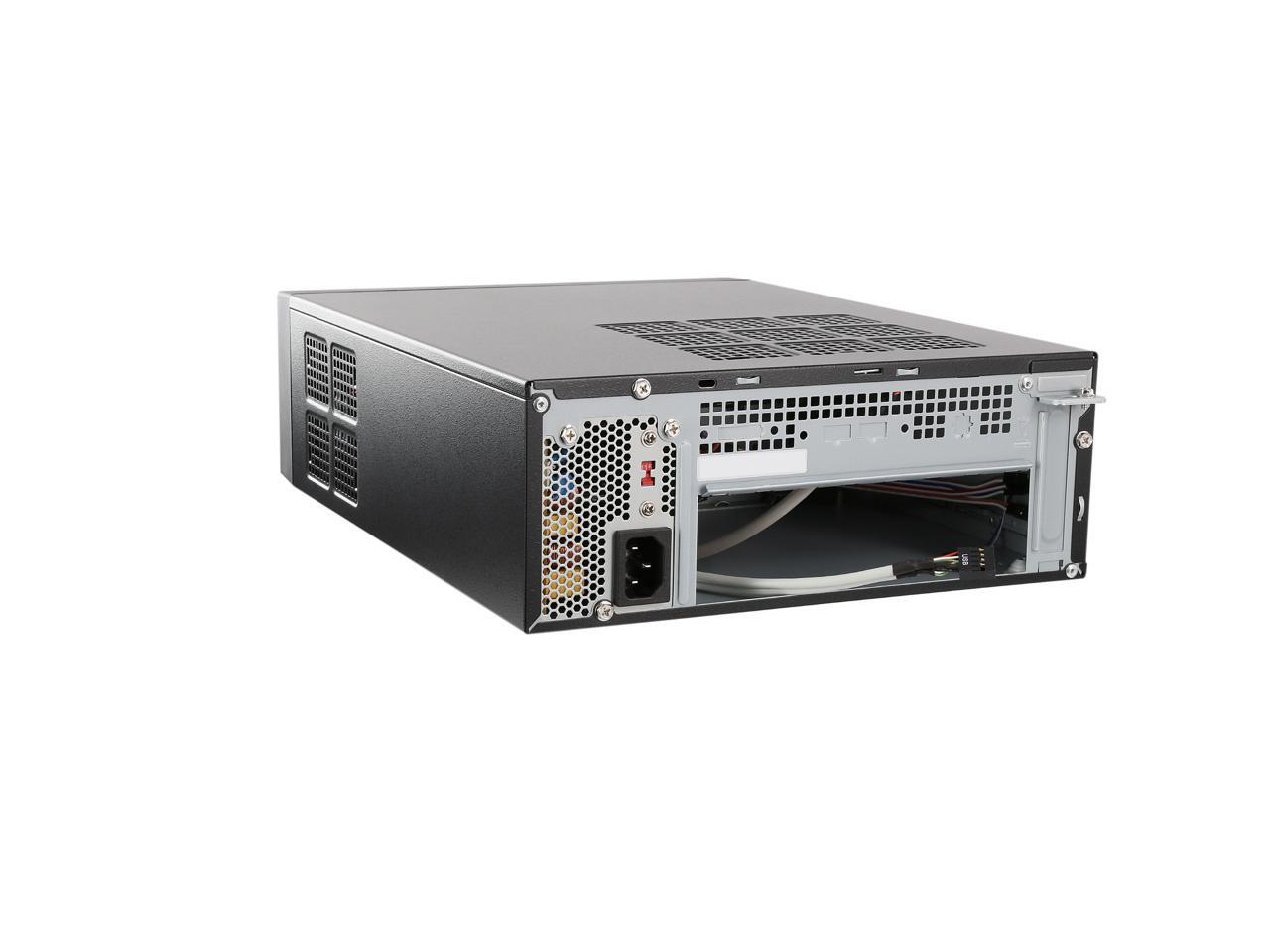

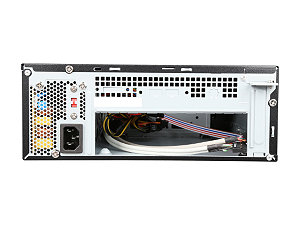

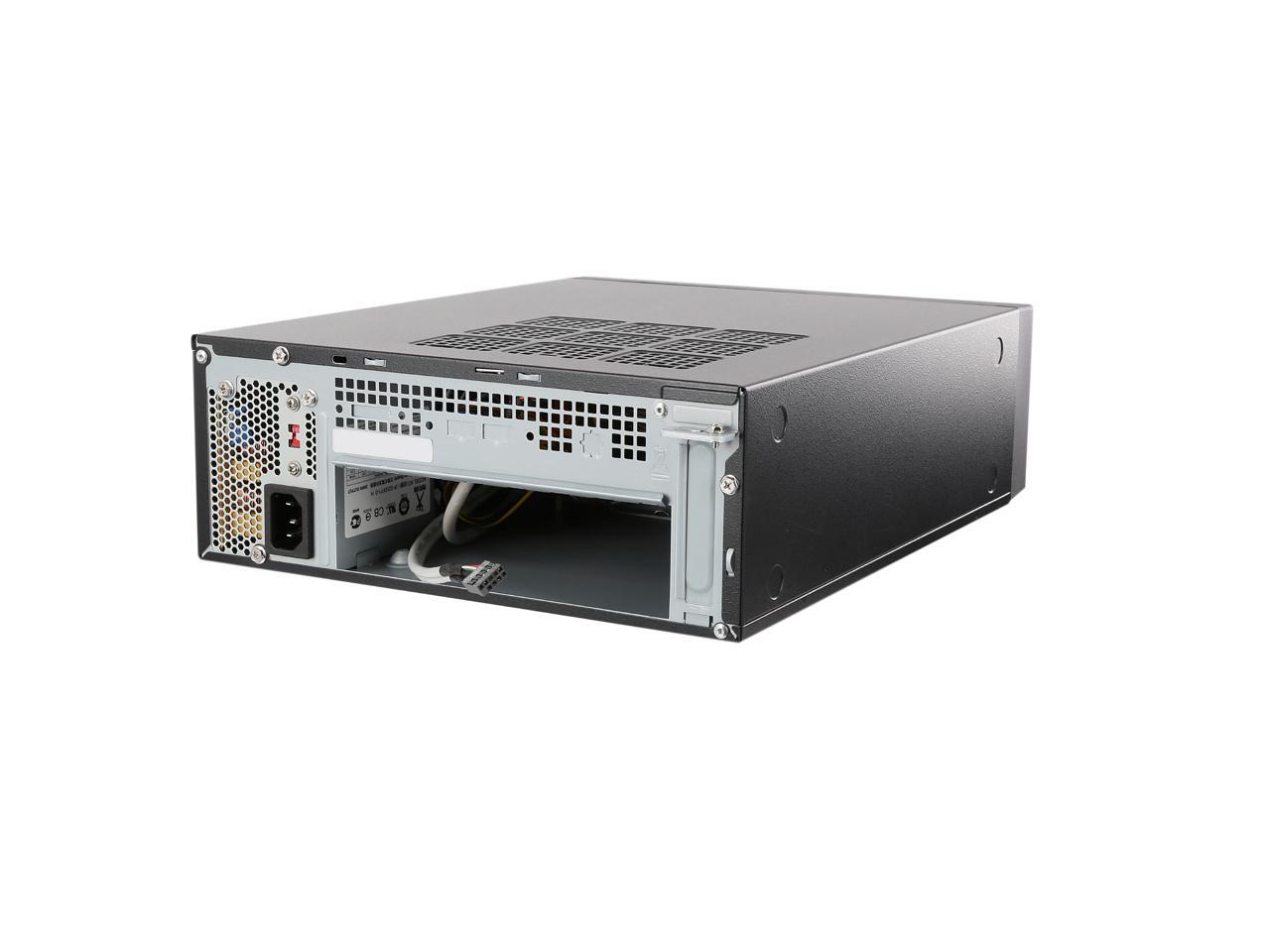

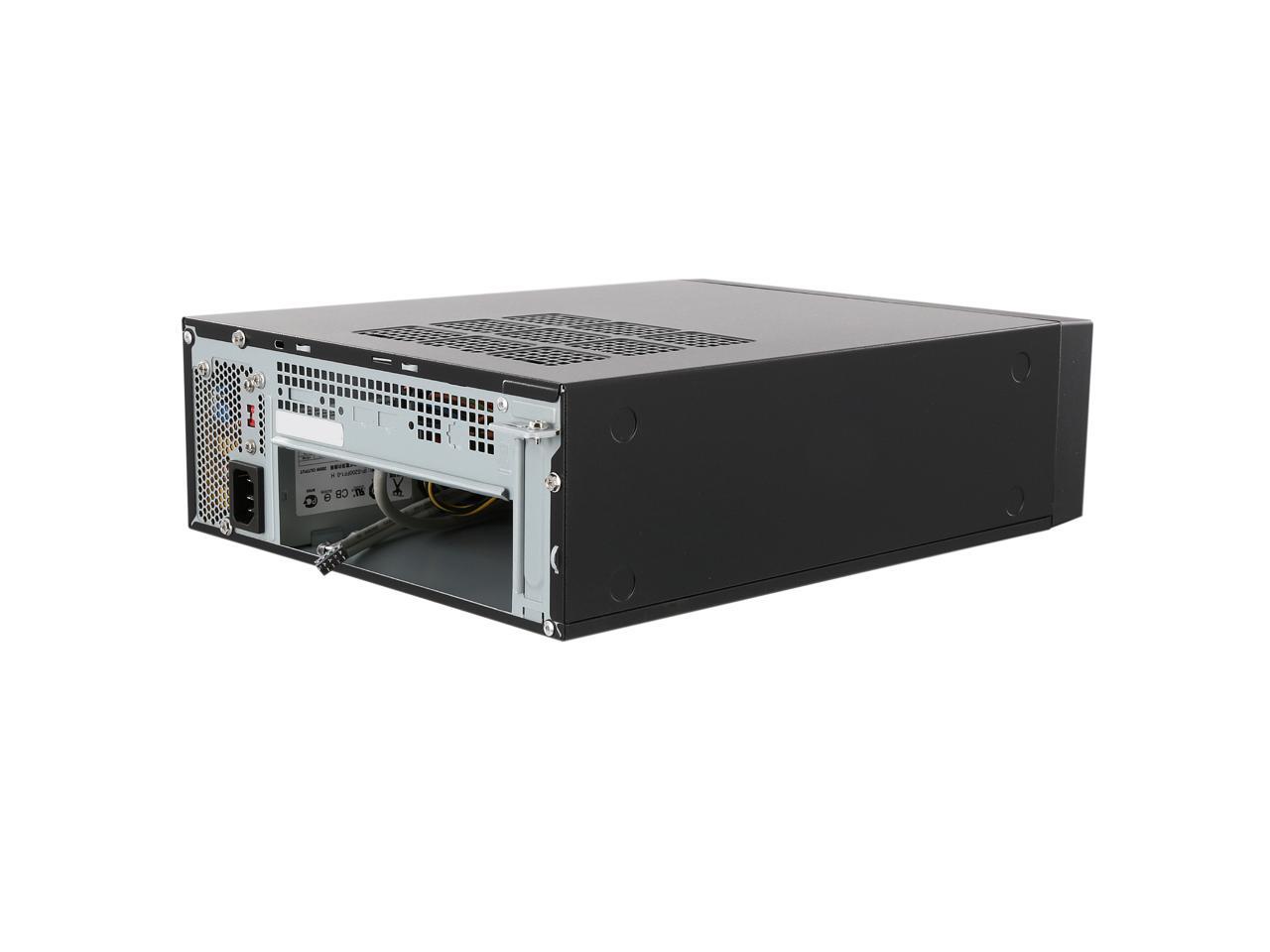

Rear Ports
- eSATA x 1 (at Rear Panel w/ Module)
- USB 2.0 x 2 (at Rear Panel w/ Module)
- Universal Antenna Modules (UAMs) Mounting Hole Ready
Security
- Padlock Loop
- Kensington Slot
Gallery

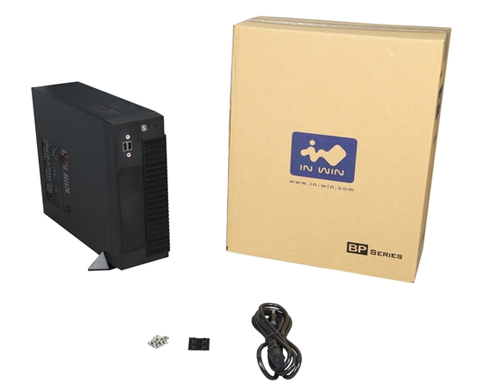

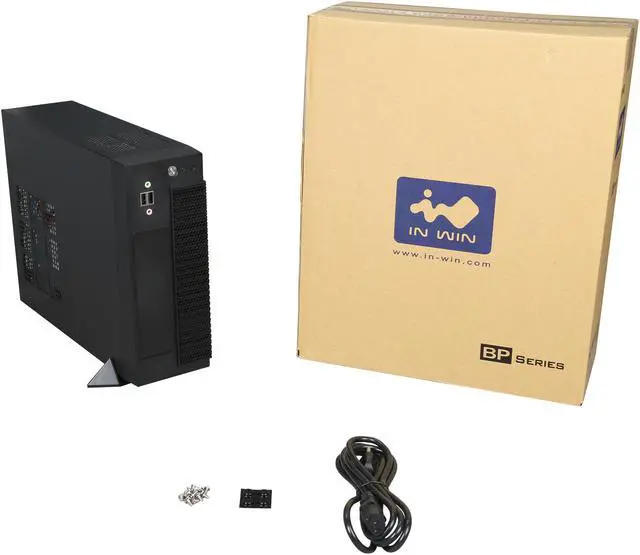

What's in the Box?
