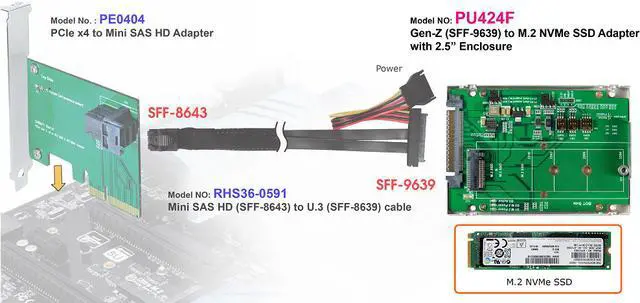

Gen-Z EDSFF (SFF-9639) to M.2 NVMe SSD (bulit-in SMBUS Repeater& 64K EEPROM) with 2.5”Enclosure

Features: * M. 2 NVMe to Gen-Z(SFF-9639) convert * Build in SFF-8639 connector, pin-out defined by SFF-TA-1001 Rev 1.1 * PWM synchronous buck converter Power for M. 2 SSD * 4A maximum output current * Short circuit protection * In-rush current suppression * Thermal shutdown protection * ESD HBM (Human Body Mode) /2KV * Supports CLKREQ#, WAKE# * Supports M. 2 / 1.8V to 3.3V SMB_CLK, SMB_DATA Level Shift * Supports M. 2 / 1.8V to 3.3V SMB_CLK, SMB_DATA isolated * Builde in SMBUS EEPROM 64KB * D1 Green LED on indicates M. 2 NVMe SSD power ready * D3 RED LED Blinking indicates M.
2 active status Specifications: * Compliant with NVM Express 1.2 * Support PCI Express Base Specification Rev 3.1 * Support SSD_Form_Factor_Version1_a * Compliant with PCI Express M. 2 Specification Version 1.0 * Compliant with PCIe_SFF-8639_R 3.0 _V 1.0 * Compliant with SFF-TA-1001 Rev 1.1 Supports the following form factor M.
2 SSD: *
Type 2242-D2-B-M: 42mm (L) x 22mm (W) *
Type 2260-D2-B-M: 60mm (L) x 22mm (W)
