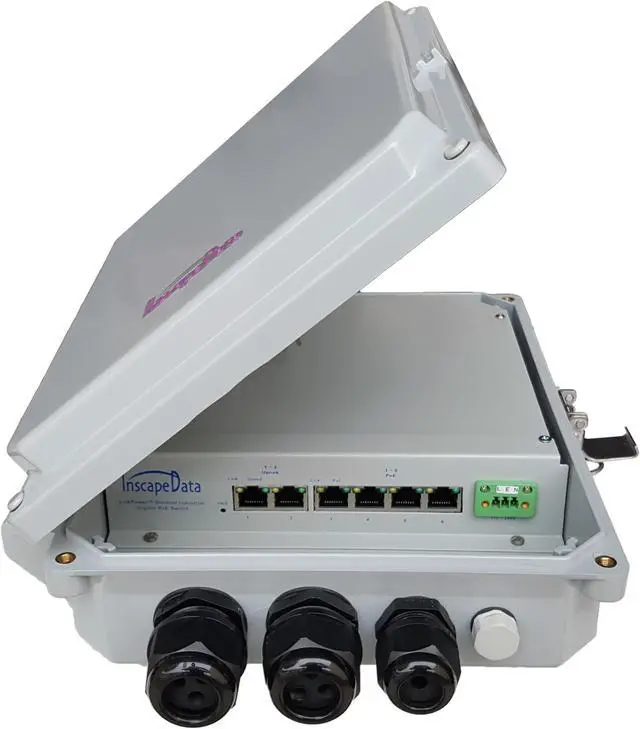

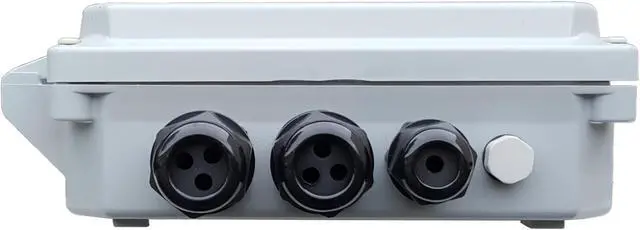

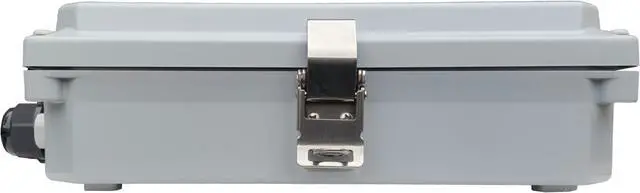

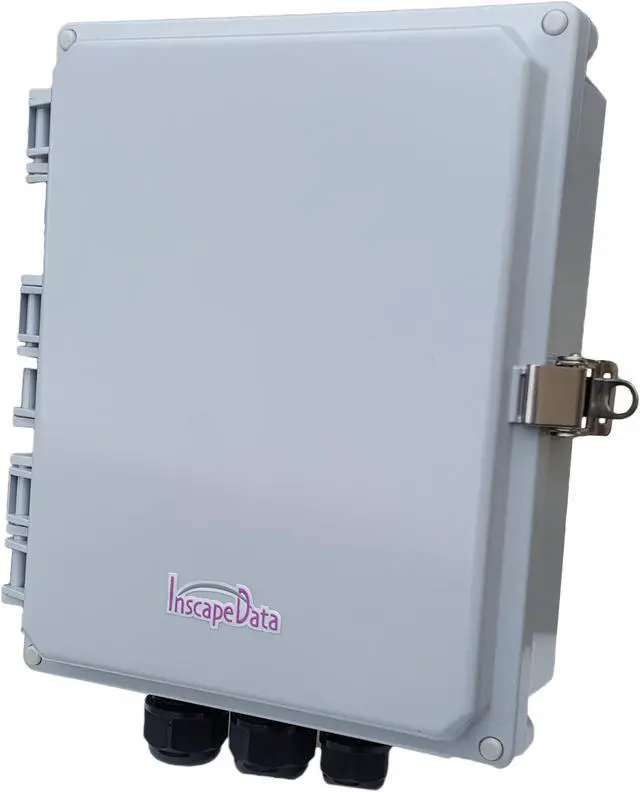

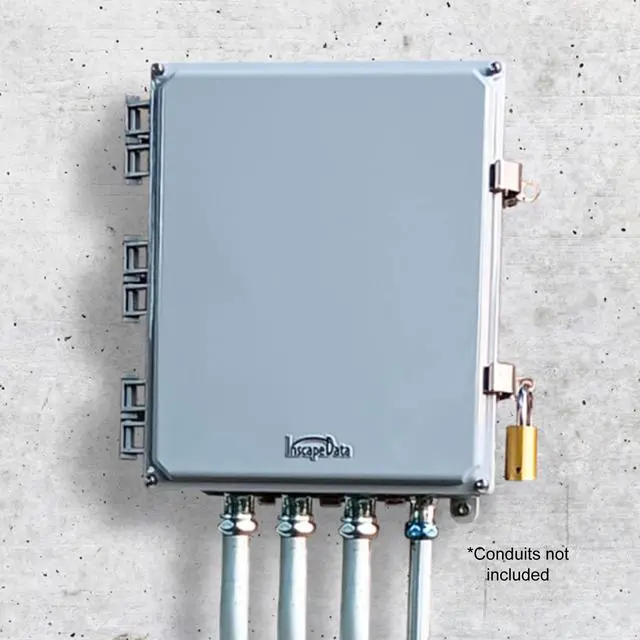

    LinkPower LPS840AF-T1 Outdoor IP68 Contractor-Grade 6-Port Gigabit PoE Switch with 2 RJ45 Gigabit Uplink Ports

    • Outdoor PoE Switch: 6-port Gigabit PoE switch designed for outdoor use, with 2 Gigabit RJ45 Gigabit Uplink Ports.
    • Power over Ethernet (PoE) support, with 15.4W per port (30W per port available with LPS840AT-T1).
    • Adheres to IEEE 802.3af/at Type 1 PoE standard for efficient power supply to connected devices.
    • The total system power of 65W, with 10/100/1000Mbps auto-negotiation and auto-MDIX Gigabit PoE RJ45 ports.
    • Reliable and stable performance, with IEEE802.3x flow control for full-duplex mode and back pressure flow control for half-duplex mode.
    • Full wire-speed non-blocking reception and transmission, with support for jumbo frames up to 10K bytes.
    • Rugged and durable design, IP68 compliance when latched and bolted and a wide operating temperature range of -22ºF to +158ºF (-30ºC to +70ºC).
    • Made in the U.S.A. and backed by a 3-year warranty for quality assurance.
    +
    +
    Overview
    Specs
    Reviews
    See all Q & A
    avatar

    Any questions? Our AI beta will help you find out quickly.

    image for this item
    image for this item
    All-in-One-Box LinkPower LPS840-T1 Outdoor PoE (Power over Ethernet) Switch series



    • All-in-One-Box Outdoor LinkPower840-AF-T1 PoE (Power over Ethernet) Switch series.
    • IP68 All Weatherproof For outdoor networks applications E.g.Video Security cameras and WIFI radios.
    • Integrated Industrial 4KV Ethernet surge protection
    • IEEE 802.3af/at Type 1 Power over Ethernet (PoE) standard, up to 30W Per PoE Port, 62W Total System Power.
    • Designed and Made in the U.S.A.
    image for this item
    Industry-first outdoor weatherproof industrial 10/100Mbps Ethernet switch that delivers data and power over one single network.

    • IP68 All Weatherproof For outdoor networks applications E.g.Video Security cameras and WIFI radios.
    • Internal LEDs for individual port status: Network activity, PoE Power, & System Power
    • Small Footprint Enclosure (10x8x2 Inch Dimensions)
    image for this item
    6-Port 802.3af PoE Switch with 2 RJ45 Gigabit Uplink Ports
    • Outdoor 10/100/1000Mbps 6-Port 802.3AF PoE Switch with 2 RJ45 Gigabit Uplink Ports, Up to 30W and an Average of 15.4W per PoE Port, Not to Exceed 62W for a Total of 4 PoE Ports
    image for this item
    30W per Port / 62W Total




    • LPS840AF-T1 (62W) Version: up to 30W and average of15.4W per PoE port, not to exceed 62W for a total of 4 Poe Ports.
    • For basic or average outdoor PoE applications
    Inscape Data's LinkPower LPS840AF-T1 All Weather 6-Port Gigabit PoE (Power over Ethernet) Switch with two Gigabit RJ45 Uplink Ports is the industry first outdoor weatherproof high speed gigabit Ethernet switch that delivers data and power over one single network cable protected with an IP68 compliant weatherproof enclosure. The LPS840AF-T1 all weather Gigabit PoE switch is designed for industrial and commercial applications, e. g., video surveillance, remote security, wireless mesh, and carrier wifi installations.
