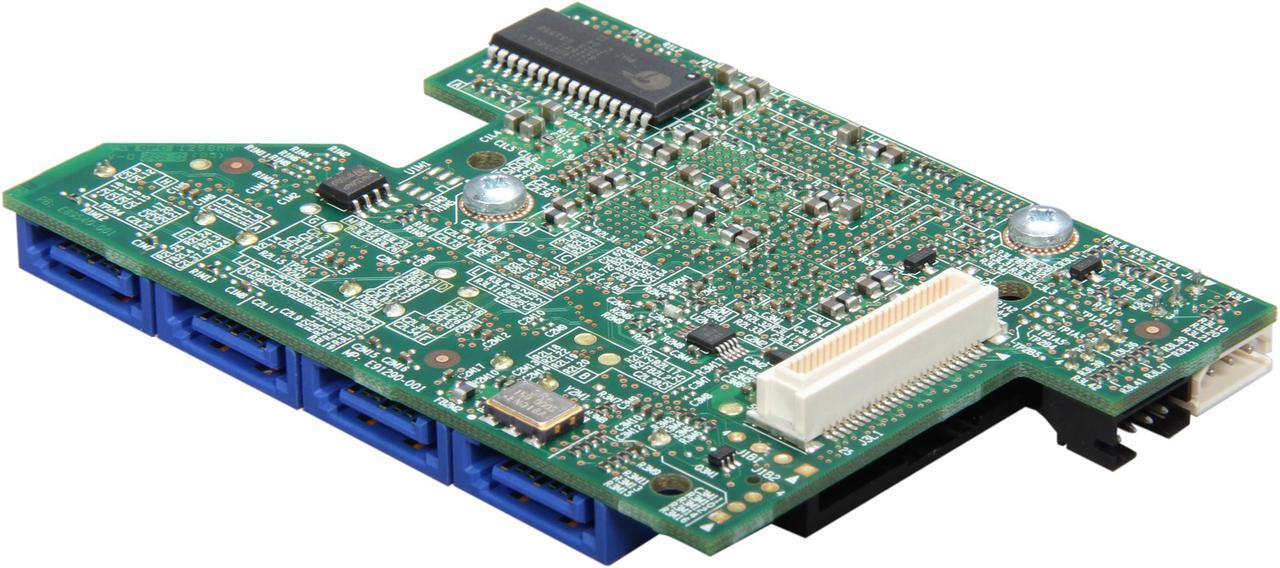

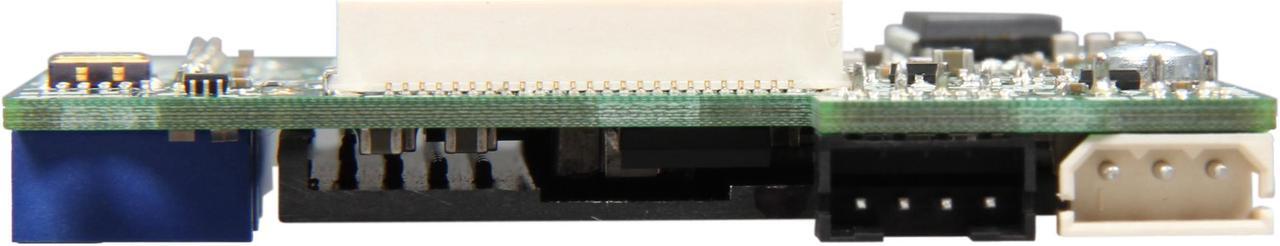

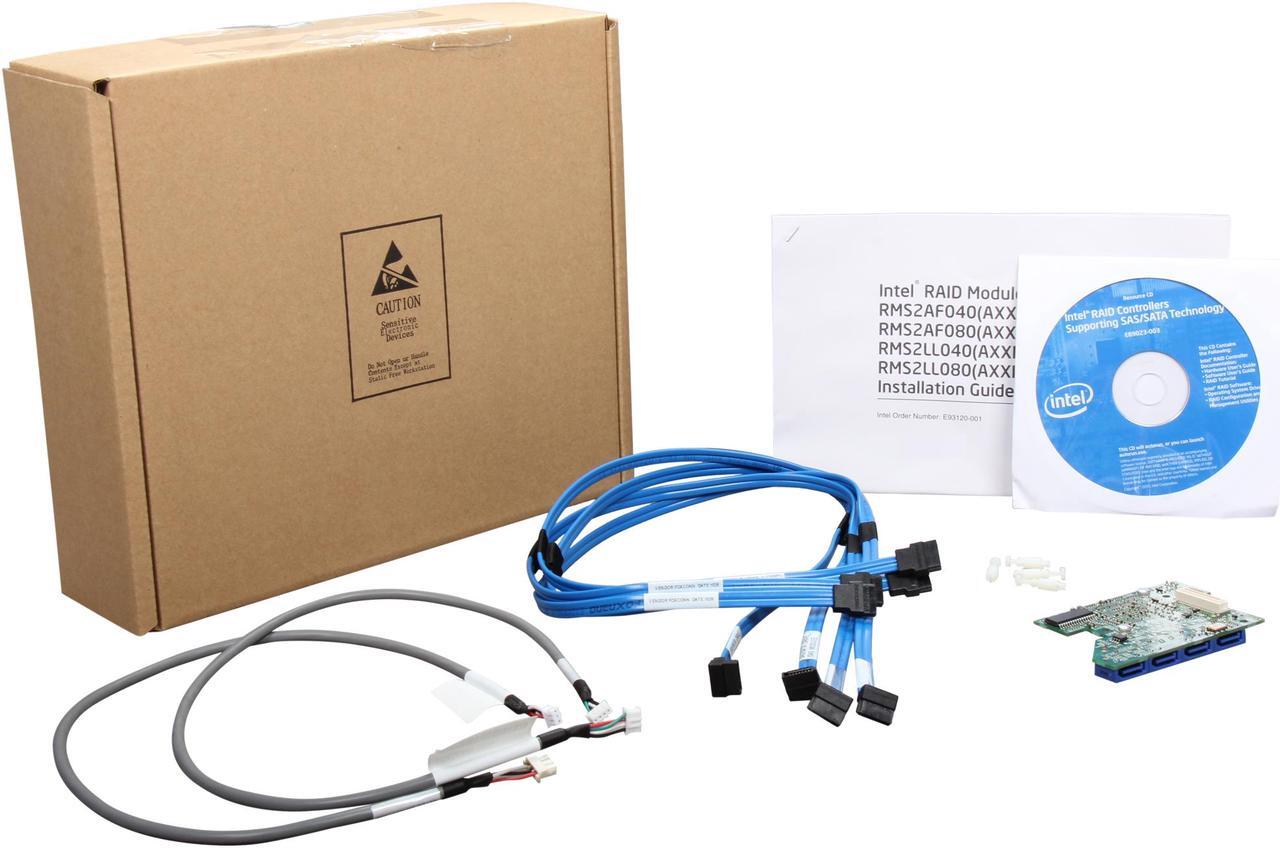

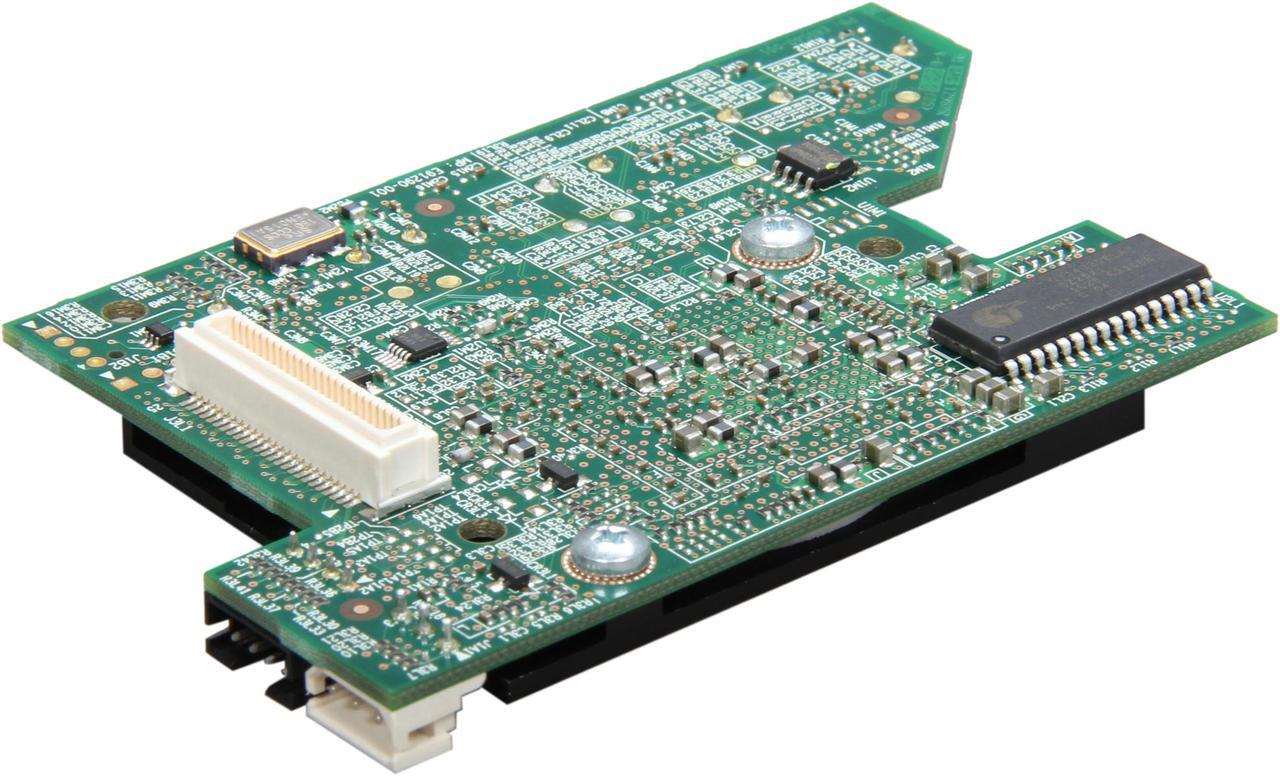

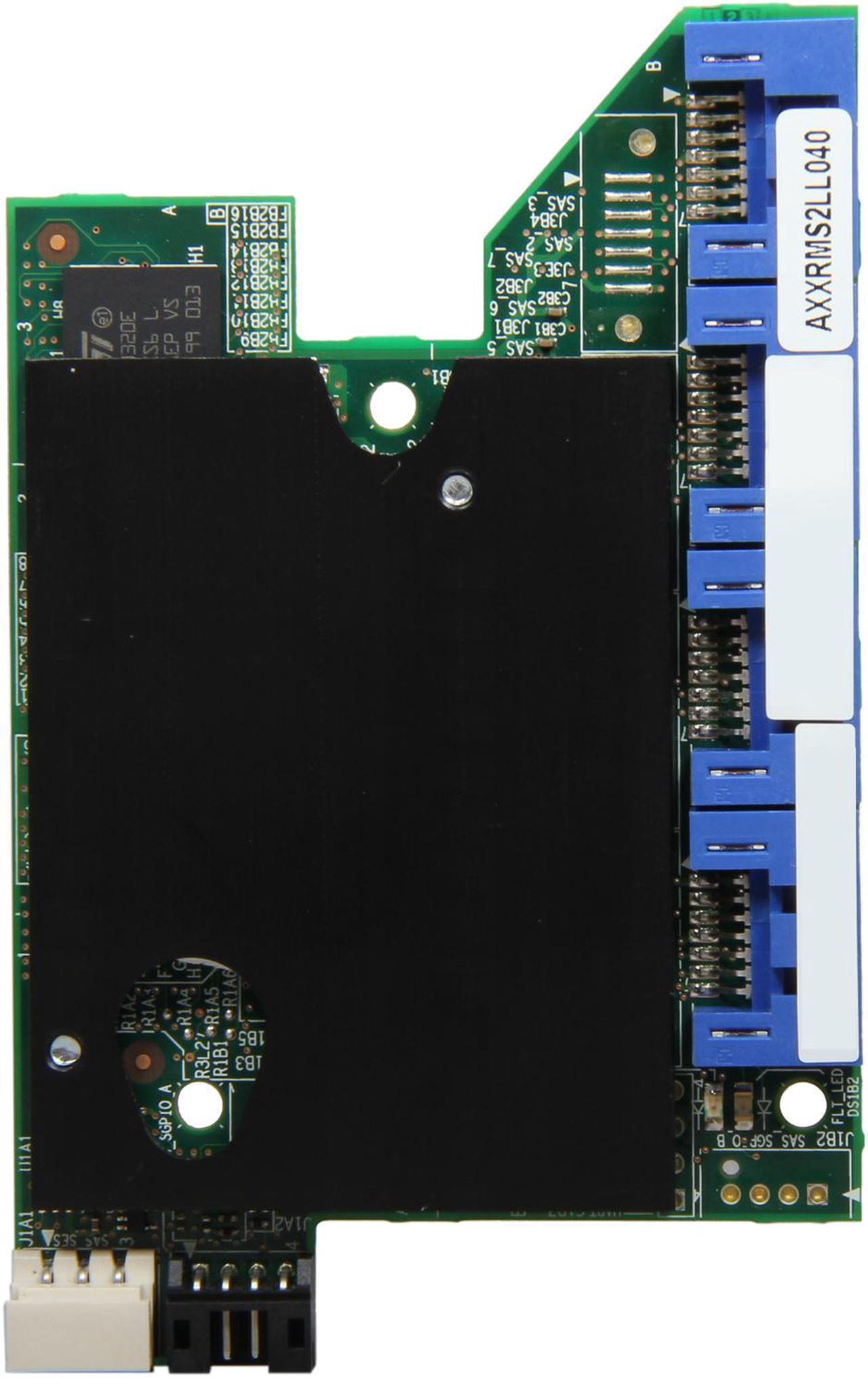

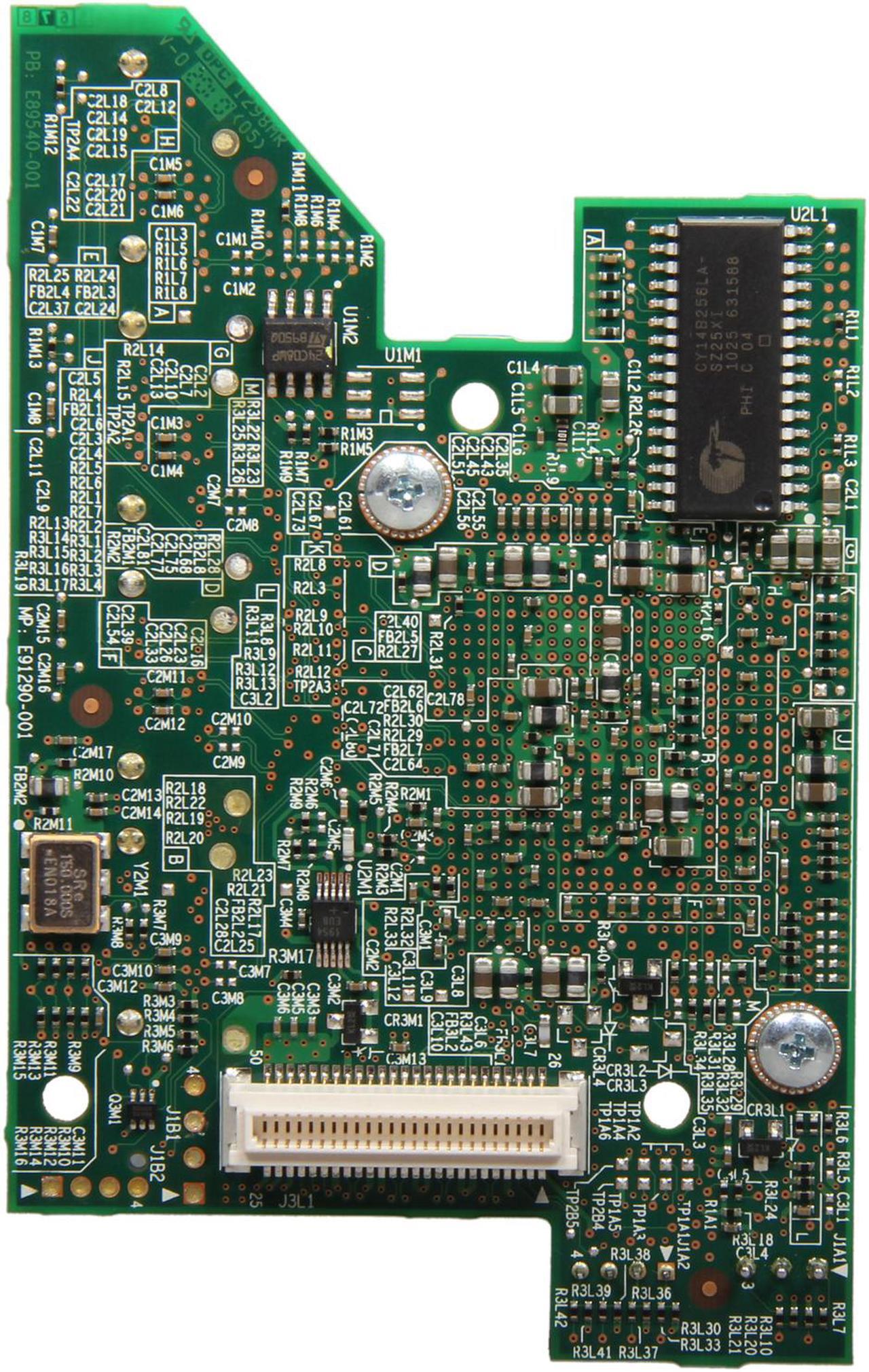

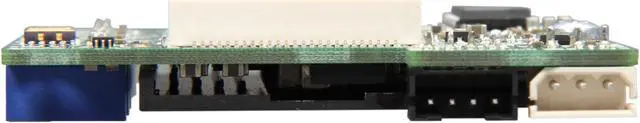

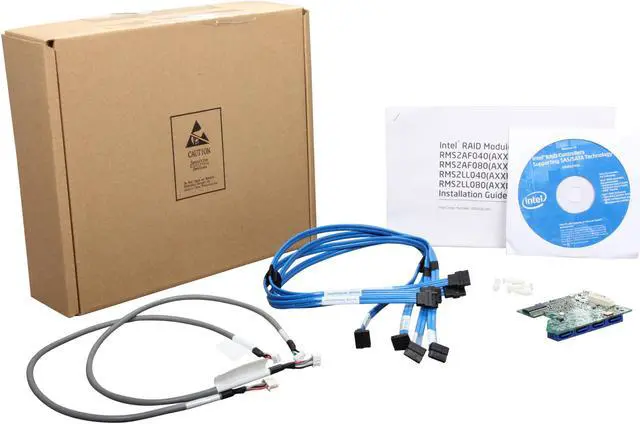

Intel Integrated Server RAID Controller Module SAS/SATA 4 internal ports (AXXRMS2LL040)
- RAID 0/1/0+1
- 4 x SAS Internal Connectors
- 600 MBps
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Ideal for servers and workstations needing high-speed data transfer within a small hardware footprint, the Intel RAID Module RMS2LL040 delivers a 1U capable design with high-throughput for internal storage applications. This Intel RAID Controller, with four 7-pin SAS/SATA connectors, provides SAS and entry-level hardware Intel RAID 0,1,10,1E capability, which allows compatibility with 6Gb/s and 3Gb/s SAS and SATA hard drives, and SAS expander devices.
Excellent PerformanceLSI Fusion-MPT architecture provides over 290,000 I/Os per second while communicating over the PCI Express 2.0 Host Bus.
Cost-effective Data ProtectionProvides a low-cost RAID 0, 1, and 1E solution for entry-level server and workstation environments where high-performance and reliable data protections are required.
SAS or SATA StorageFour ports connect SAS or SATA devices within an array. Use SAS drives for speed, reliability and scalability; use high-capacity SATA drives for budget-friendly storage.
Hot SpareIncludes global hot spare support that automatically comes online to replace the first drive to fail on any array or disk group on the controller.
System Design Flexibility1U capable SAS RAID Module connects to the I/O expansion slot available on most Intel server boards. This module can be used in Intel and third party chassis without the need for a riser card or low profile cutout.
Excellent PerformanceLSI Fusion-MPT architecture provides over 290,000 I/Os per second while communicating over the PCI Express 2.0 Host Bus.
Cost-effective Data ProtectionProvides a low-cost RAID 0, 1, and 1E solution for entry-level server and workstation environments where high-performance and reliable data protections are required.
SAS or SATA StorageFour ports connect SAS or SATA devices within an array. Use SAS drives for speed, reliability and scalability; use high-capacity SATA drives for budget-friendly storage.
Hot SpareIncludes global hot spare support that automatically comes online to replace the first drive to fail on any array or disk group on the controller.
System Design Flexibility1U capable SAS RAID Module connects to the I/O expansion slot available on most Intel server boards. This module can be used in Intel and third party chassis without the need for a riser card or low profile cutout.Warranty & Returns
