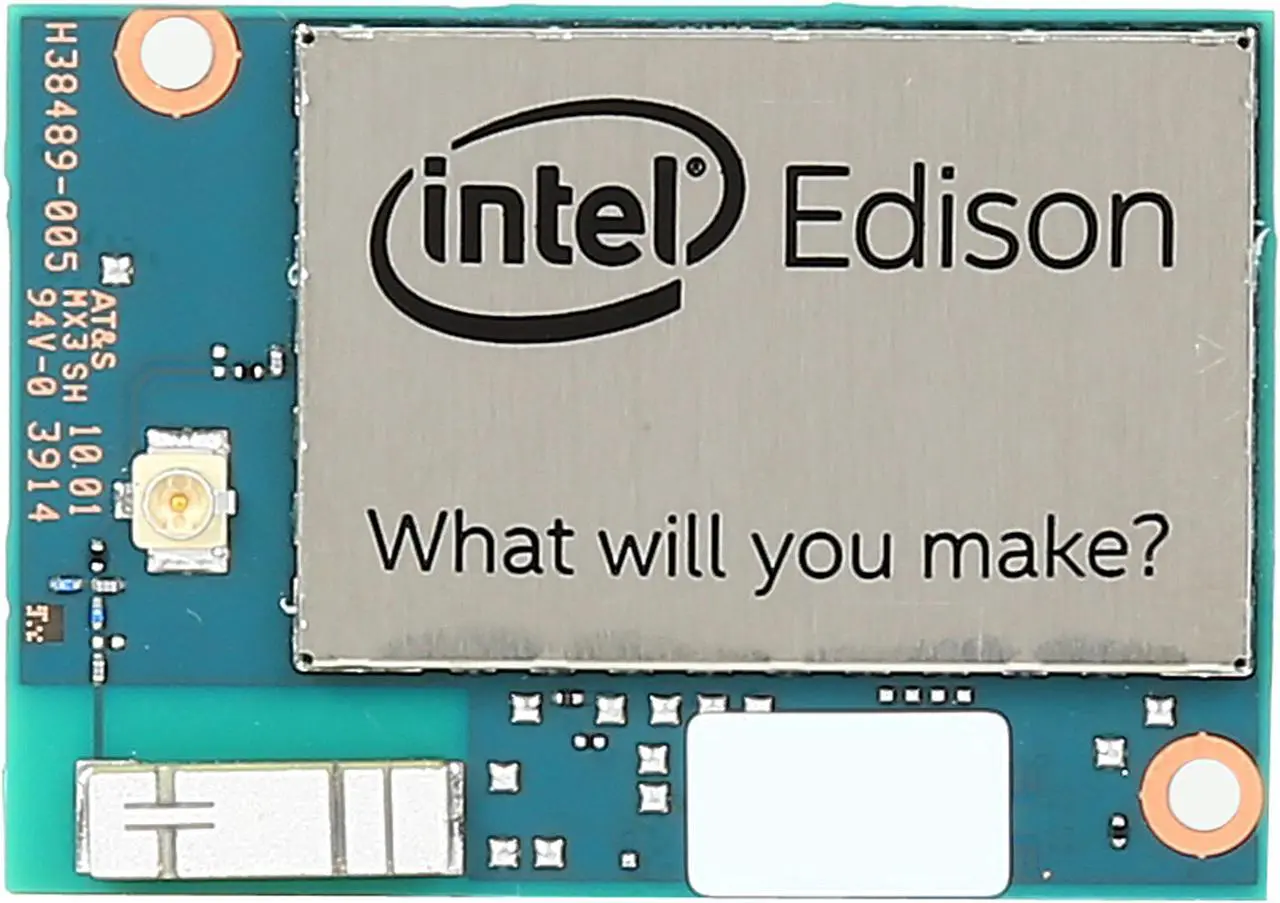

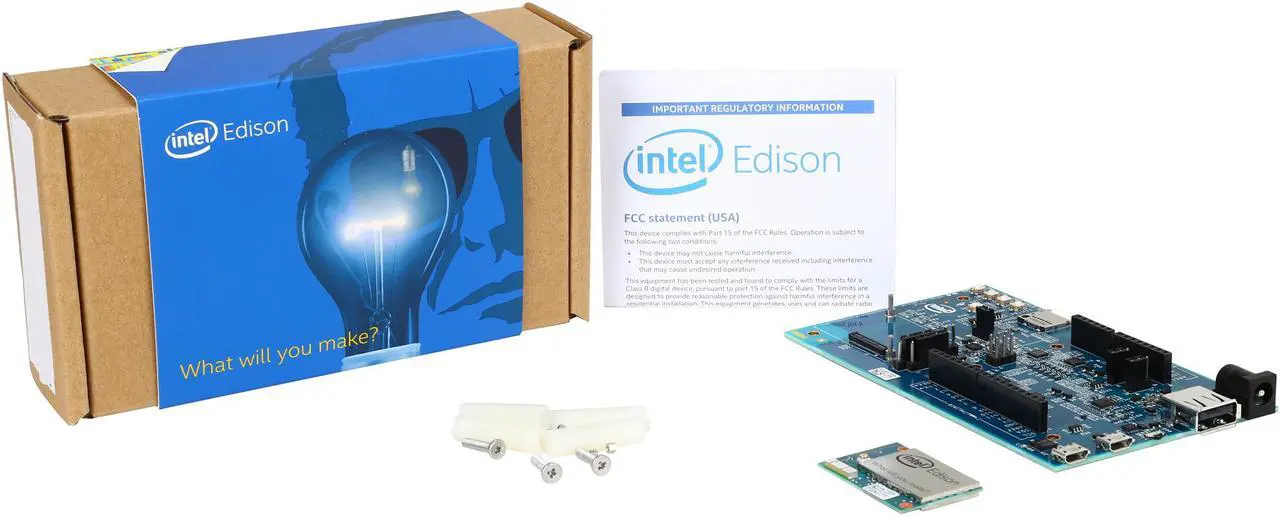

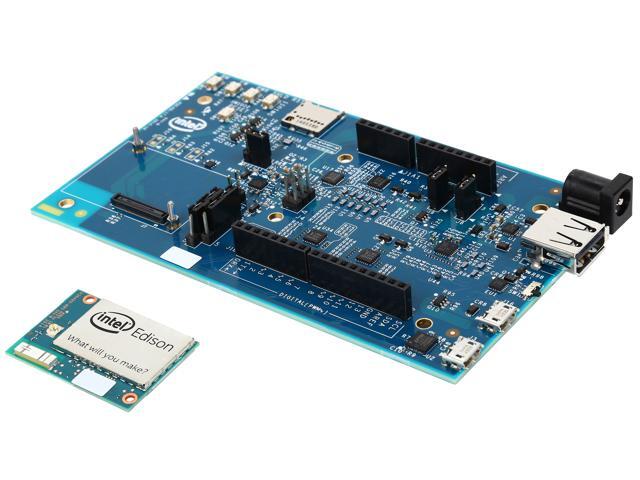

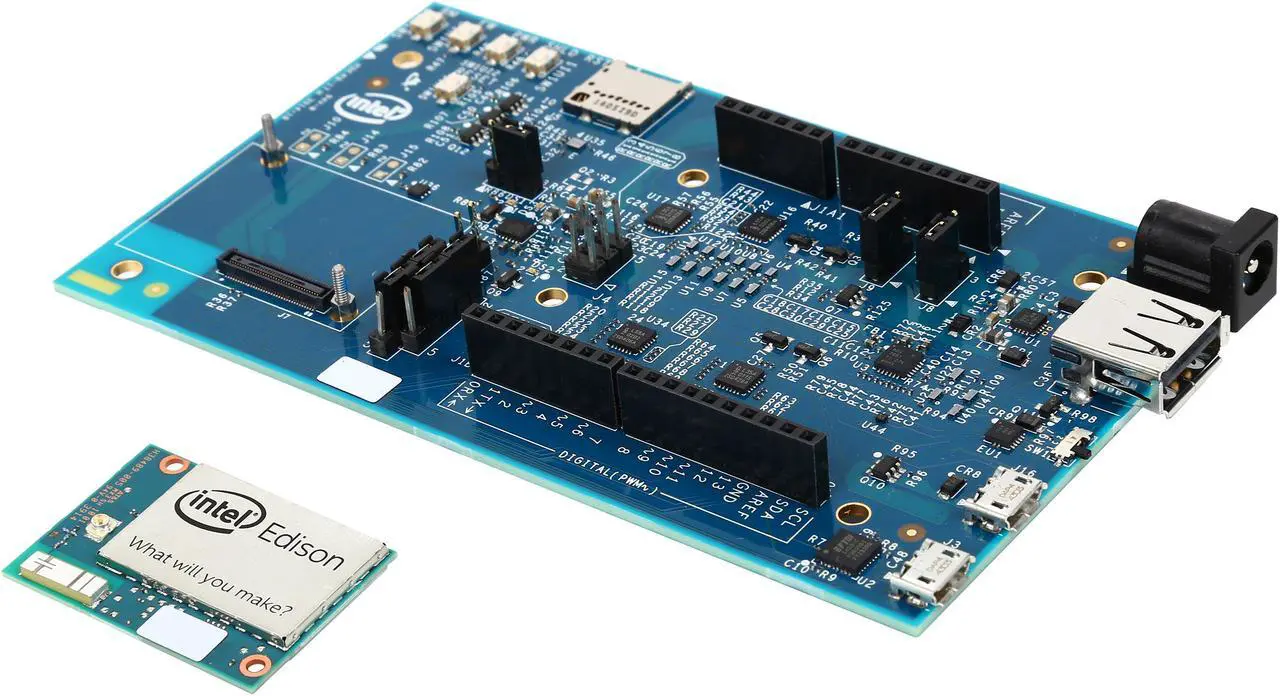

Intel EDI2ARDUIN.AL.K Edison Kit for Arduino

Be the first to review this product...
  • Dual Core IA-32 @ 500 MHz, 32-bit Intel Atom Processor Z34xx Series @ 100 MHz
  • 1 GB LPDDR3 POP memory (2 channel 32 bits @ 800 MT/sec)
  • 4 GB eMMC (v4.51 spec) Internal storage
Specs
Reviews

Learn more about the Intel EDI2ARDUIN.AL.K

Model
Brand Intel
Model EDI2ARDUIN.AL.K
Combo Type Motherboard / CPU Combo
Bundle
CPU Dual Core IA-32 @ 500 MHz, 32-bit Intel Atom Processor Z34xx Series @ 100 MHz
Memory
Memory Standard DDR3, NAND FLASH
Maximum Memory Supported 4GB
Onboard LAN
Wireless LAN Broadcom* 43340 802.11 a/b/g/n;
Dual-band (2.4 and 5 GHz)
Onboard antenna
Bluetooth Bluetooth 4.0
Rear Panel Ports
USB 1.1/2.0 1 x USB 2.0
Internal I/O Connectors
Other Connectors Hirose DF40 Series (1.5, 2.0, or 3.0 mm stack height)
Features
Features The Intel Edison development platform is designed to lower the barriers to entry for a range of inventors, entrepreneurs, and consumer product designers to rapidly prototype and produce "Internet of Things" (IoT) and wearable computing products.

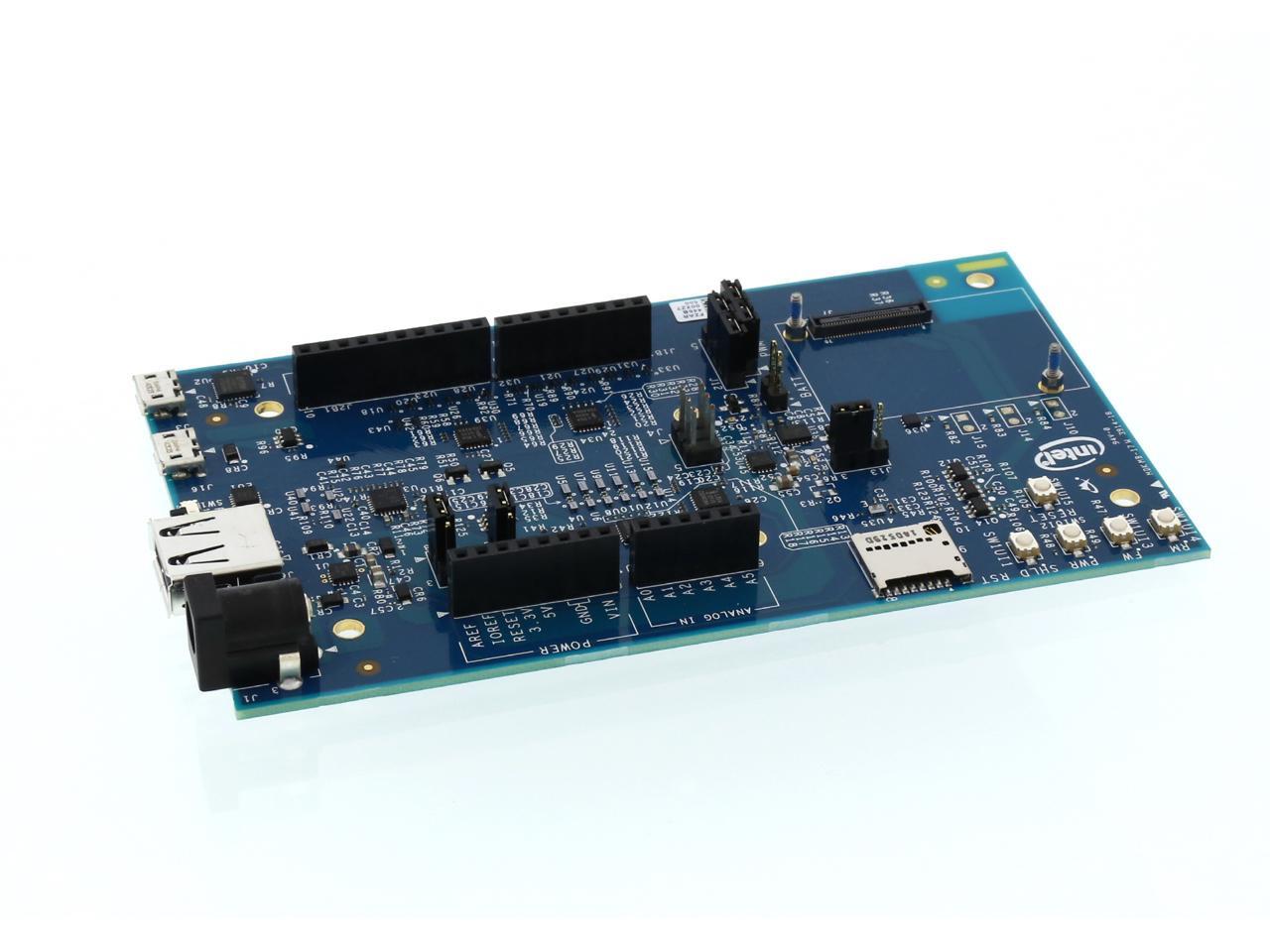

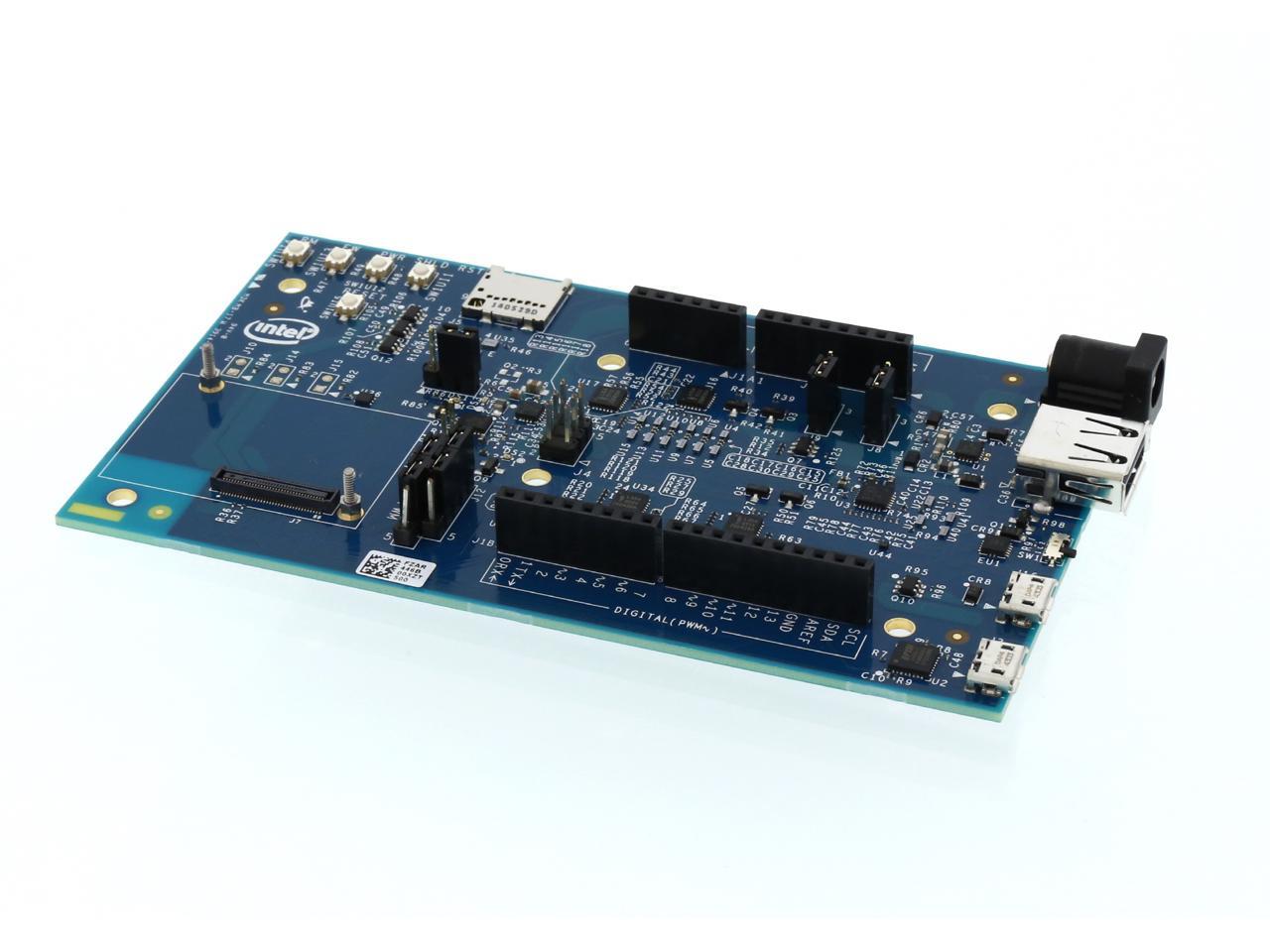

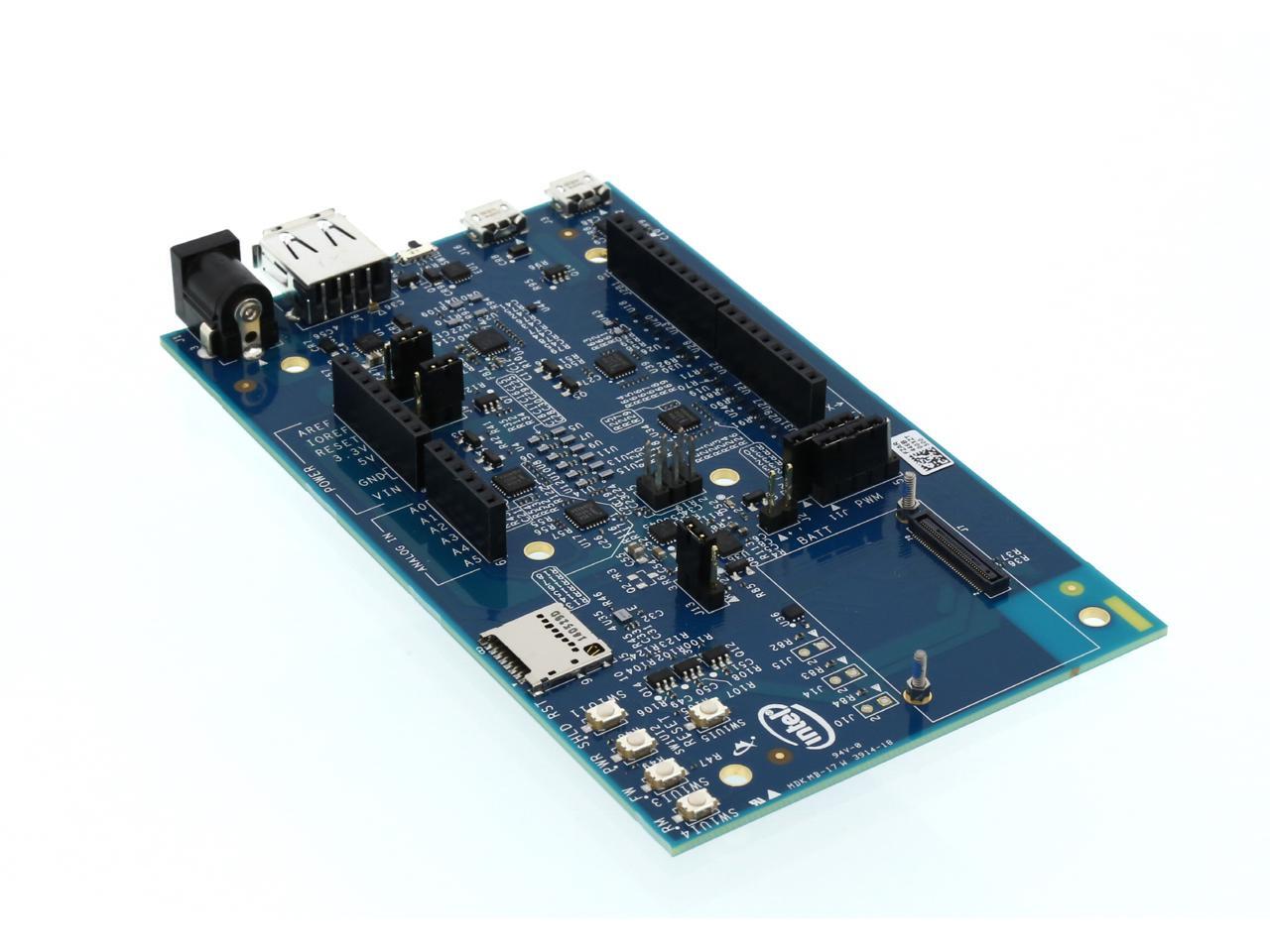

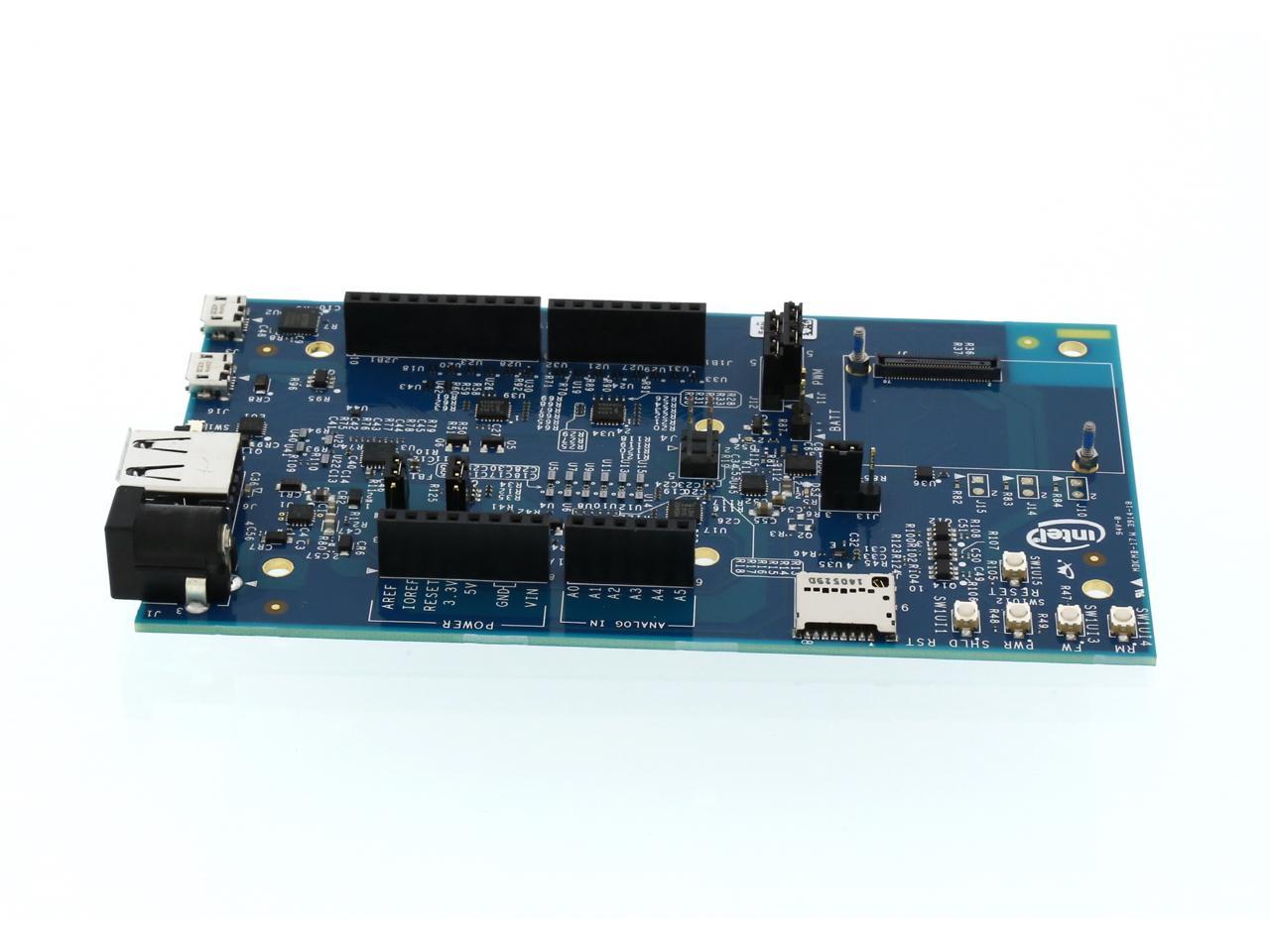

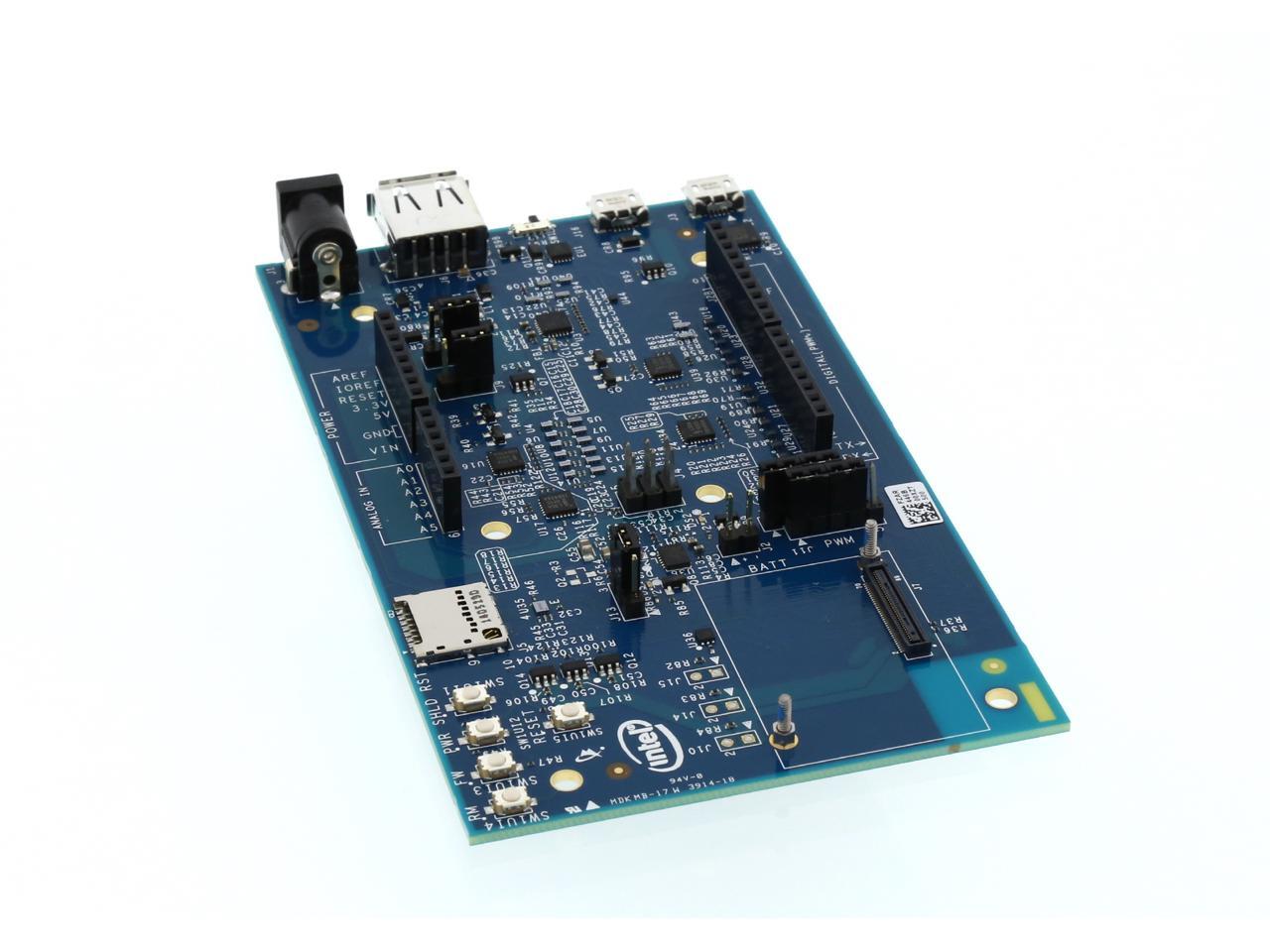

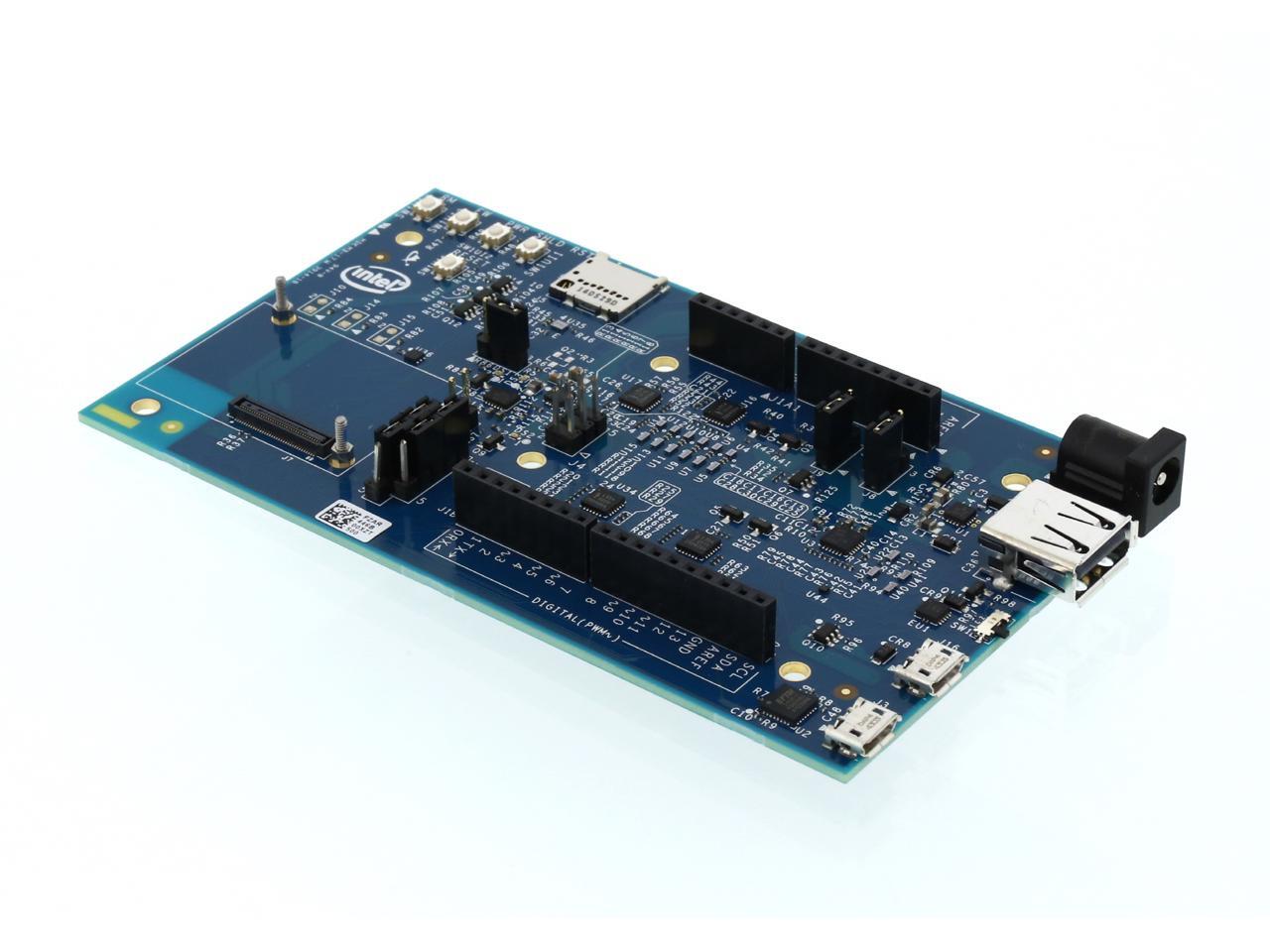

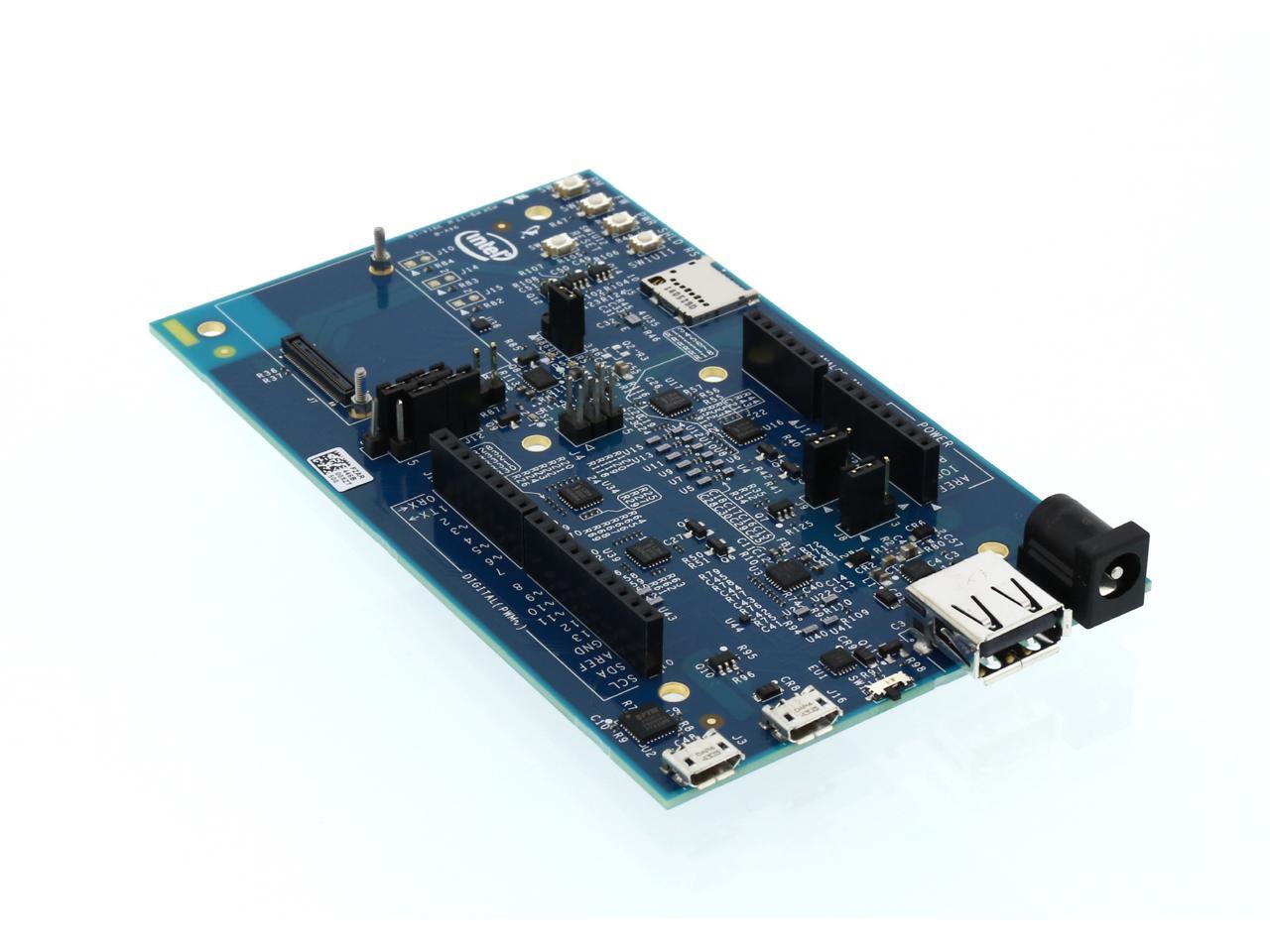

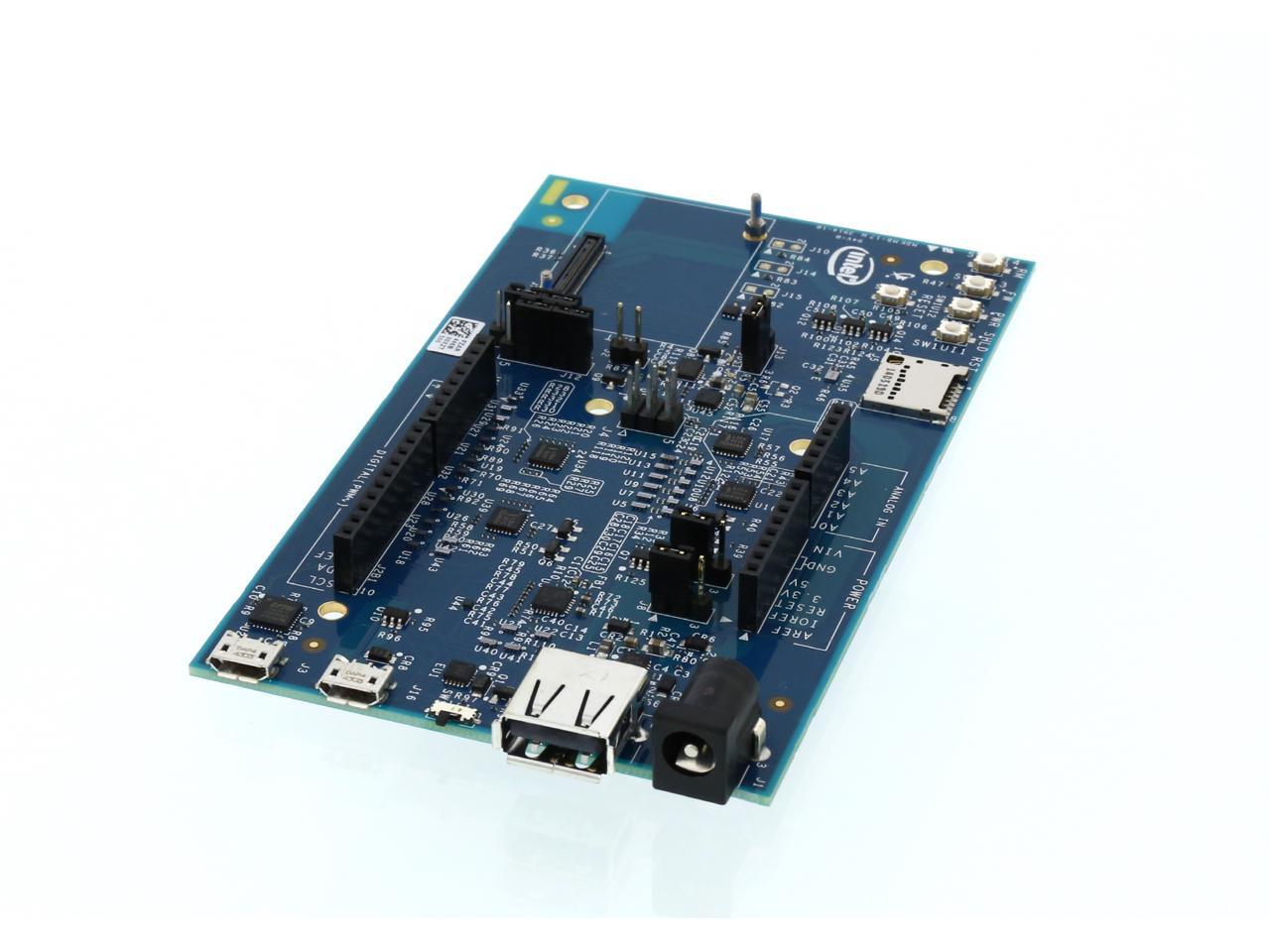

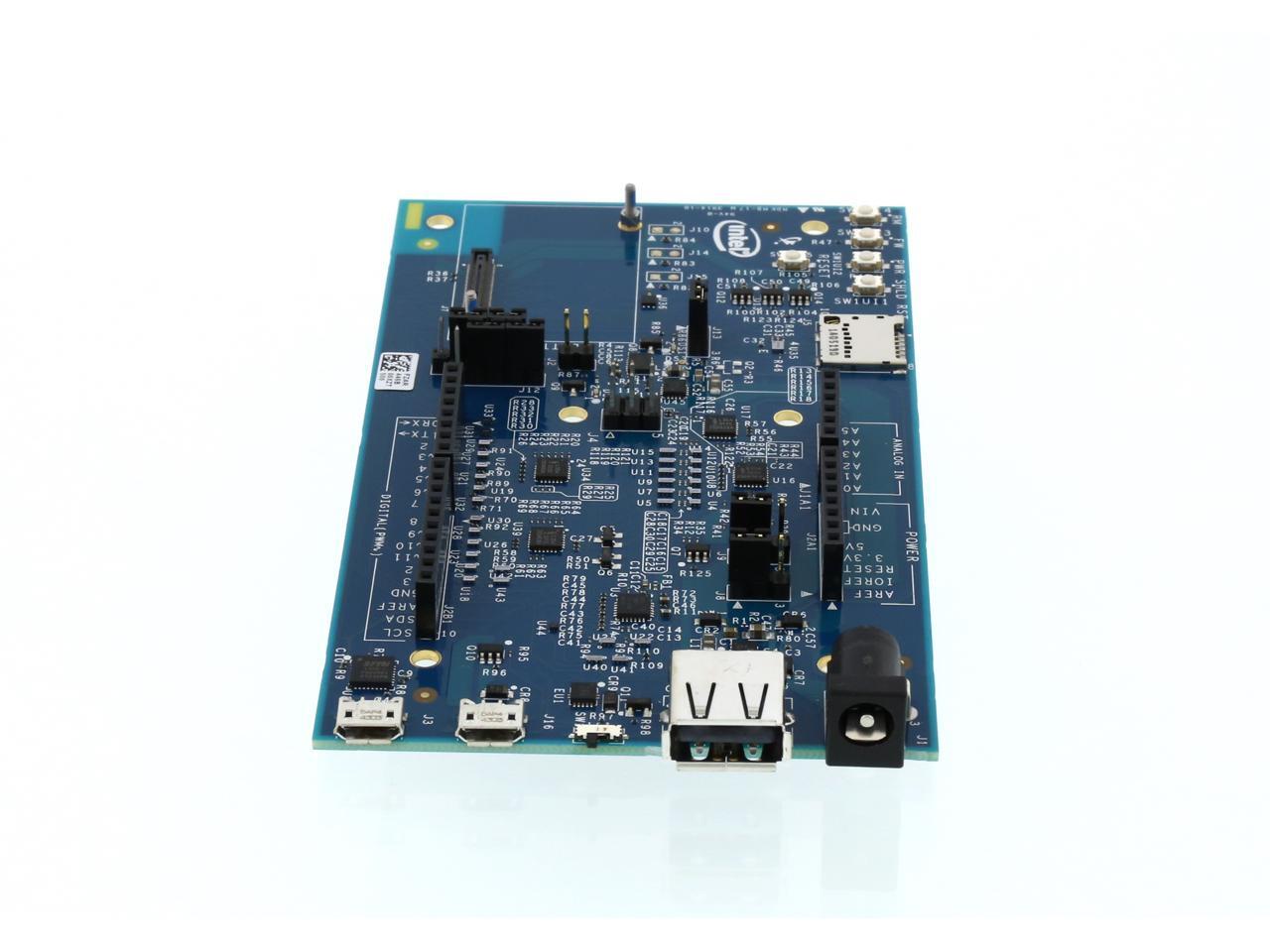

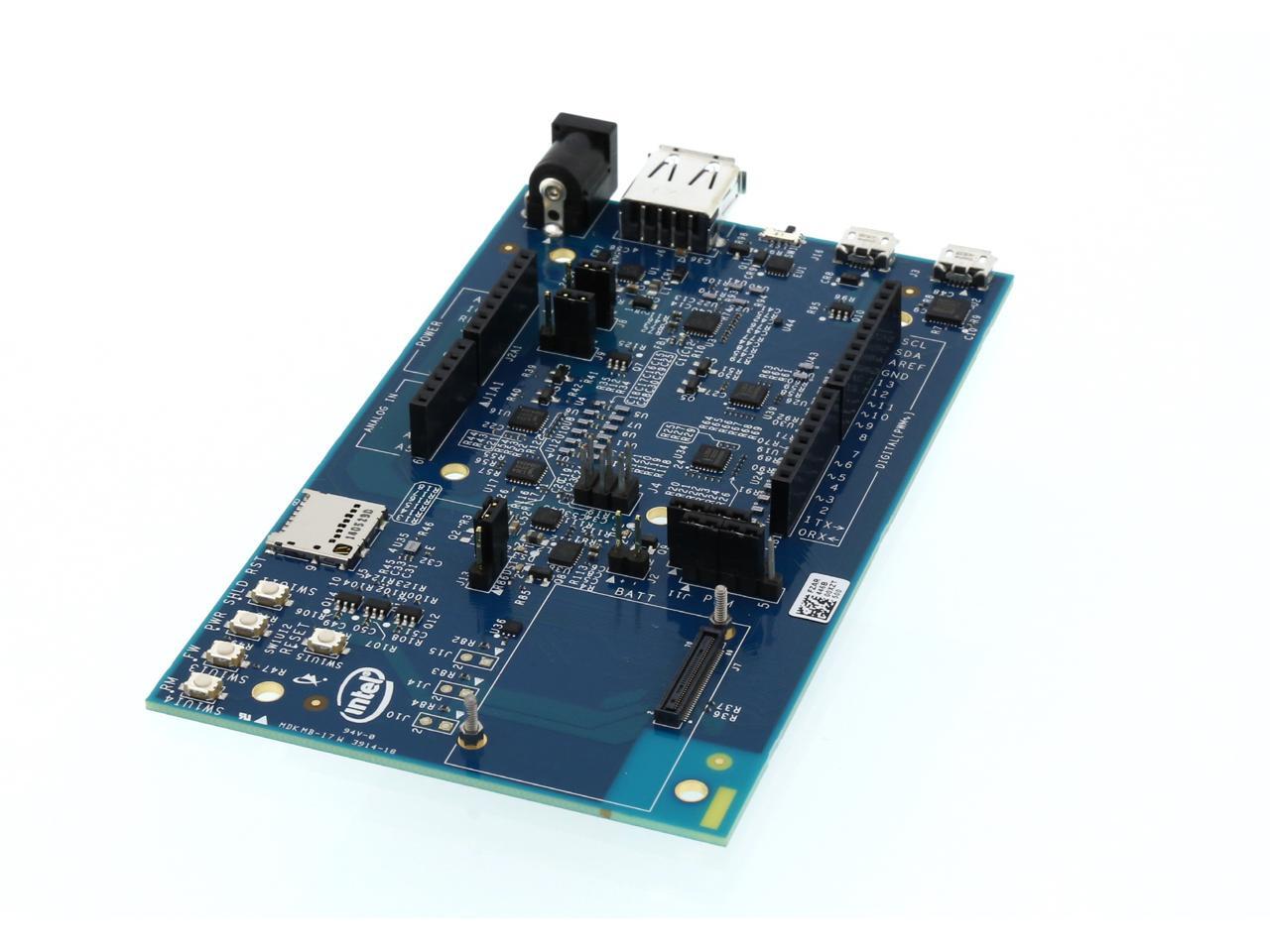

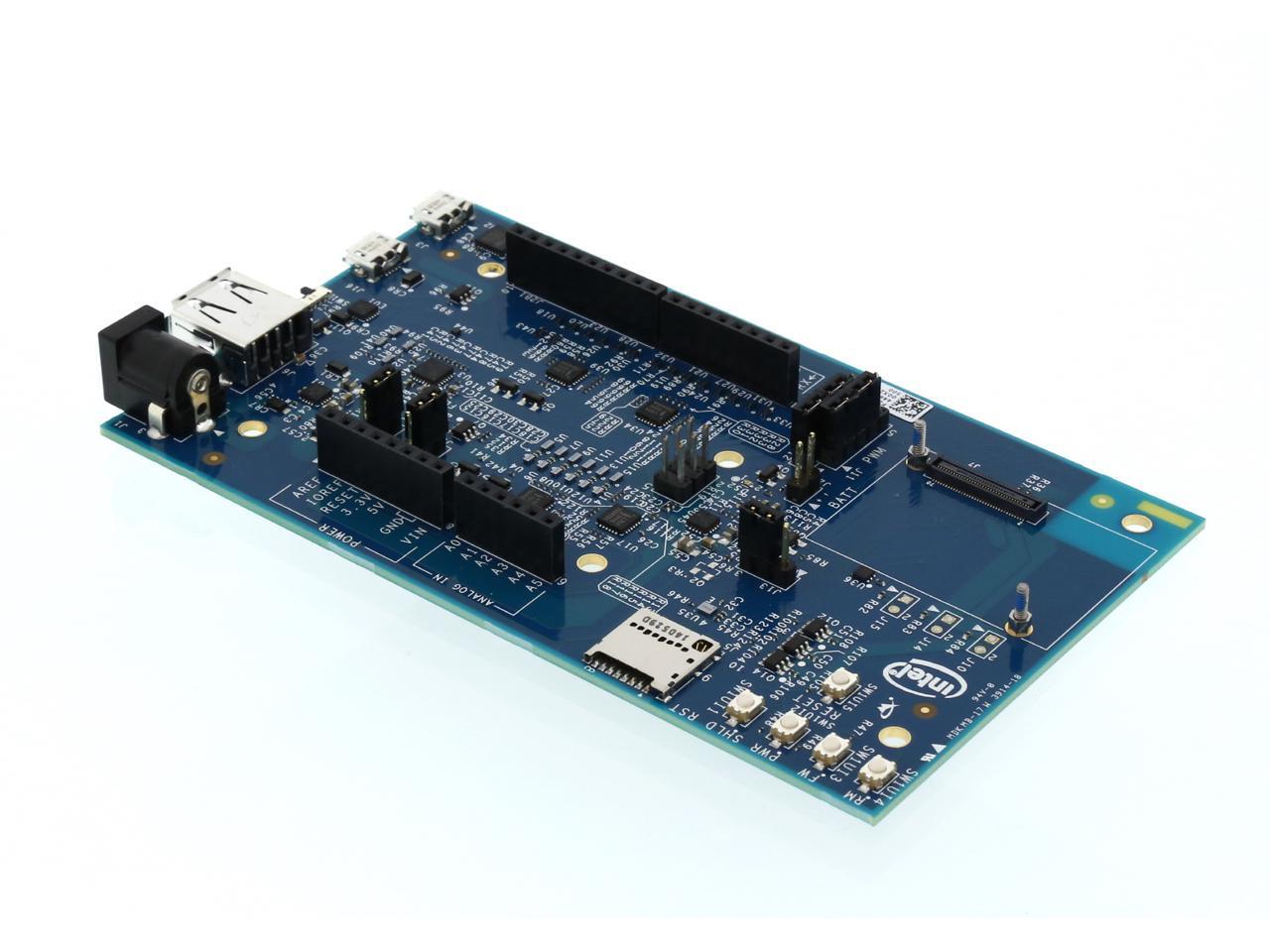

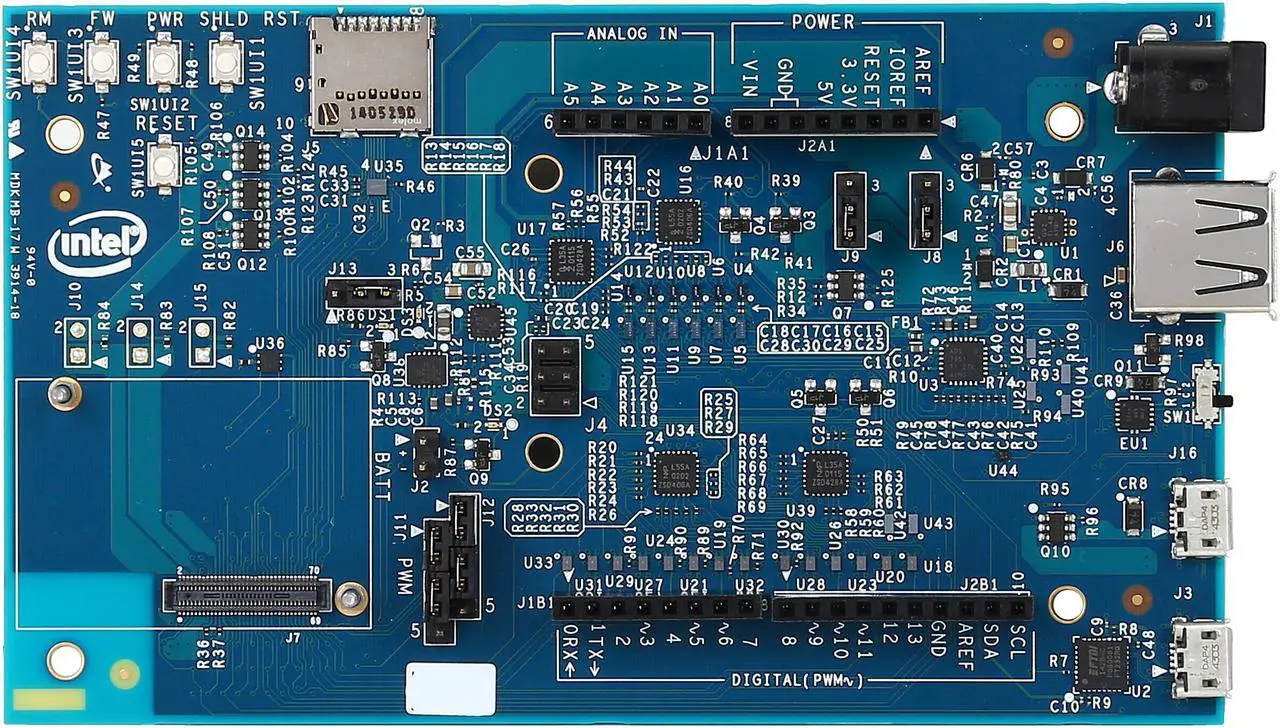

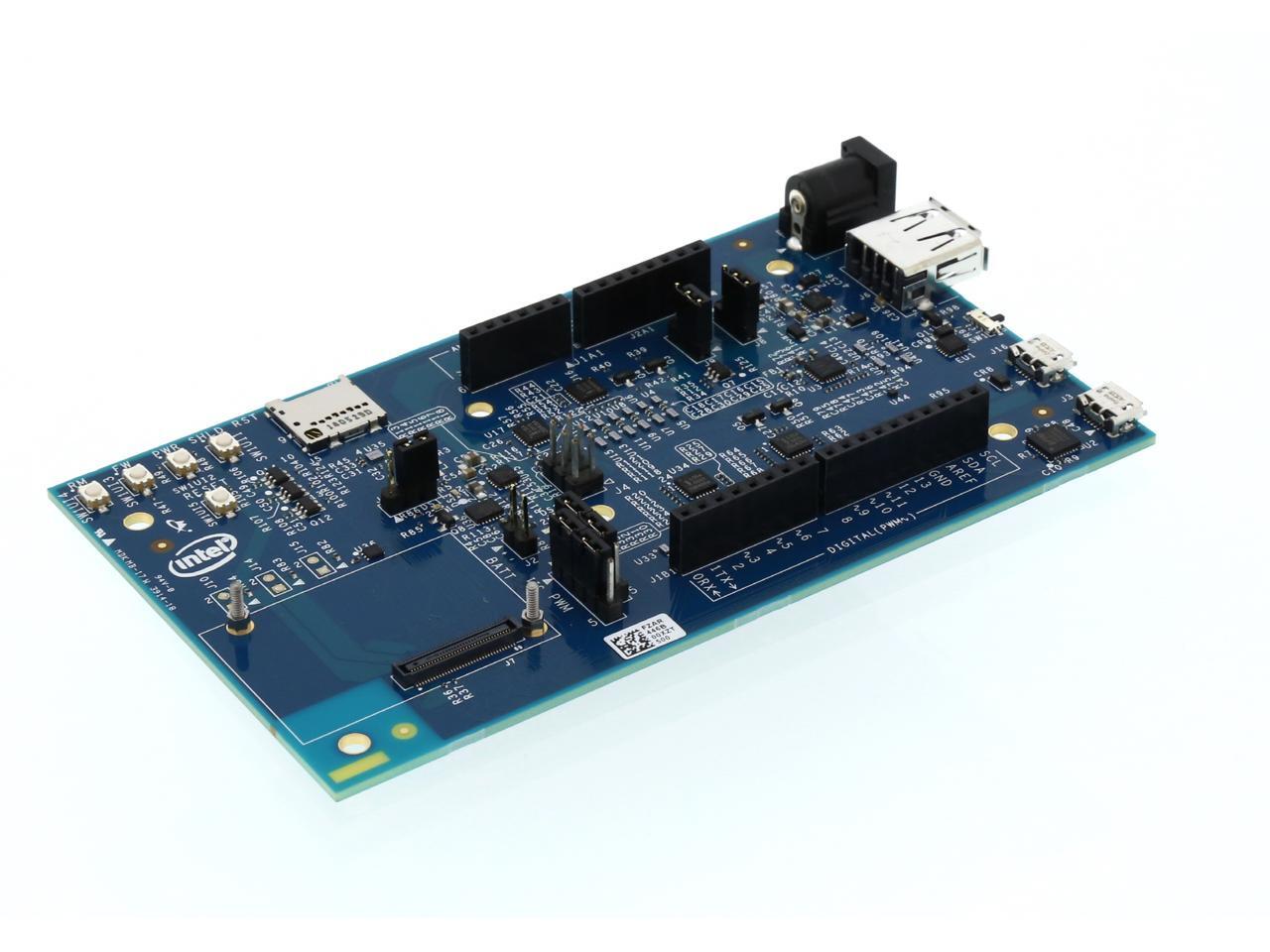

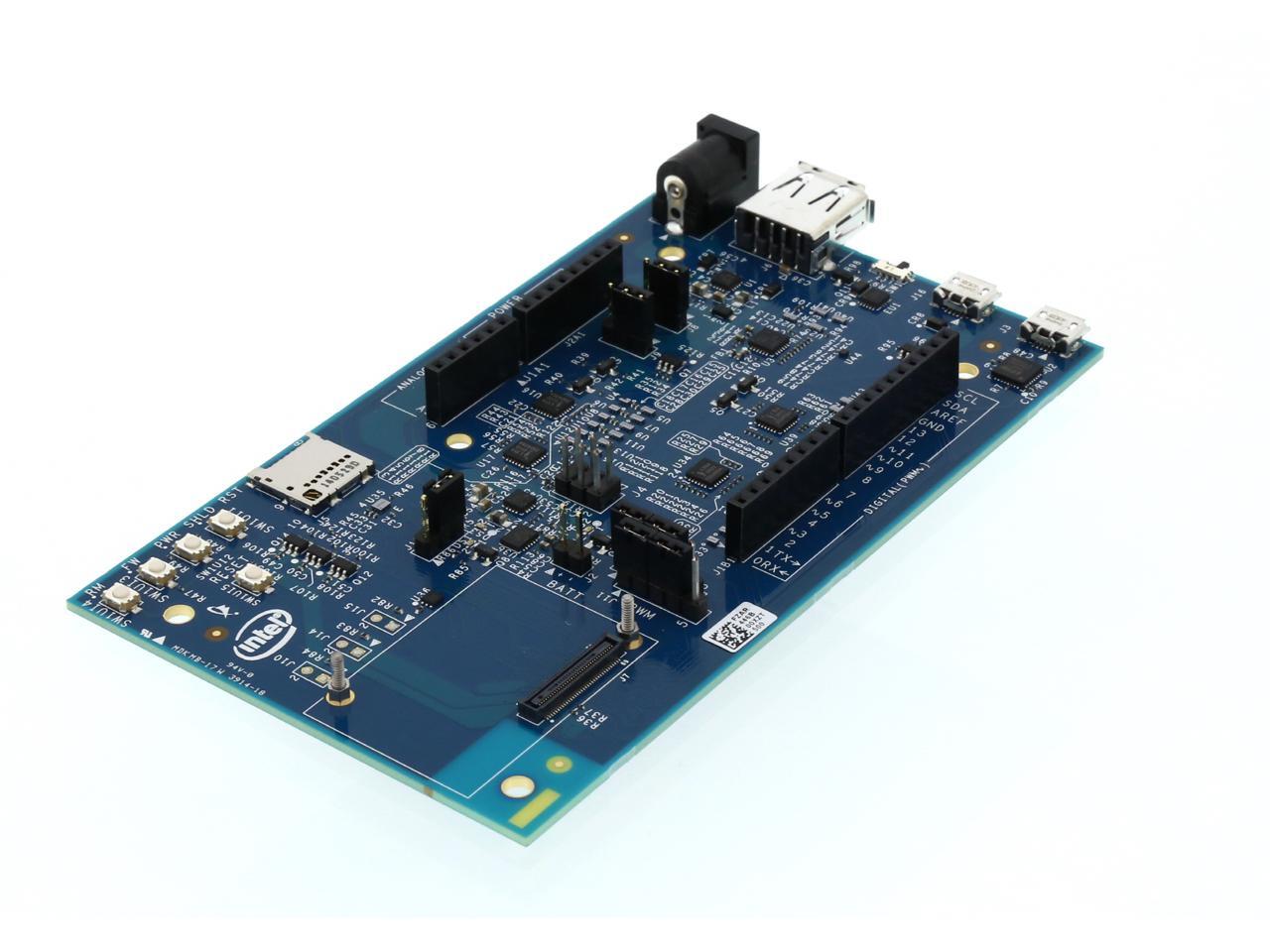

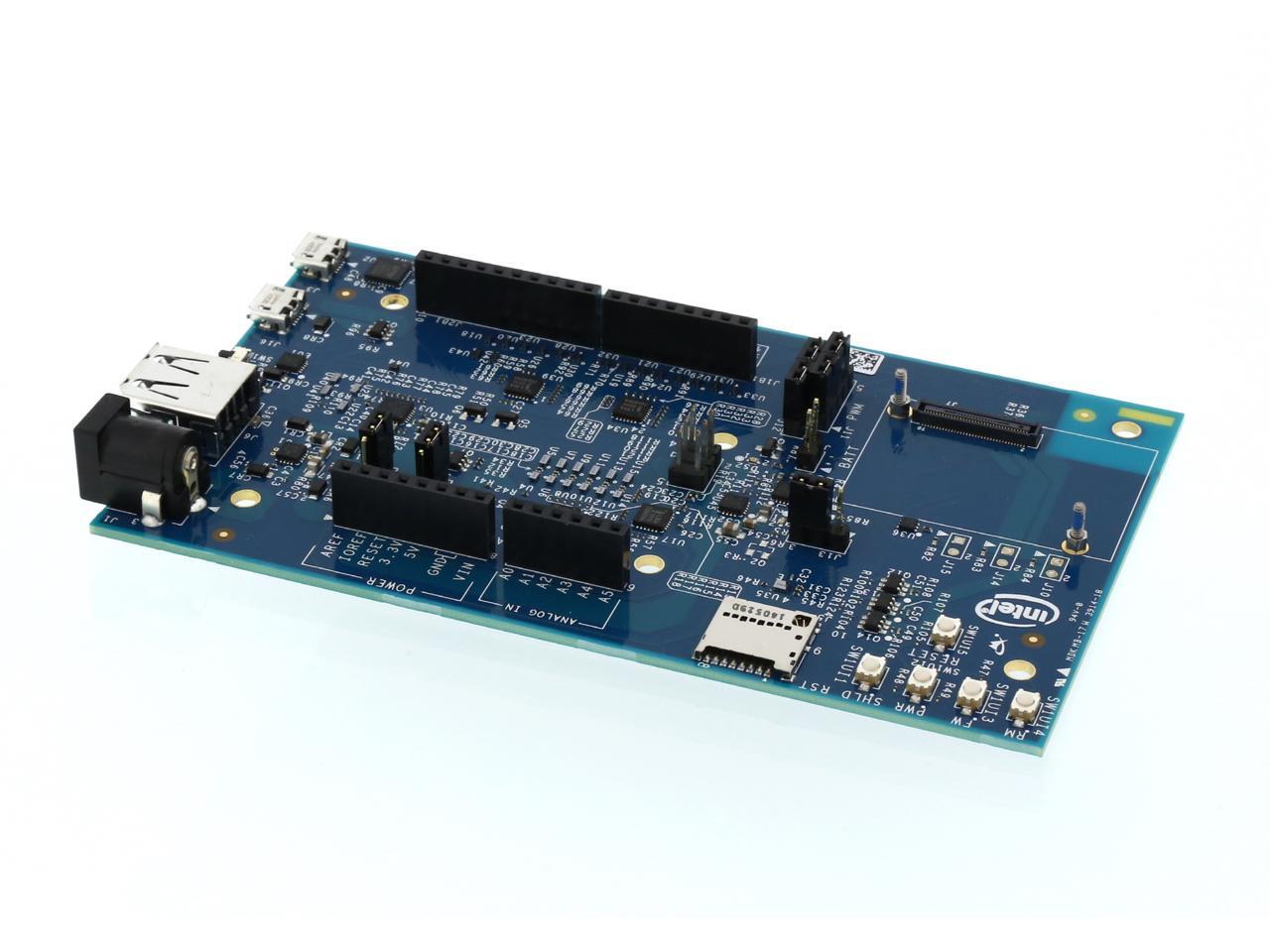

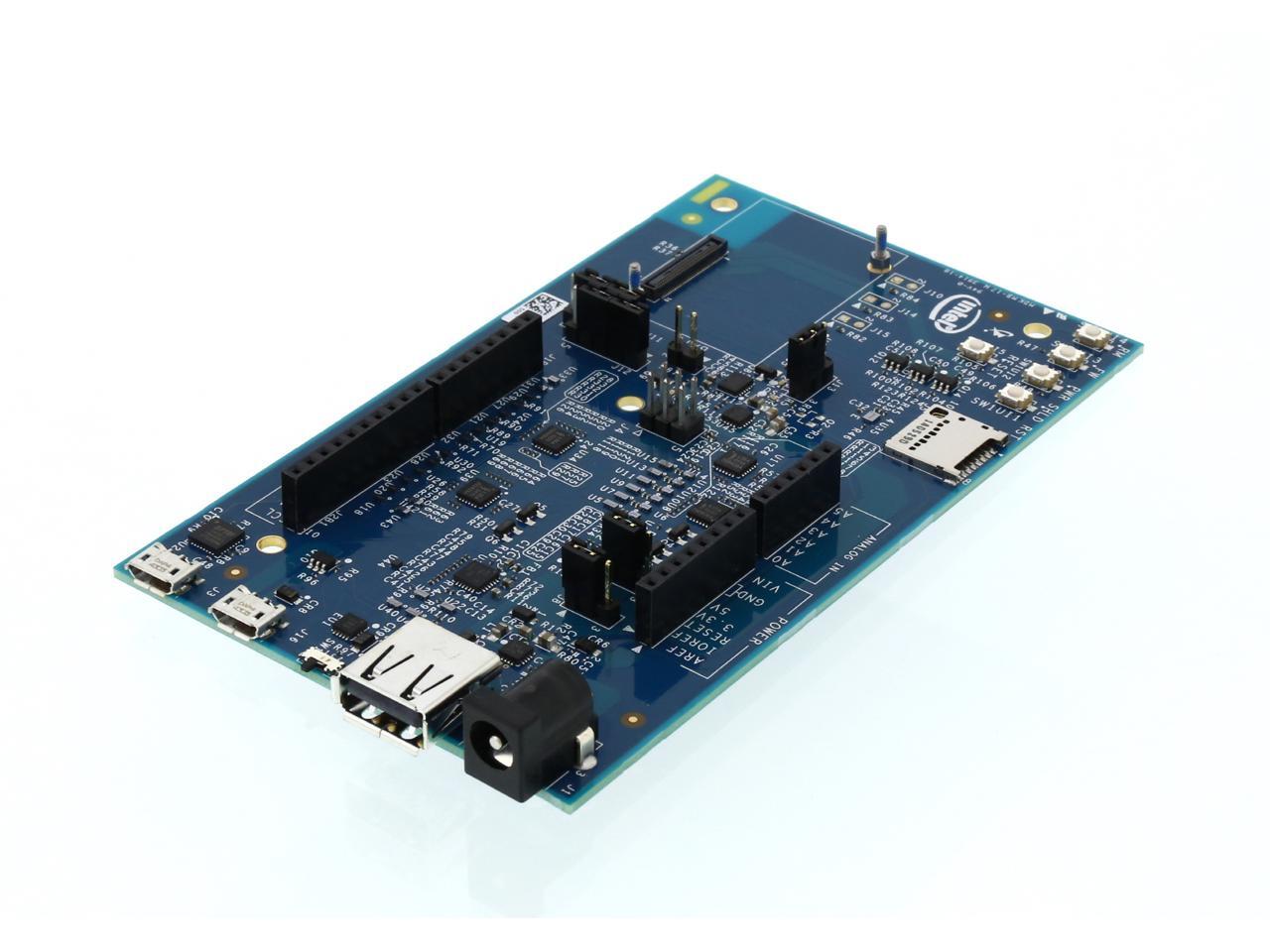

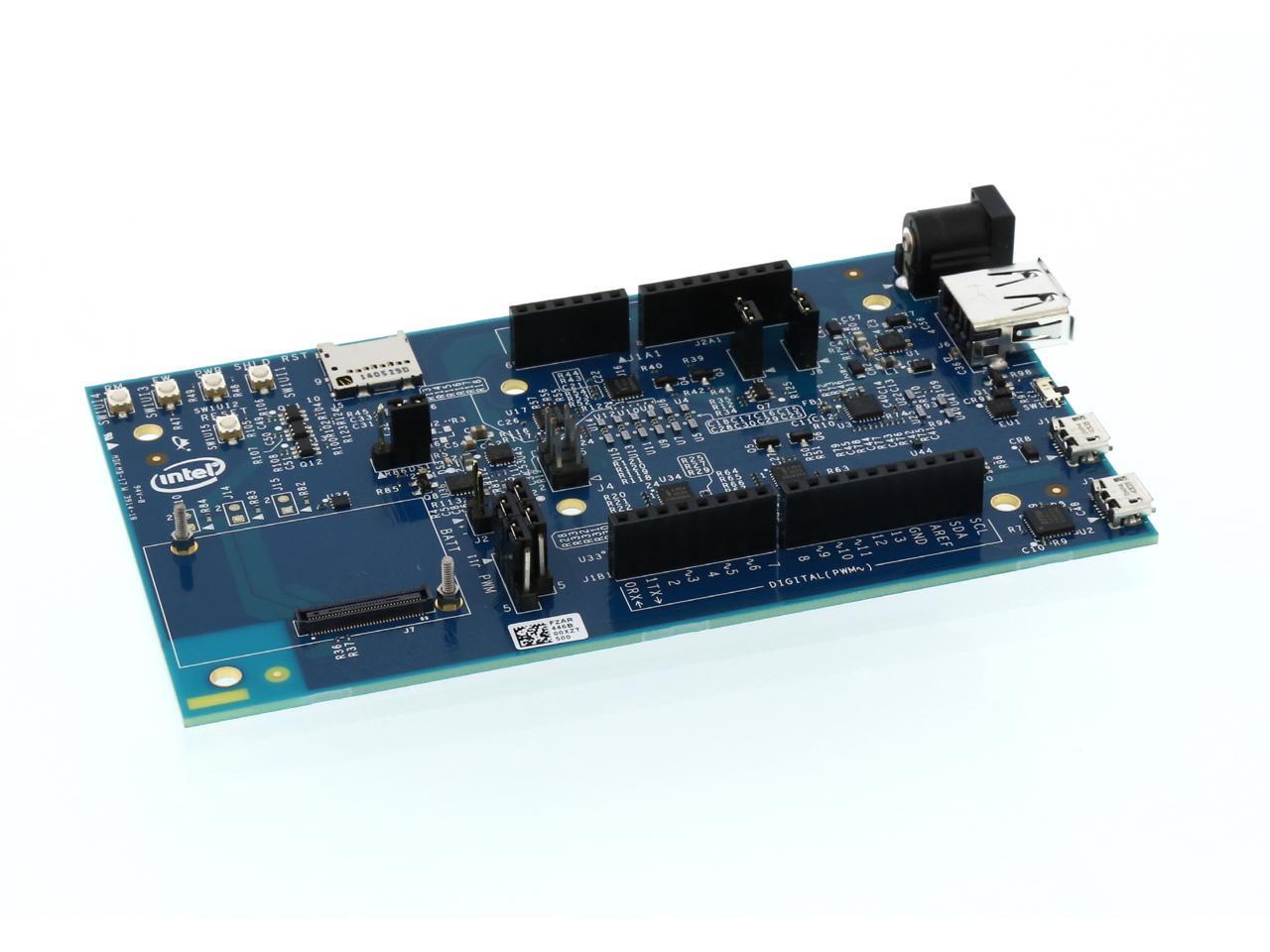

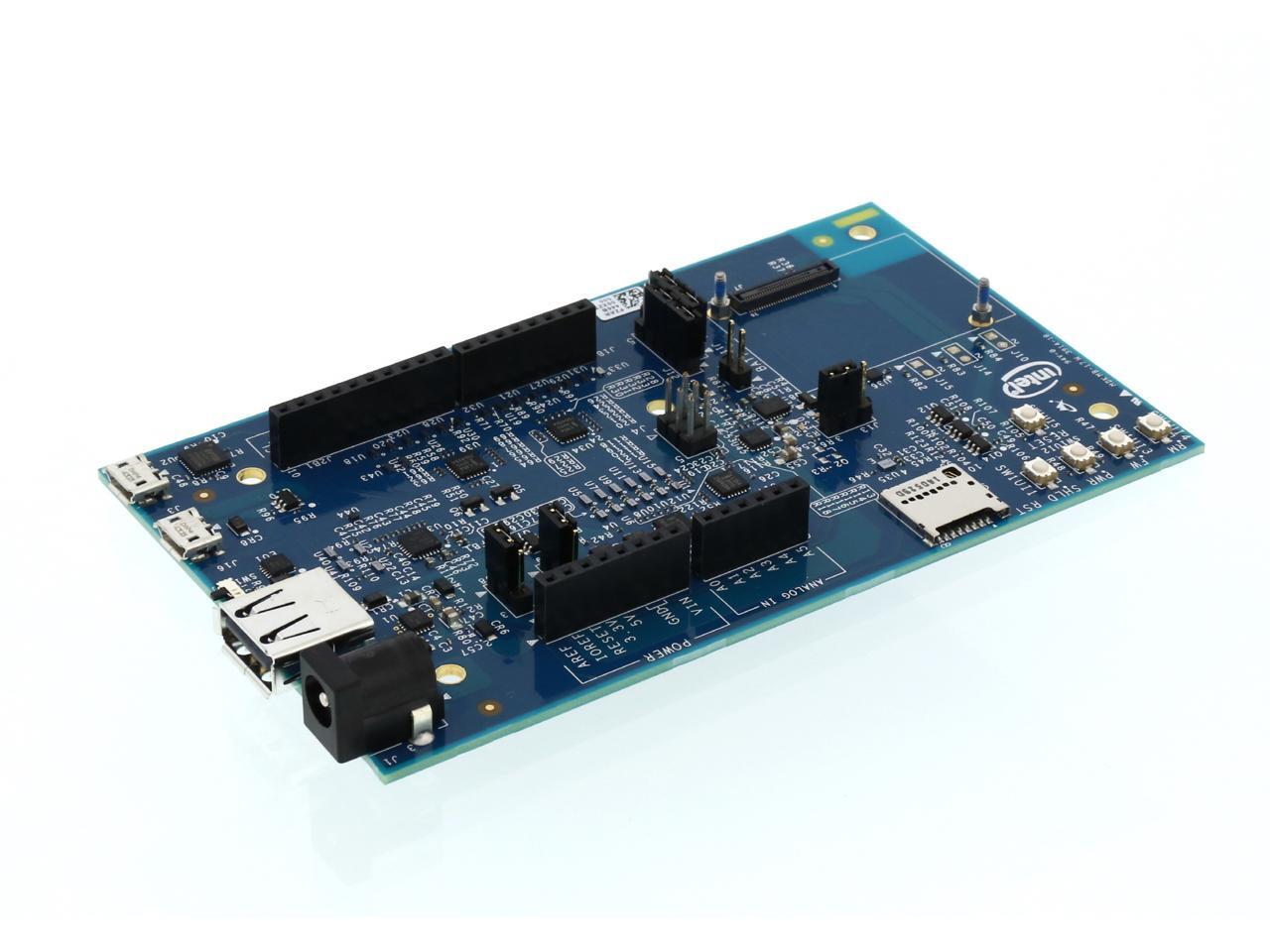

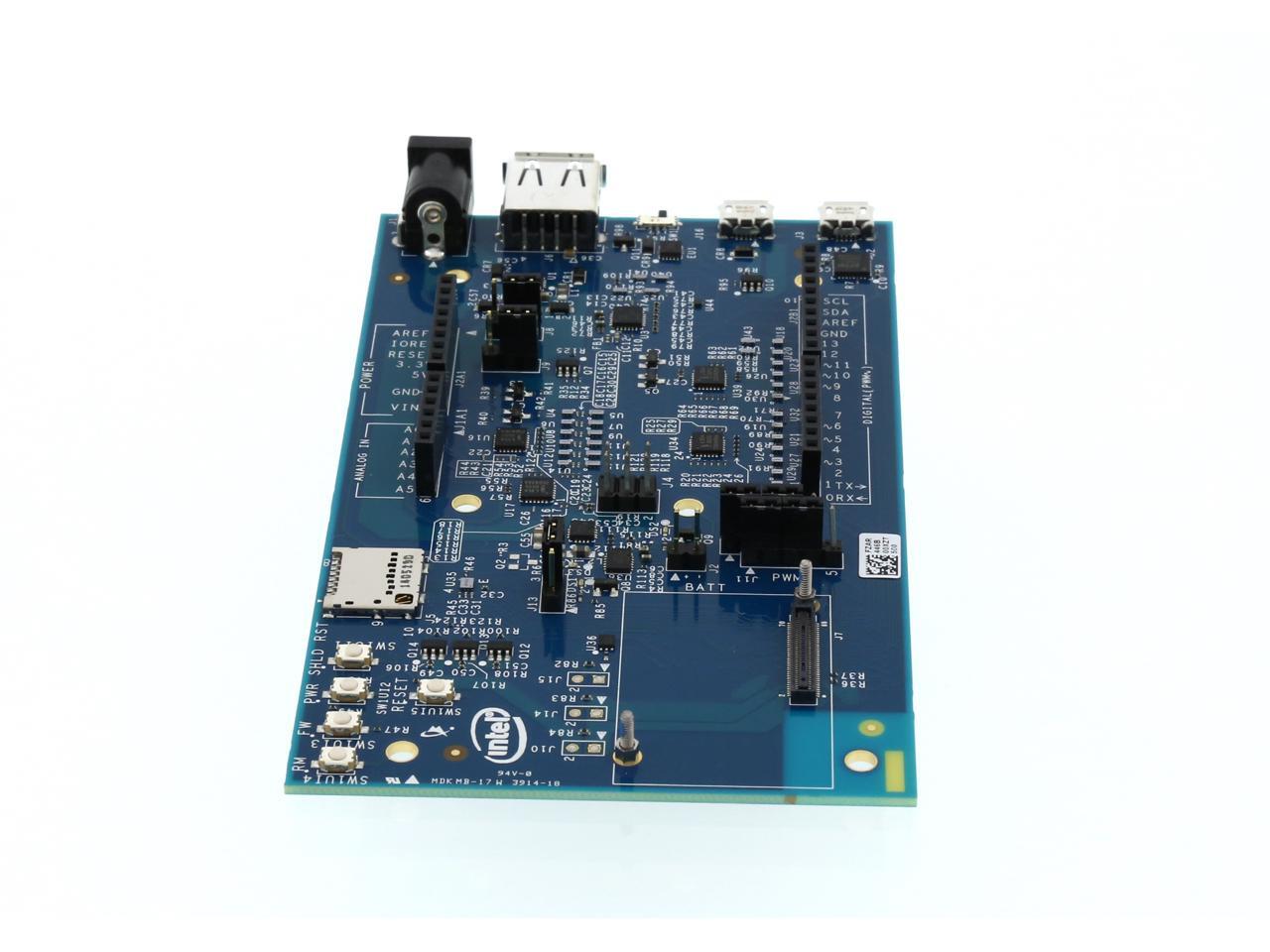

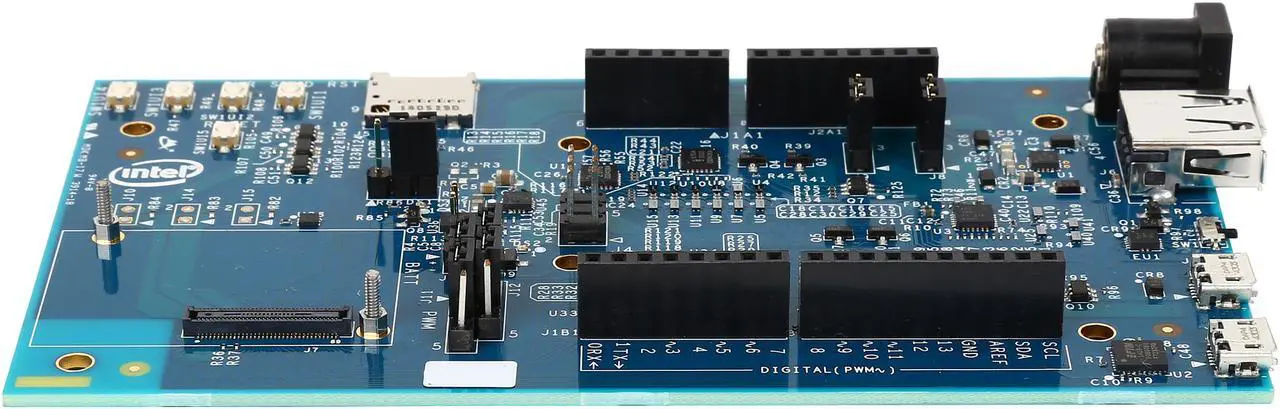

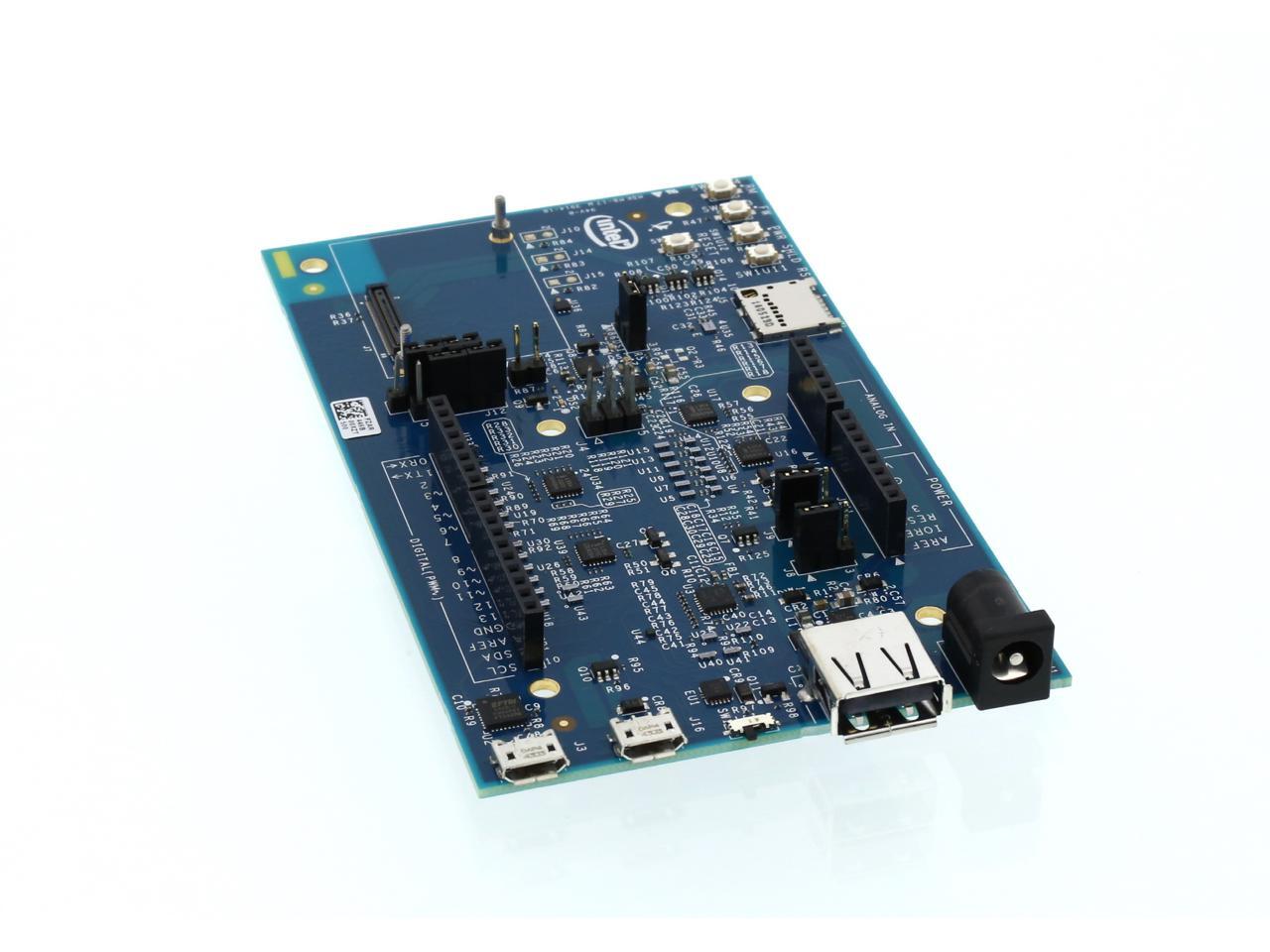

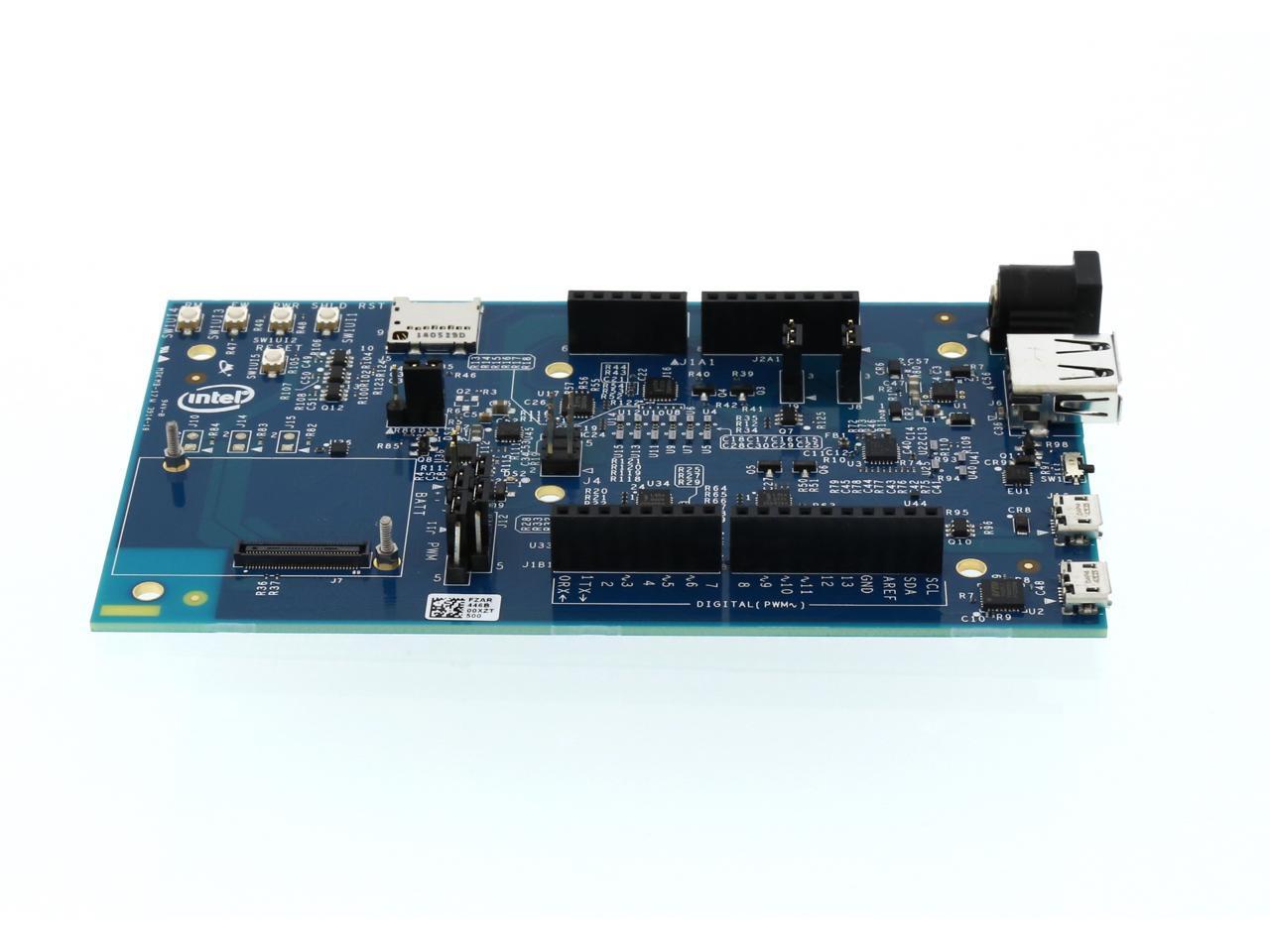

Intel Edison Board for Arduino*

Supports Arduino Sketch, Linux, Wi-Fi, and Bluetooth.
Board I/O: Compatible with Arduino Uno (except 4 PWM instead of 6 PWM):
- 20 digital input/output pins, including 4 pins as PWM outputs.
- 6 analog inputs.
- 1 UART (Rx/Tx).
- 1 I2C.
- 1 ICSP 6-pin header (SPI).
- Micro USB device connector OR (via mechanical switch) dedicated standard size USB host Type-A connector.
- Micro USB device (connected to UART).
- SD card connector.
- DC power jack (7 to15 VDC input).

Intel Edison Breakout Board
Slightly larger than the Intel Edison module, the Intel Edison Breakout Board has a minimal set of features:
- Exposes native 1.8 V I/O of the Edison module.
- 0.1 inch grid I/O array of through-hole solder points.
- USB OTG with USB Micro Type-AB connector.
- USB OTG power switch.
- Battery charger.
- USB to device UART bridge with USB micro Type-B connector.
- DC power supply jack (7 to 15 VDC input).

Intel IoT Analytics Platform
- Provides seamless Device-toDevice and Device-to-Cloud communication.
- Ability to run rules on your data stream that trigger alerts based on advanced analytics.
- Foundational tools for collecting, storing, and processing data in the cloud.
- Free for limited and noncommercial use.
Physical Spec
Form Factor Board with 70-pin connector
Dimensions (W x L) 1.40" x 0.98"
Additional Information
Date First Available April 15, 2015
