Question 1

Will this PCI card work in a PCIe x16 wired x8 (1/2 length) slot?  The 1/2 length slot may be the issue.

Accepted Answer

If you're referring to the shorter PCI-e slots, then yes this will work (assuming you have clearance space beyond that slot to account for the length of the card itself...you should though).

I have mine connected in the shorter PCI-e 16x slot in my server and it works flawlessly. Just make sure you put the top screw in as the card doesn't have as much "support" given the shorter length PCI-e slot.

Question 2

is this ethernet card compatible with Window 8, not a server?

Accepted Answer

I can't say for sure whether it'll be compatible with Windows 8, but I would assume so, based on that it worked for me under both Linux and Windows 10. That is my 2 cents worth..Good luck.

Question 3

Does this nic support teaming?

Accepted Answer

It does support NIC teaming, but it depends on your operating system. Windows Server, yes. Windows 10 Pro, no. Intel "supposedly" created a software that would allow for teaming, but it will not work on Windows 10 Pro.

Question 4

Hi new to computers, but can I use this along with the ethernet port on my motherboard to get fast internet connections for gaming and things of that nature?

Accepted Answer

Yes, but likely a single port (Dual port, using only one, OK also) 1000Mbps would be plenty.  Be sure you have the proper PCI-Express slot available on motherboard.  You can disable the Ethernet port on your motherboard via. the BIOS if it is causing problems, it's no longer needed, or it's slow.

Question 5

is this card linux compatible?

Accepted Answer

I use it with Fedora without problems.

Question 6

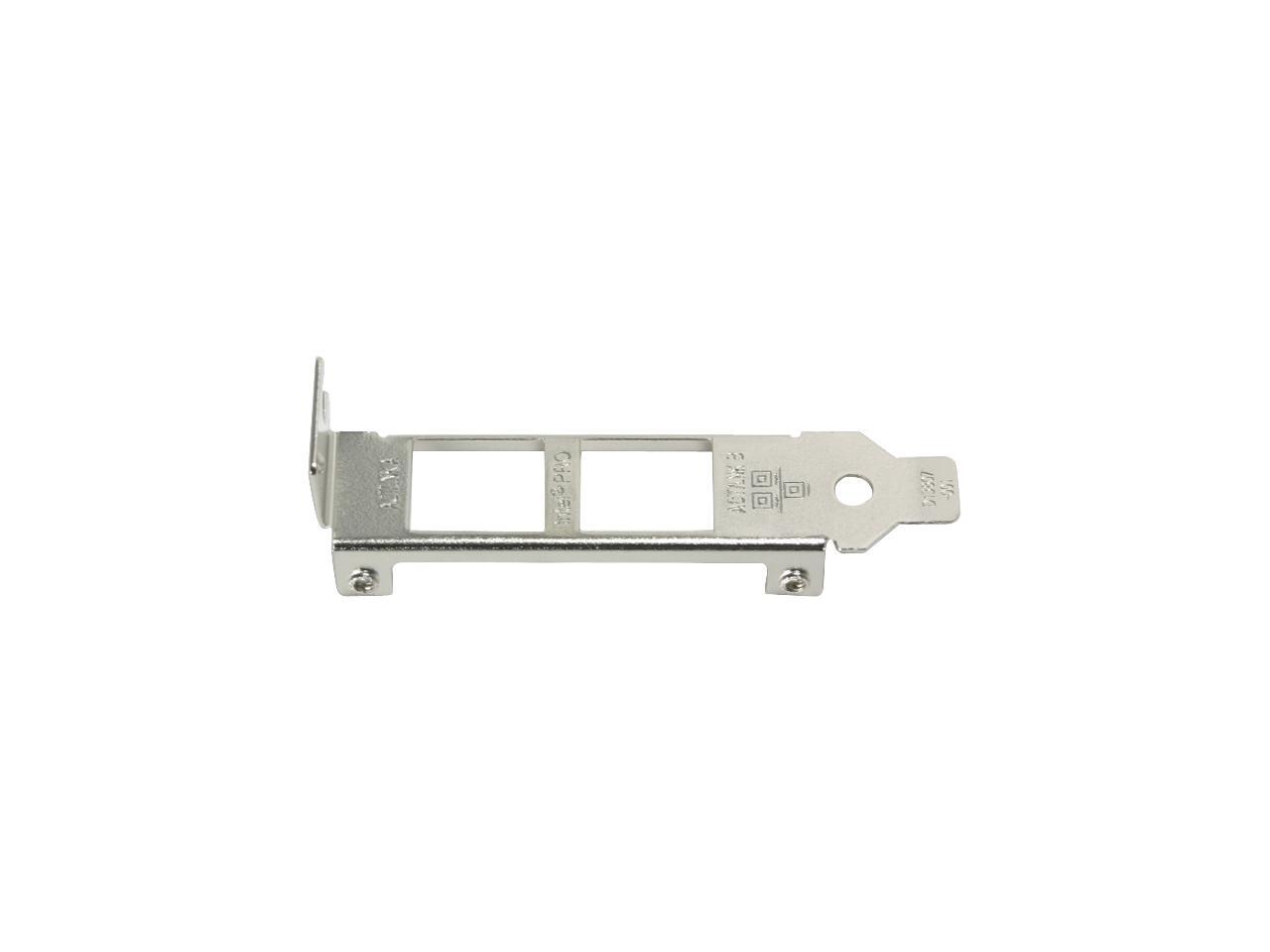

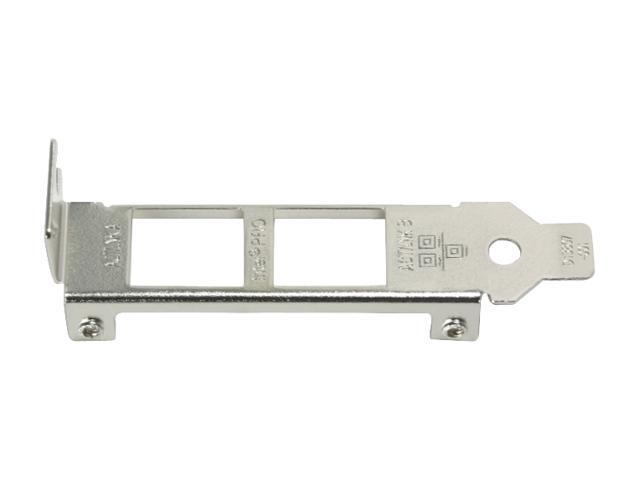

Does this come with a low profile bracket?

Accepted Answer

Mine did

Question 7

does this have the CRC loading off function?

Accepted Answer

According to windows 10 default drivers, it offers "IPV4 Checksum offload", "TCP Checksum offload" and "UDP checksum offload" for both IPV4 and IPV6.

Question 8

Is this compatible with Windows Server 2012 Essentials R2? I have an ASrock X99 board and the integrated doesn't work.

Accepted Answer

Sure is, I am using mine in a Windows 2012 R2 Enterprise server and it works great!

Question 9

Hi, will this card work on an Asus Crosshair formula IV motherboard? It has a PCI_E x16 slot.

Accepted Answer

yes

Brand	Intel
Model	EXPI9402PTBLK

Standards	IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
Speed	10/100/1000Mbps

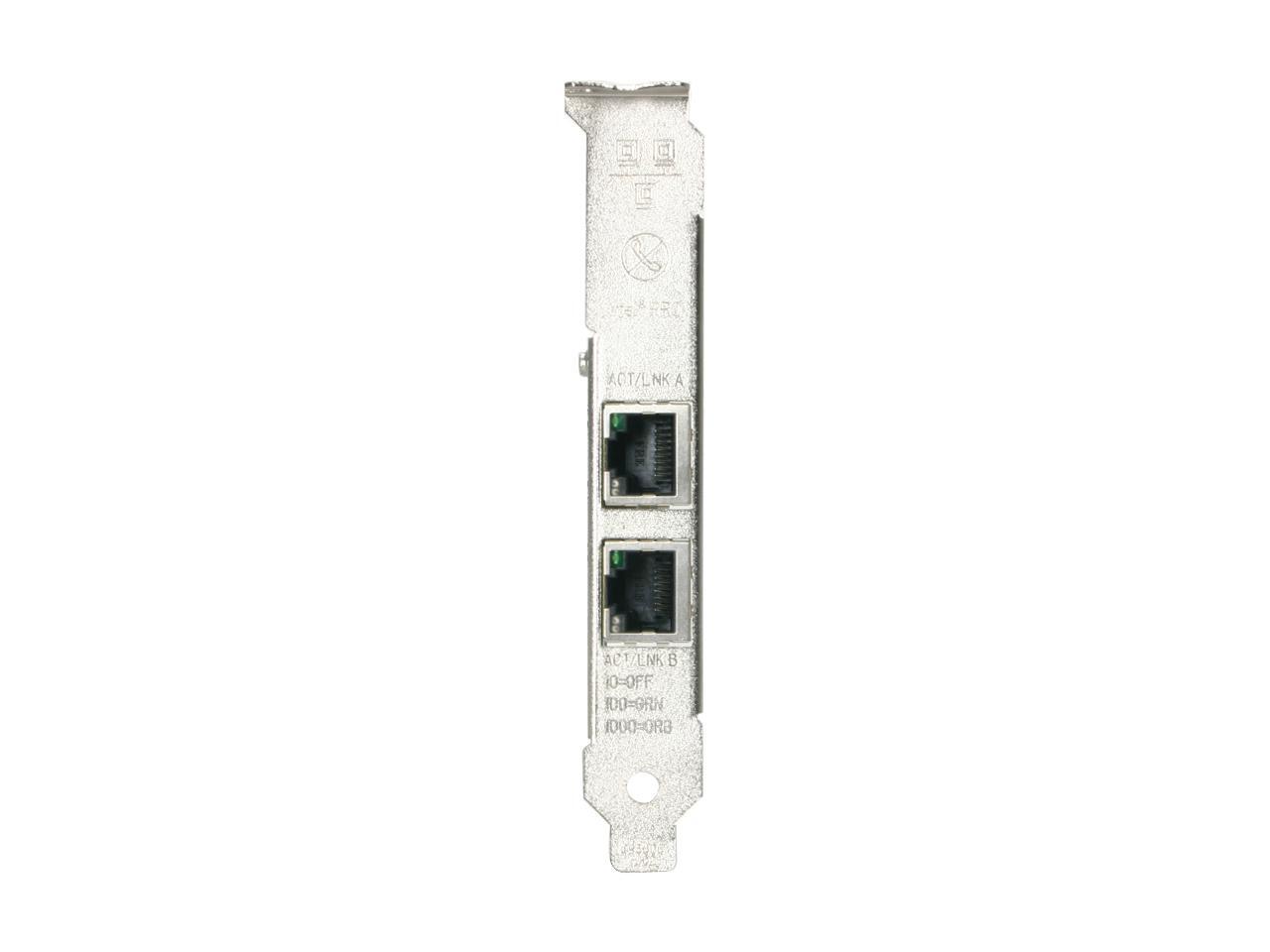

Connectors	2 x RJ45
Interface	PCI-Express
BUS	PCI Express 1.0a x4 lane PCI Express, operable in x4, x8, x16 slots
LEDs	4 (1/port, link and speed) solid and blinking
Wake On LAN	Yes
Temperature	0°C ~ 55°C
Windows Vista	Certified for Windows Vista

Intel EXPI9402PTBLK Two Gigabit Copper Server Connections 10/100/1000Mbps PCI-Express 2 x RJ45 - OEM
